F032114727 - Alternator

Trade number 114727

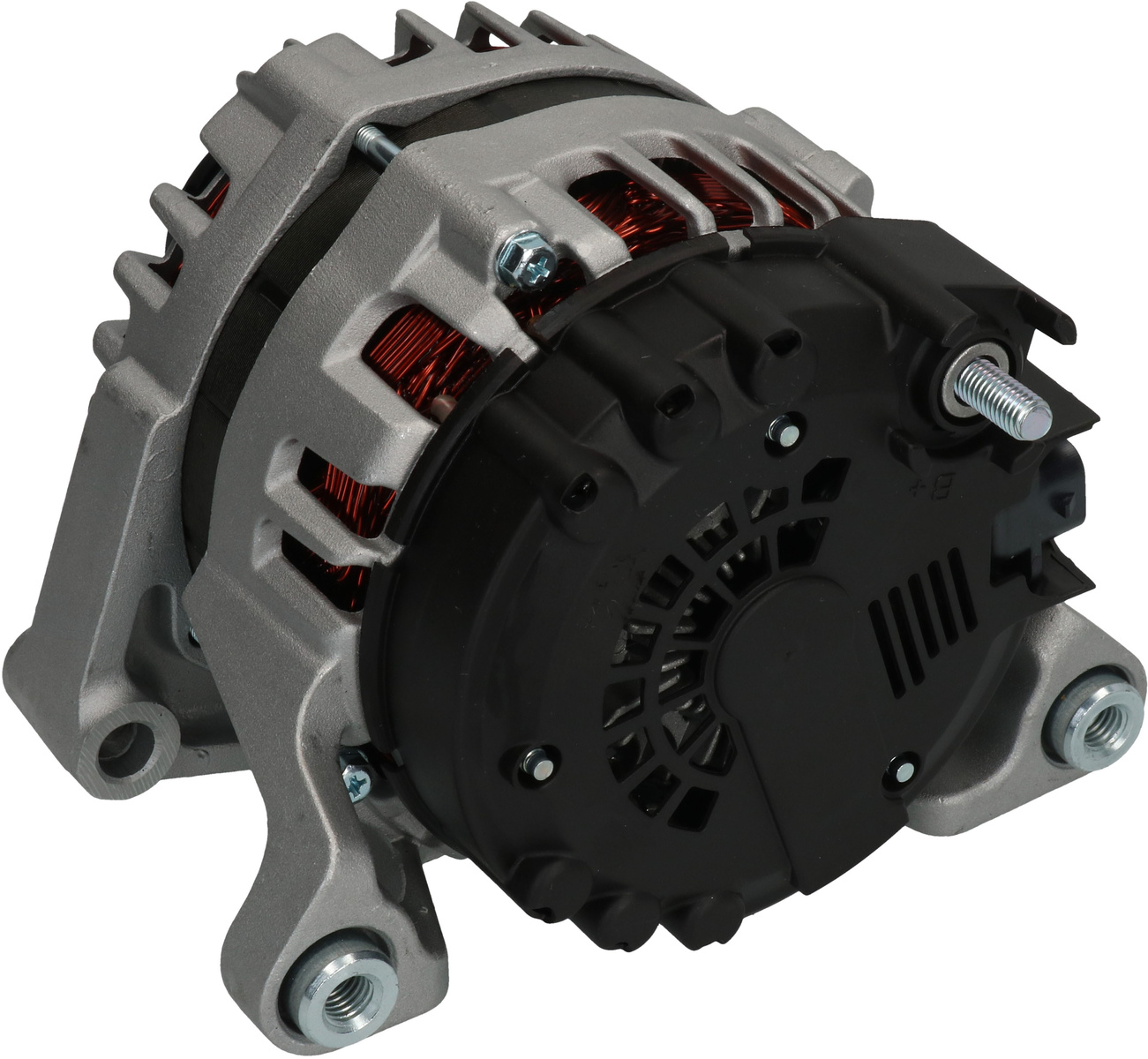

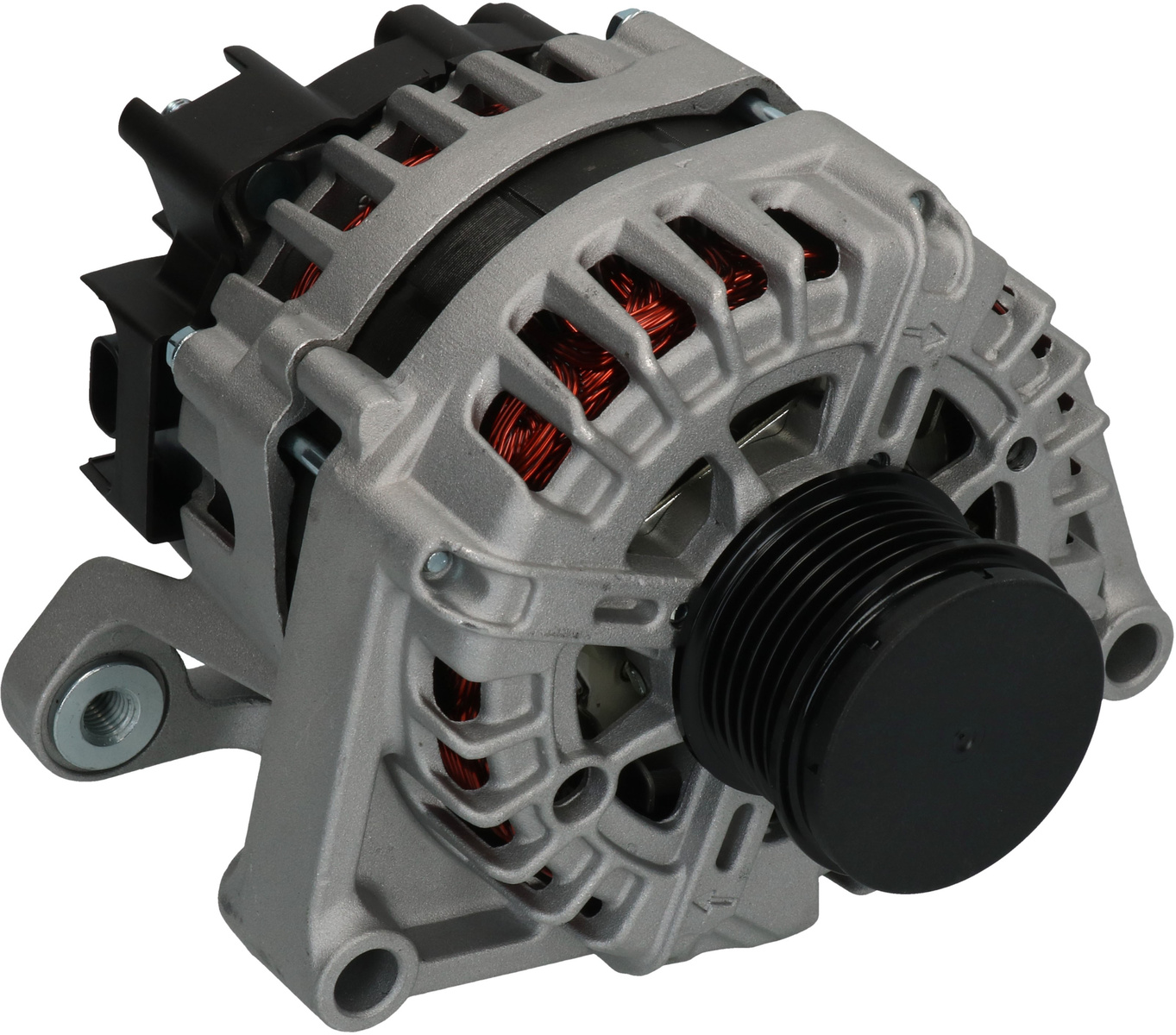

Product image - main
Trade number 114727

Details & description

Voltage 14, Amp 130, Communication PWM, Pulley SP/FW, Pulley Diameter 53.70, Bracket Hole Size Rear M10, D+ Position 5, Pulley Distance 55.00, Remarks 3 This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 61.00, Radius 92.00, Belt Adjustment Bracket Hole 1 11.70, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 11.70, Lamp type Inactive, Terminal type L-F, Holder Arm Width 33.50, B+ M8, Radius 2 92.00, Plug no. 1 PL180, Rotation CW, B+ Position 56, Belt Adjustment Bracket Hole Position 50, Total Length 187.00

Product information

Voltage:14
Amp:130
Communication:PWM
Pulley:SP/FW
Pulley Diameter:53.70
Bracket Hole Size Rear:M10
D+ Position:5
Pulley Distance:55.00
Remarks 3:This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:61.00
Radius:92.00
Belt Adjustment Bracket Hole 1:11.70
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:11.70
Lamp type:Inactive
Terminal type:L-F
Holder Arm Width:33.50
B+:M8
Radius 2:92.00
Plug no. 1:PL180
Rotation:CW
B+ Position:56
Belt Adjustment Bracket Hole Position:50
Total Length:187.00

Replacing and BOMs

OEM number

13577154CHEVROLET
1202304OPEL
1202309OPEL
13597227OPEL
1202215OPEL
13577154OPEL
13588289OPEL
13597226OPEL

Competitor References

DRA0877AC DELCO
DRA1405AC DELCO
553499RIAD KÜHNER
554394RIAD KÜHNER
A3488SAUTOSTARTER POLAND
A3513SAUTOSTARTER POLAND
0986083120BOSCH
1986A01735BOSCH
CAL15580CASCO SRL
835585130CV PSH
135598100CV PSH
DRA1405DELCO REMY
DRA0877DELCO REMY
2281851302DRI
286576ELSTOCK
209244AERA SPA
209328AERA SPA
209244ERA SPA
209328ERA SPA
12090719EUROTEC
114727HC-CARGO
8EL011713581HELLA
LRA03466LUCAS
FG12S031VALEOBOM
FG12S064VALEOBOM
FGN12S064VALEO
FGN12S065VALEO
440637VALEO
849048VALEO
849103VALEO
11399NWAI
11399RWAI
