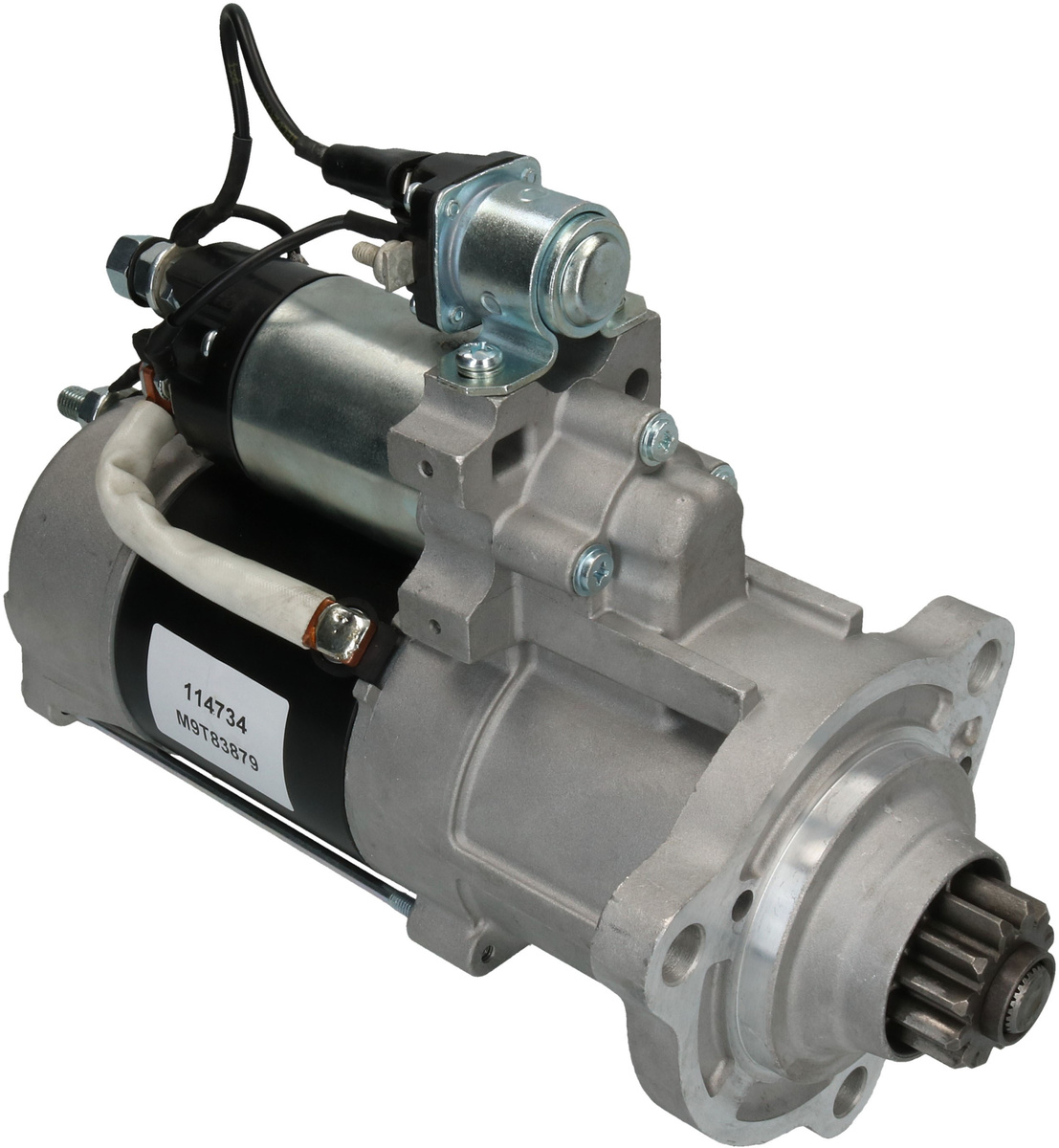

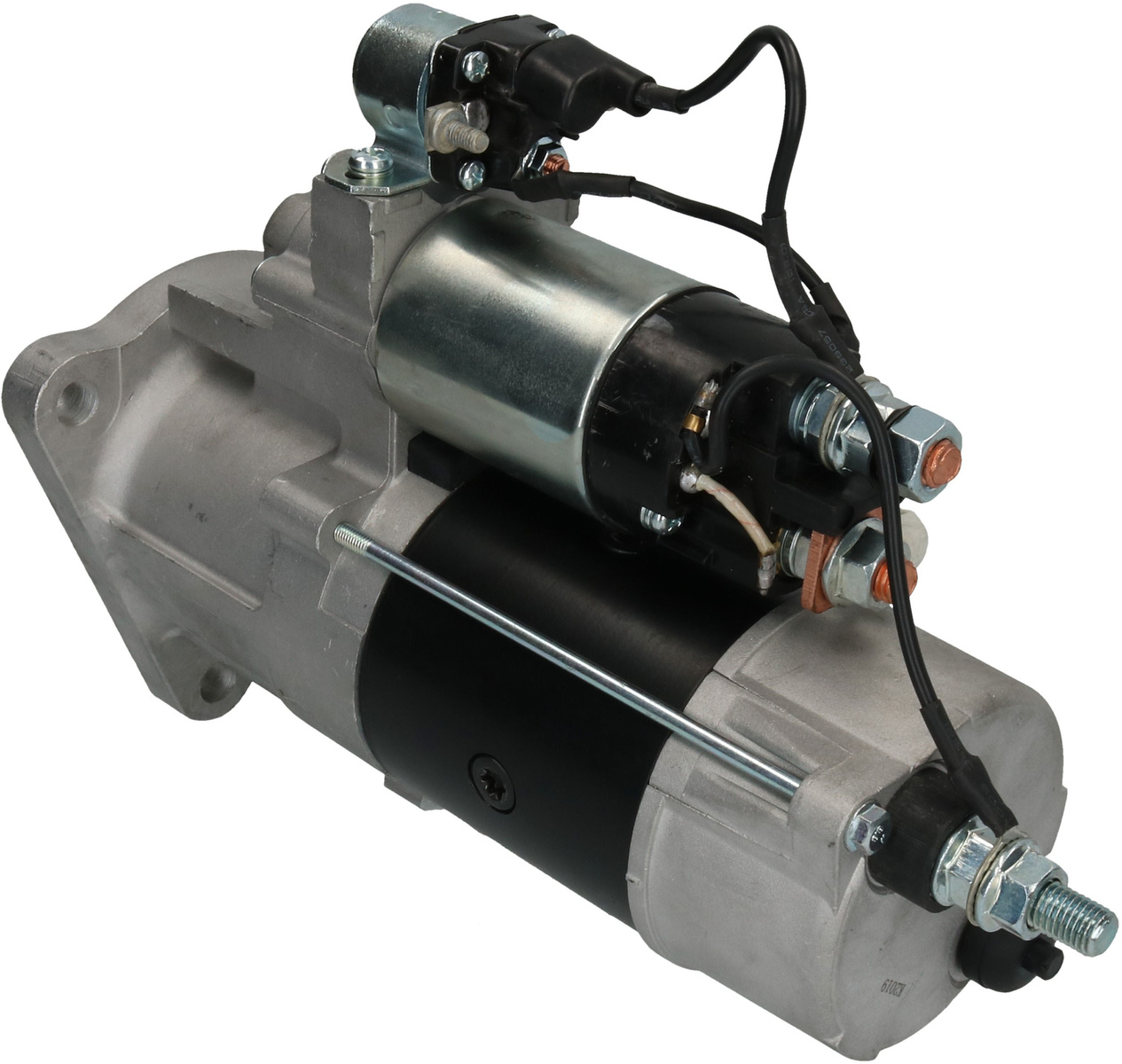

F032114734 - Starter
Trade number 114734Details & description
Insulated return Yes, Voltage 24, kW 7.0, Mounting Hole 2 14.50, Rear Distance 348.00, Distance 3 126.00, Drive Distance 47.50, Distance 2 126.00, Mounting Flange 92.00, Distance 126.00, Mounting Hole 3 14.50, No./mount. holes 3 (0), Thread Length 43.50, Gear type GR, B- M12, Front Distance 56.00, No./teeth 12, B+ M12, Terminal 50 M6, Rotation CW, Position 52, Mounting Hole 1 14.50, B+ Position 60, Total Length 404.00, Amount of Mounting Holes 3 (0)
Product information
Insulated return:Yes
Voltage:24
kW:7.0
Mounting Hole 2:14.50
Rear Distance:348.00
Distance 3:126.00
Drive Distance:47.50
Distance 2:126.00
Mounting Flange:92.00
Distance:126.00
Mounting Hole 3:14.50
No./mount. holes:3 (0)
Thread Length:43.50
Gear type:GR
B-:M12
Front Distance:56.00
No./teeth:12
B+:M12
Terminal 50:M6
Rotation:CW
Position:52
Mounting Hole 1:14.50
B+ Position:60
Total Length:404.00
Amount of Mounting Holes:3 (0)
Replacing and BOMs
OEM number
21103722VOLVO
3801289VOLVO
3803838VOLVO
Competitor References
DRS0547AC DELCO
254471AD KÜHNER
254707AD KÜHNER
S5062AUTOSTARTER POLAND
S5204AUTOSTARTER POLAND
CST35642CASCO SRL
811513123CV PSH
DRS0547DELCO REMY
220573ERA SPA
220573AERA SPA
107133FACROM
114734HC-CARGO
MITM9T83879WOOD AUTO SUPPL
