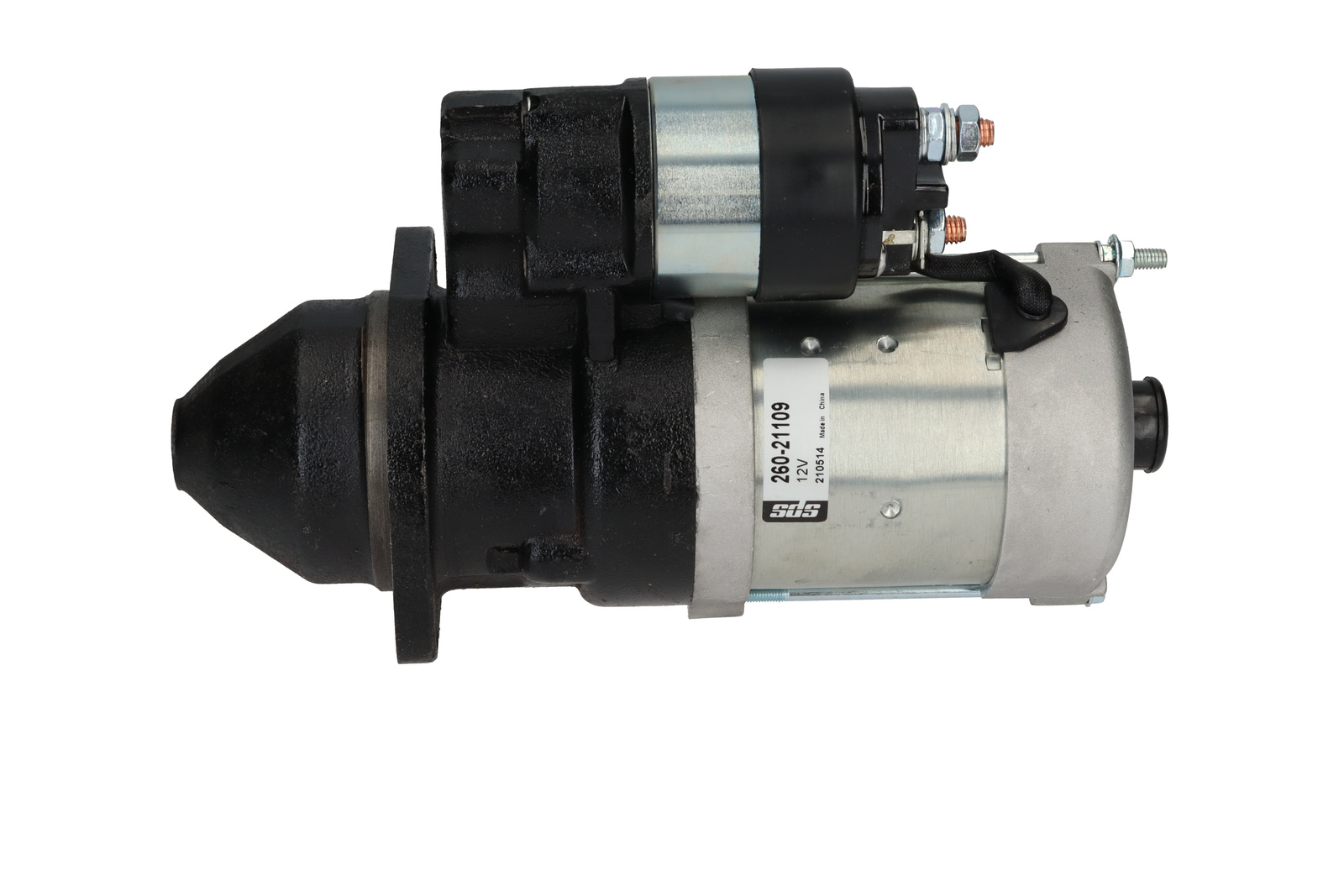

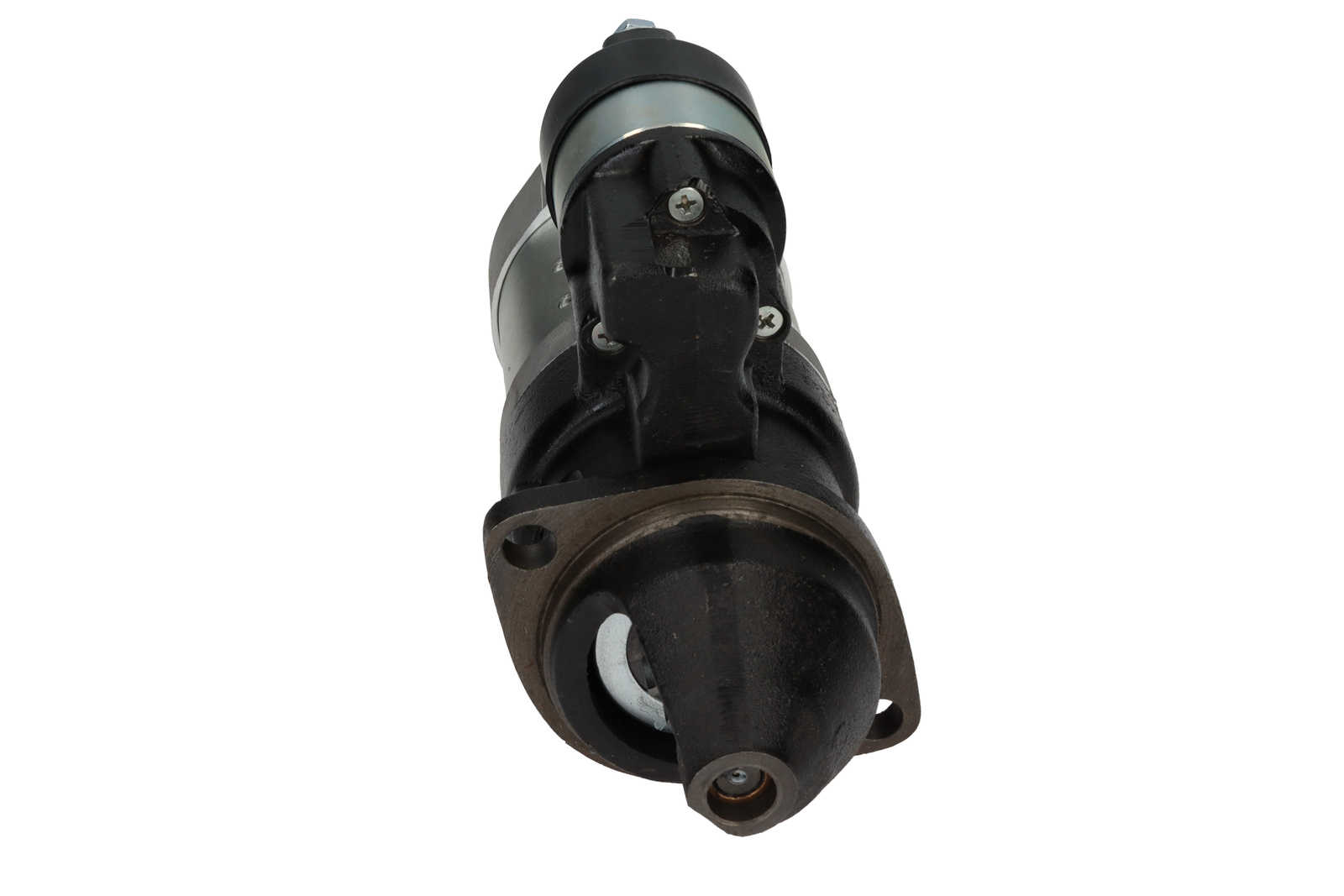

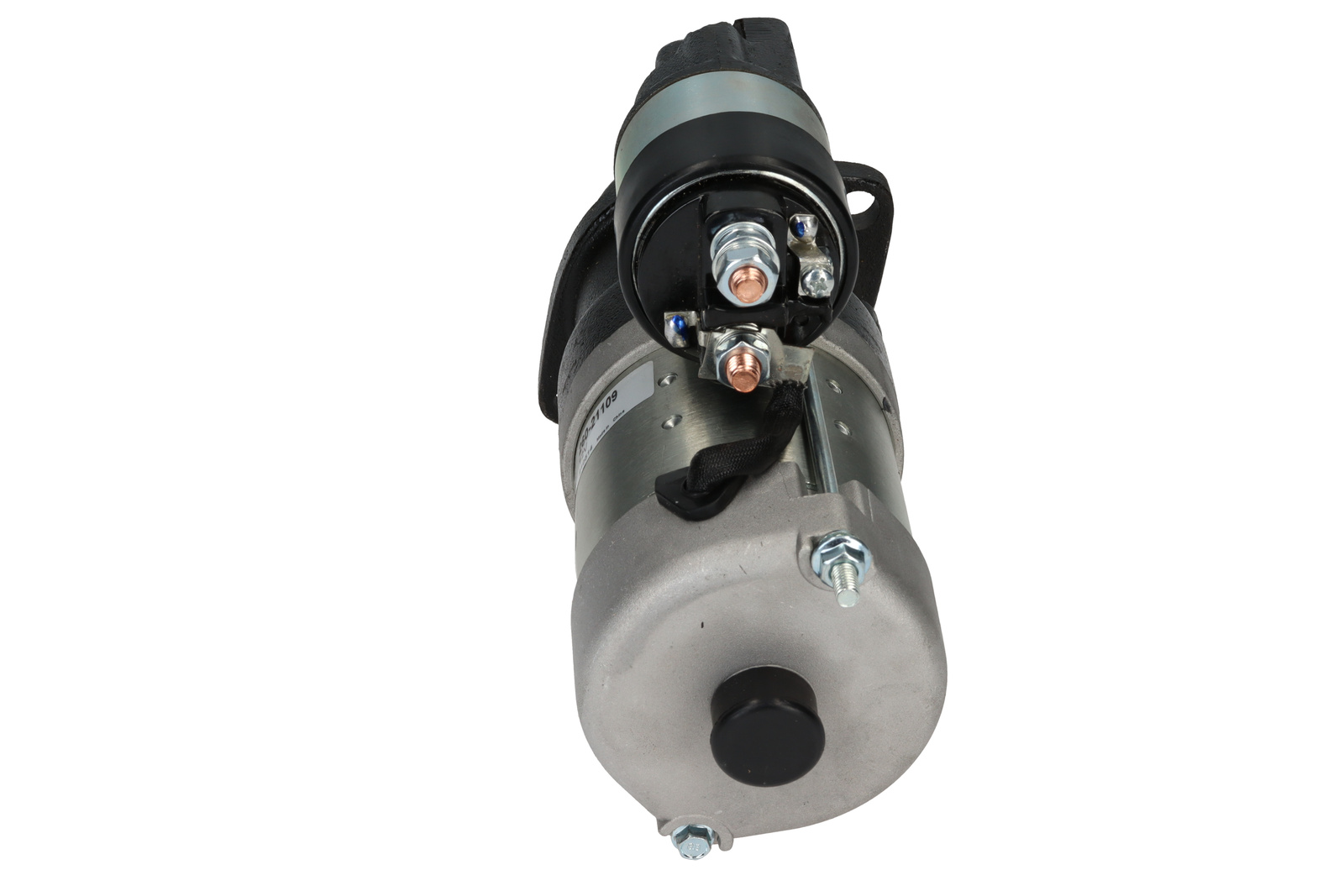

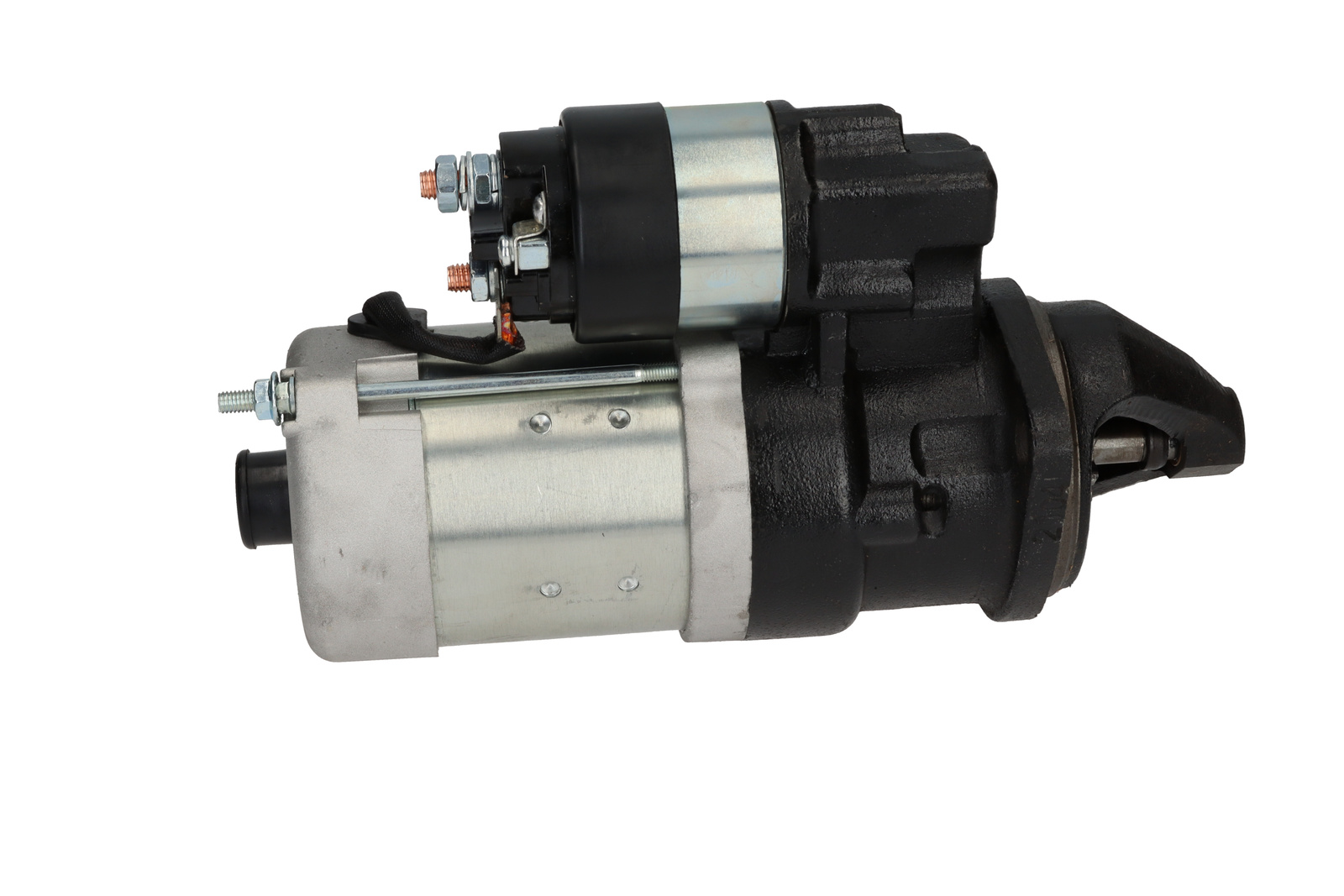

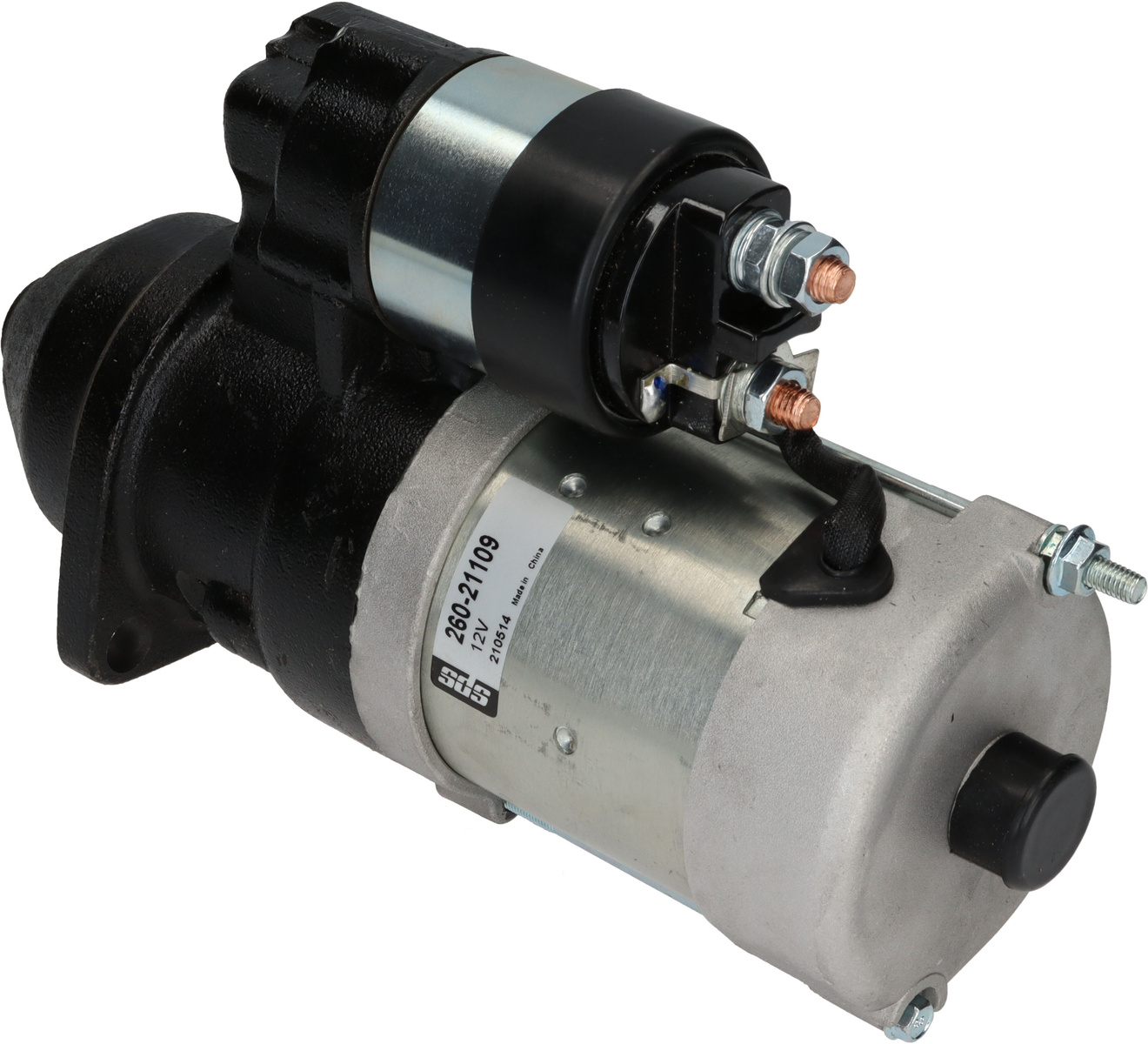

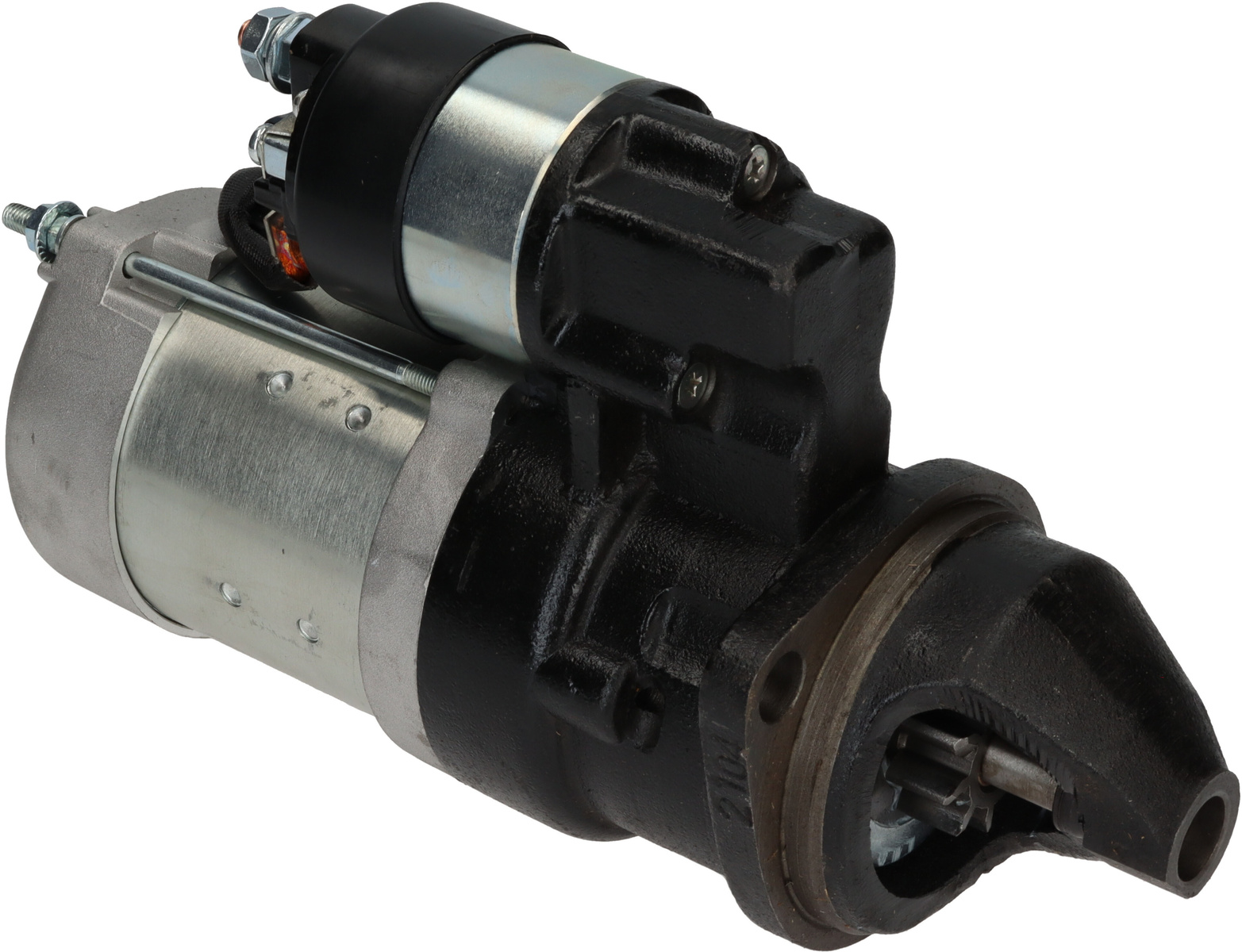

F032114743 - Starter
Trade number 114743
Replacing and BOMs
OEM number
05710928BOMAG
01171482KHD
1171482KHD
Competitor References
DRS0840AC DELCO
254047AD KÜHNER
254044AD KÜHNER
0986010847BOSCH
0986010840BOSCH
CST10270CASCO SRL
720001092CV PSH
DRS0840DELCO REMY
688007092DRI
251092ELSTOCK
11010840EUROTEC
103419FACROM
8810840FRIESEN
114743HC-CARGO
42010840HERTH U. BUSS
16787LESTER
LRS00798LUCAS
943251272MARELLI
MSR5059MARELLI
8810840QUINTON HAZELL
33469SUDEST
F032114743 - Starter
Details & description
kW 1.5, Voltage 12, No./mount. holes 2 (0), Mounting Hole 2 13.00, Rear Distance 211.00, Gear type DD/GR, Front Distance 60.00, Drive Distance 19.00, No./teeth 9, B+ M8, Terminal 50 M4, Mounting Flange 82.50, Distance 105.00, Rotation CW, Position 15, Mounting Hole 1 13.00, B+ Position 60, Amount of Mounting Holes 2 (0), Total Length 271.00
Product information
kW:1.5
Voltage:12
No./mount. holes:2 (0)
Mounting Hole 2:13.00
Rear Distance:211.00
Gear type:DD/GR
Front Distance:60.00
Drive Distance:19.00
No./teeth:9
B+:M8
Terminal 50:M4
Mounting Flange:82.50
Distance:105.00
Rotation:CW
Position:15
Mounting Hole 1:13.00
B+ Position:60
Amount of Mounting Holes:2 (0)
Total Length:271.00
Replacing and BOMs
OEM number
05710928BOMAG
01171482KHD
1171482KHD
Competitor References
DRS0840AC DELCO
254047AD KÜHNER
254044AD KÜHNER
0986010847BOSCH
0986010840BOSCH
CST10270CASCO SRL
720001092CV PSH
DRS0840DELCO REMY
688007092DRI
251092ELSTOCK
11010840EUROTEC
103419FACROM
8810840FRIESEN
114743HC-CARGO
42010840HERTH U. BUSS
16787LESTER
LRS00798LUCAS
943251272MARELLI
MSR5059MARELLI
8810840QUINTON HAZELL
33469SUDEST
