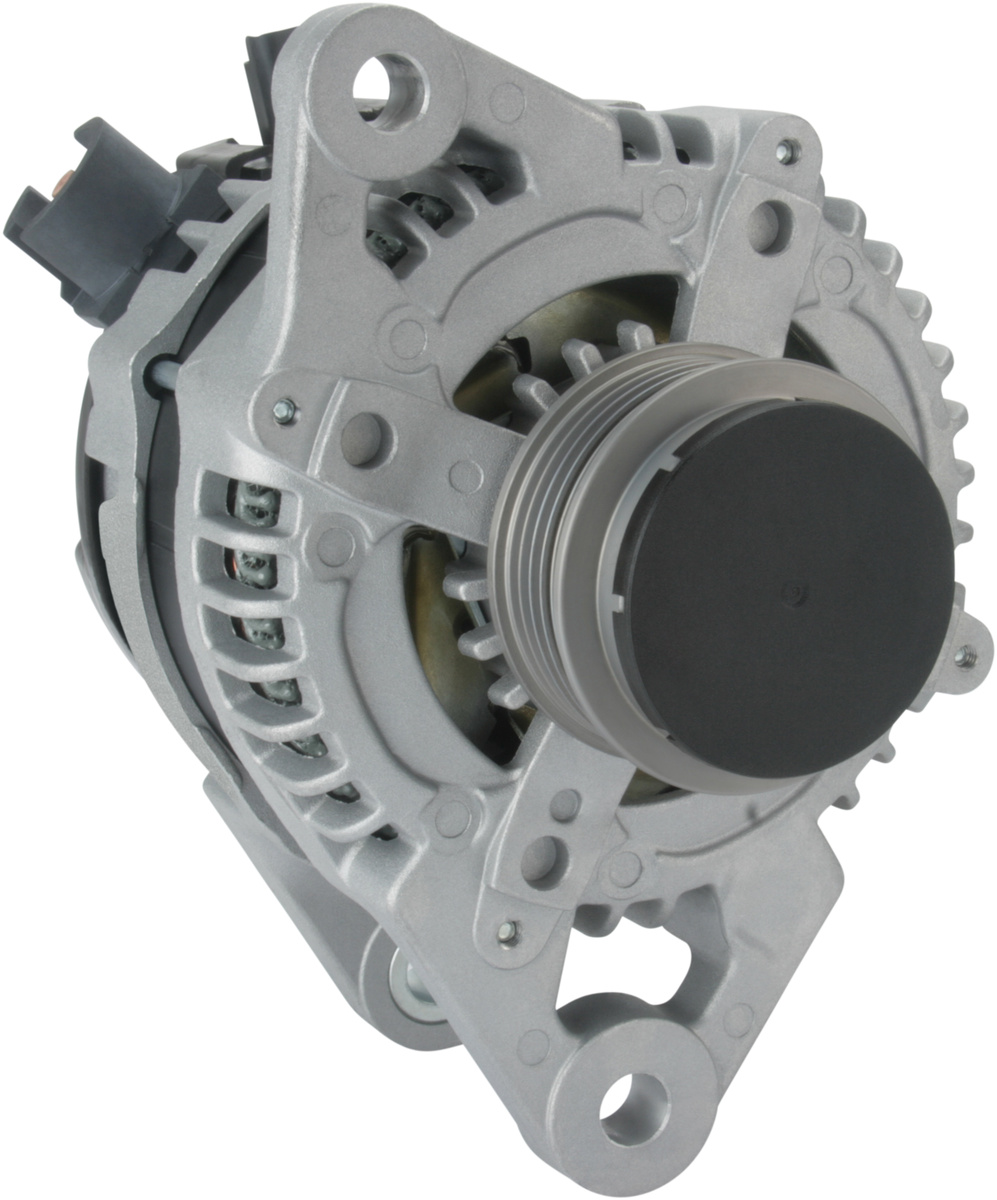

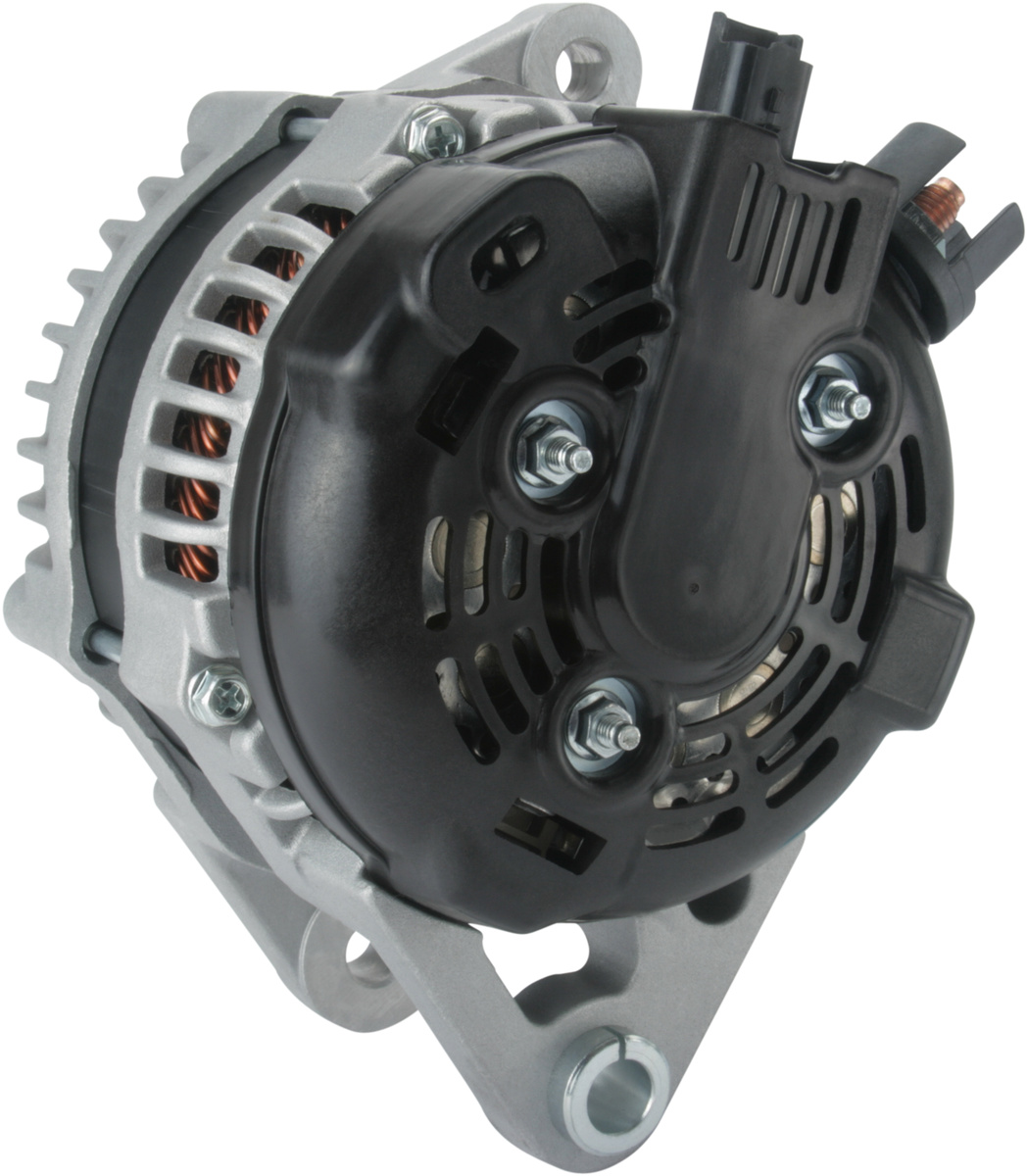

F032114749 - Alternator
Trade number 114749
Replacing and BOMs
OEM number
- 50500728ALFA ROMEO
- 51734825ALFA ROMEO
- 50500728FIAT
- 51734825FIAT
Competitor References
- DRA0371AC DELCO
- DRA0371XAC DELCO
- 302016RIAD KÜHNER
- A6051AUTOSTARTER POLAND
- A6051DENSOAUTOSTARTER POLAND
- 1986A01316BOSCH
- CAL30128CASCO SRL
- 135551150CV PSH
- DRA0371XDELCO REMY
Trade number 114749
Details & description
Terminal IF, Voltage 14, Amp 150, Pulley SP/FW, Pulley Diameter 61.50, Prod. info BN, Bracket Hole Size Rear 13.00, D+ Position 3, Pulley Distance 28.00, Mounting Bracket Distance 64.50, Radius 93.50, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 5, Regulator type IR, Bracket Hole Size 1 12.00, Terminal type L-DFM, D+ Size Plug, Holder Arm Width 14.20, B+ M8, Fan IF, Radius 2 83.00, Plug no. 1 PL72, Rotation CW, Position 3, B+ Position 9, Belt Adjustment Bracket Hole Position 54, Total Length 167.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp150
Catalogue information
- Prod. infoBN
Physical information
- PulleySP/FW
- Pulley Diameter61.50
- Bracket Hole Size Rear13.00
- D+ Position3
- Pulley Distance28.00
- Mounting Bracket Distance64.50
- Radius93.50
- Belt Adjustment Bracket Hole 111.00
- Grooves/pulley5
Replacing and BOMs
OEM number
- 50500728ALFA ROMEO
- 51734825ALFA ROMEO
- 50500728FIAT
- 51734825FIAT
Competitor References
- DRA0371AC DELCO
- DRA0371XAC DELCO
- 302016RIAD KÜHNER
- A6051AUTOSTARTER POLAND
- A6051DENSOAUTOSTARTER POLAND
- 1986A01316BOSCH
- CAL30128CASCO SRL
- 135551150CV PSH
- DRA0371XDELCO REMY
