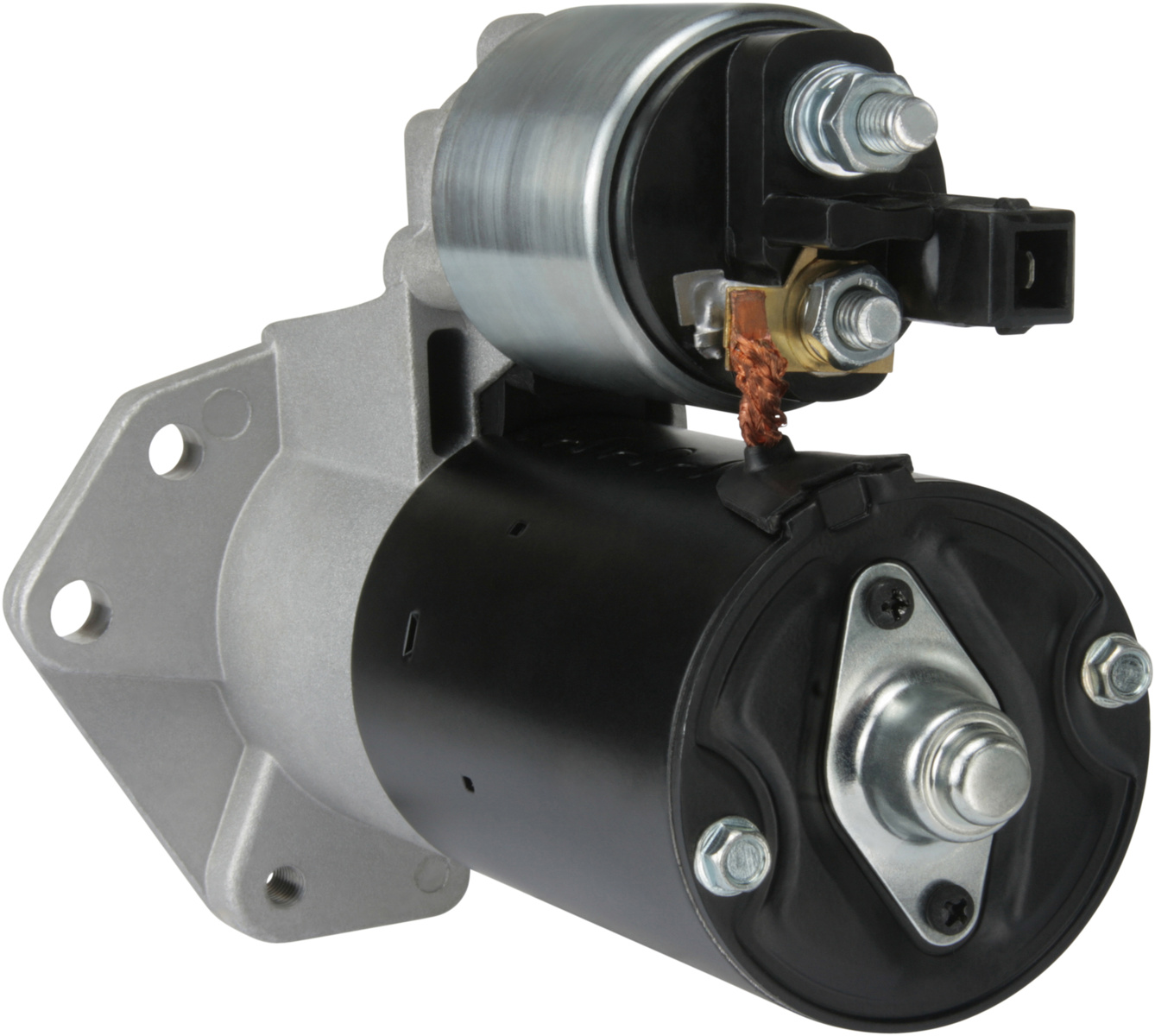

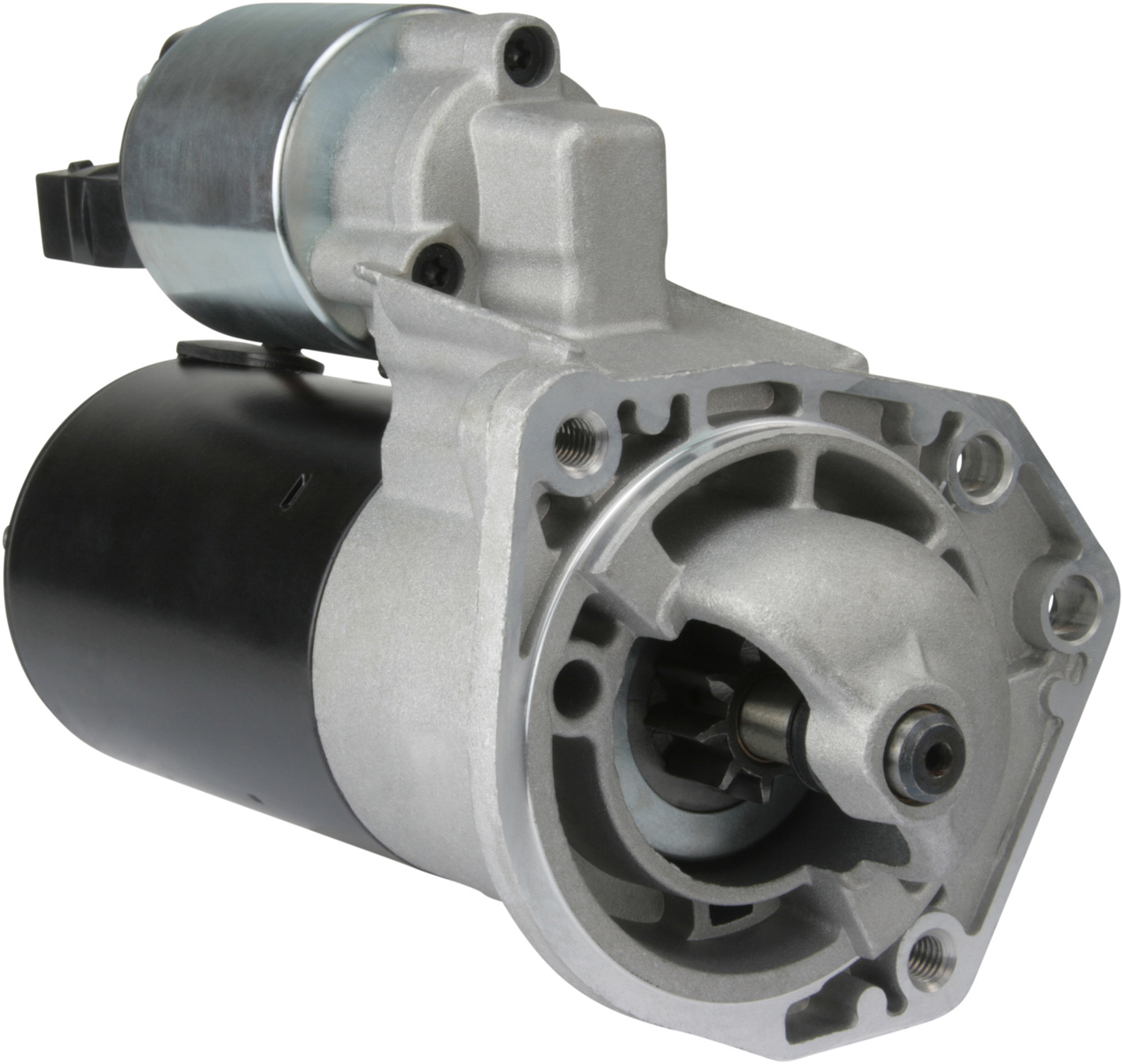

F032114758 - Starter
Trade number 114758Details & description
Voltage 12, kW 0.9, Mounting Hole 2 10.00, Rear Distance 167.50, Prod. info BN, Distance 4 73.00, Distance 3 104.00, Drive Distance 2.00, Distance 2 57.00, Mounting Flange 82.50, Distance 29.50, Info Bosch version HC-CARGO 113750 Bosch version HC-CARGO 113750. Marelli Version HC-CARGO 114758., Mounting Hole 3 M8, No./mount. holes 4 (2), Gear type GR, Front Distance 33.50, No./teeth 9, B+ M8, Terminal 50 Plug, Mounting Hole 4 M8, Rotation CW, Position 20, Mounting Hole 1 9.00, Total Length 217.50, Amount of Mounting Holes 4 (2)
Product information
Voltage:12
kW:0.9
Mounting Hole 2:10.00
Rear Distance:167.50
Prod. info:BN
Distance 4:73.00
Distance 3:104.00
Drive Distance:2.00
Distance 2:57.00
Mounting Flange:82.50
Distance:29.50
Info:Bosch version HC-CARGO 113750 Bosch version HC-CARGO 113750. Marelli Version HC-CARGO 114758.
Mounting Hole 3:M8
No./mount. holes:4 (2)
Gear type:GR
Front Distance:33.50
No./teeth:9
B+:M8
Terminal 50:Plug
Mounting Hole 4:M8
Rotation:CW
Position:20
Mounting Hole 1:9.00
Total Length:217.50
Amount of Mounting Holes:4 (2)
Replacing and BOMs
OEM number
085911023EVW (VOLKSWAGEN)
Competitor References
DRS6790AC DELCO
10788AD KÜHNER
S4016PRAUTOSTARTER POLAND
S4016SRAUTOSTARTER POLAND
0986019311BOSCH
CST10112CASCO SRL
CST30188CASCO SRL
300520094CV PSH
DRS6790DELCO REMY
311089092DRI
253303ELSTOCK
252101ELSTOCK
105056FACROM
8080049FRIESEN
114758HC-CARGO
CS1548HC-PARTS
8EA011611041HELLA
8EA011350311HELLA
42016790HERTH U. BUSS
42016800HERTH U. BUSS
42019311HERTH U. BUSS
IS9327ISKRA
LRS02116LUCAS
944280800MARELLI
063293039010MARELLI
944280800490MARELLI
063293039MARELLI
MSN639MARELLI
8213165POWER MAX
8080049QUINTON HAZELL
FRS173QUINTON HAZELL
455981VALEO
726023VALEO
30889RWAI
