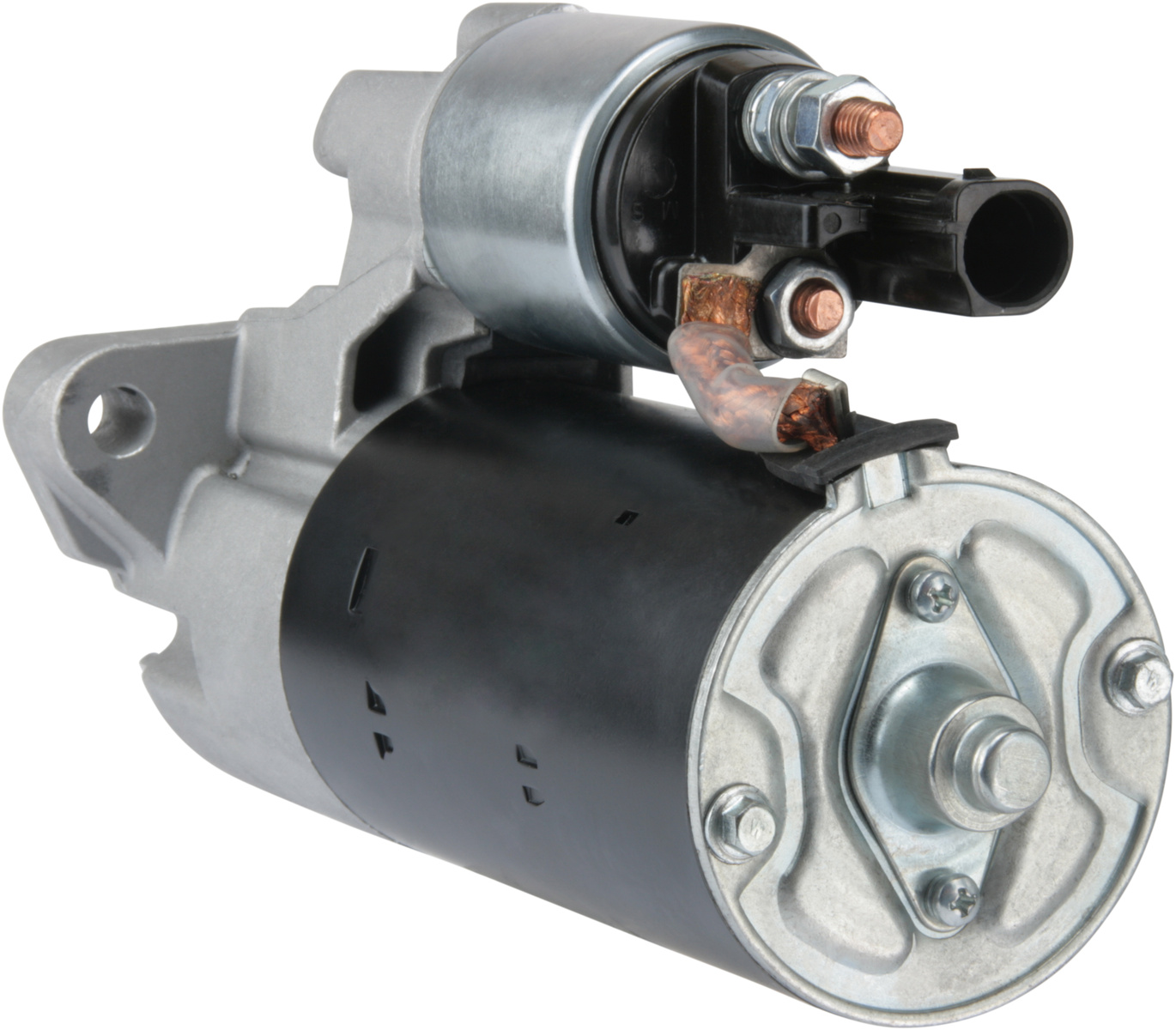

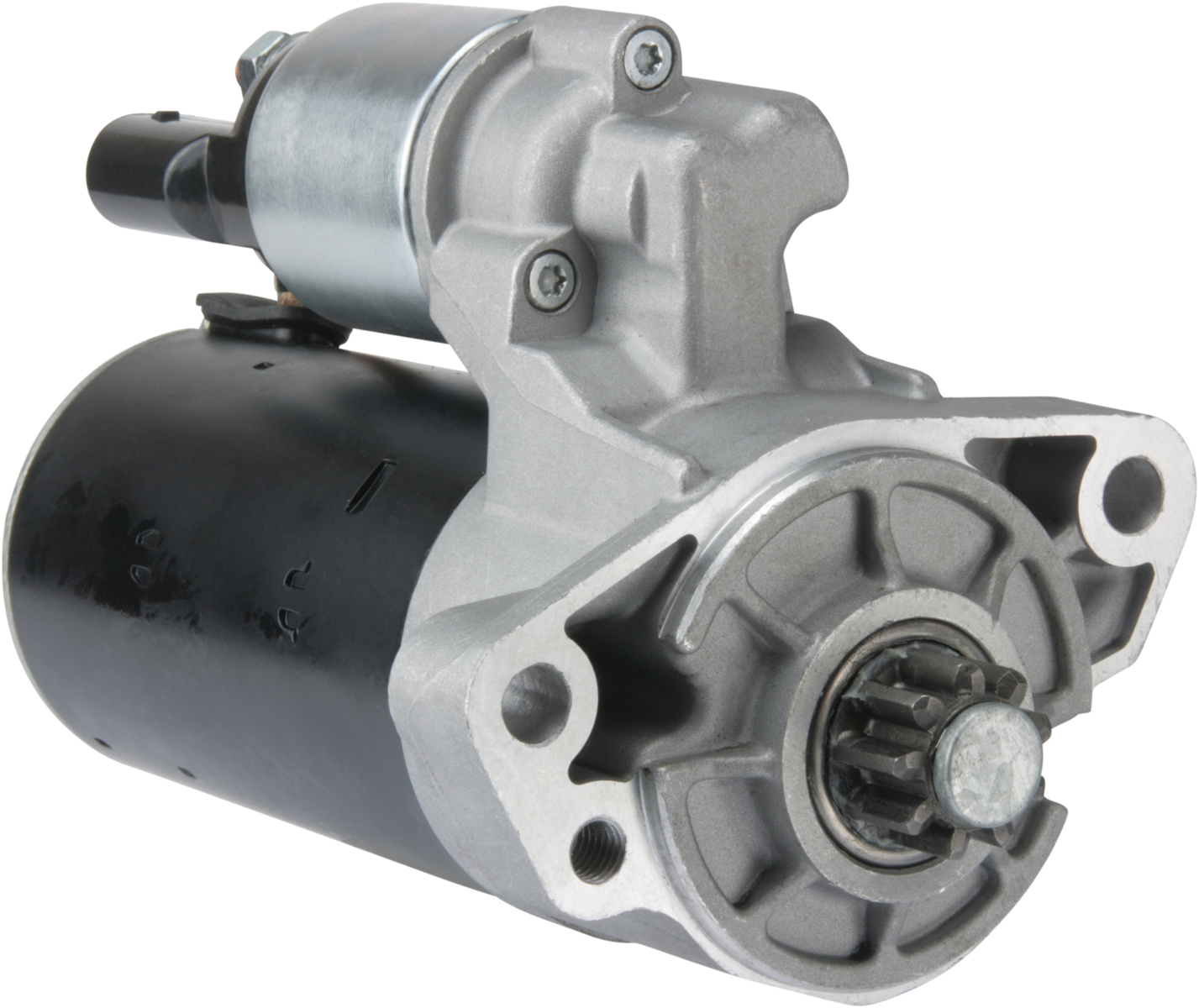

F032114775 - Starter

Trade number 114775
Product image - main
Trade number 114775

Details & description

kW 2.2, Voltage 12, Drive type Steel, No./mount. holes 3 (1), Rear Distance 192.50, Gear type GR, Front Distance 28.50, Distance 3 104.50, Drive Distance 25.00, No./teeth 9, Distance 2 23.50, B+ M8, Terminal 50 Plug, Mounting Flange 76.20, Distance 101.50, Mounting Hole 3 10.50, Rotation CW, Position 15, Mounting Hole 1 11.00, Amount of Mounting Holes 3 (1), Total Length 235.50

Product information

kW:2.2
Voltage:12
Drive type:Steel
No./mount. holes:3 (1)
Rear Distance:192.50
Gear type:GR
Front Distance:28.50
Distance 3:104.50
Drive Distance:25.00
No./teeth:9
Distance 2:23.50
B+:M8
Terminal 50:Plug
Mounting Flange:76.20
Distance:101.50
Mounting Hole 3:10.50
Rotation:CW
Position:15
Mounting Hole 1:11.00
Amount of Mounting Holes:3 (1)
Total Length:235.50

Replacing and BOMs

OEM number

059911024EVW (VOLKSWAGEN)
059911024HVW (VOLKSWAGEN)

Competitor References

DRS0244AC DELCO
254373AD KÜHNER
S0270AUTOSTARTER POLAND
S0270PRAUTOSTARTER POLAND
0001125610BOSCHBOM
0001125609BOSCHBOM
1986S00824BOSCH
0986024050BOSCH
0986024057BOSCH
0001109054BOSCH
CST10421CASCO SRL
3384CEVAM
300586093CV PSH
DRS0244DELCO REMY
311282092DRI
254297ELSTOCK
11024050EUROTEC
106949FACROM
8080392FRIESEN
114775HC-CARGO
8EA011611881HELLA
42024050HERTH U. BUSS
17678LESTER
LRS02624LUCAS
458920VALEO
17678NWAI
17678RWAI
