F032114779 - Alternator

Trade number 114779

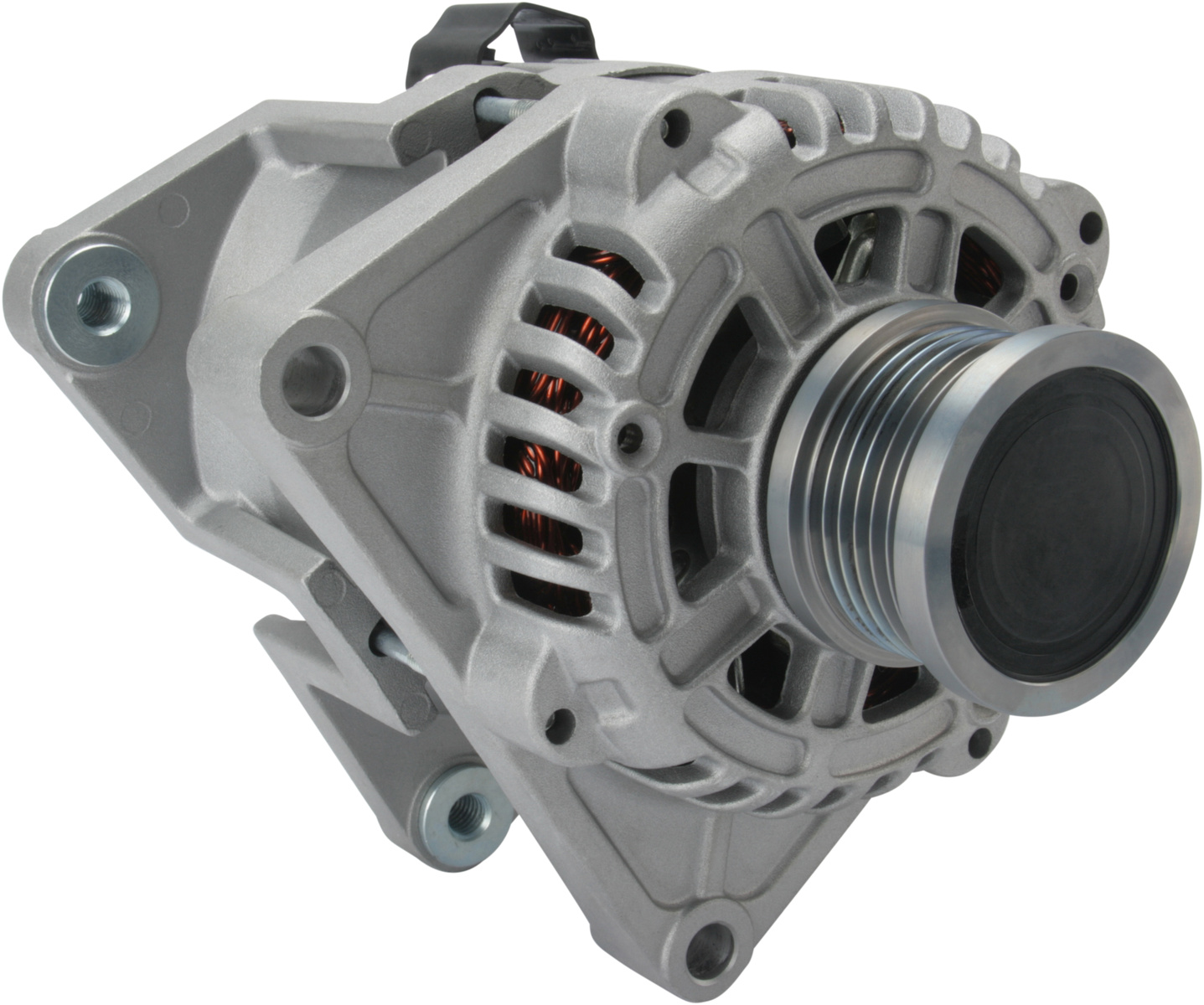

Product image - main
Trade number 114779

Details & description

Voltage 14, Amp 100, Communication PWM, Pulley SP/FW, Pulley Diameter 53.50, Prod. info BN, Bracket Hole Size Rear M10, Pulley Distance 63.00, Bracket Hole Size 2 M10, Remarks 3 This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 56.00, Radius 90.00, Belt Adjustment Bracket Hole 1 10.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.00, Terminal type L-F, Holder Arm Width 23.00, B+ M8, Radius 2 90.00, Plug no. 1 PL180, Rotation CW, B+ Position 15, Belt Adjustment Bracket Hole Position 45, Total Length 187.00

Product information

Voltage:14
Amp:100
Communication:PWM
Pulley:SP/FW
Pulley Diameter:53.50
Prod. info:BN
Bracket Hole Size Rear:M10
Pulley Distance:63.00
Bracket Hole Size 2:M10
Remarks 3:This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:56.00
Radius:90.00
Belt Adjustment Bracket Hole 1:10.00
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:10.00
Terminal type:L-F
Holder Arm Width:23.00
B+:M8
Radius 2:90.00
Plug no. 1:PL180
Rotation:CW
B+ Position:15
Belt Adjustment Bracket Hole Position:45
Total Length:187.00

Replacing and BOMs

OEM number

13579666GMC (GENERAL MOTORS CORP.)
13500577GMC (GENERAL MOTORS CORP.)
13579666OPELBOM
1202235OPEL
1204654OPEL
13500577OPELBOM
13595628OPEL
95522249OPEL

Competitor References

DRA0903AC DELCO
DRA0903NAC DELCO
553497RIAD KÜHNER
A1026AUTOSTARTER POLAND
A1026PAUTOSTARTER POLAND
0986083420BOSCH
F042205165BOSCH
0986087010BOSCH
1986A01971BOSCH
CAL42108CASCO SRL
135594100CV PSH
DRA0903DELCO REMY
DRA0903NDELCO REMY
2281821002DRI
285964ELSTOCK
209131ERA SPA
209131AERA SPA
12090466EUROTEC
113297FACROM
114779HC-CARGO
CA2141IRHC-PARTS
21514LESTER
LRA03352LUCAS
440643VALEO
442366VALEO
440953VALEO
21514NWAI
