F032114810 - Alternator

Trade number 114810

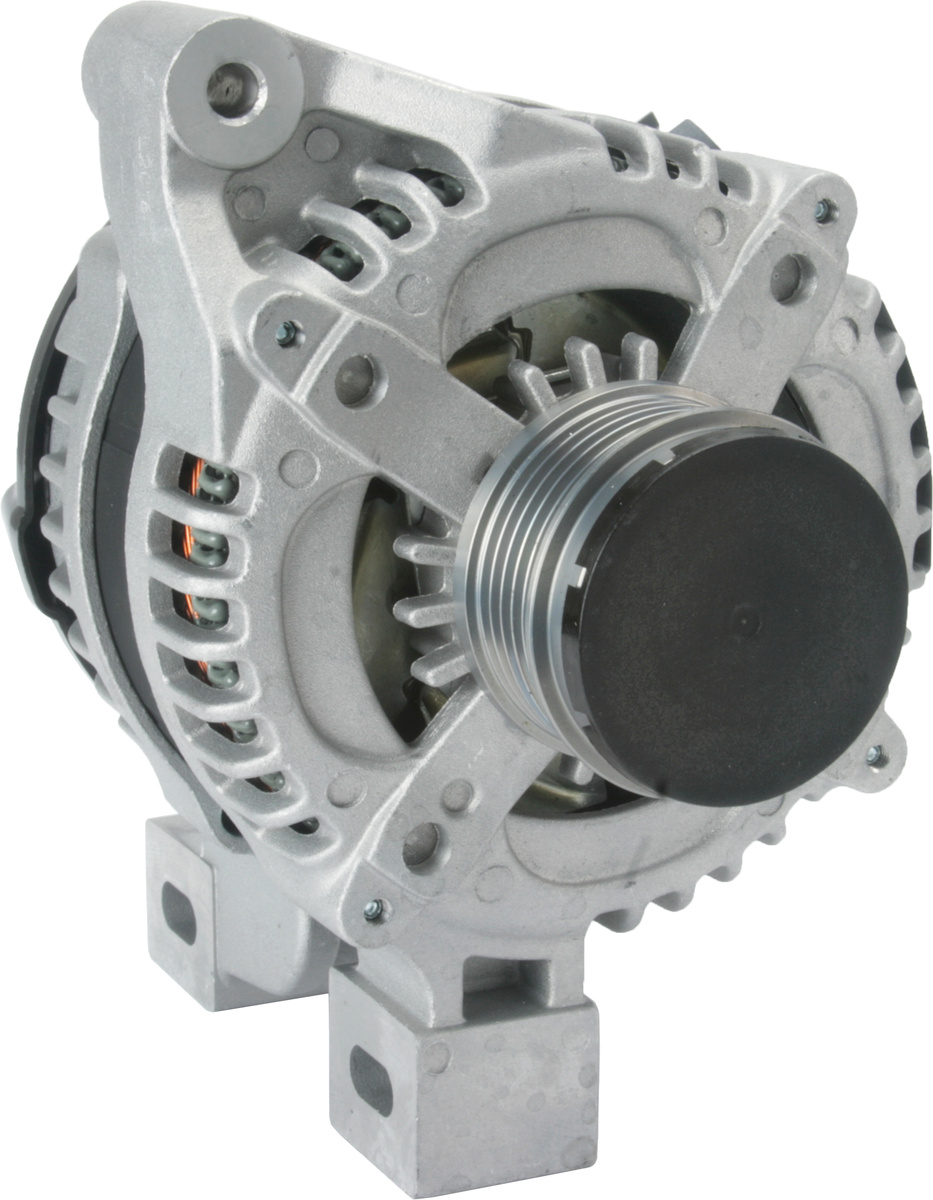

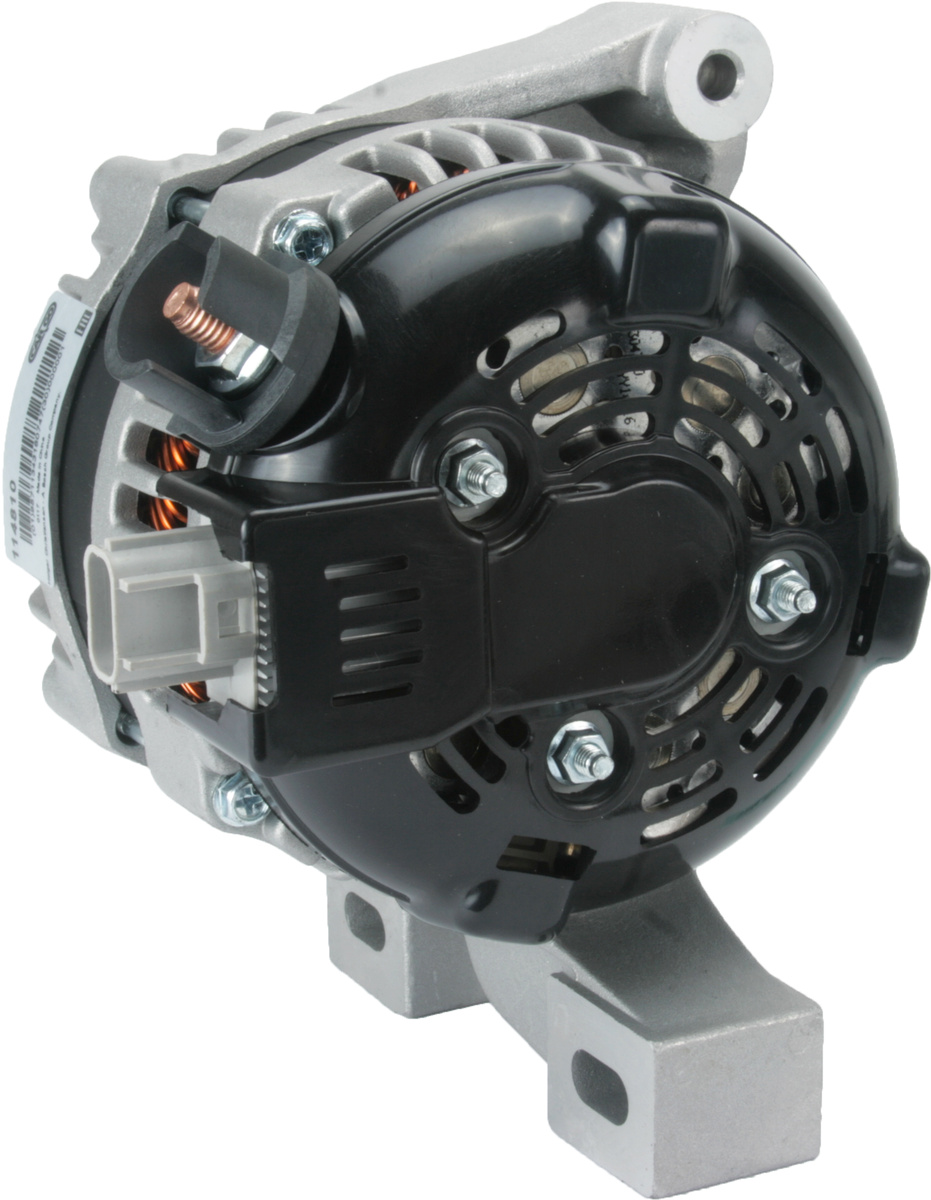

Product image - main
Trade number 114810

Details & description

Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 8.50, Pulley Diameter 55.50, Prod. info BN, Terminal type COM, Holder Arm Width 33.00, Pulley Distance 33.50, B+ M8, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL154, Mounting Bracket Distance 91.50, Belt Adjustment Bracket Hole 1 8.00, Grooves/pulley 5, Regulator type IR, B+ Position 50, Belt Adjustment Bracket Hole Position 54

Product information

Voltage:14
Amp:150
Communication:LIN
Pulley:SP/FW
Bracket Hole Size 1:8.50
Pulley Diameter:55.50
Prod. info:BN
Terminal type:COM
Holder Arm Width:33.00
Pulley Distance:33.50
B+:M8
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Plug no. 1:PL154
Mounting Bracket Distance:91.50
Belt Adjustment Bracket Hole 1:8.00
Grooves/pulley:5
Regulator type:IR
B+ Position:50
Belt Adjustment Bracket Hole Position:54

Replacing and BOMs

OEM number

3M5T10300SCFORD
3M5T10300SDFORD
30667103VOLVO
30737529VOLVO
36001463VOLVO
8603496VOLVO

Competitor References

DRA0391AC DELCO
301966RIAD KÜHNER
A6133AUTOSTARTER POLAND
A6133DENSOAUTOSTARTER POLAND
0986083070BOSCH
CAL40274CASCO SRL
815527150CV PSH
DRA0391DELCO REMY
1042103560DENSOBOM
1042104640DENSOBOM
DAN1059DENSO
2381451502DRI
285548ELSTOCK
209396ERA SPA
209396AERA SPA
12090376EUROTEC
113030FACROM
9090525FRIESEN
114810HC-CARGO
CA1966IRHC-PARTS
8EL738212951HELLA
8EL011713251HELLA
LRA02934LUCAS
9090525QUINTON HAZELL
11054RWAI
11054NWAI
