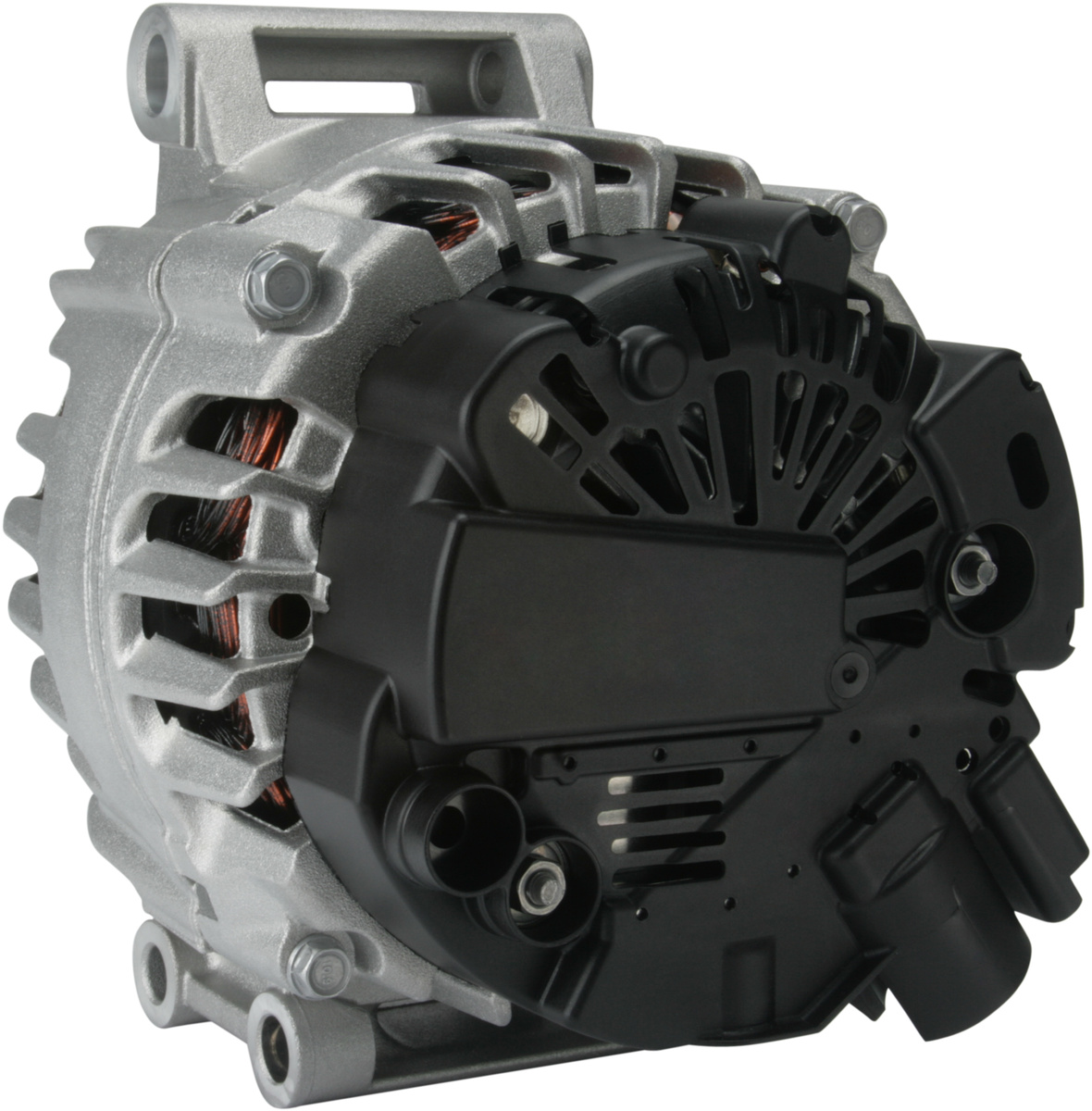

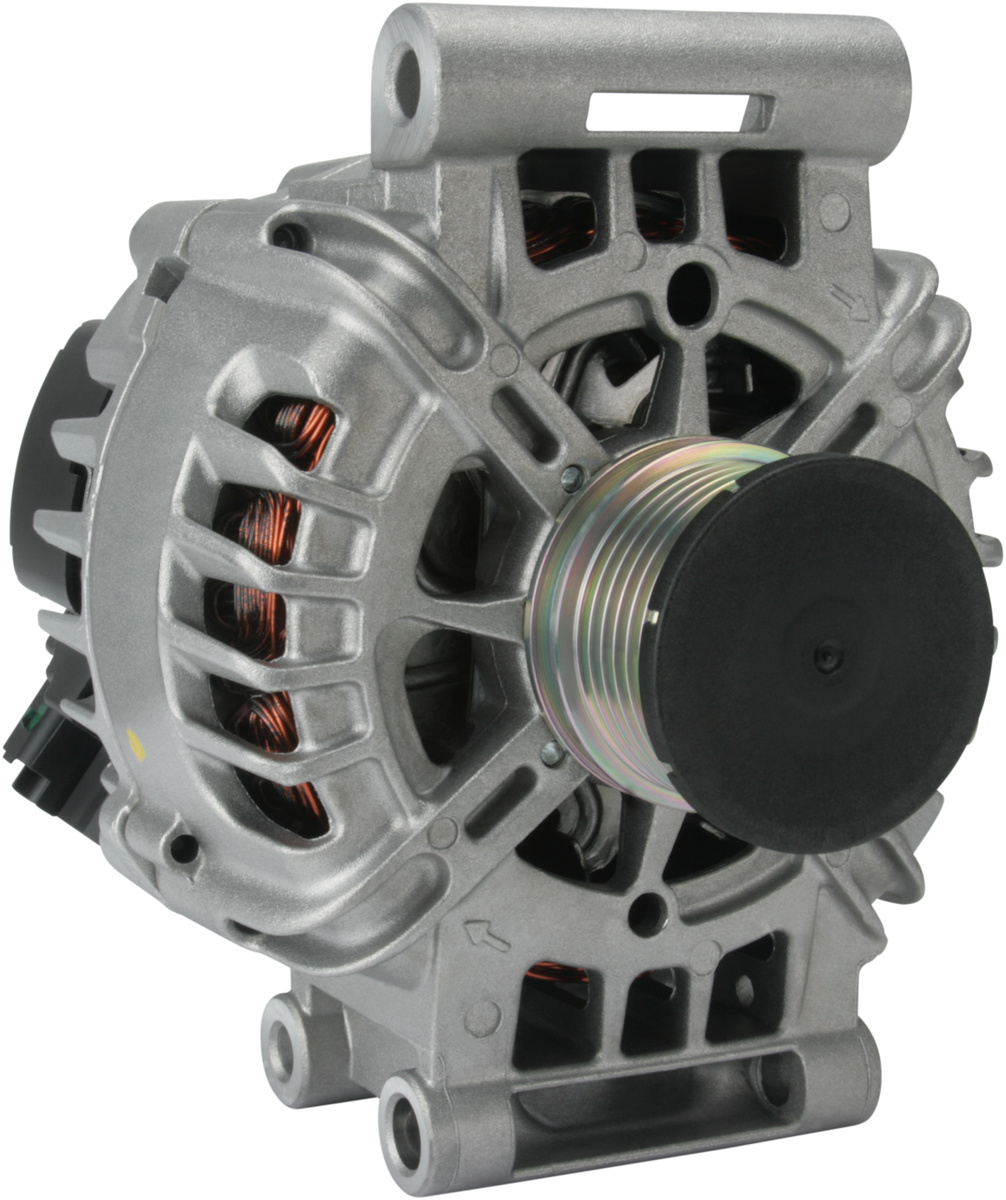

F032114811 - Alternator
Trade number 114811
Replacing and BOMs
OEM number
12317576513BMW
12317576514BMW
12317615484BMW
12317619254BMW
7576513BMW
7576514BMW
5705JWPEUGEOT
5705KGPEUGEOT
5702H5PEUGEOT
9664532780PEUGEOT
9819187680PEUGEOT
V758575180PEUGEOT
V75857518001PEUGEOT
V761548480PEUGEOT
Competitor References
DRA0276AC DELCO
301954RIAD KÜHNER
A3157AUTOSTARTER POLAND
0986082570BOSCH
CAL15360CASCO SRL
CAL35233CASCO SRL
4853CEVAM
445505120CV PSH
DRA0276DELCO REMY
2151751202DRI
285581ELSTOCK
210519ERA SPA
210519AERA SPA
12090297EUROTEC
113026FACROM
113154FACROM
9090529FRIESEN
114811HC-CARGO
CA1954IRHC-PARTS
8EL012426091HELLA
8EL738212881HELLA
LRA02967LUCAS
9090529QUINTON HAZELL
439617VALEO
440174VALEO
2612380BVALEO
200215VALEO
11334NWAI
11334RWAI
23895RWAI
F032114811 - Alternator
Details & description
Voltage 14, Amp 120, Communication BSS, Pulley SP/FW, Pulley Diameter 49.50, Prod. info BN/OE, Pulley Distance 26.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Source Valeo, Mounting Bracket Distance 47.50, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.00, Terminal type COM, Holder Arm Width 80.50, B+ M8, Plug no. 1 PL132, Rotation CW, Position 30, B+ Position 24, Belt Adjustment Bracket Hole Position 60
Product information
Voltage:14
Amp:120
Communication:BSS
Pulley:SP/FW
Pulley Diameter:49.50
Prod. info:BN/OE
Pulley Distance:26.00
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Source:Valeo
Mounting Bracket Distance:47.50
Belt Adjustment Bracket Hole 1:8.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:9.00
Terminal type:COM
Holder Arm Width:80.50
B+:M8
Plug no. 1:PL132
Rotation:CW
Position:30
B+ Position:24
Belt Adjustment Bracket Hole Position:60
Replacing and BOMs
OEM number
12317576513BMW
12317576514BMW
12317615484BMW
12317619254BMW
7576513BMW
7576514BMW
5705JWPEUGEOT
5705KGPEUGEOT
5702H5PEUGEOT
9664532780PEUGEOT
9819187680PEUGEOT
V758575180PEUGEOT
V75857518001PEUGEOT
V761548480PEUGEOT
Competitor References
DRA0276AC DELCO
301954RIAD KÜHNER
A3157AUTOSTARTER POLAND
0986082570BOSCH
CAL15360CASCO SRL
CAL35233CASCO SRL
4853CEVAM
445505120CV PSH
DRA0276DELCO REMY
2151751202DRI
285581ELSTOCK
210519ERA SPA
210519AERA SPA
12090297EUROTEC
113026FACROM
113154FACROM
9090529FRIESEN
114811HC-CARGO
CA1954IRHC-PARTS
8EL012426091HELLA
8EL738212881HELLA
LRA02967LUCAS
9090529QUINTON HAZELL
439617VALEO
440174VALEO
2612380BVALEO
200215VALEO
11334NWAI
11334RWAI
23895RWAI
