F032114815 - Starter

Trade number 114815

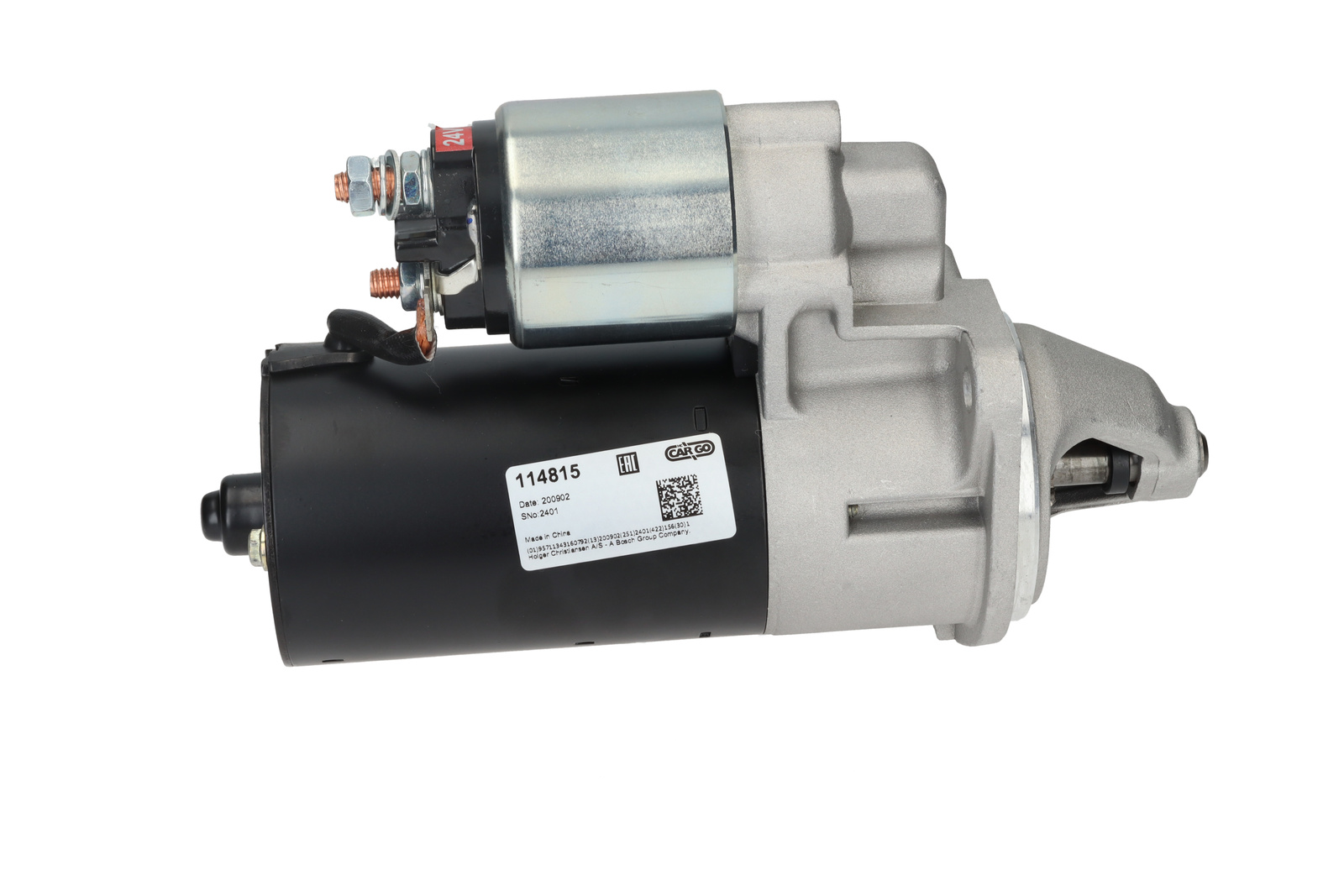

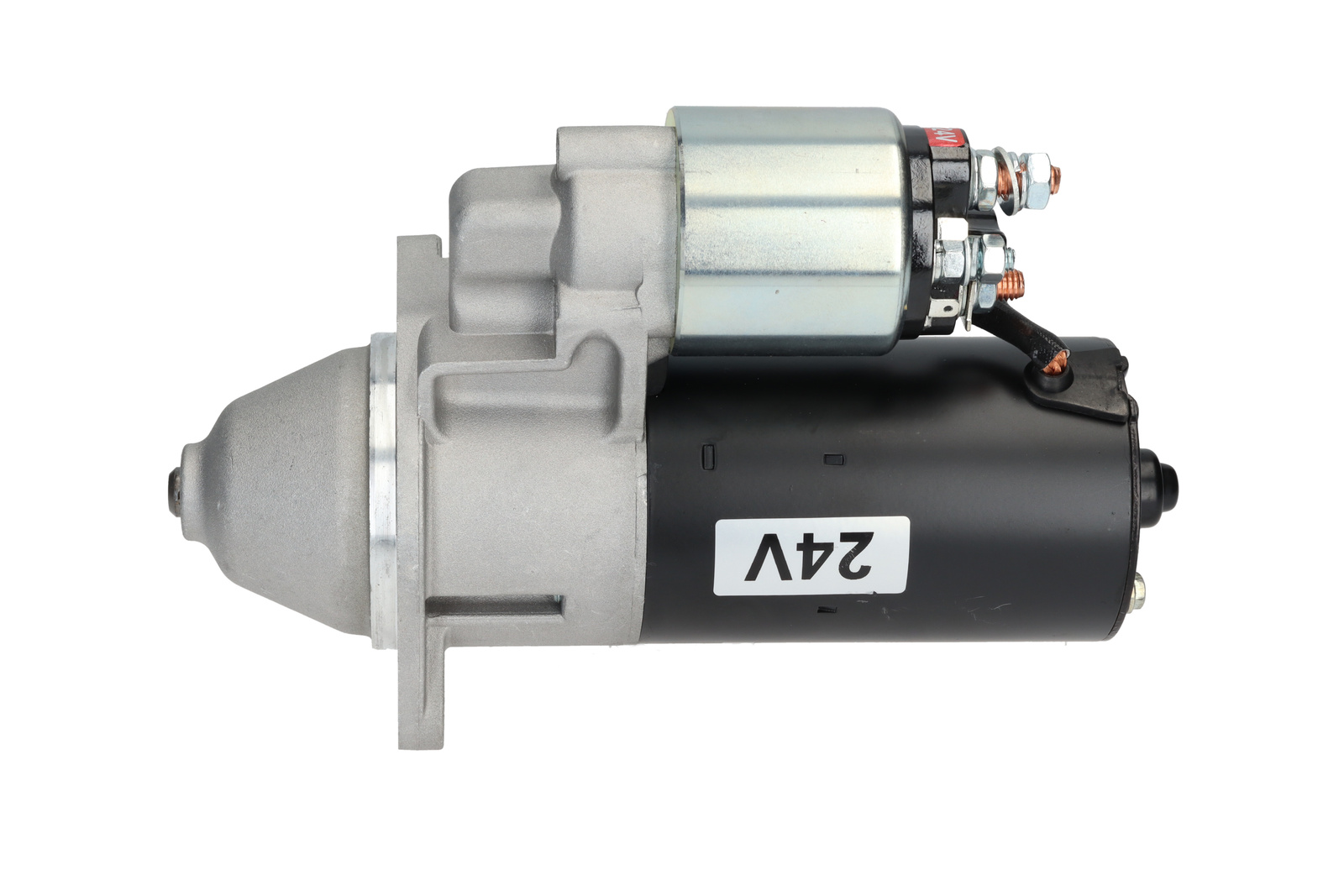

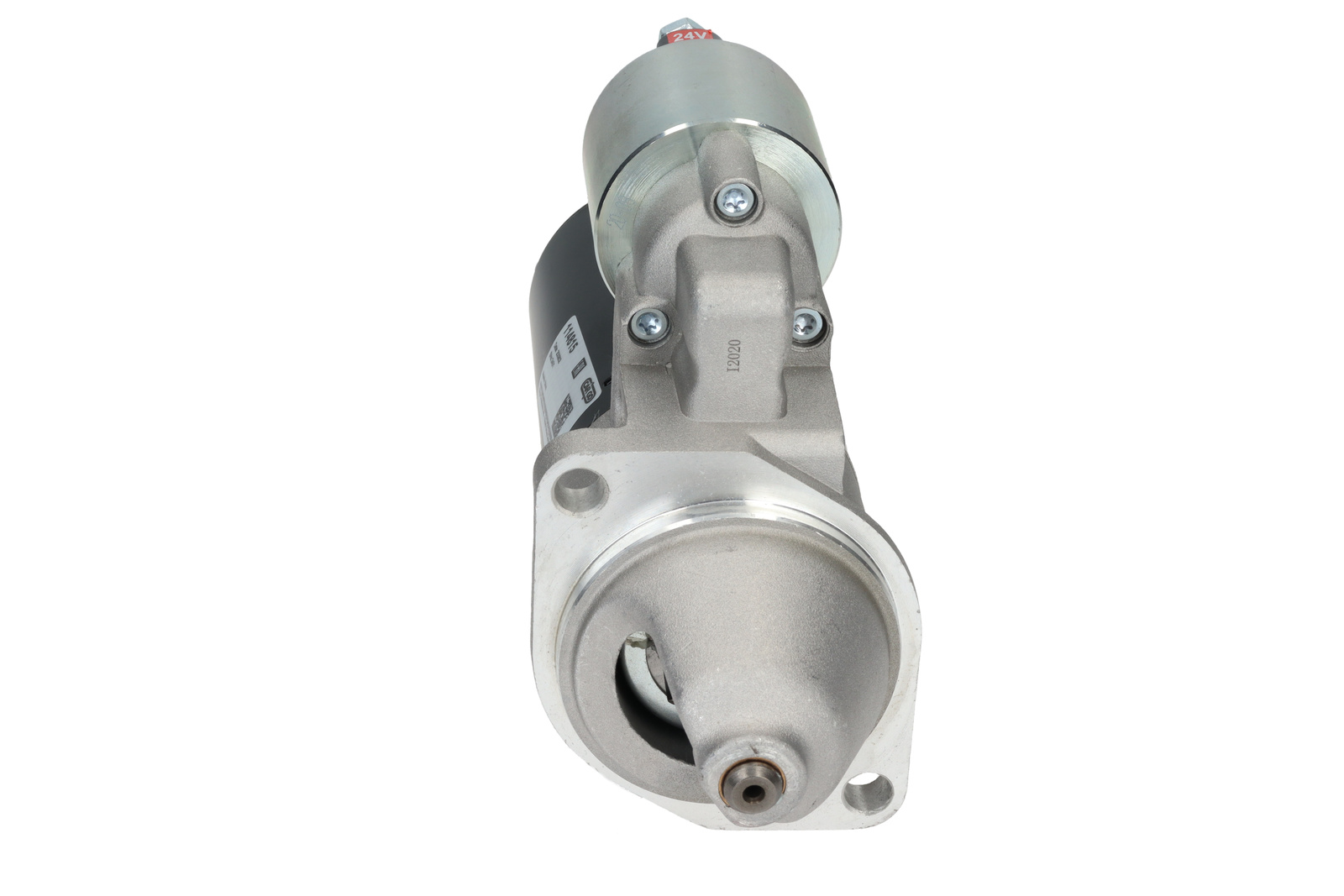

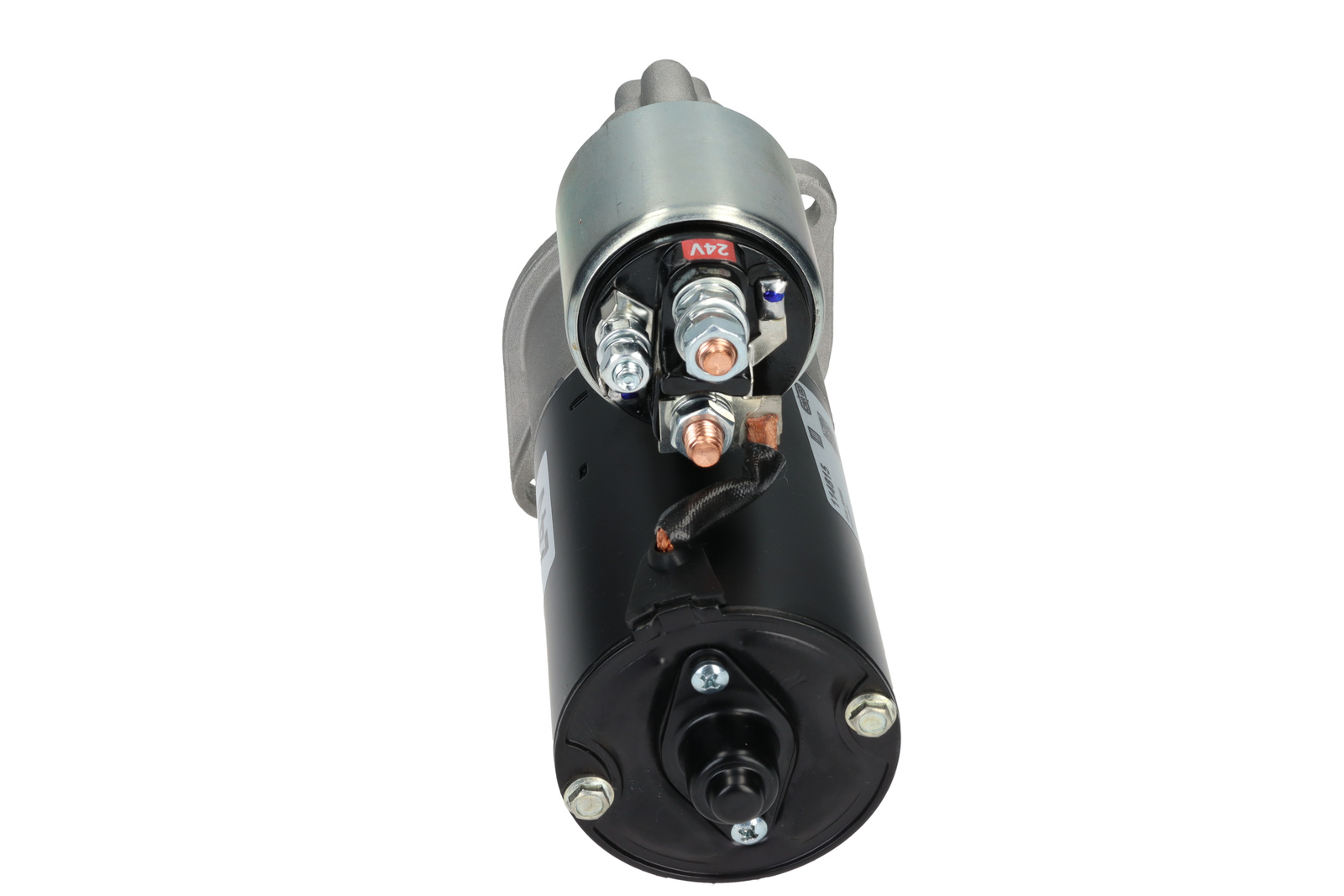

Product image - main
Trade number 114815

Details & description

kW 1.6, Voltage 24, No./mount. holes 2 (0), Mounting Hole 2 11.00, Rear Distance 189.00, Gear type GR, Front Distance 54.50, Drive Distance 15.00, No./teeth 9, B+ M8, Terminal 50 M6, Mounting Flange 76.20, Distance 105.00, Rotation CW, Position 45, Mounting Hole 1 11.00, B+ Position 60, Amount of Mounting Holes 2 (0), Total Length 244.00

Product information

kW:1.6
Voltage:24
No./mount. holes:2 (0)
Mounting Hole 2:11.00
Rear Distance:189.00
Gear type:GR
Front Distance:54.50
Drive Distance:15.00
No./teeth:9
B+:M8
Terminal 50:M6
Mounting Flange:76.20
Distance:105.00
Rotation:CW
Position:45
Mounting Hole 1:11.00
B+ Position:60
Amount of Mounting Holes:2 (0)
Total Length:244.00

Replacing and BOMs

OEM number

58401720LOMBARDINI

Competitor References

DRS0005AC DELCO
254199AD KÜHNER
254197AD KÜHNER
S0641SAUTOSTARTER POLAND
0001111003BOSCHBOM
CST10766CASCO SRL
691505092CV PSH
DRS0005DELCO REMY
455436ELSTOCK
114815HC-CARGO
LRS04274LUCAS
