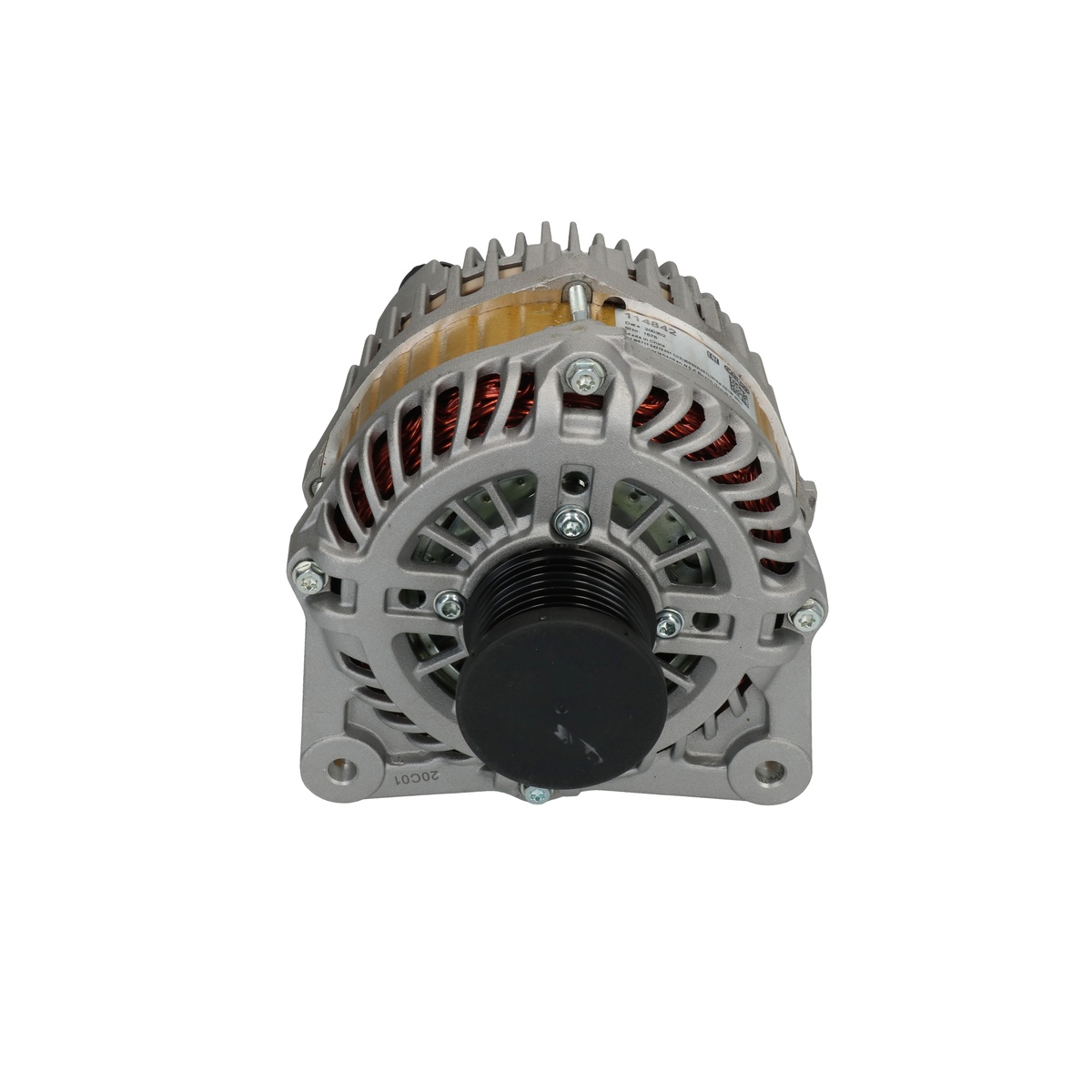

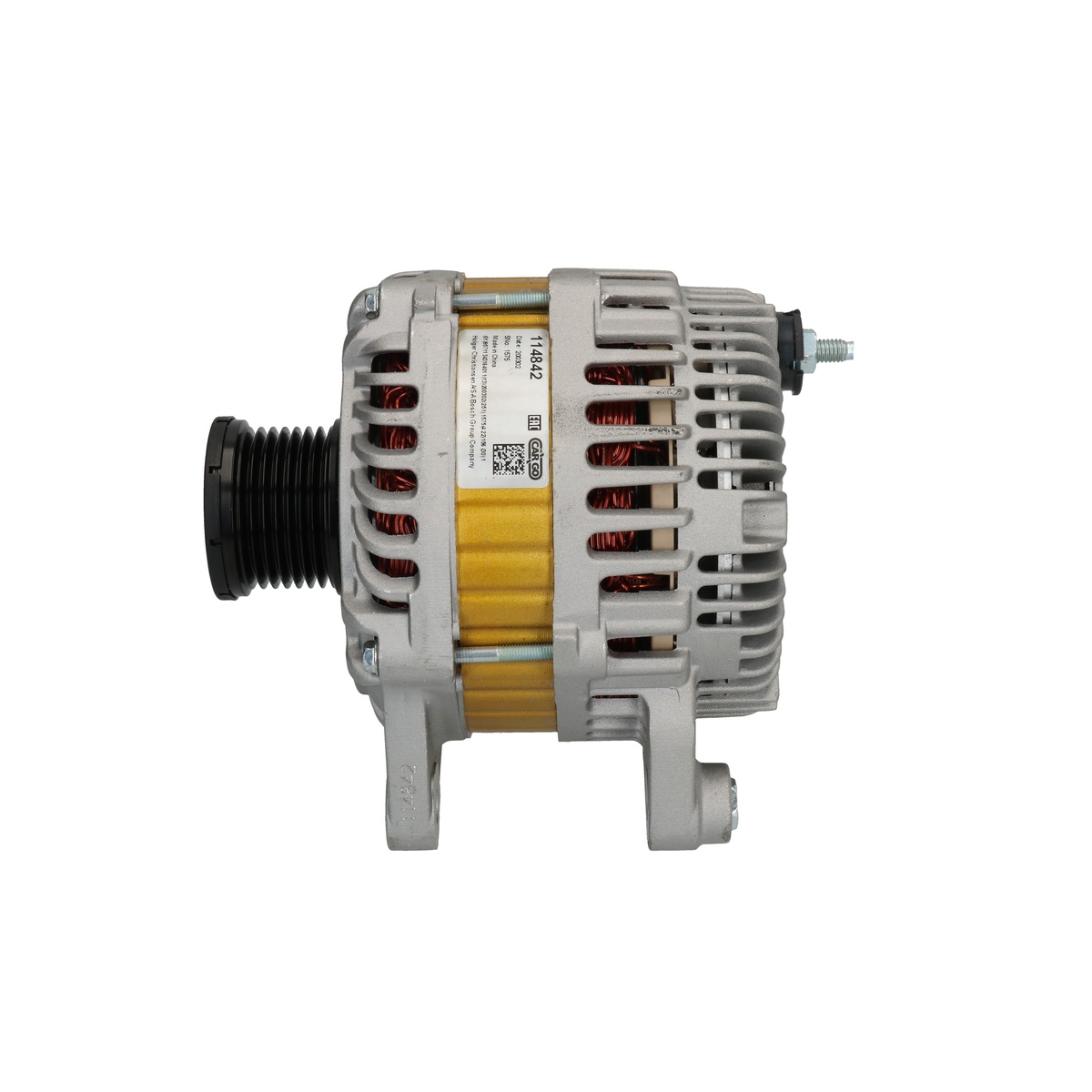

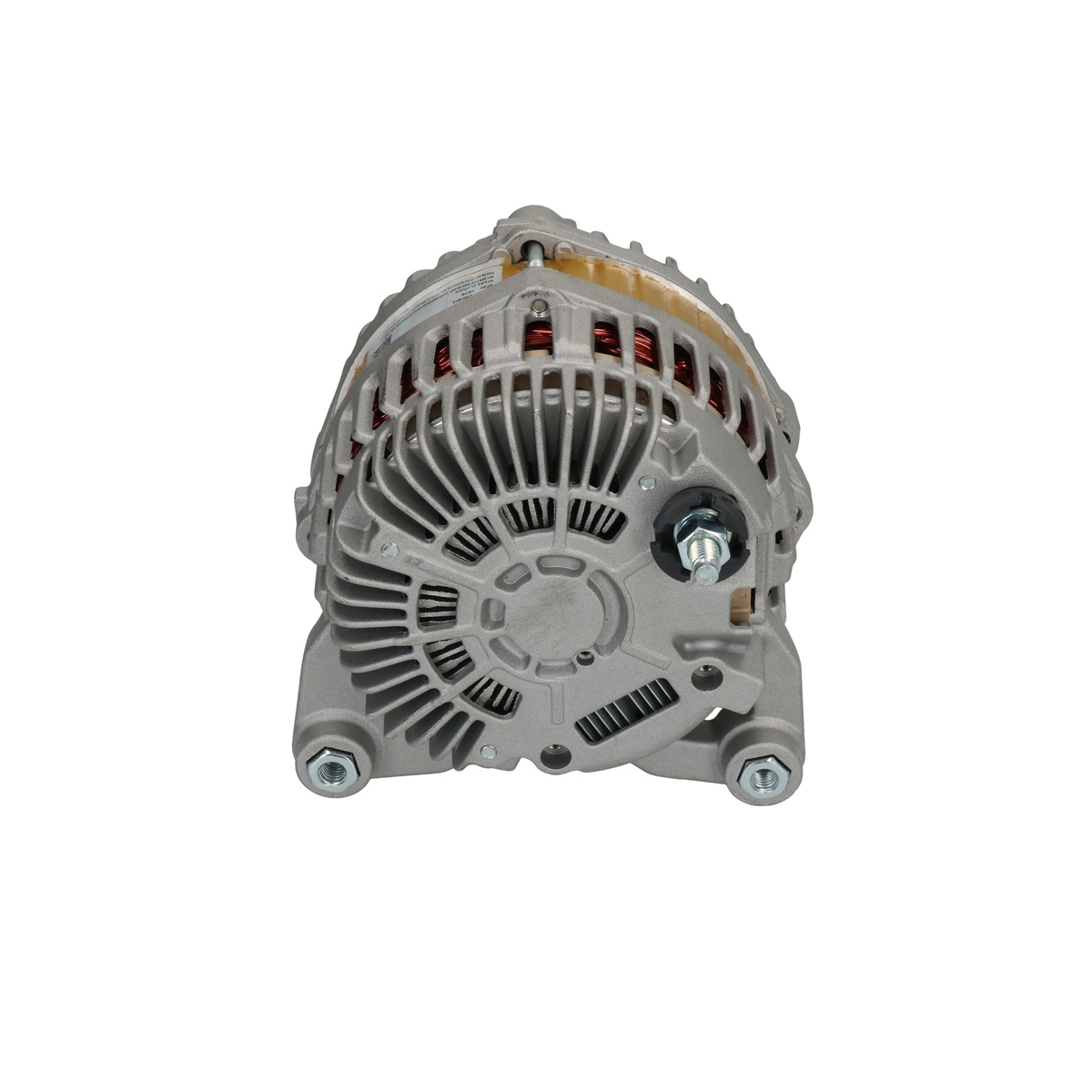

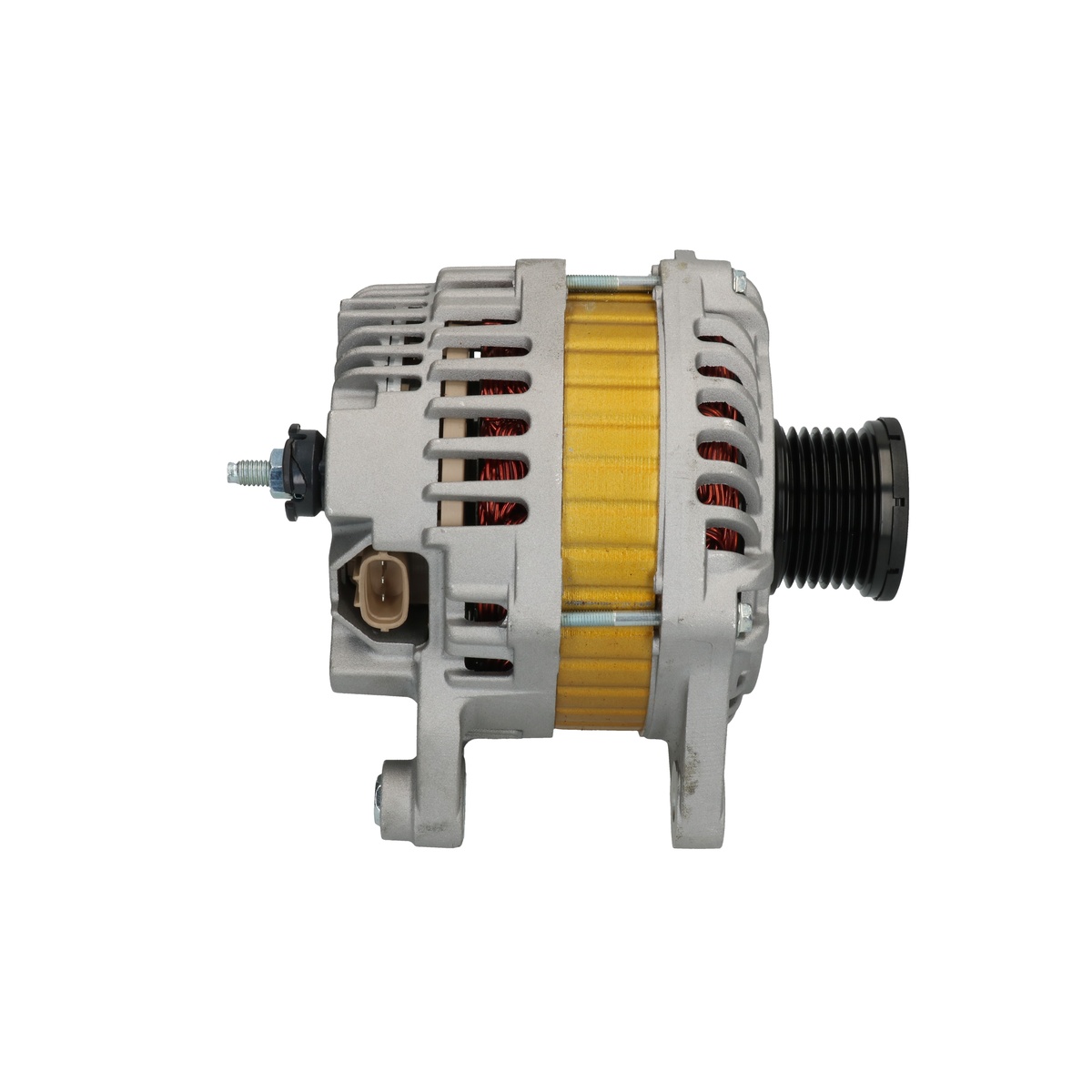

F032114842 - Alternator
Trade number 114842Details & description
Voltage 14, Amp 150, Pulley SP/FW, Bracket Hole Size 1 8.50, Pulley Diameter 49.00, Bracket Hole Size Rear M8, Terminal type L-S, Holder Arm Width 14.00, Pulley Distance 33.00, B+ M8, Radius 2 90.00, Plug no. 1 PL85, Mounting Bracket Distance 60.50, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Total Length 193.00
Product information
Voltage:14
Amp:150
Pulley:SP/FW
Bracket Hole Size 1:8.50
Pulley Diameter:49.00
Bracket Hole Size Rear:M8
Terminal type:L-S
Holder Arm Width:14.00
Pulley Distance:33.00
B+:M8
Radius 2:90.00
Plug no. 1:PL85
Mounting Bracket Distance:60.50
Radius:90.00
Rotation:CW
Belt Adjustment Bracket Hole 1:8.50
Grooves/pulley:7
Regulator type:IR
Total Length:193.00
Replacing and BOMs
OEM number
A003TJ2481ZEMITSUBISHIBOM 23100JG71ANISSAN
Competitor References
DRA0309AC DELCO
301979RIAD KÜHNER
A5135AUTOSTARTER POLAND
0986081990BOSCH
CAL35202CASCO SRL
165554150CV PSH
DRA0309DELCO REMY
2273161502DRI
285779ELSTOCK
12060973EUROTEC
112680FACROM
114842HC-CARGO
CA1979IRHC-PARTS
8EL738212961HELLA
8EL012428501HELLA
J5111121HERTH U. BUSS
LRA03167LUCAS
440531VALEO
443528VALEO
20776NWAI
20776RWAI
