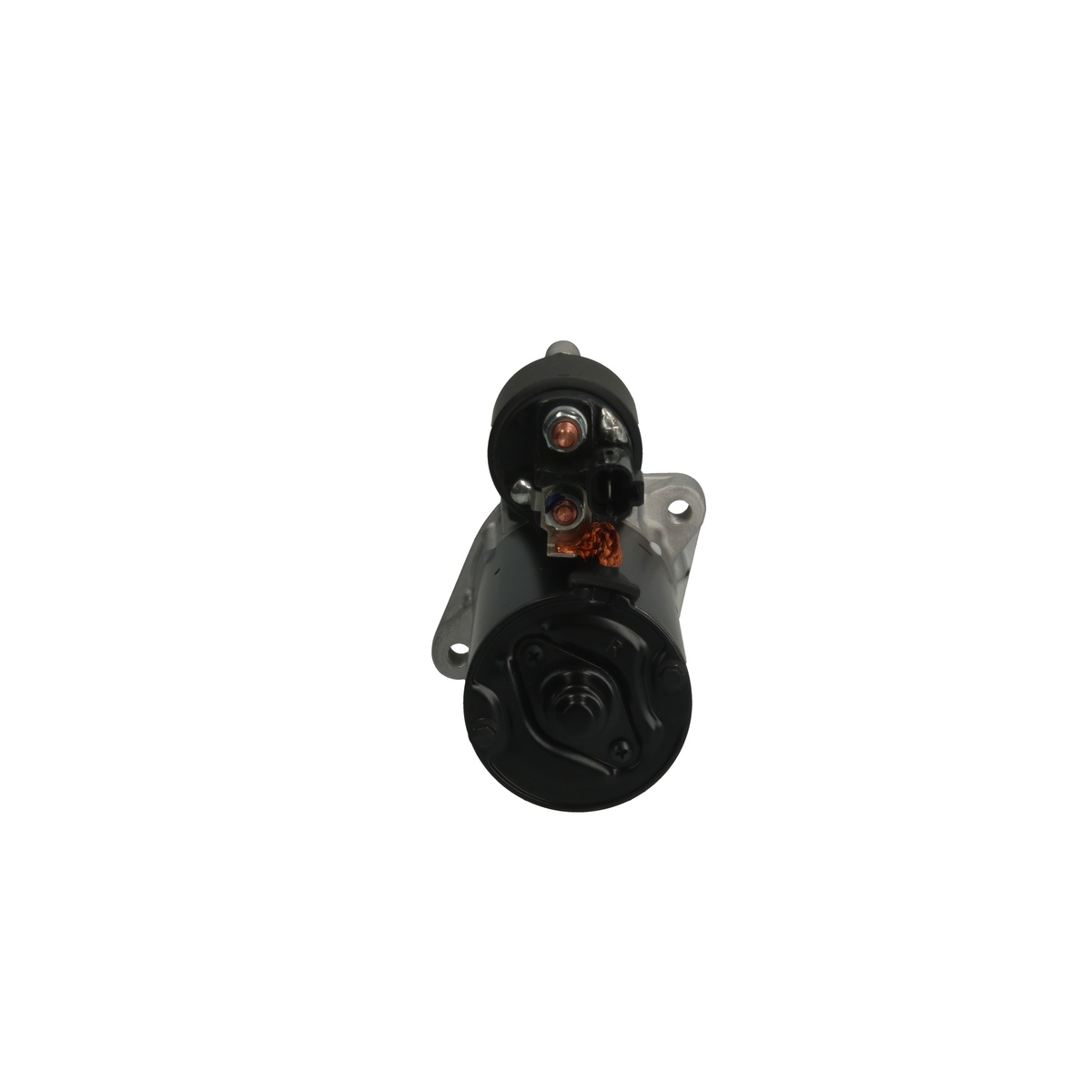

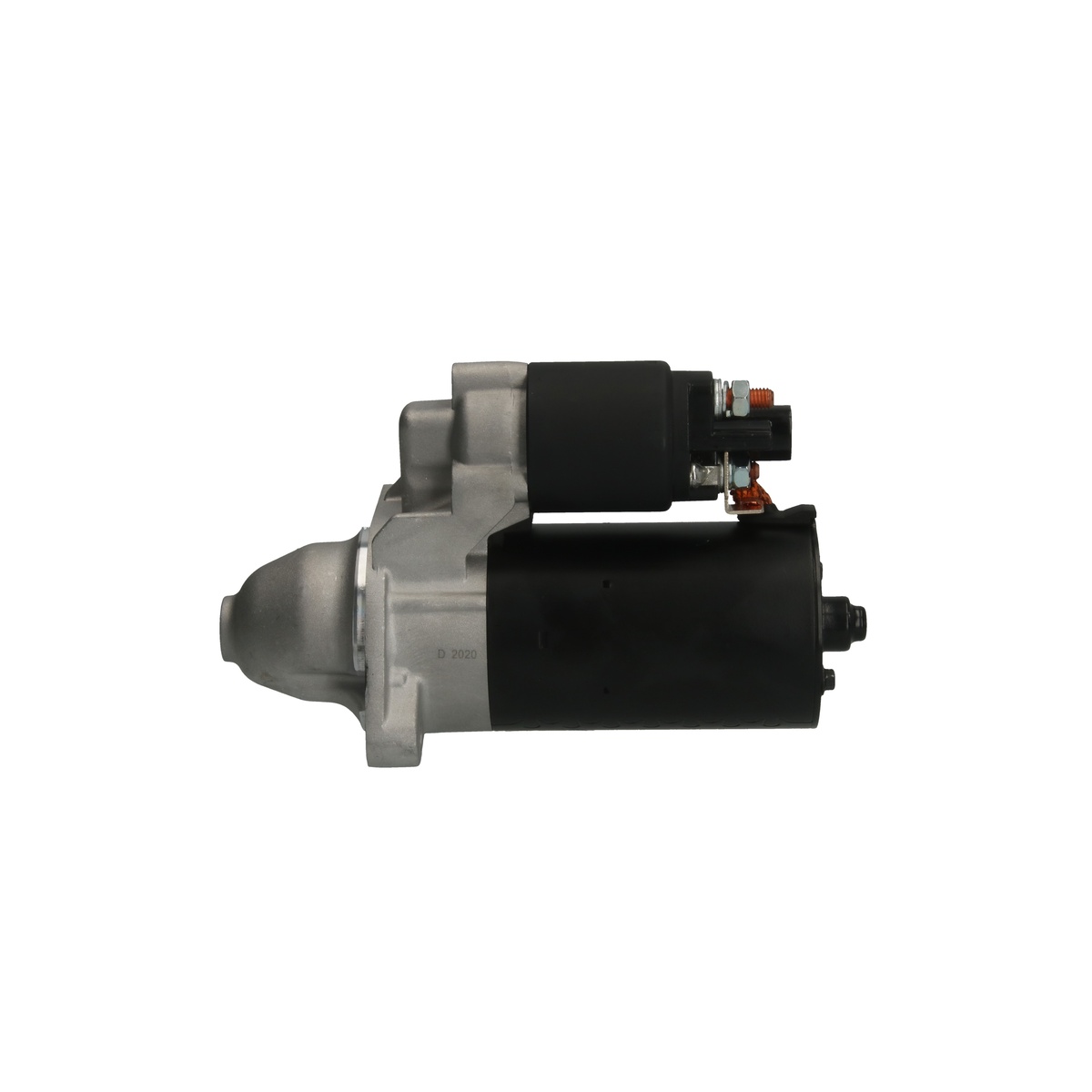

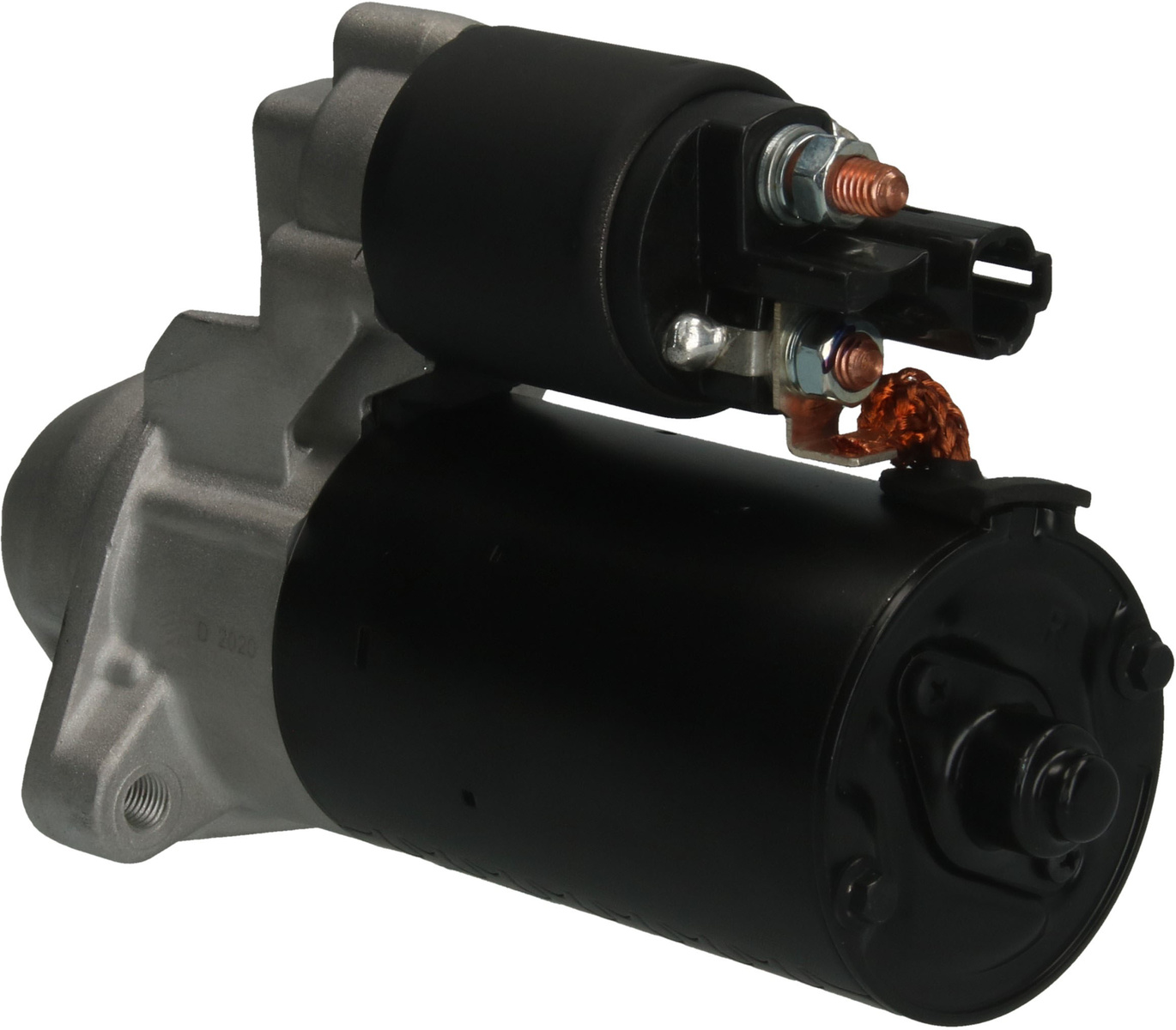

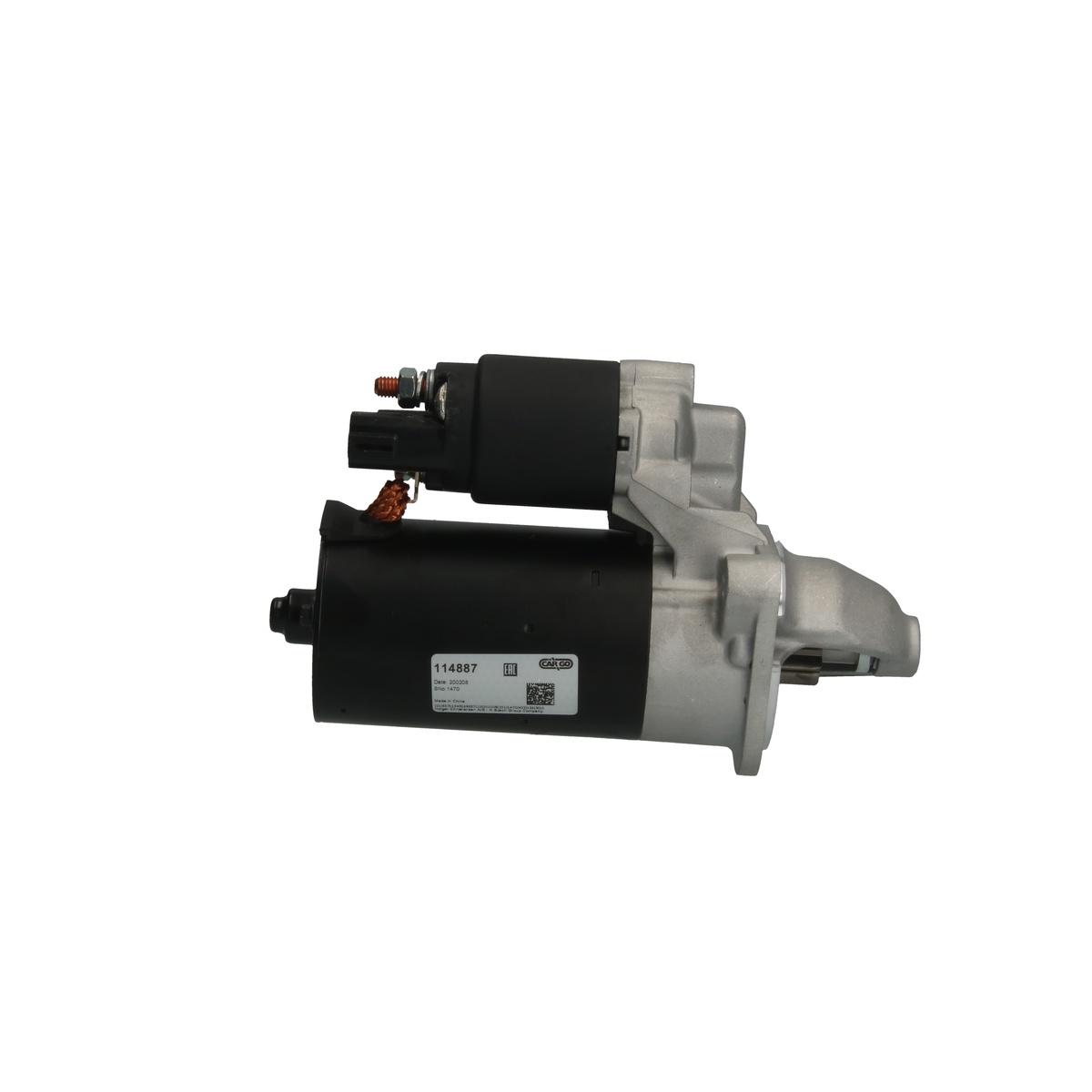

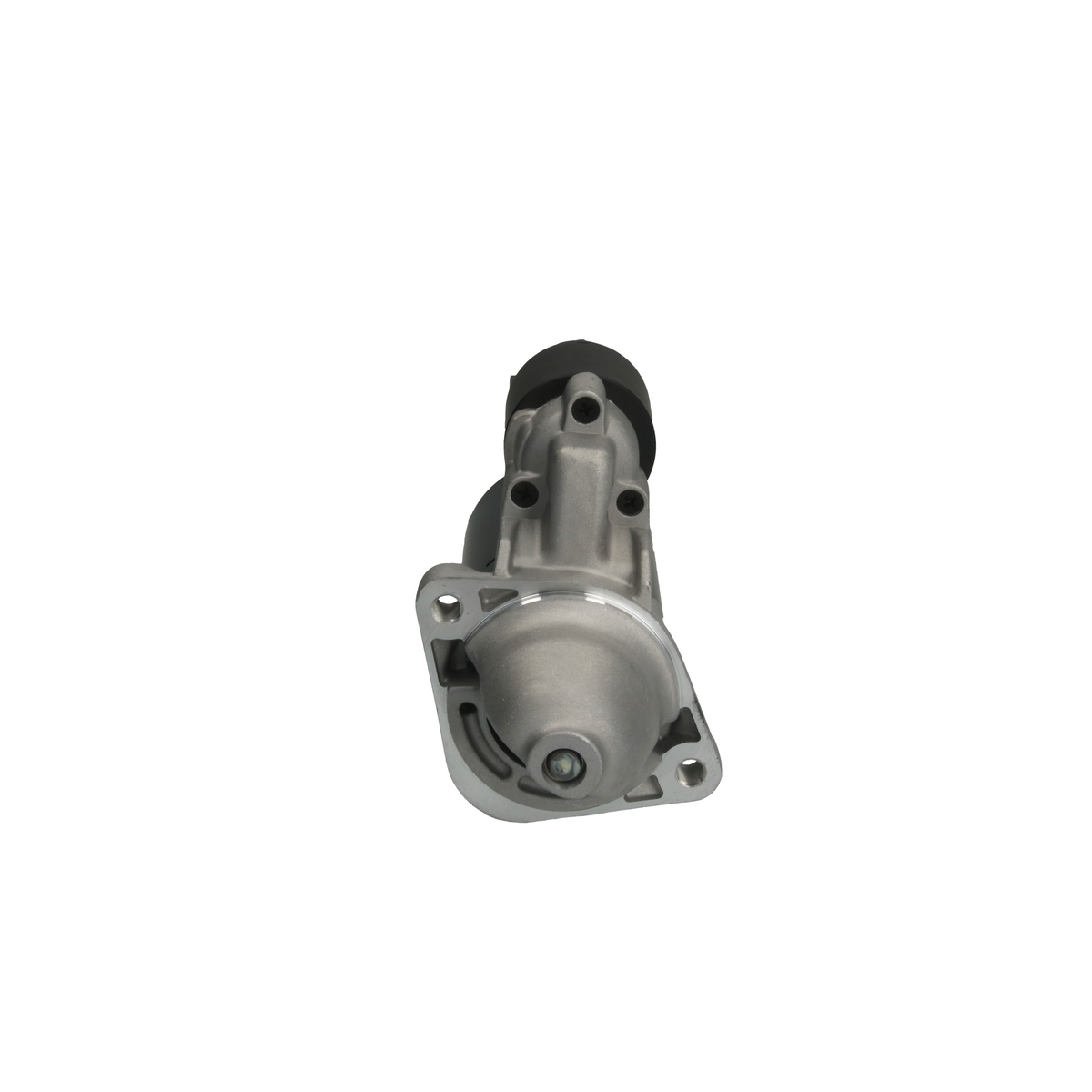

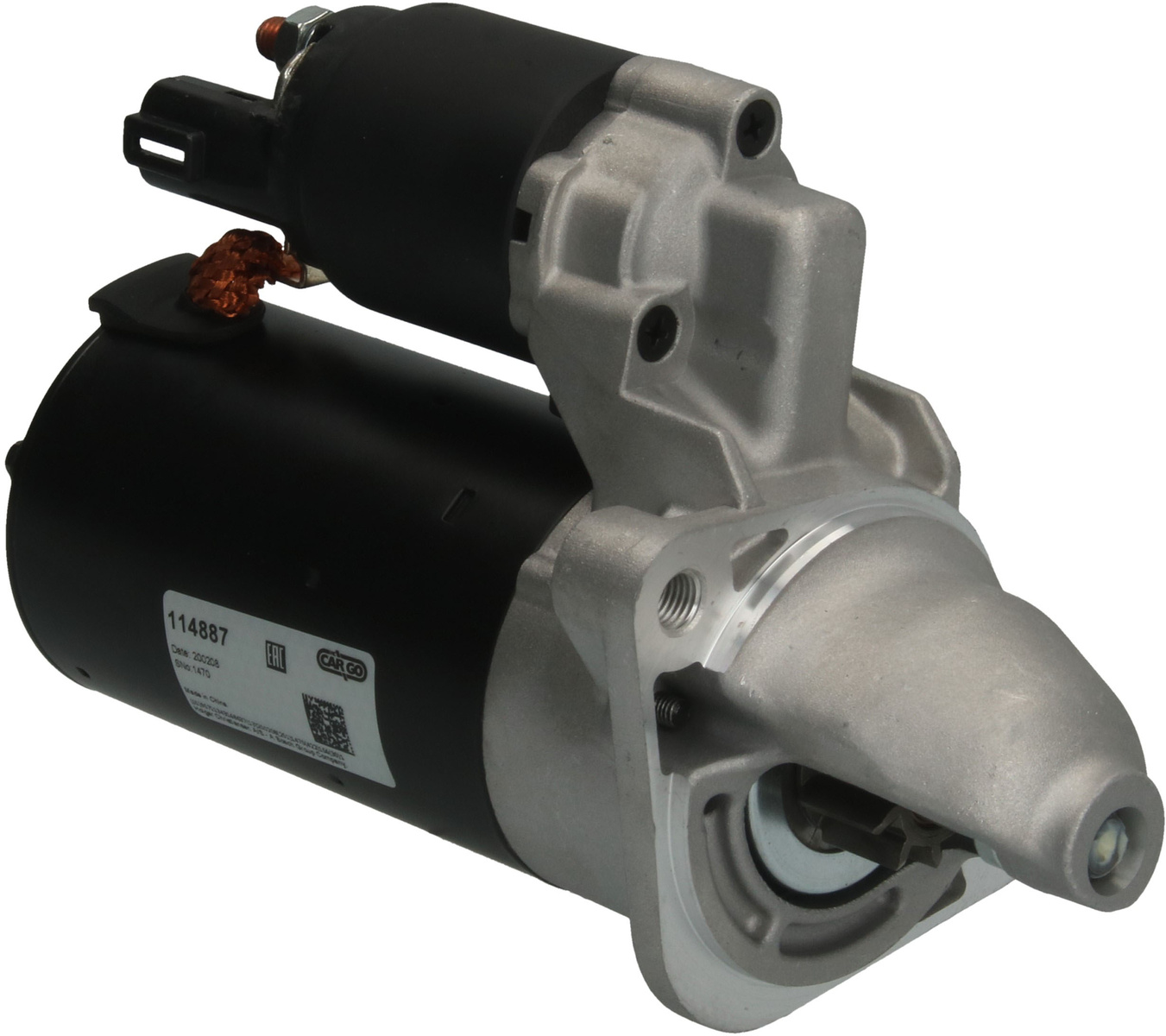

F032114887 - Starter
Trade number 114887
Trade number 114887
Details & description
kW 1.4, Voltage 12, No./mount. holes 2 (0), Rear Distance 174.00, Front Distance 55.50, Drive Distance 21.00, B+ M8, Terminal 50 Plug, Mounting Flange 77.00, Starter type Start/Stop, Distance 99.50, Rotation CW, Mounting Holes with Thread 0, Position 17, Gear type GR, B+ Position 60, No./teeth 9, Amount of Mounting Holes 2, Total Length 229.50
Product information
Electrical information
- kW1.4
- Voltage12
Catalogue information
- Starter typeStart/Stop
Physical information
- No./mount. holes2 (0)
- Rear Distance174.00
- Front Distance55.50
- Drive Distance21.00
- B+M8
- Terminal 50Plug
- Mounting Flange77.00
- Distance99.50
- RotationCW
