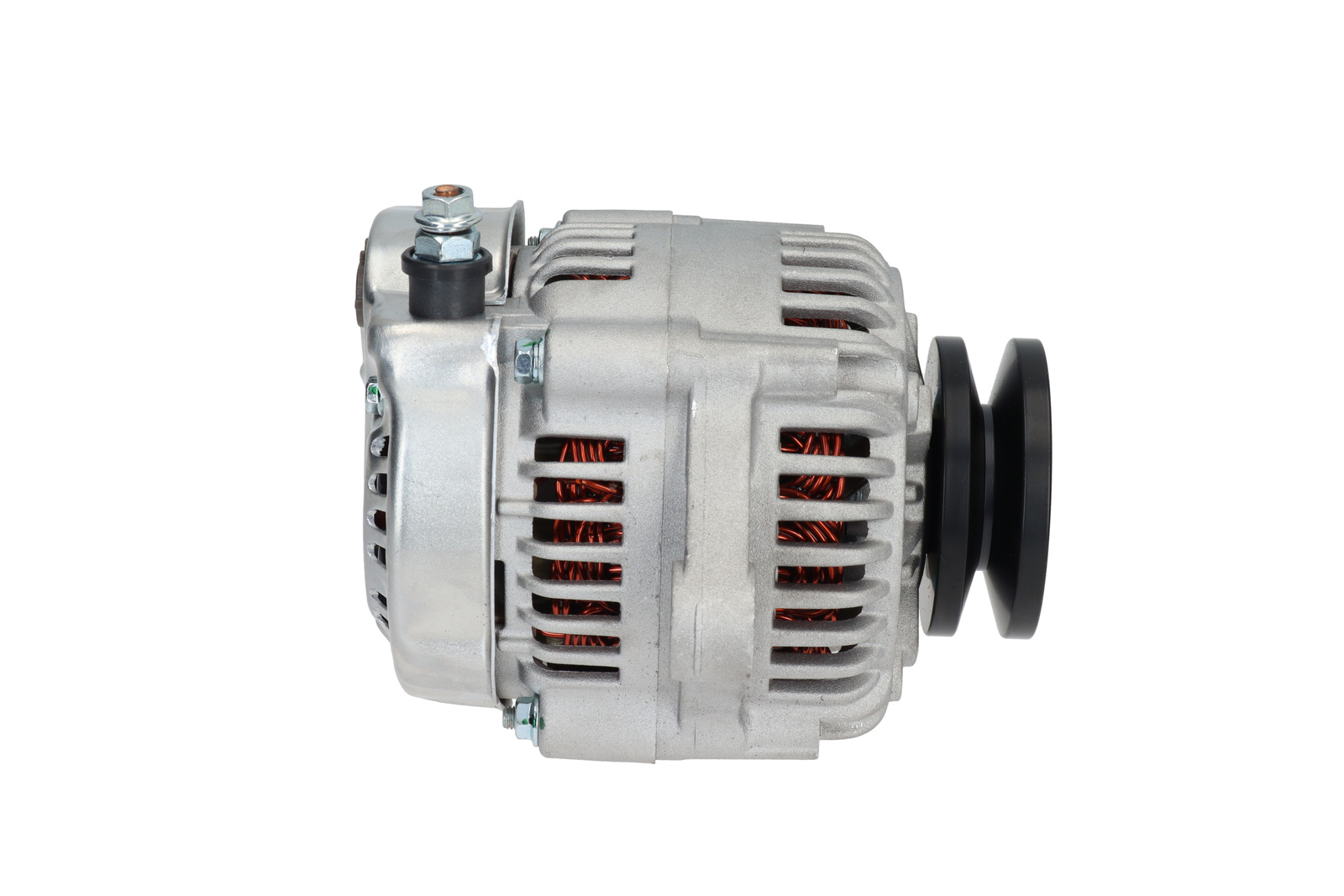

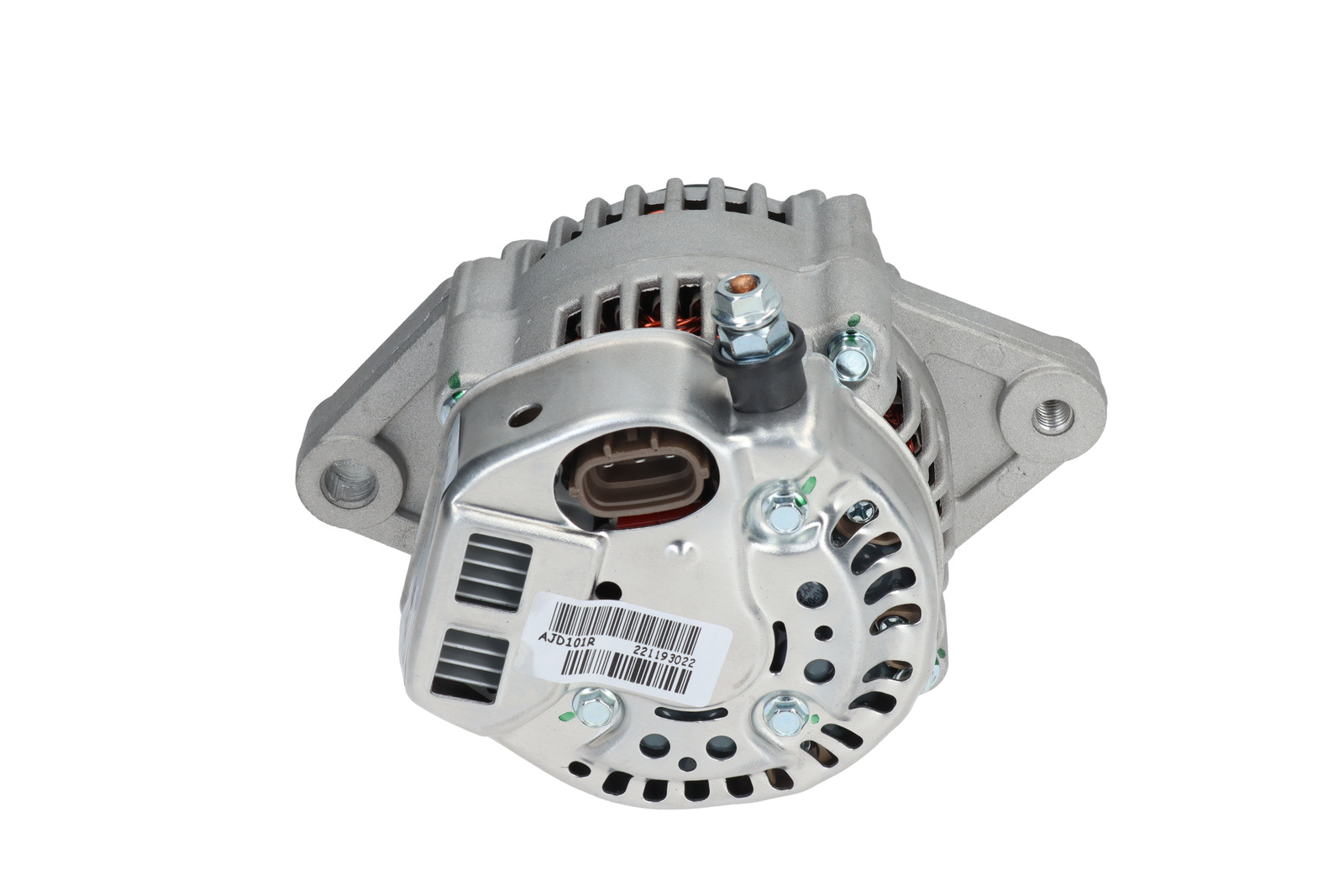

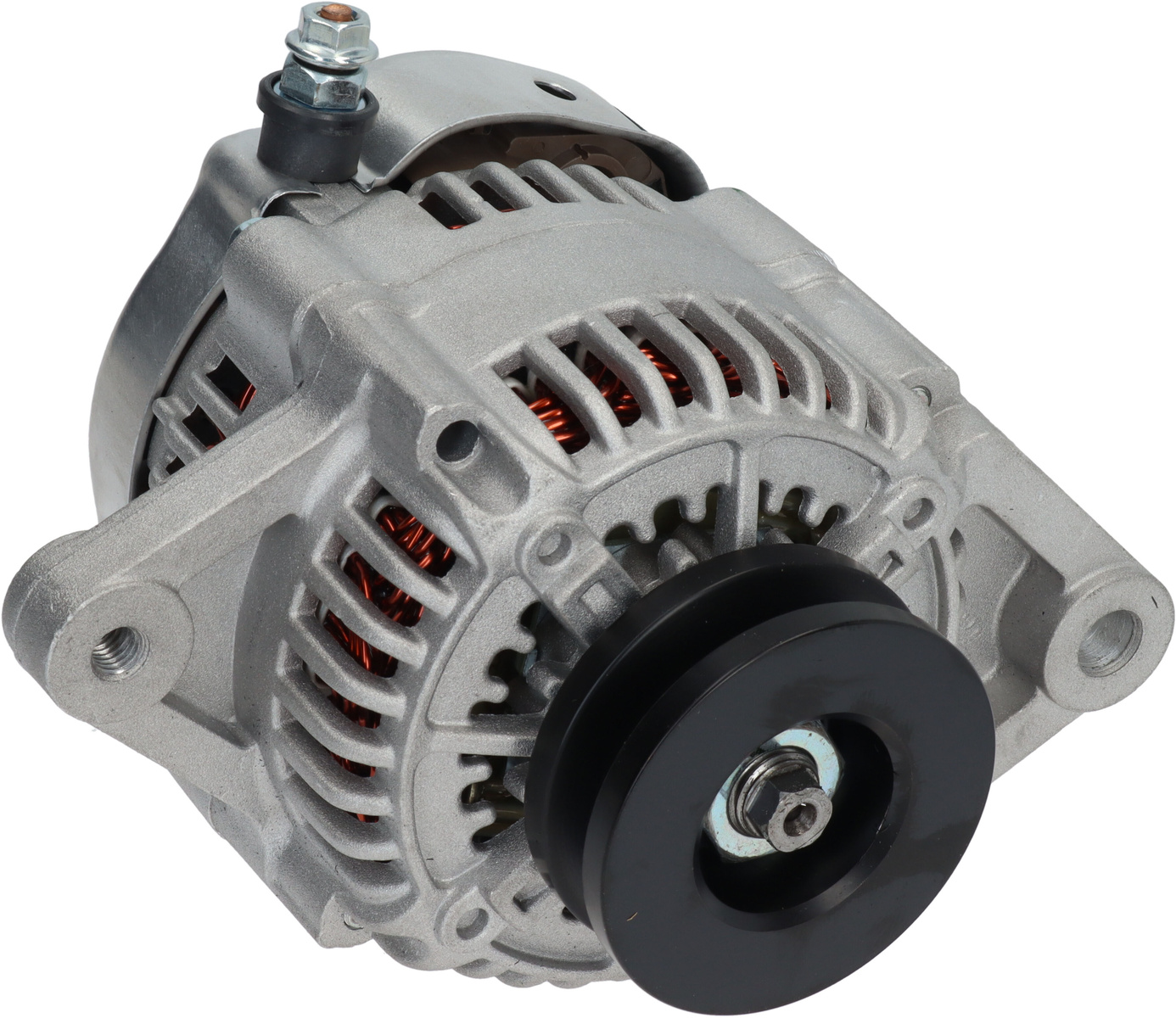

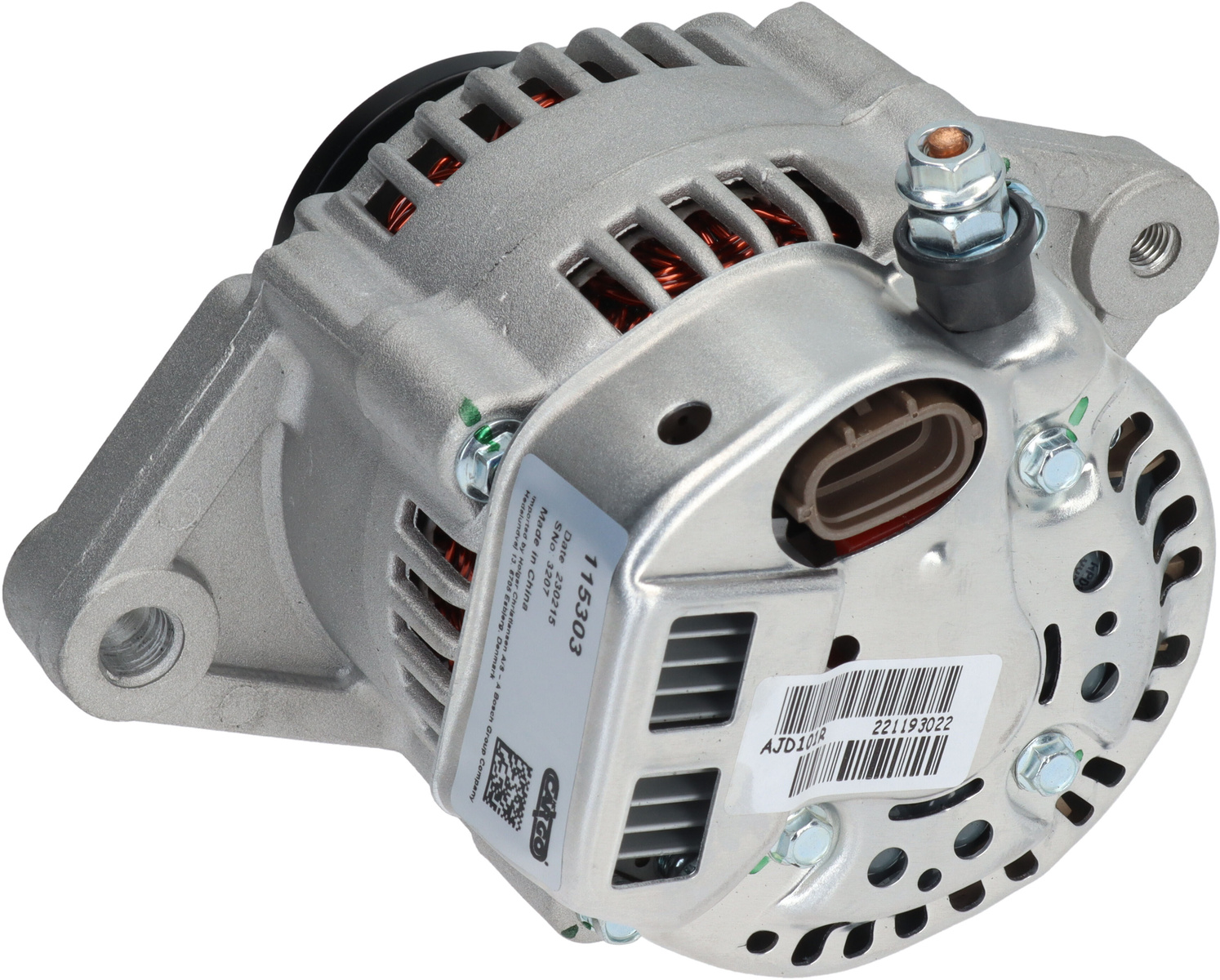

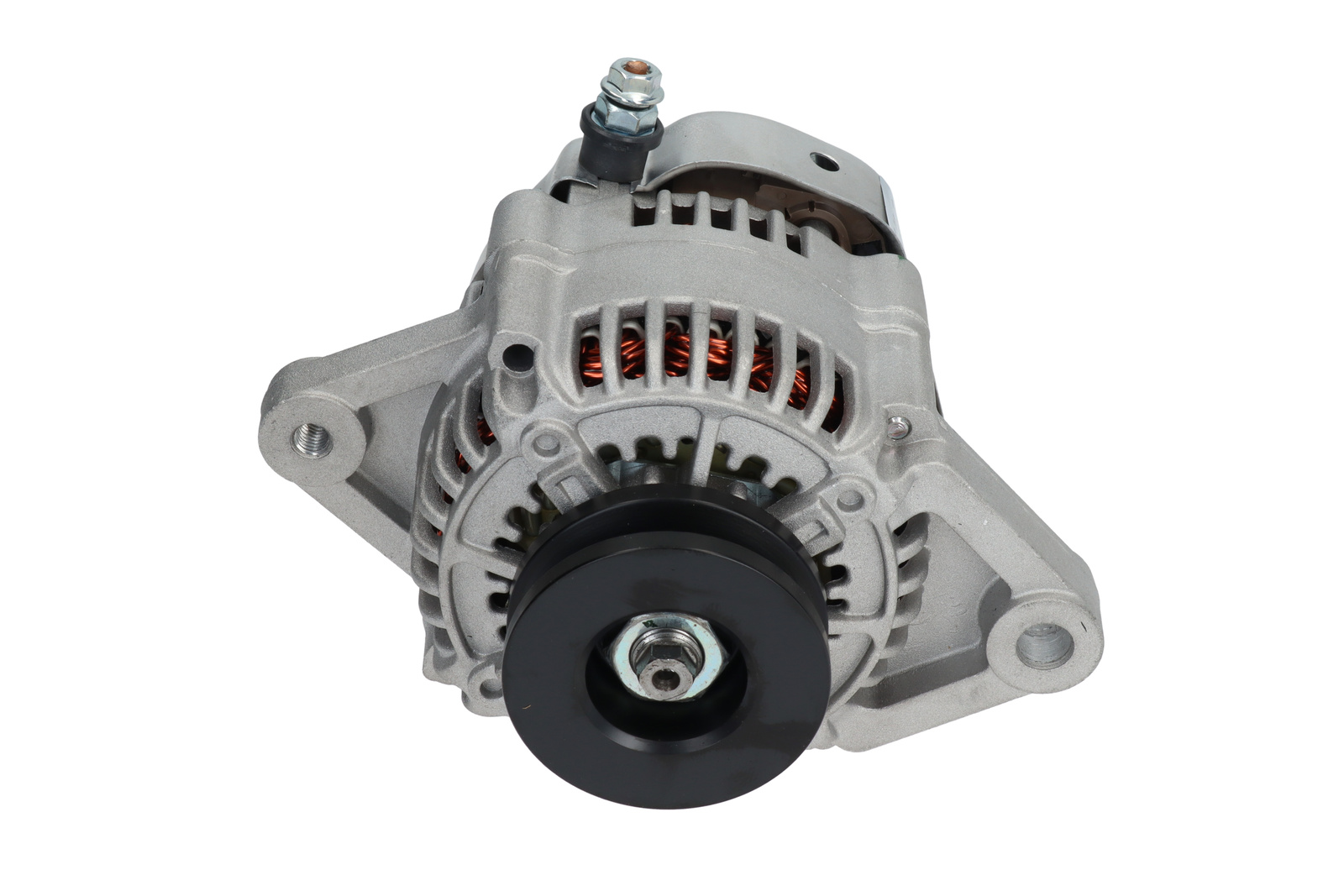

F032115303 - Alternator
Trade number 115303
Replacing and BOMs
OEM number
- 1963064012KUBOTA
- 1963064013KUBOTA
Competitor References
- A6623SDENSOAUTOSTARTER POLAND
- A6623DENSOAUTOSTARTER POLAND
- CAL40125CASCO SRL
- 1012112961DENSO
- 1012112962DENSO
- 1012112963DENSO
- DAN2017DENSO
- 0210801190DENSO
Trade number 115303
Details & description
Terminal IF, Voltage 14, Amp 55, Pulley P, Pulley Diameter 63.00, Bracket Hole Size Rear 10.50, Holder Arm Width 21.00, Pulley Distance 45.00, B+ M6, Fan IF, Radius 2 75.50, Plug no. 1 PL128, Radius 78.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, B+ Position 50, Belt Adjustment Bracket Hole Position 12, Total Length 143.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp55
Physical information
- PulleyP
- Pulley Diameter63.00
- Bracket Hole Size Rear10.50
- Holder Arm Width21.00
- Pulley Distance45.00
- B+M6
- FanIF
- Radius 275.50
- Plug no. 1PL128
Replacing and BOMs
OEM number
- 1963064012KUBOTA
- 1963064013KUBOTA
Competitor References
- A6623SDENSOAUTOSTARTER POLAND
- A6623DENSOAUTOSTARTER POLAND
- CAL40125CASCO SRL
- 1012112961DENSO
- 1012112962DENSO
- 1012112963DENSO
- DAN2017DENSO
- 0210801190DENSO
