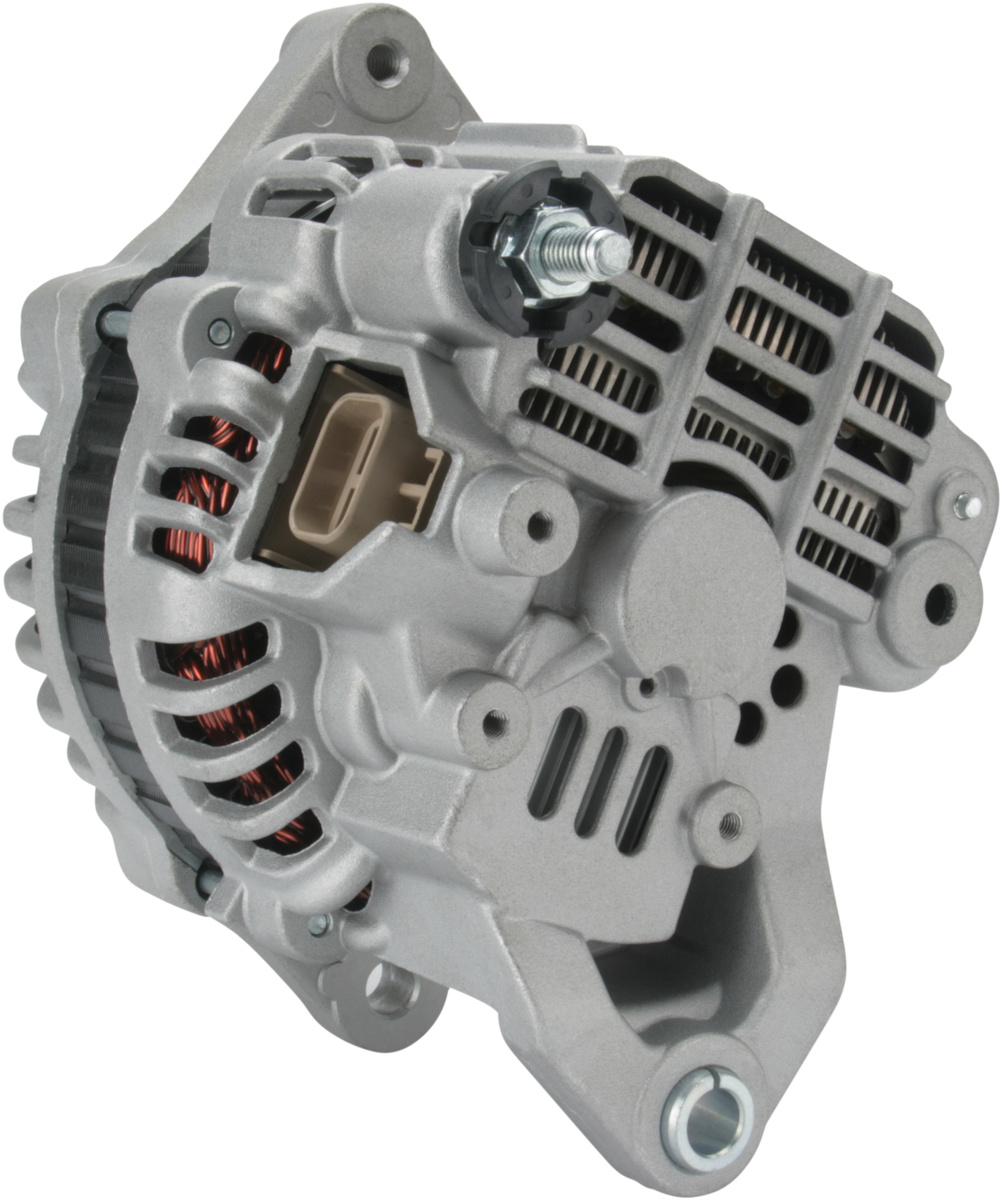

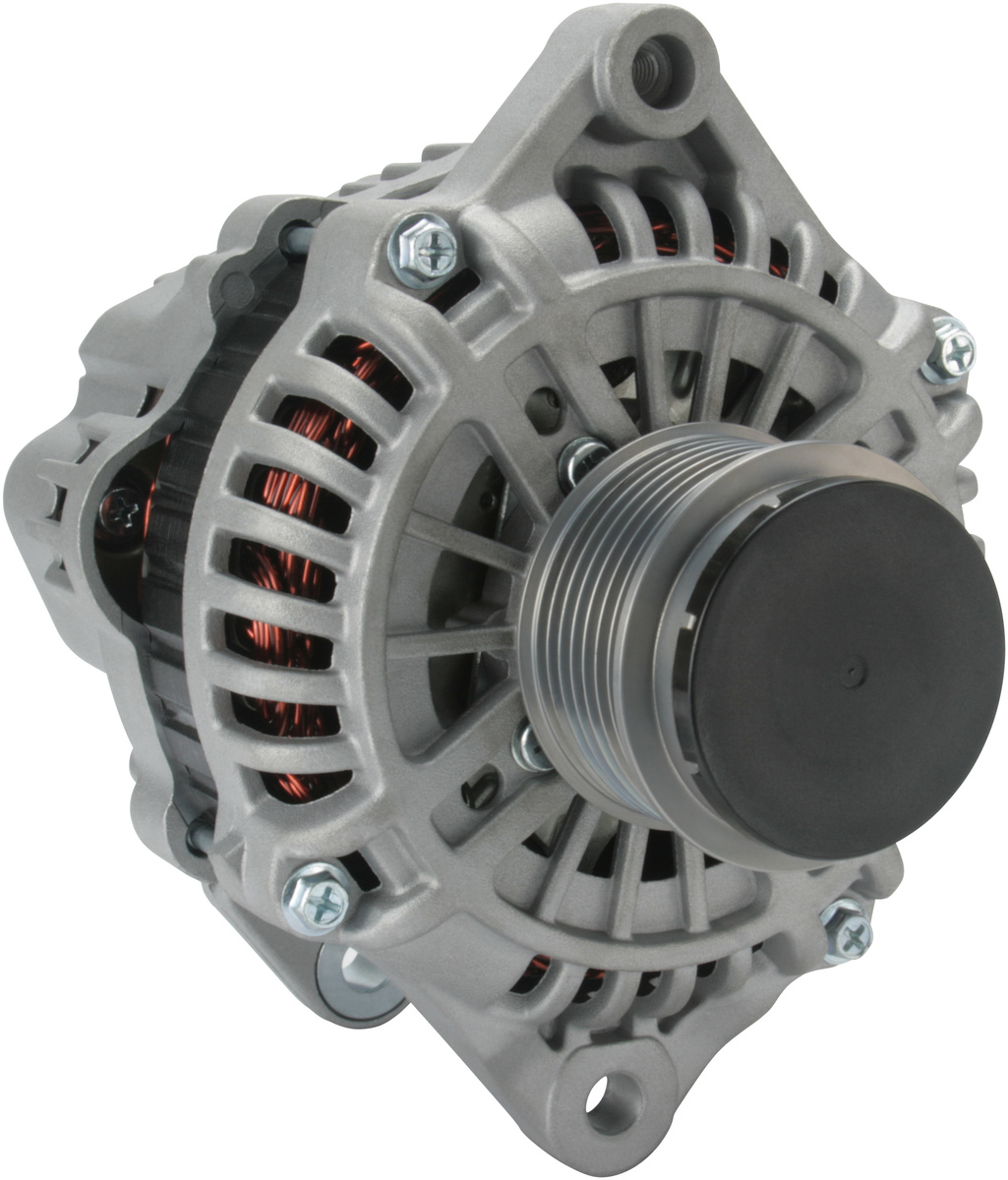

F032115317 - Alternator
Trade number 115317
Trade number 115317
Details & description
Voltage 14, Amp 120, Pulley SP/FW, Bracket Hole Size 1 10.50, Pulley Diameter 60.00, Prod. info BN, Bracket Hole Size Rear 10.50, Holder Arm Width 13.00, Pulley Distance 38.50, Radius 2 85.00, Plug no. 1 PL07, Mounting Bracket Distance 81.00, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 7, Regulator type IR, Position 35, Belt Adjustment Bracket Hole Position 60, Total Length 190.00
Product information
Electrical information
- Voltage14
- Amp120
Catalogue information
- Prod. infoBN
Physical information
- PulleySP/FW
- Bracket Hole Size 110.50
- Pulley Diameter60.00
- Bracket Hole Size Rear10.50
- Holder Arm Width13.00
- Pulley Distance38.50
- Radius 285.00
- Plug no. 1PL07
- Mounting Bracket Distance81.00
