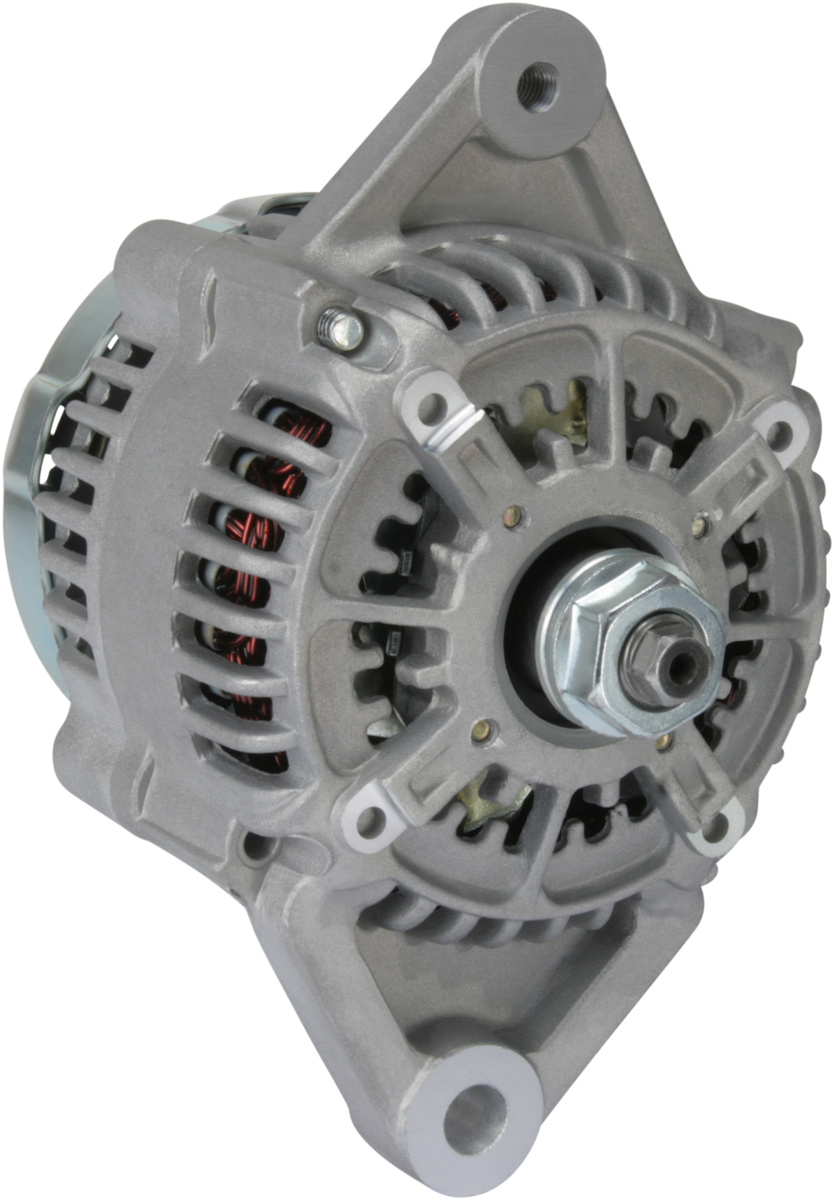

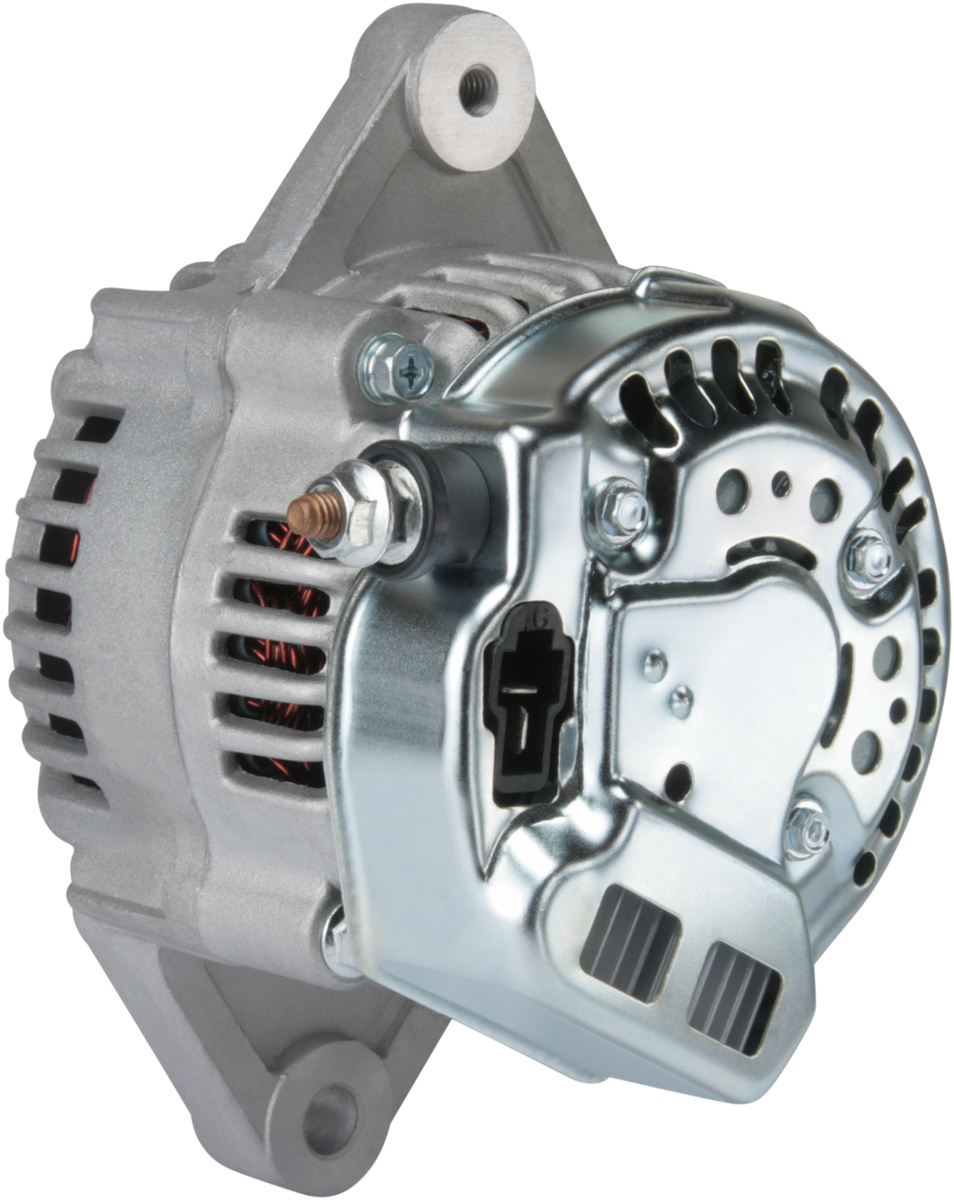

F032115319 - Alternator
Trade number 115319
Replacing and BOMs
OEM number
825577BRIGGS AND STRATTON
2706087802000DAIHATSU
2706087802TOYOTA
Competitor References
CAL40574CASCO SRL
115531045CV PSH
1012118680DENSO
287592ELSTOCK
112718FACROM
115319HC-CARGO
12876LESTER
F032115319 - Alternator
Details & description
Voltage 14, Amp 45, Pulley w/o, Bracket Hole Size 1 10.20, Prod. info BN, D+ Size Plug, D+ Position 15, Holder Arm Width 21.00, B+ M6, Radius 2 78.00, Plug no. 1 PL10, Radius 74.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Regulator type IR, B+ Position 20, Belt Adjustment Bracket Hole Position 60
Product information
Voltage:14
Amp:45
Pulley:w/o
Bracket Hole Size 1:10.20
Prod. info:BN
D+ Size:Plug
D+ Position:15
Holder Arm Width:21.00
B+:M6
Radius 2:78.00
Plug no. 1:PL10
Radius:74.00
Rotation:CW
Belt Adjustment Bracket Hole 1:M8
Regulator type:IR
B+ Position:20
Belt Adjustment Bracket Hole Position:60
Replacing and BOMs
OEM number
825577BRIGGS AND STRATTON
2706087802000DAIHATSU
2706087802TOYOTA
Competitor References
CAL40574CASCO SRL
115531045CV PSH
1012118680DENSO
287592ELSTOCK
112718FACROM
115319HC-CARGO
12876LESTER
