F032115365 - Alternator

Trade number 115365

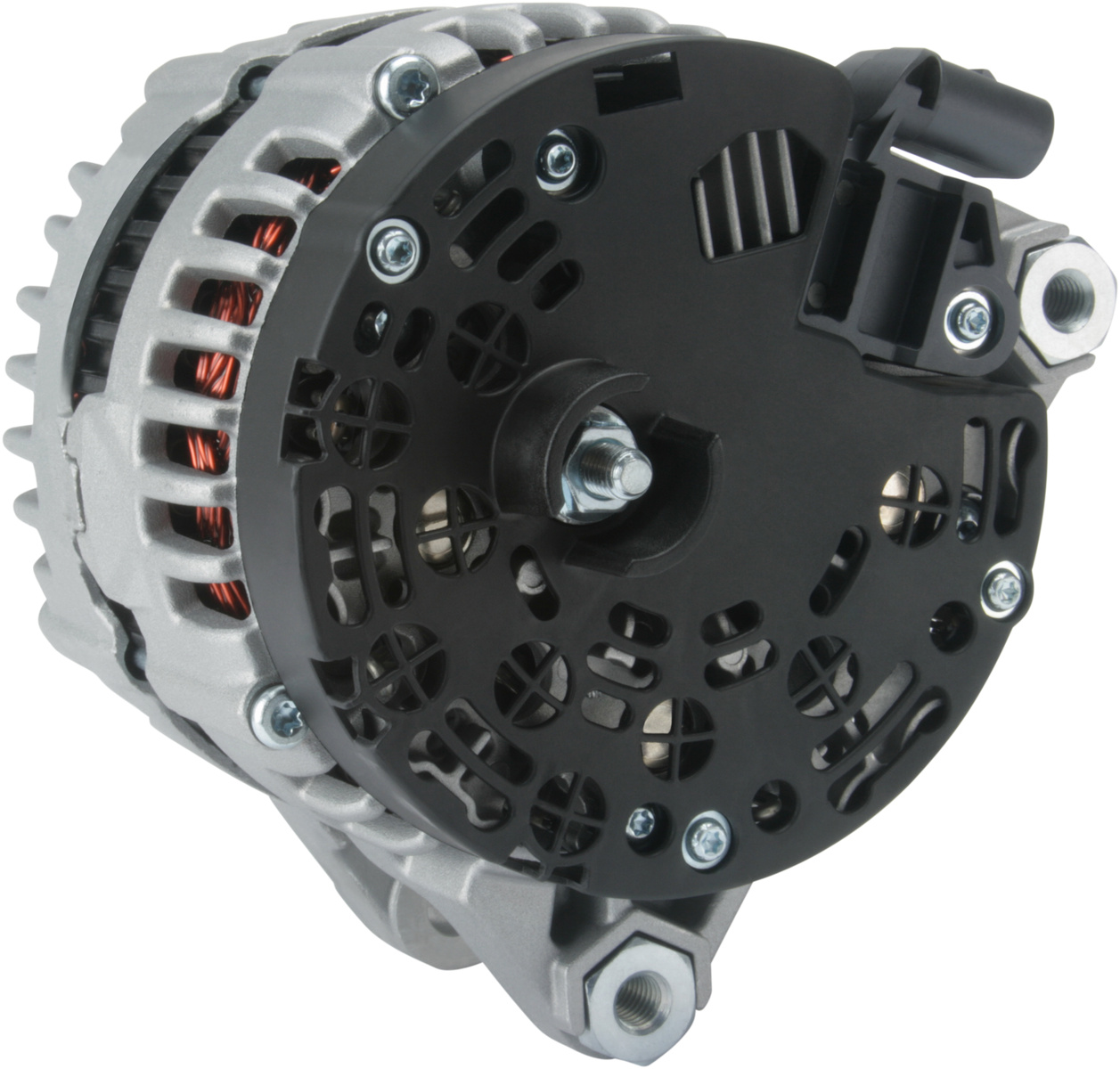

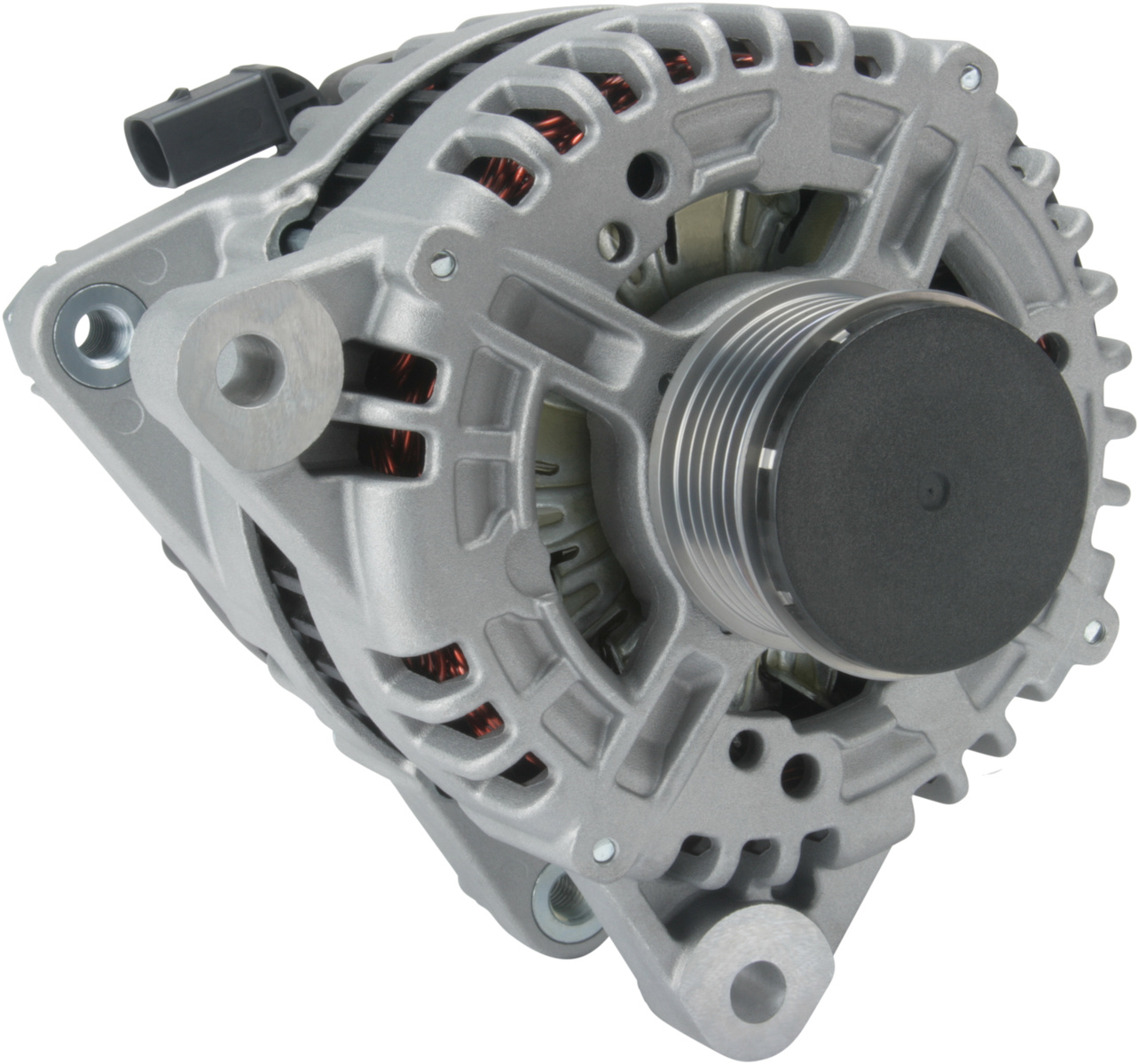

Product image - main
Trade number 115365

Details & description

Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Pulley Diameter 54.00, Prod. info BN, Bracket Hole Size Rear M10, Pulley Distance 42.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 46.70, Radius 90.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 21.20, B+ M8, Radius 2 90.00, Plug no. 1 PL137, Rotation CW, Position 59, B+ Position 45, Belt Adjustment Bracket Hole Position 47, Total Length 182.00

Product information

Voltage:14
Amp:150
Communication:LIN
Pulley:SP/FW
Pulley Diameter:54.00
Prod. info:BN
Bracket Hole Size Rear:M10
Pulley Distance:42.50
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:46.70
Radius:90.00
Belt Adjustment Bracket Hole 1:10.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:10.50
Terminal type:COM
Holder Arm Width:21.20
B+:M8
Radius 2:90.00
Plug no. 1:PL137
Rotation:CW
Position:59
B+ Position:45
Belt Adjustment Bracket Hole Position:47
Total Length:182.00

Replacing and BOMs

OEM number

1458640FORD
7G9N10300EAFORD
7GN10300EAFORD
1791840FORD
2099465FORD
7G9J10300EAFORD
30795169VOLVO
36000798VOLVO

Competitor References

DRA0058AC DELCO
DRA0058NAC DELCO
302000RIAD KÜHNER
A0289AUTOSTARTER POLAND
0121615028BOSCHBOM
0121615128BOSCHBOM
0986081190BOSCH
CAL10312CASCO SRL
595563150CV PSH
DRA0058DELCO REMY
DRA0058NDELCO REMY
2193111502DRI
285889ELSTOCK
210427ERA SPA
210427AERA SPA
12090175EUROTEC
112663FACROM
9090377FRIESEN
115365HC-CARGO
CA2000IRHC-PARTS
8EL738212341HELLA
8EL011712111HELLA
32081190HERTH U. BUSS
20013LESTER
LRA03277LUCAS
944390903770MARELLI
9090377QUINTON HAZELL
440477VALEO
20013NWAI
