Details & description

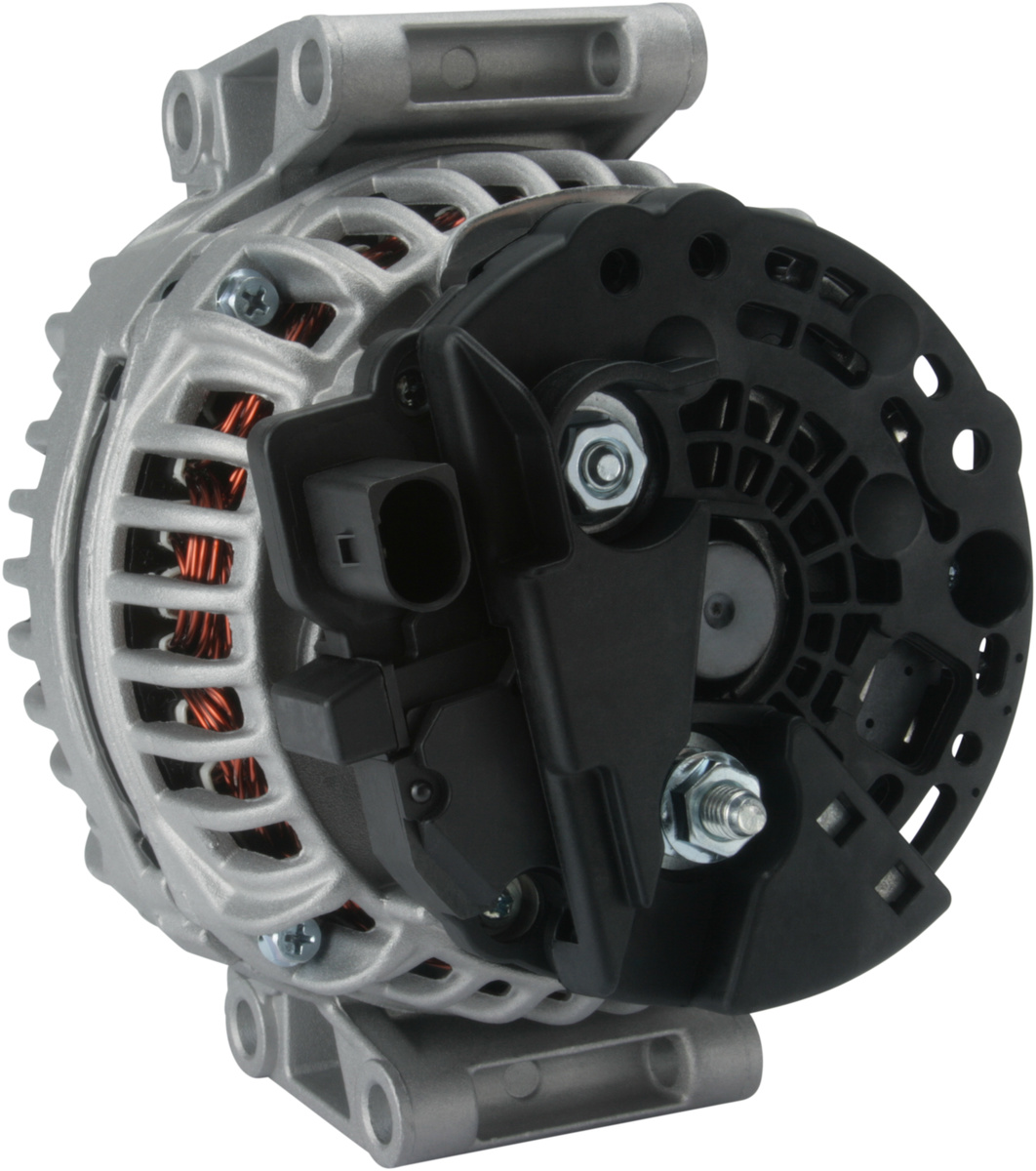

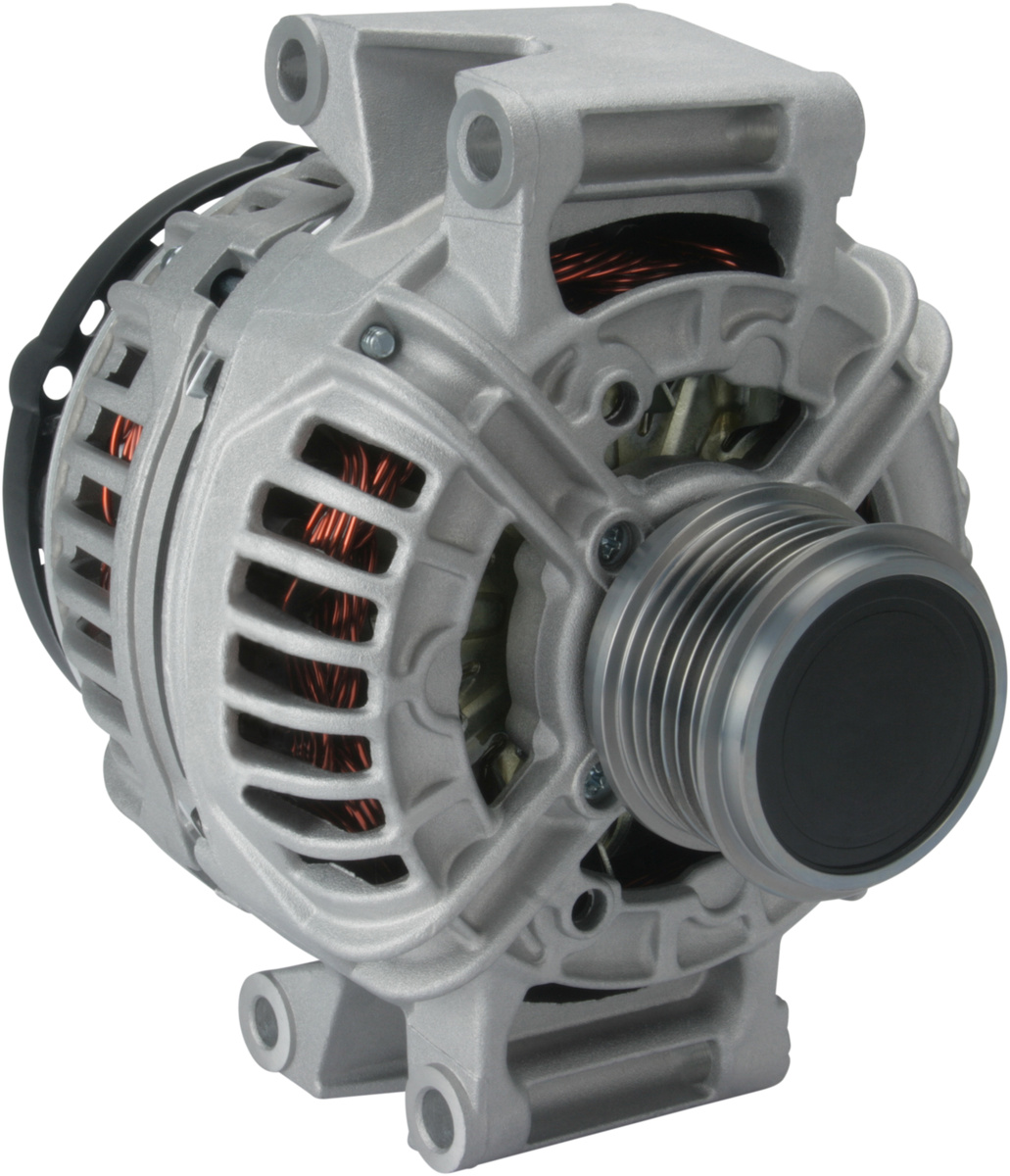

Voltage 14, Amp 140, Communication LIN, Pulley SP/FW, Pulley Diameter 56.00, Prod. info BN, Pulley Distance 28.00, Bracket Hole Size 2 9.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 56.50, Belt Adjustment Bracket Hole 1 10.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.50, Belt Adjustment Bracket Hole 2 10.00, Terminal type COM, Holder Arm Width 70.00, B+ M8, Plug no. 1 PL86, Rotation CW, Position 14, B+ Position 2, Belt Adjustment Bracket Hole Position 60
