F032115382 - Alternator

Trade number 115382

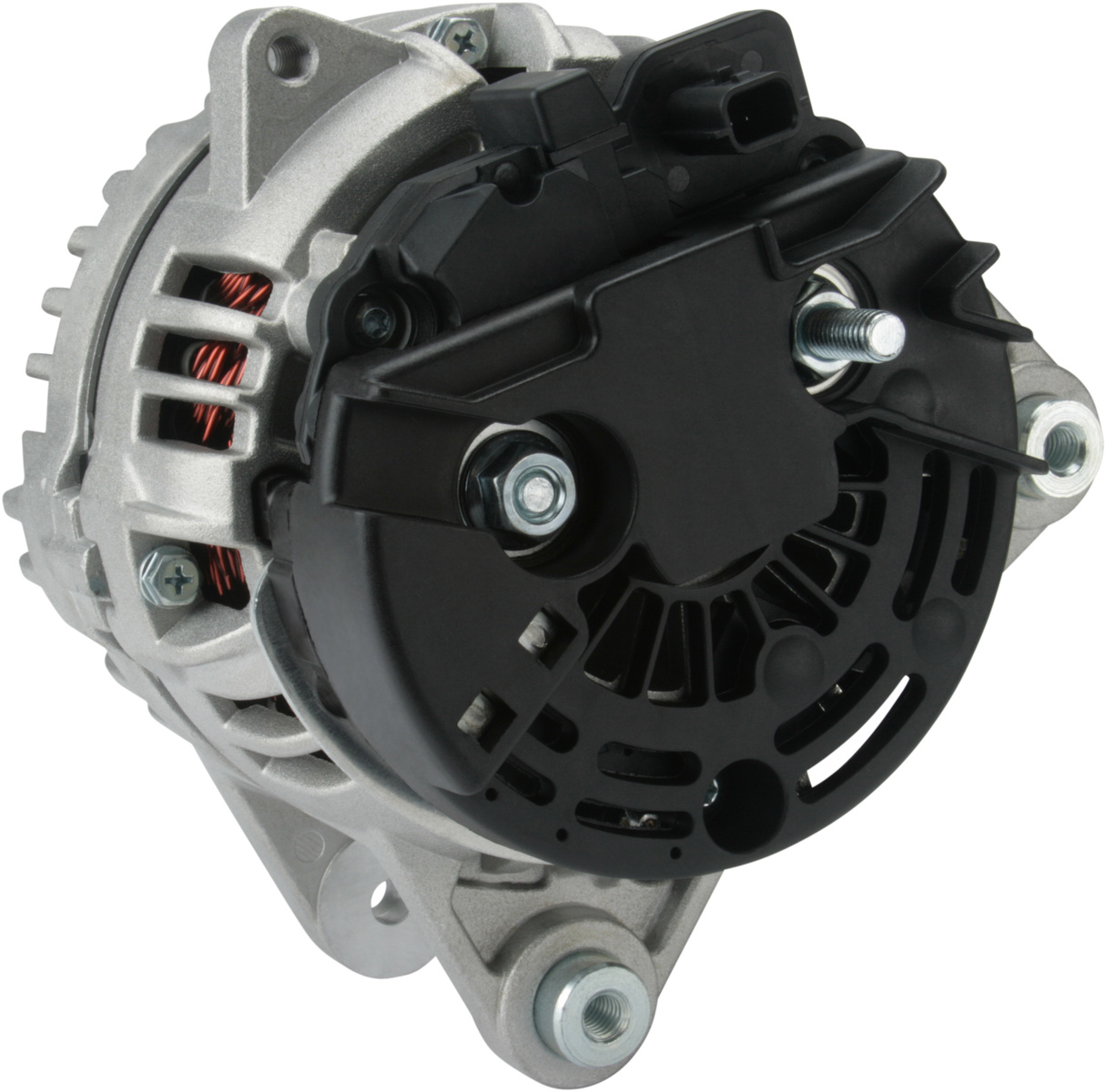

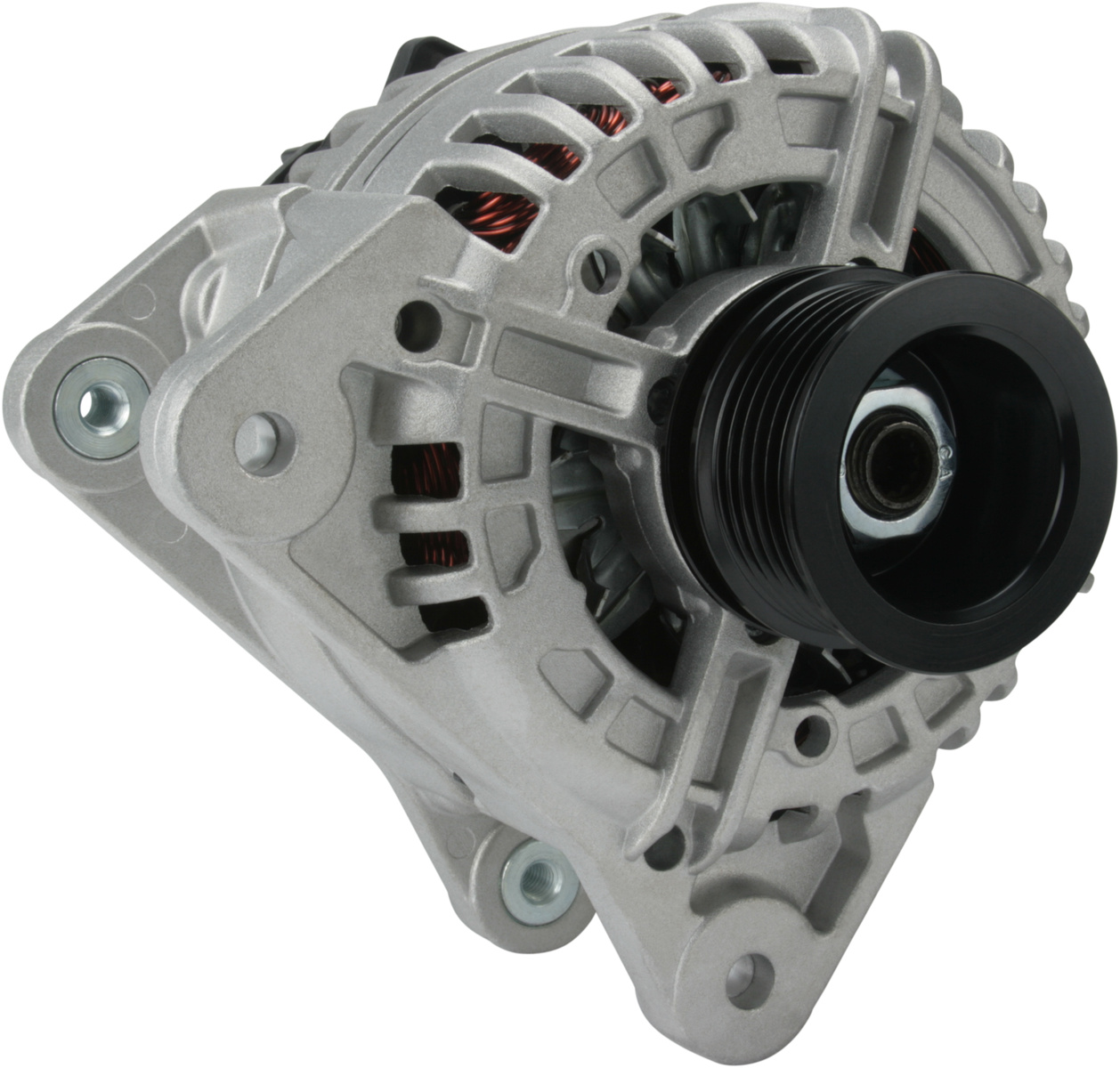

Product image - main
Trade number 115382

Details & description

Voltage 14, Amp 120, Communication BSS, Pulley SP, Pulley Diameter 55.00, Prod. info BN, Bracket Hole Size Rear M8, Pulley Distance 38.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 60.50, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.00, B+ M8, Radius 2 90.00, Plug no. 1 PL124, Rotation CW, Position 60, B+ Position 5, Belt Adjustment Bracket Hole Position 15, Total Length 190.00

Product information

Voltage:14
Amp:120
Communication:BSS
Pulley:SP
Pulley Diameter:55.00
Prod. info:BN
Bracket Hole Size Rear:M8
Pulley Distance:38.50
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:60.50
Radius:90.00
Belt Adjustment Bracket Hole 1:8.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:8.50
Terminal type:COM
Holder Arm Width:14.00
B+:M8
Radius 2:90.00
Plug no. 1:PL124
Rotation:CW
Position:60
B+ Position:5
Belt Adjustment Bracket Hole Position:15
Total Length:190.00

Replacing and BOMs

OEM number

8200323137RENAULT
8200660025RENAULTBOM

Competitor References

DRA0361AC DELCO
301887RIAD KÜHNER
A0278AUTOSTARTER POLAND
0124425034BOSCHBOM
0124425070BOSCHBOM
0986080990BOSCH
0124425110BOSCHBOM
1986A00832BOSCH
CAL10346CASCO SRL
575587120CV PSH
DRA0361DELCO REMY
2303431202DRI
285861ELSTOCK
209098ERA SPA
209098AERA SPA
12090295EUROTEC
111727FACROM
112640FACROM
9090458FRIESEN
115382HC-CARGO
CA1887IRHC-PARTS
8EL738211651HELLA
8EL012426311HELLA
32425034HERTH U. BUSS
IA1435ISKRA
LRA03249LUCAS
944390904580MARELLI
9212279POWER MAX
9090458QUINTON HAZELL
440778VALEO
23261NWAI
