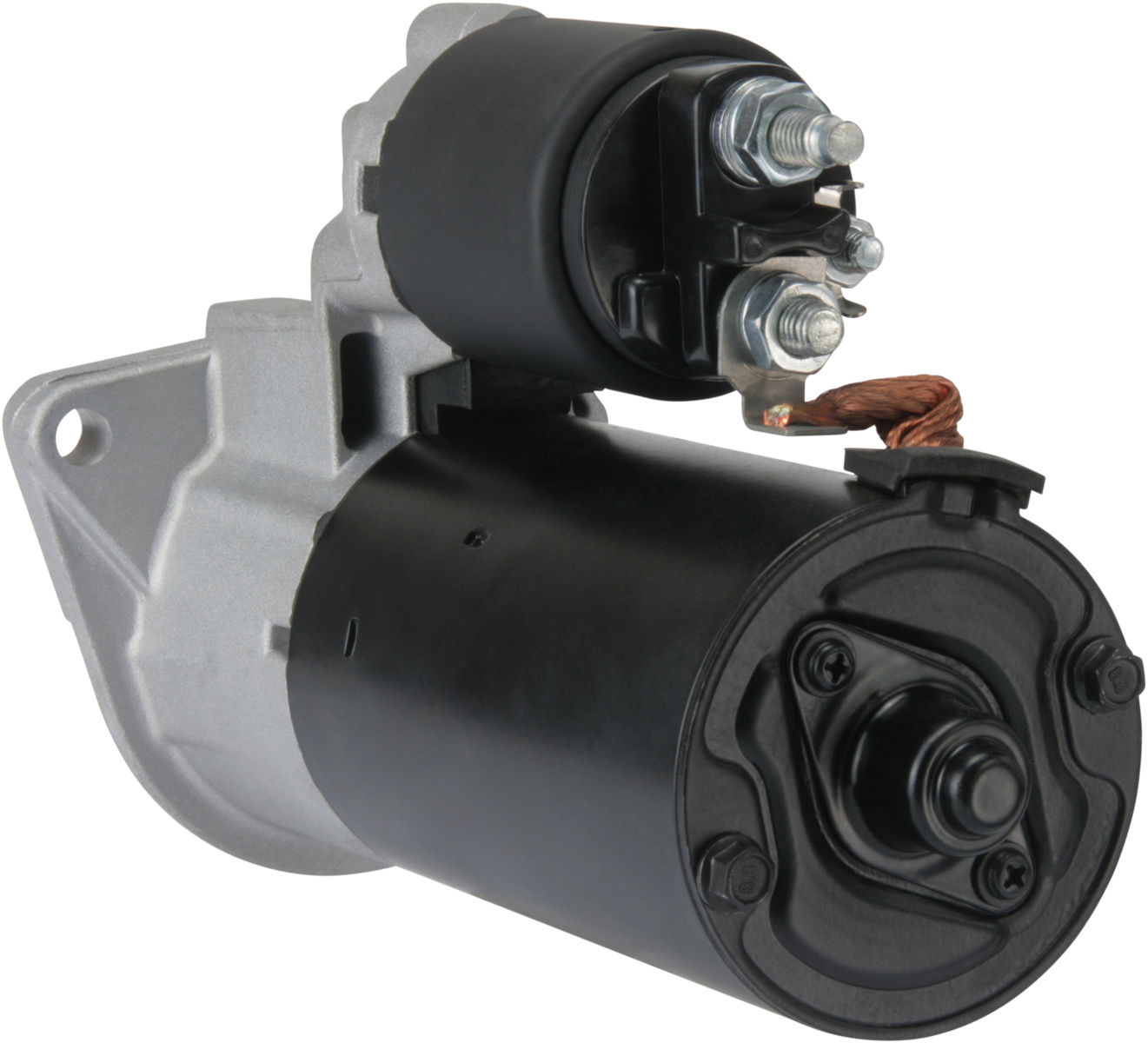

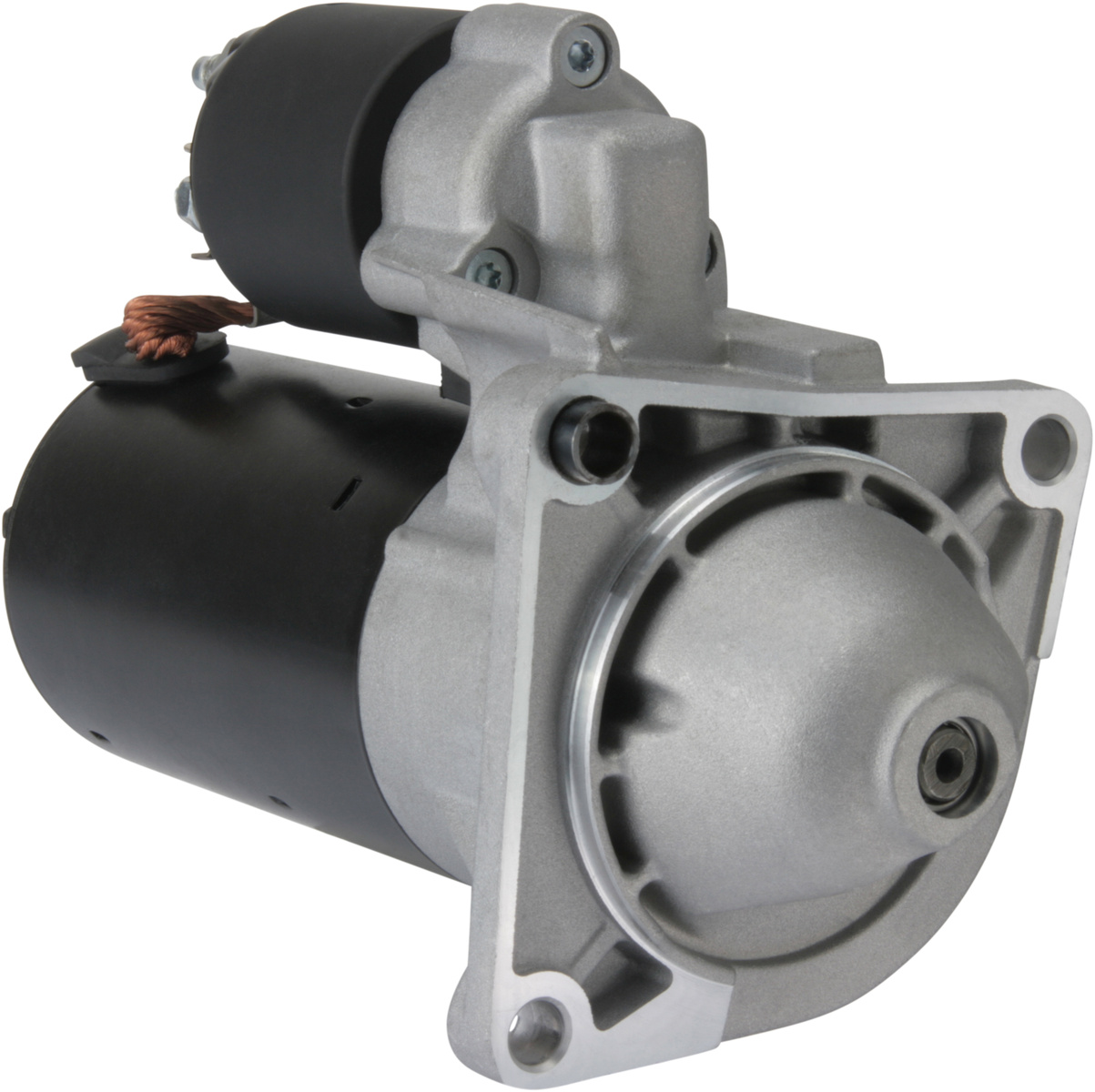

F032115399 - Starter
Trade number 115399
Replacing and BOMs
OEM number
51916171FIAT
51810308FIAT
95512513OPEL
3110055PA0SUZUKI
3110062MA0SUZUKI
Competitor References
DRS0309AC DELCO
254634AD KÜHNER
S0314AUTOSTARTER POLAND
0986025190BOSCH
1986S00648BOSCH
1986S00830BOSCH
CST10447CASCO SRL
500560113CV PSH
500560093CV PSH
DRS0309DELCO REMY
318222112DRI
254283ELSTOCK
255254ELSTOCK
220687ERA SPA
220687AERA SPA
11040997EUROTEC
11090208EUROTEC
8080326FRIESEN
115399HC-CARGO
8EA011611931HELLA
42025190HERTH U. BUSS
LRS02610LUCAS
458878VALEO
33282NWAI
F032115399 - Starter
Details & description
kW 1.7, Voltage 12, No./mount. holes 3 (0), Mounting Hole 2 9.00, Rear Distance 176.00, Gear type GR, Front Distance 37.00, Distance 3 81.00, Drive Distance 3.00, No./teeth 11, Distance 2 81.00, B+ M8, Terminal 50 M6, Mounting Flange 76.20, Starter type Start/Stop, Distance 115.00, Mounting Hole 3 9.00, Rotation CW, Position 15, Mounting Hole 1 9.00, Amount of Mounting Holes 3 (0), Total Length 227.00
Product information
kW:1.7
Voltage:12
No./mount. holes:3 (0)
Mounting Hole 2:9.00
Rear Distance:176.00
Gear type:GR
Front Distance:37.00
Distance 3:81.00
Drive Distance:3.00
No./teeth:11
Distance 2:81.00
B+:M8
Terminal 50:M6
Mounting Flange:76.20
Starter type:Start/Stop
Distance:115.00
Mounting Hole 3:9.00
Rotation:CW
Position:15
Mounting Hole 1:9.00
Amount of Mounting Holes:3 (0)
Total Length:227.00
