F032115414 - Alternator

Trade number 115414

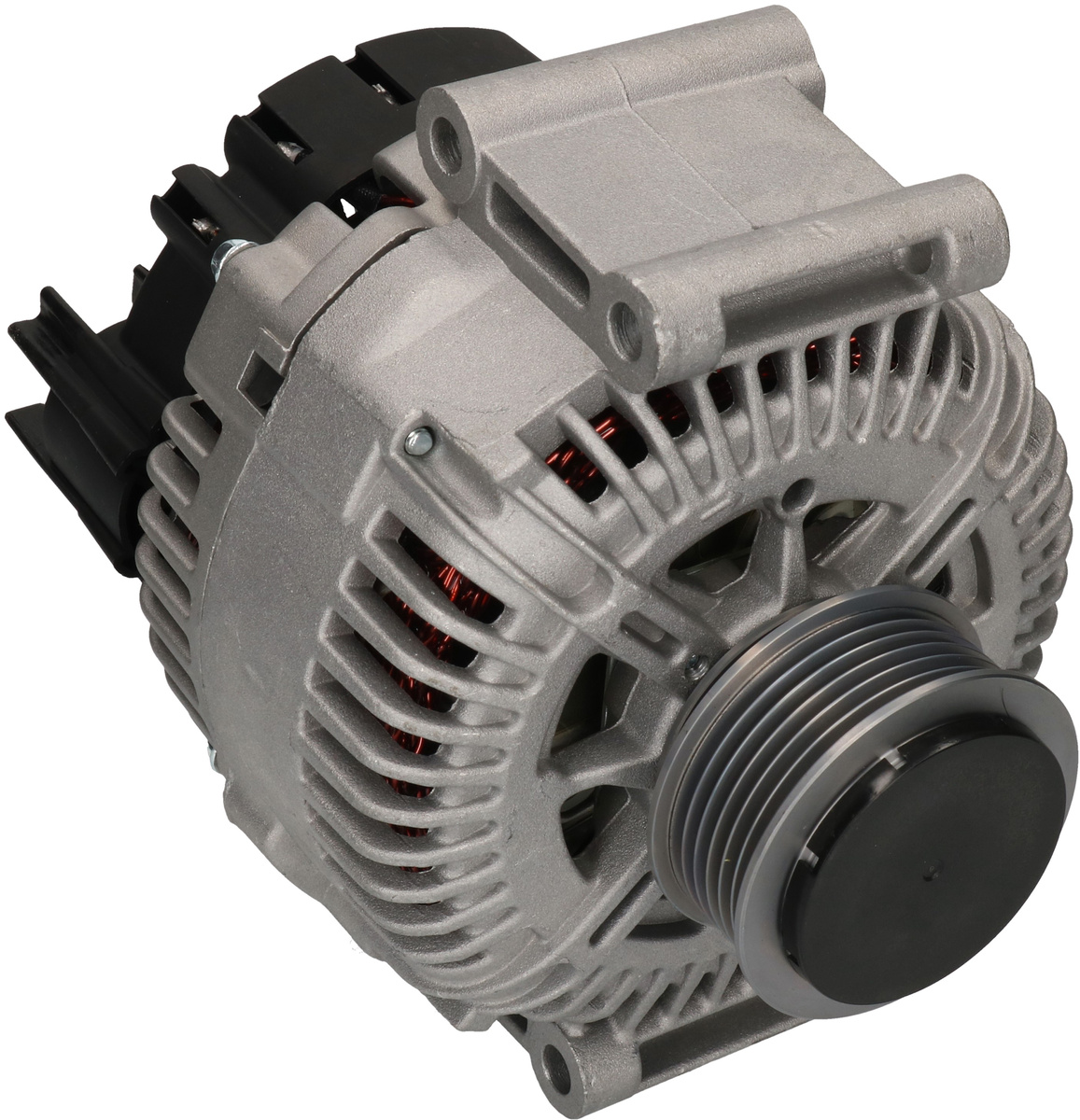

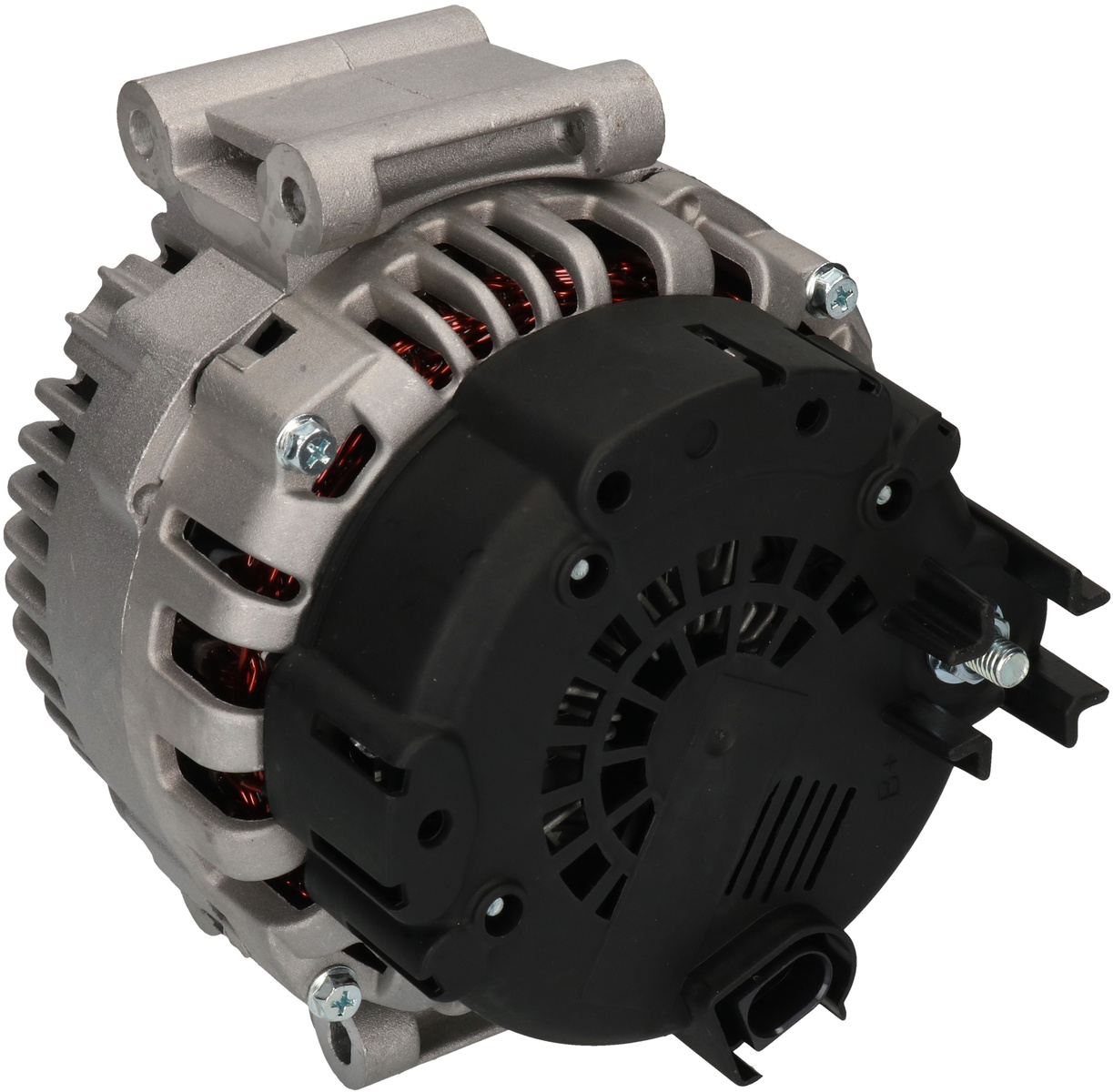

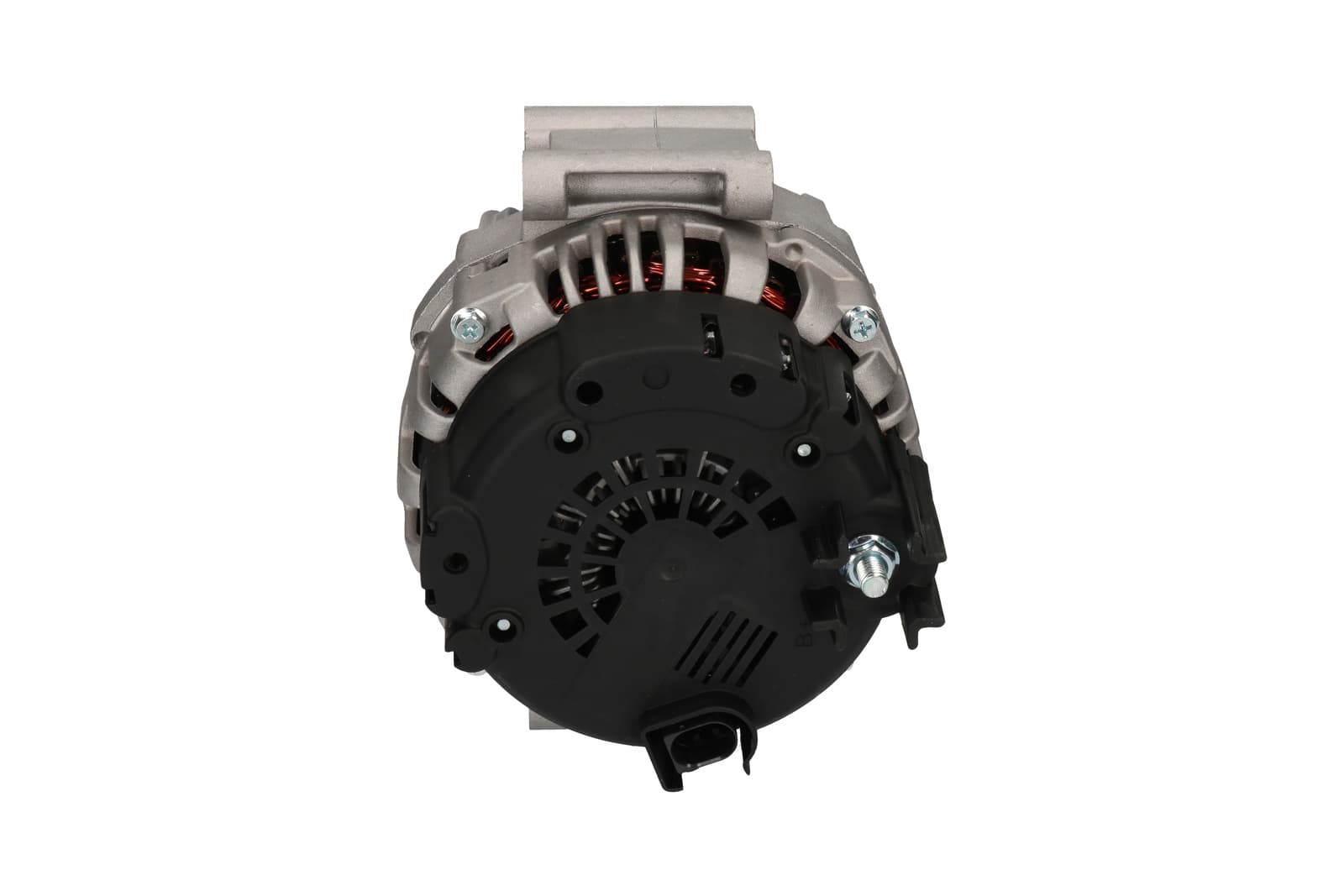

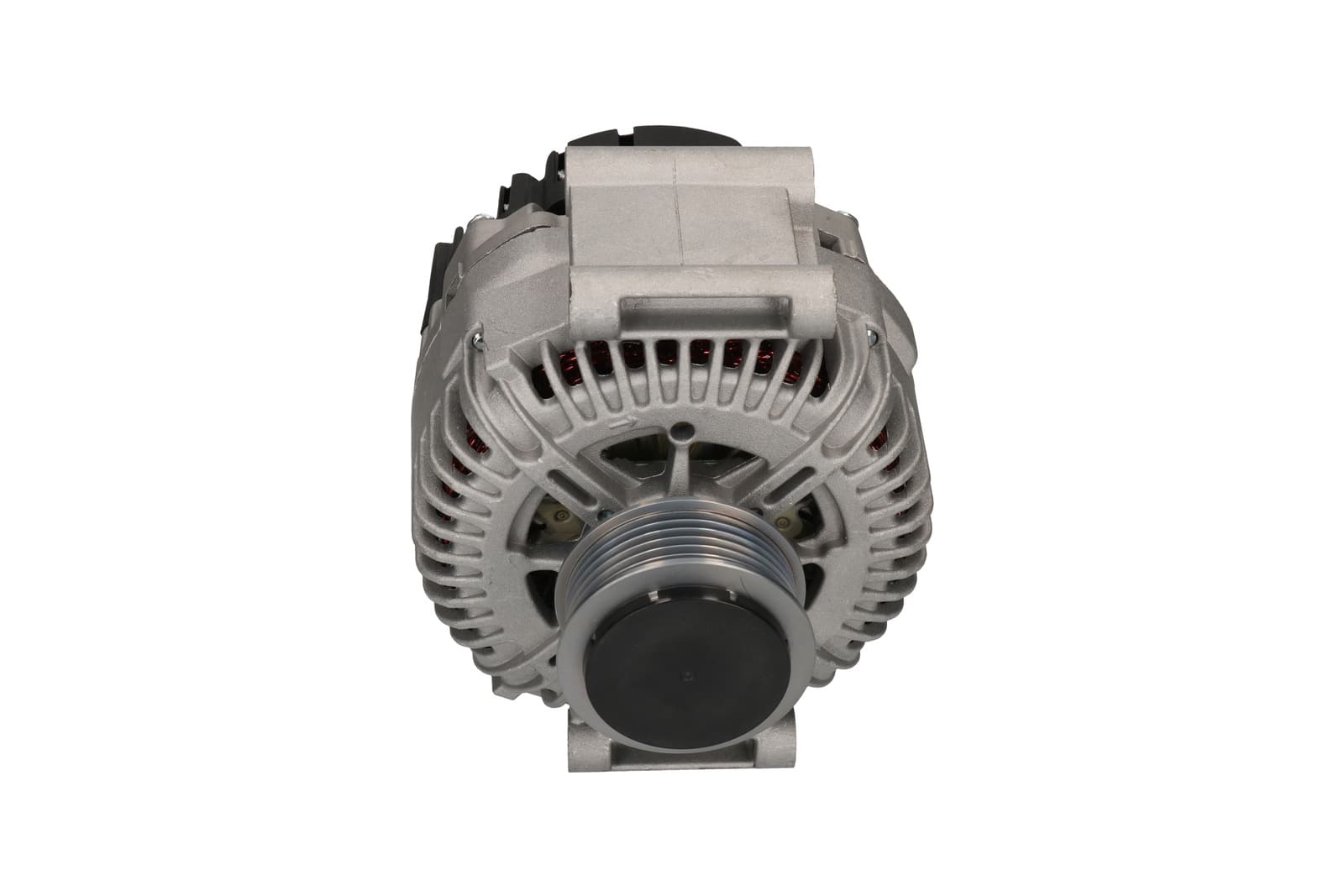

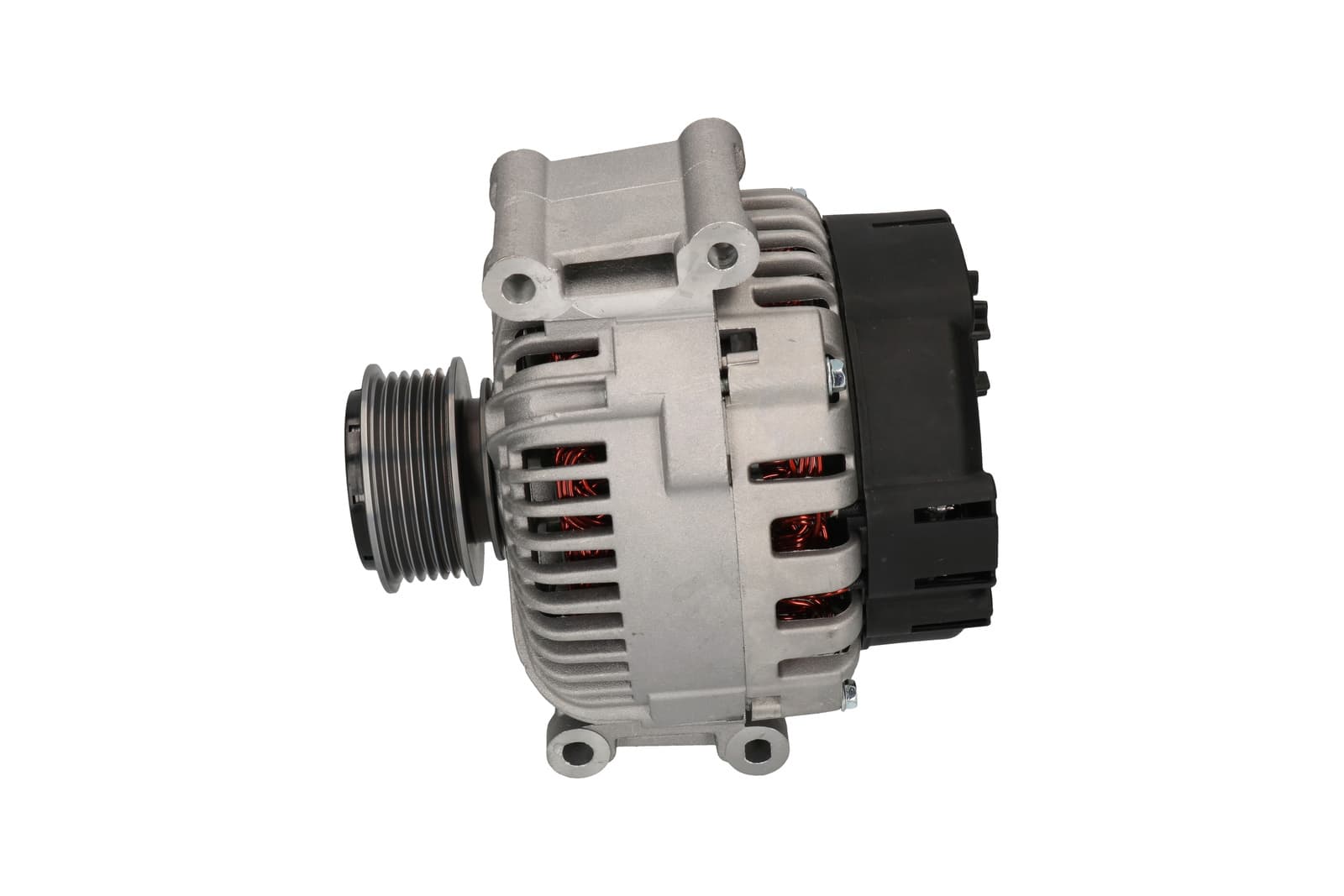

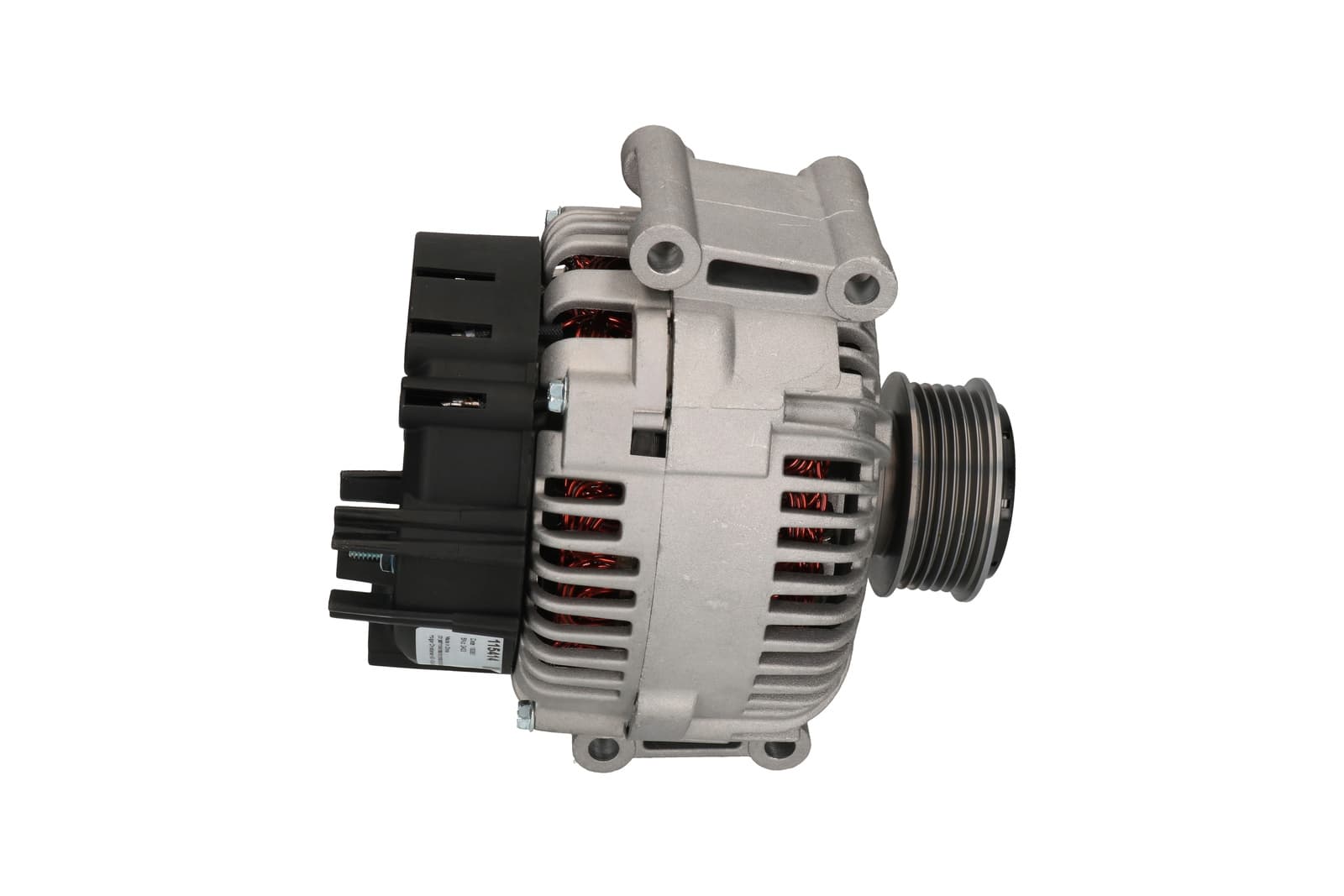

Product image - main
Trade number 115414

Details & description

Voltage 14, Amp 180, Pulley SP/FW, Pulley Diameter 64.50, Bracket Hole Size Rear 9.50, Pulley Distance 29.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 56.00, Radius 80.50, Belt Adjustment Bracket Hole 1 9.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.00, Belt Adjustment Bracket Hole 2 8.00x9.50, Terminal type COM, Holder Arm Width 70.00, B+ M8, Radius 2 82.50, Plug no. 1 PL86, Rotation CW, Position 55, B+ Position 45, Total Length 198.00

Product information

Voltage:14
Amp:180
Pulley:SP/FW
Pulley Diameter:64.50
Bracket Hole Size Rear:9.50
Pulley Distance:29.50
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:56.00
Radius:80.50
Belt Adjustment Bracket Hole 1:9.00
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:9.00
Belt Adjustment Bracket Hole 2:8.00x9.50
Terminal type:COM
Holder Arm Width:70.00
B+:M8
Radius 2:82.50
Plug no. 1:PL86
Rotation:CW
Position:55
B+ Position:45
Total Length:198.00

Replacing and BOMs

OEM number

06E903016MXVW (VOLKSWAGEN)
06E903016GVW (VOLKSWAGEN)
06E903016KVW (VOLKSWAGEN)
06E903016MVW (VOLKSWAGEN)

Competitor References

DRA0053AC DELCO
DRA0358AC DELCO
553122RIAD KÜHNER
A3257AUTOSTARTER POLAND
A0723SAUTOSTARTER POLAND
A3265AUTOSTARTER POLAND
0121715122BOSCHBOM
0121715022BOSCHBOM
F042205124BOSCH
CAL15366CASCO SRL
CAL10A13CASCO SRL
205521180CV PSH
DRA0053DELCO REMY
DRA0358DELCO REMY
2113451802DRI
284871ELSTOCK
12090219EUROTEC
112333FACROM
9090392FRIESEN
115414HC-CARGO
8EL015637051HELLA
32437528HERTH U. BUSS
LRA02365LUCAS
944390903920MARELLI
9090392QUINTON HAZELL
437528VALEO
439554VALEO
TG17C023VALEOBOM
TG17C044VALEOBOM
2542798VALEO
439536VALEO
11162RWAI
11162NWAI
