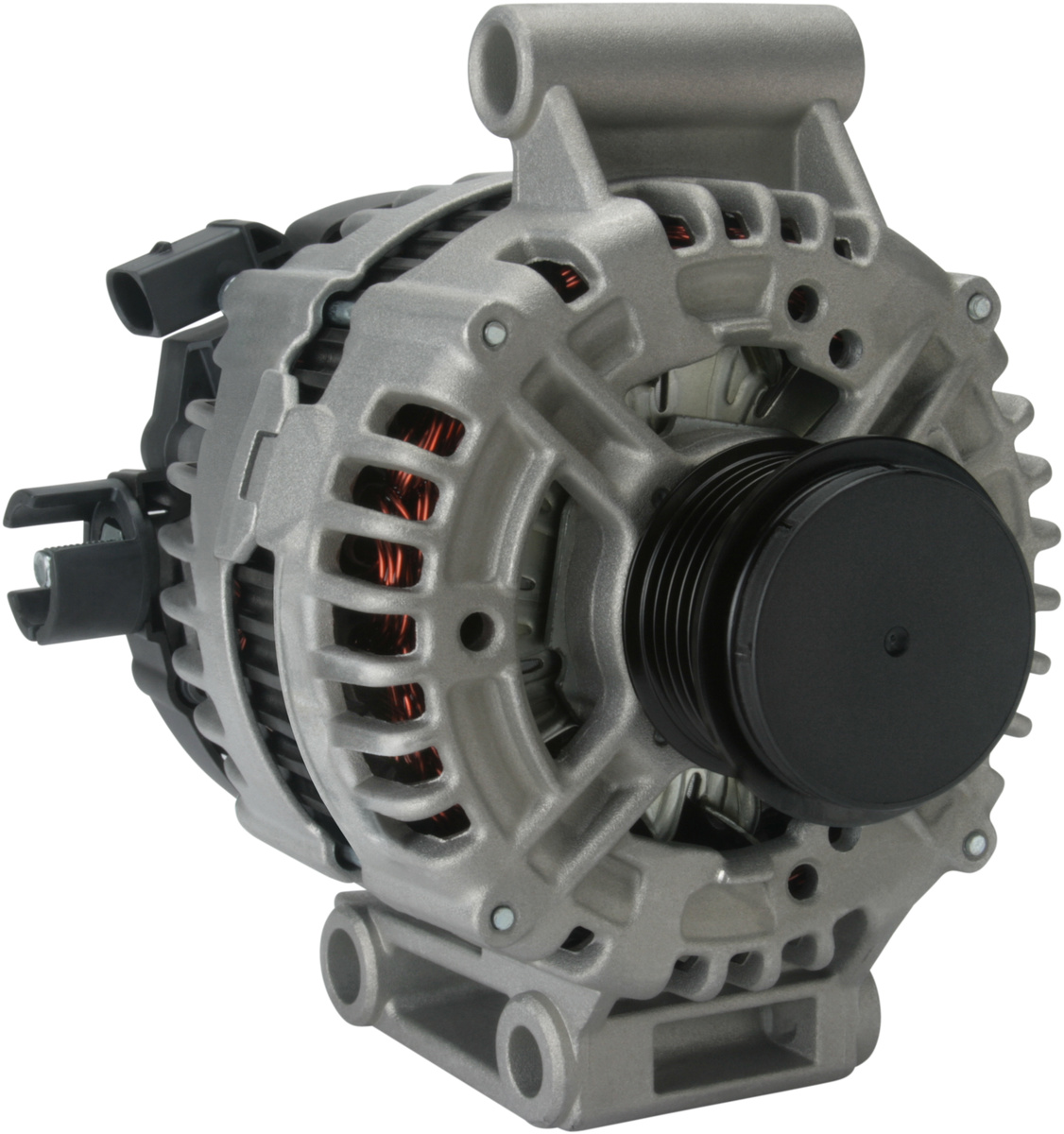

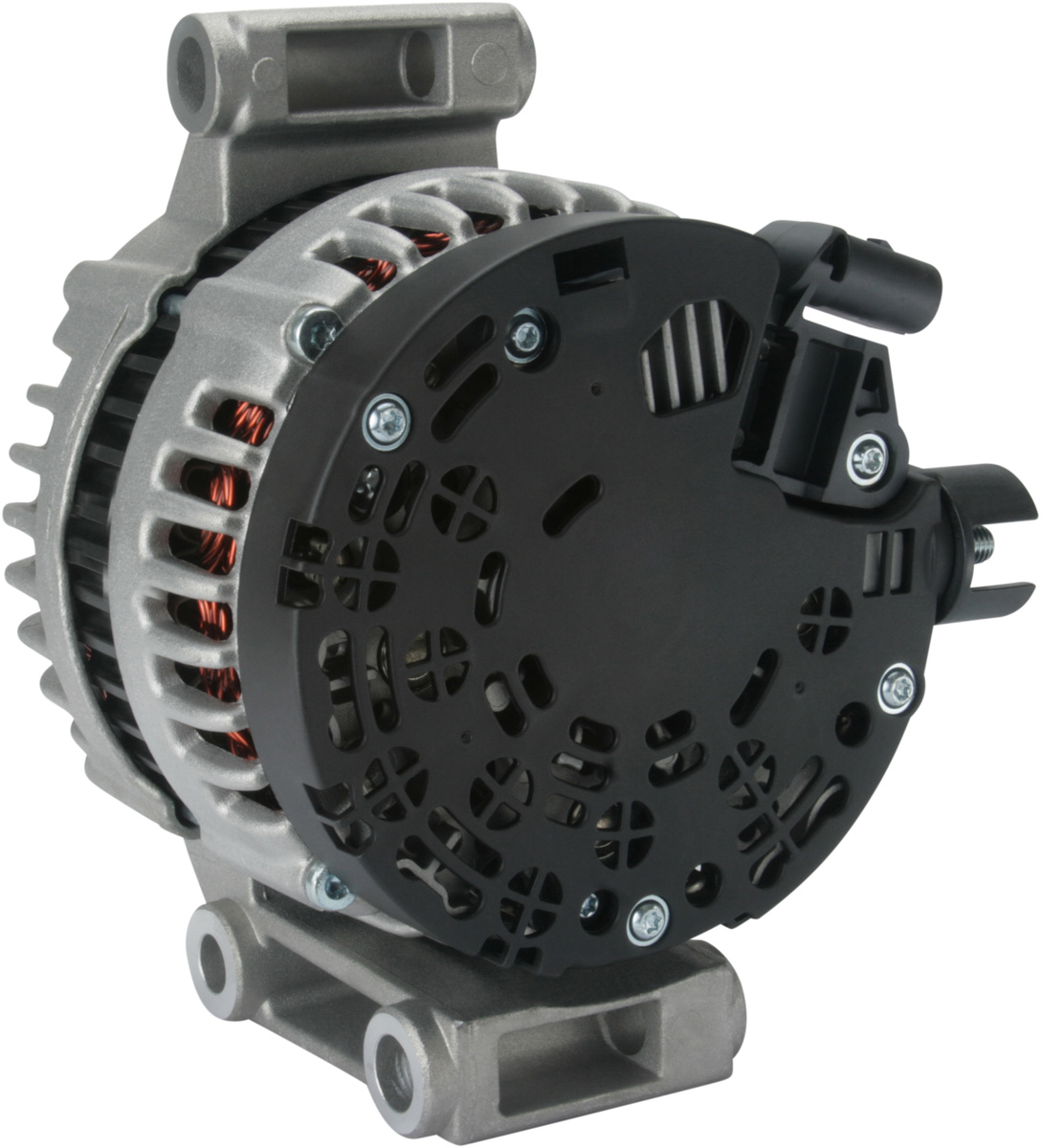

F032115417 - Alternator
Trade number 115417
Replacing and BOMs
OEM number
- 1379699FORD
- 1388002FORD
- 1469391FORD
- 6G9N10300ABAFORD
- 6G9N10300ABBFORD
- 6G9N10300ABCFORD
- 1790382FORD
- 2099469FORD
- 30667295VOLVO
Trade number 115417
Details & description
Voltage 14, Amp 150, Pulley SP/FW, Bracket Hole Size 1 10.50, Pulley Diameter 53.50, Prod. info BN, Terminal type COM, Holder Arm Width 70.00, Pulley Distance 40.00, B+ M8, Radius 2 85.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL137, Mounting Bracket Distance 74.00, Radius 91.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, B+ Position 15
Product information
Electrical information
- Voltage14
- Amp150
Catalogue information
- Prod. infoBN
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- PulleySP/FW
- Bracket Hole Size 110.50
- Pulley Diameter53.50
- Terminal typeCOM
- Holder Arm Width70.00
- Pulley Distance40.00
- B+M8
- Radius 285.00
- Plug no. 1PL137
Replacing and BOMs
OEM number
- 1379699FORD
- 1388002FORD
- 1469391FORD
- 6G9N10300ABAFORD
- 6G9N10300ABBFORD
- 6G9N10300ABCFORD
- 1790382FORD
- 2099469FORD
- 30667295VOLVO
