F032115462 - Alternator

Trade number 115462

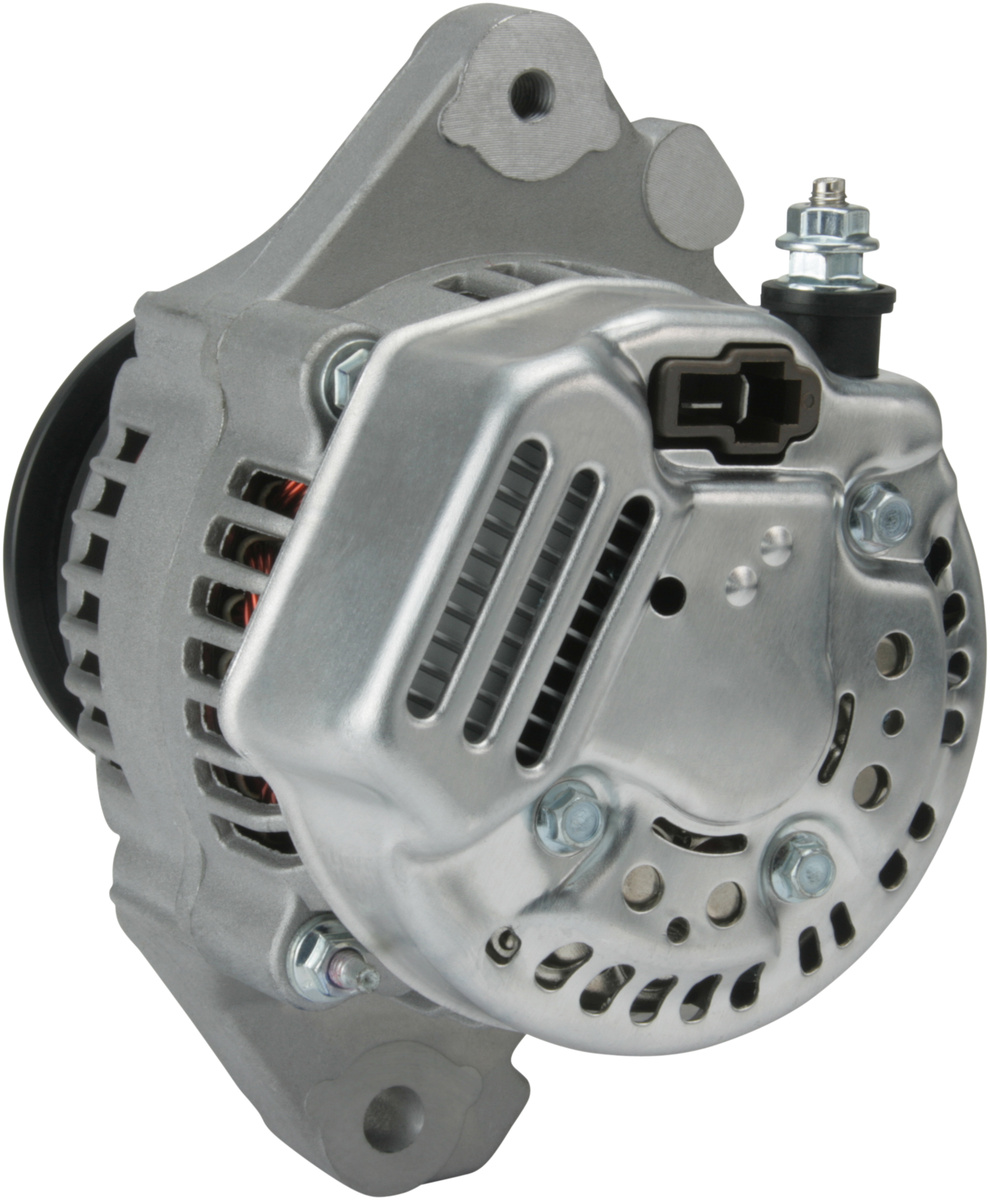

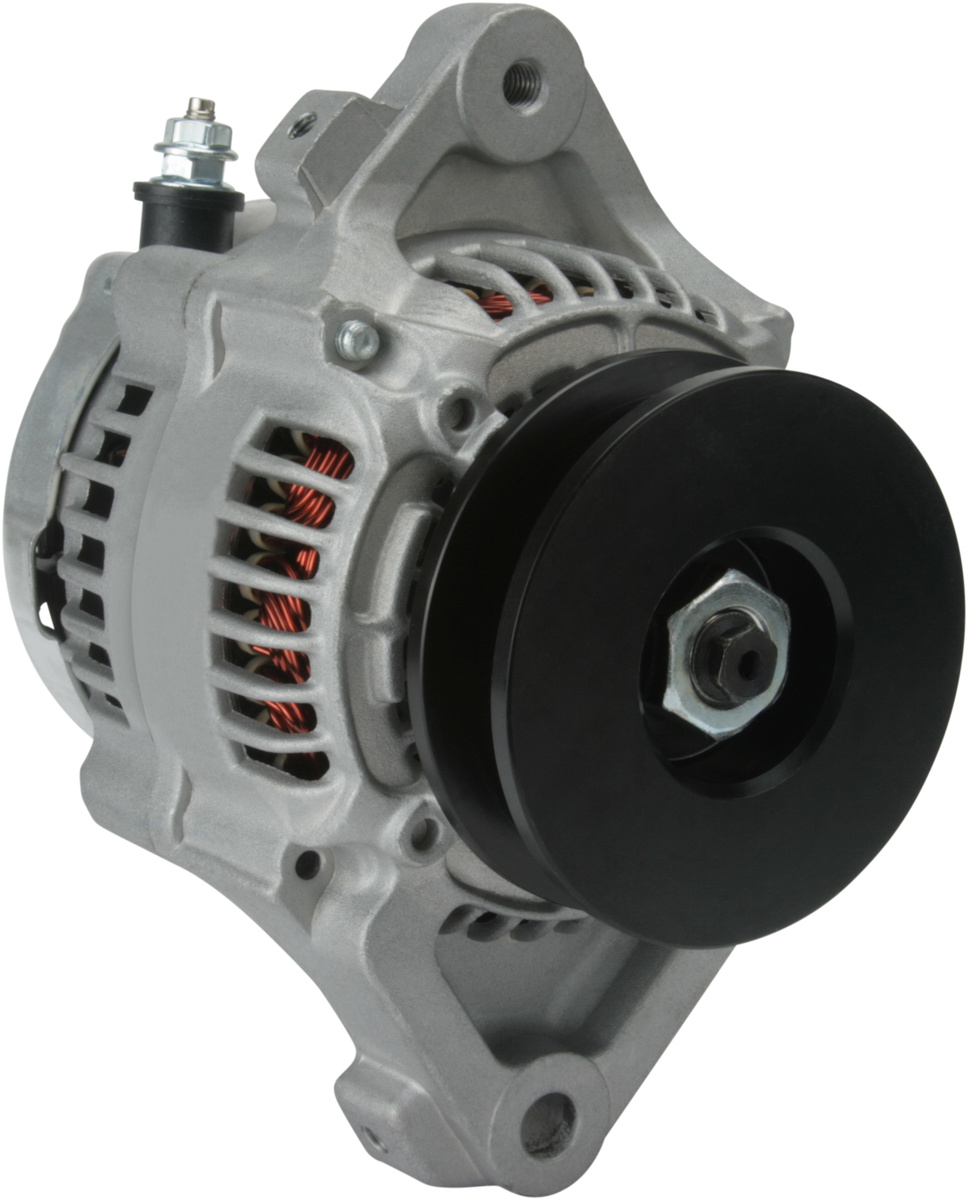

Product image - main
Trade number 115462

Details & description

Voltage 14, Amp 60, Pulley P, Bracket Hole Size 1 10.00, Pulley Diameter 82.00, Prod. info BN, D+ Size Plug, D+ Position 60, Holder Arm Width 24.00, Pulley Distance 46.50, B+ M6, Radius 2 77.50, Plug no. 1 PL10, Radius 75.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, Regulator type IR, Position 50, B+ Position 5, Belt Adjustment Bracket Hole Position 60, Total Length 148.00

Product information

Voltage:14
Amp:60
Pulley:P
Bracket Hole Size 1:10.00
Pulley Diameter:82.00
Prod. info:BN
D+ Size:Plug
D+ Position:60
Holder Arm Width:24.00
Pulley Distance:46.50
B+:M6
Radius 2:77.50
Plug no. 1:PL10
Radius:75.00
Rotation:CW
Belt Adjustment Bracket Hole 1:M8
Grooves/pulley:1
Regulator type:IR
Position:50
B+ Position:5
Belt Adjustment Bracket Hole Position:60
Total Length:148.00

Replacing and BOMs

OEM number

RE46043JOHN DEERE
RE72917JOHN DEERE

Competitor References

553228RIAD KÜHNER
CAL40262CASCO SRL
635505060CV PSH
1012112470DENSOBOM
1012112471DENSO
112023FACROM
115462HC-CARGO
12081LESTER
12081NWAI
12081RWAI
