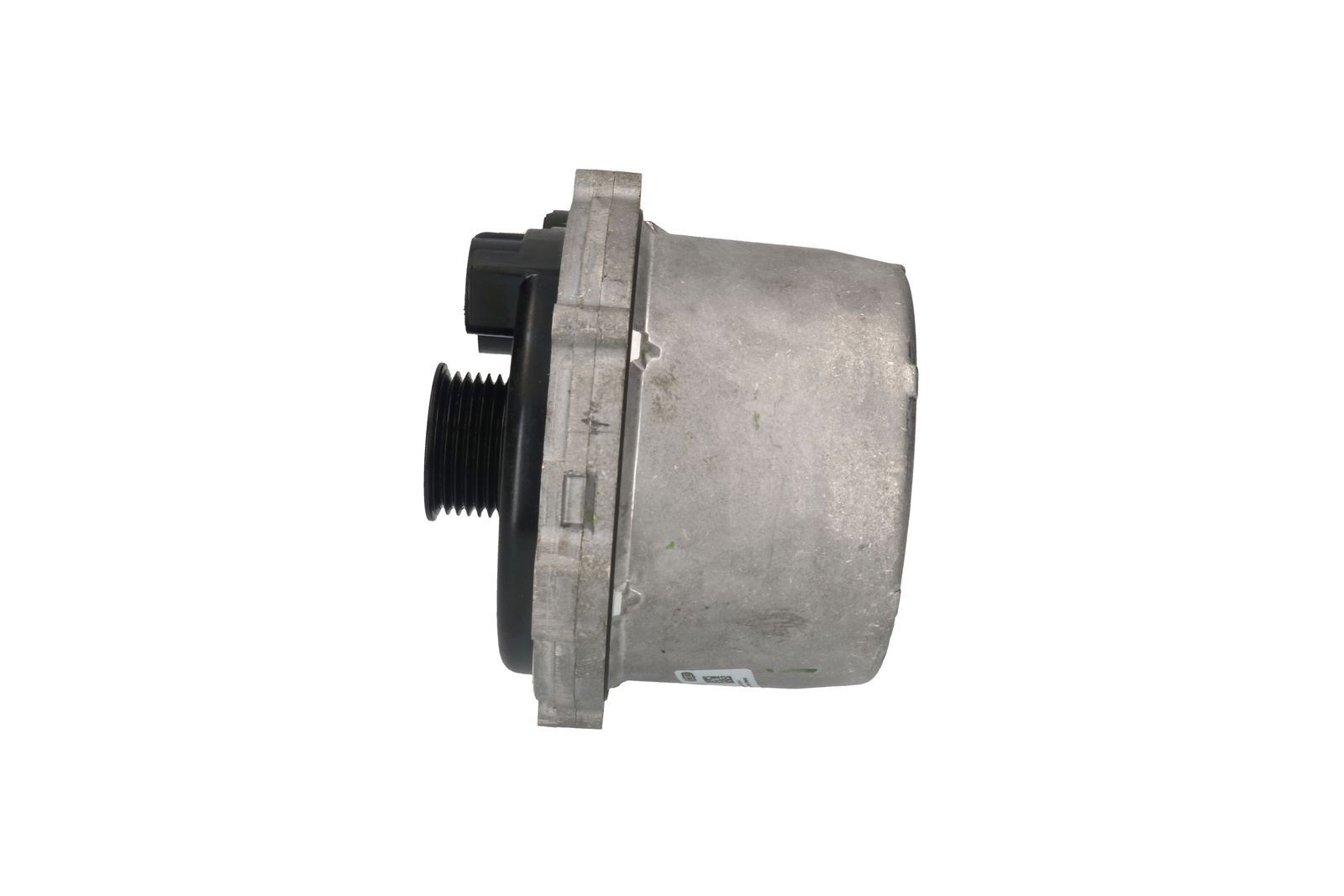

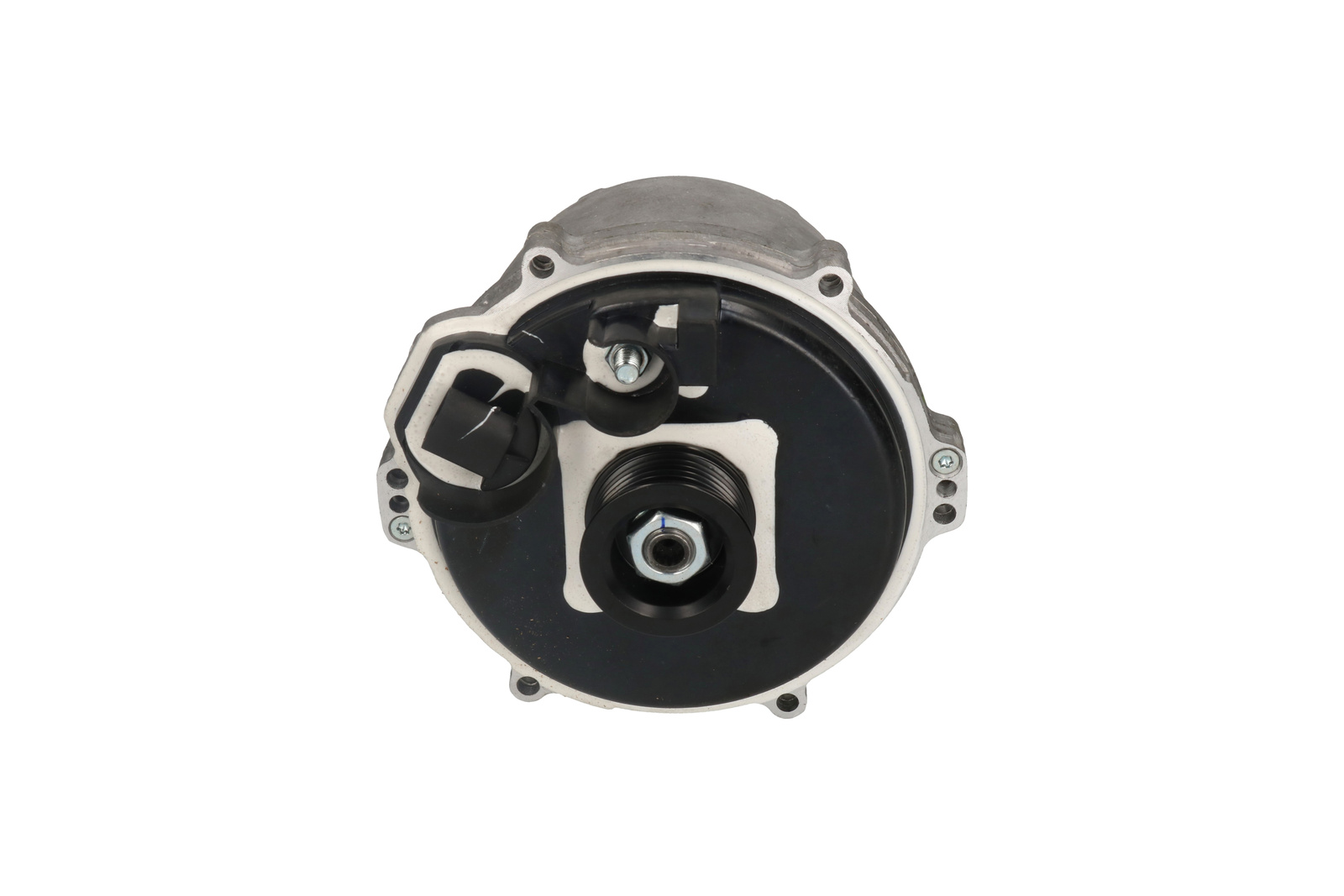

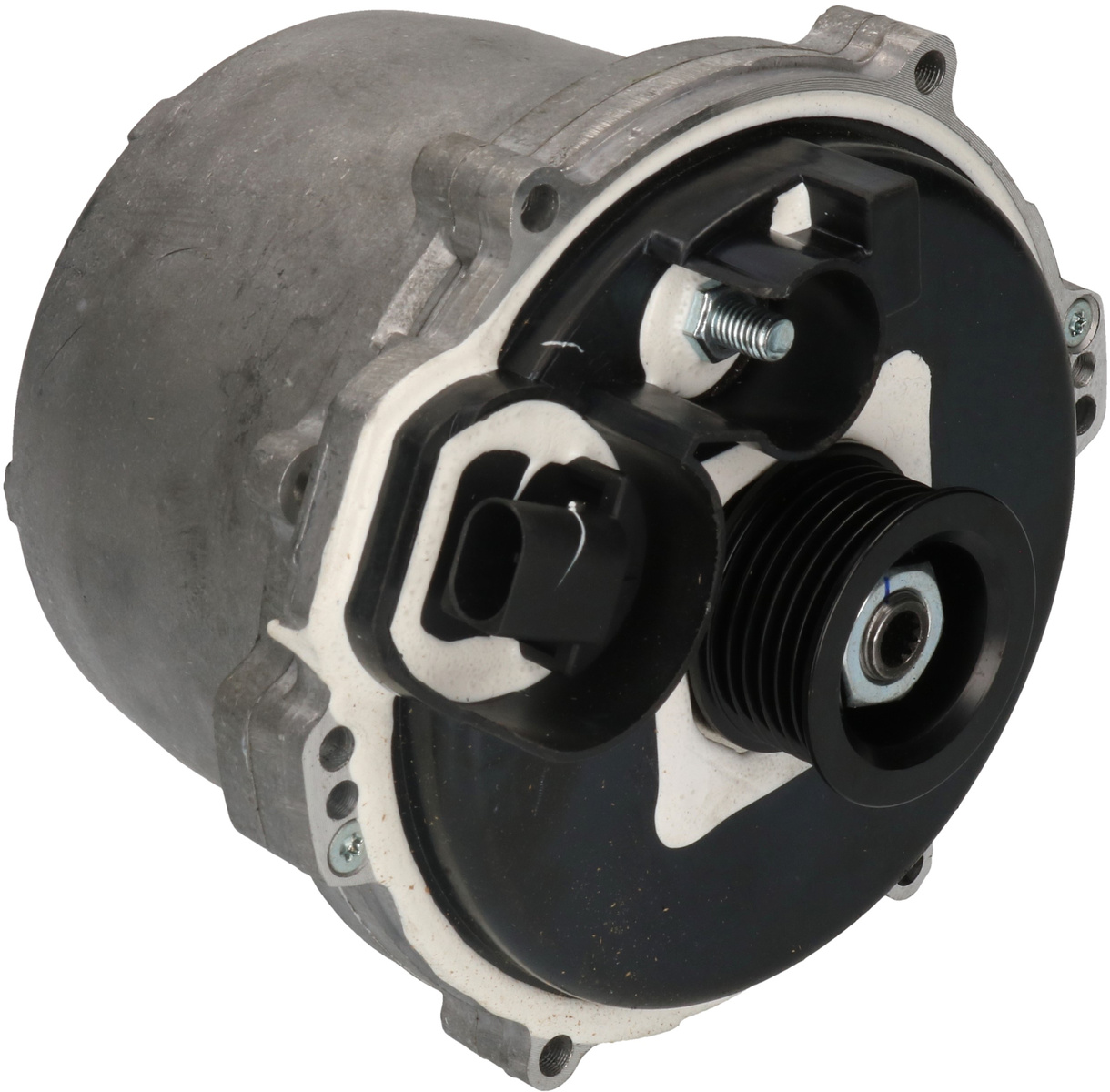

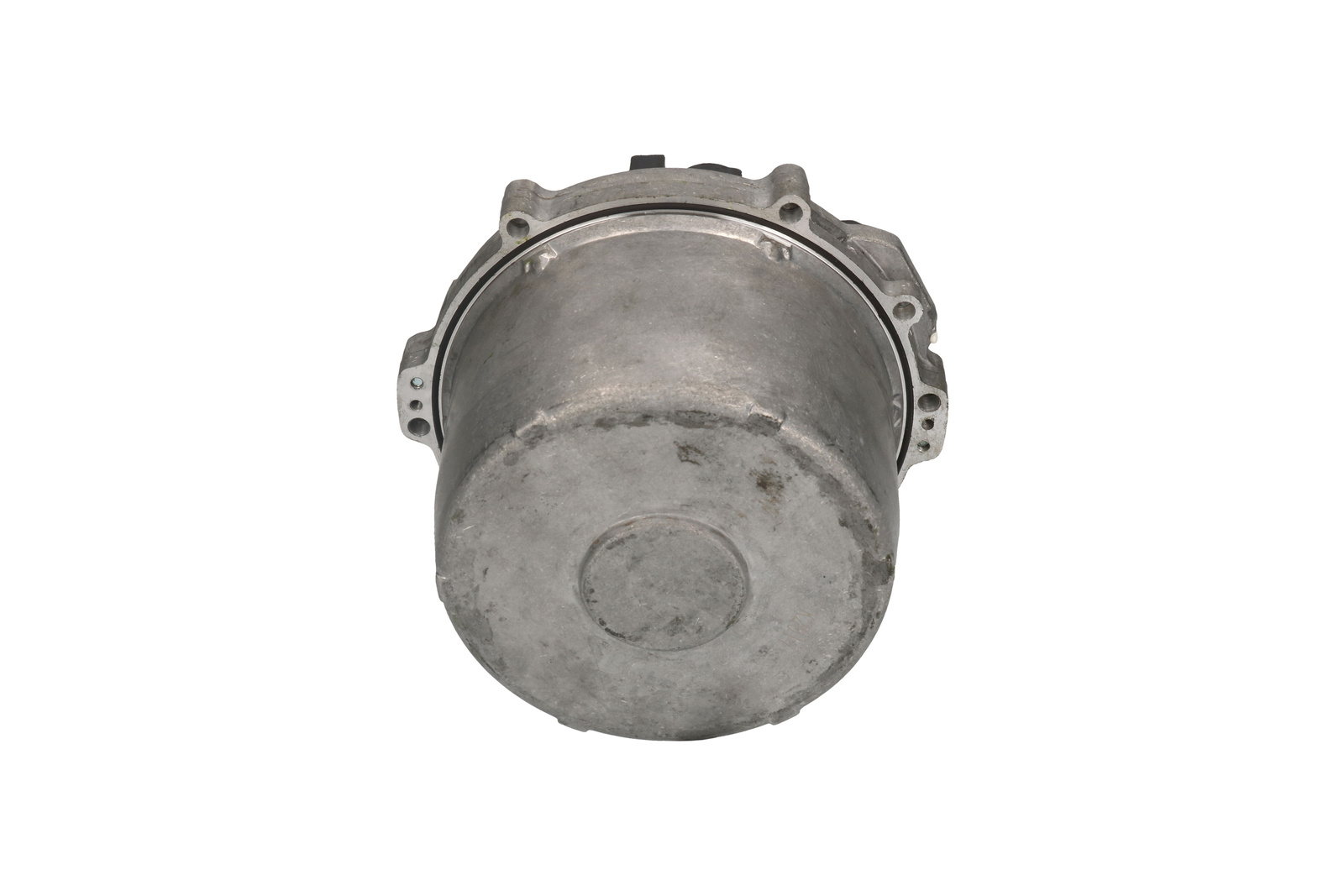

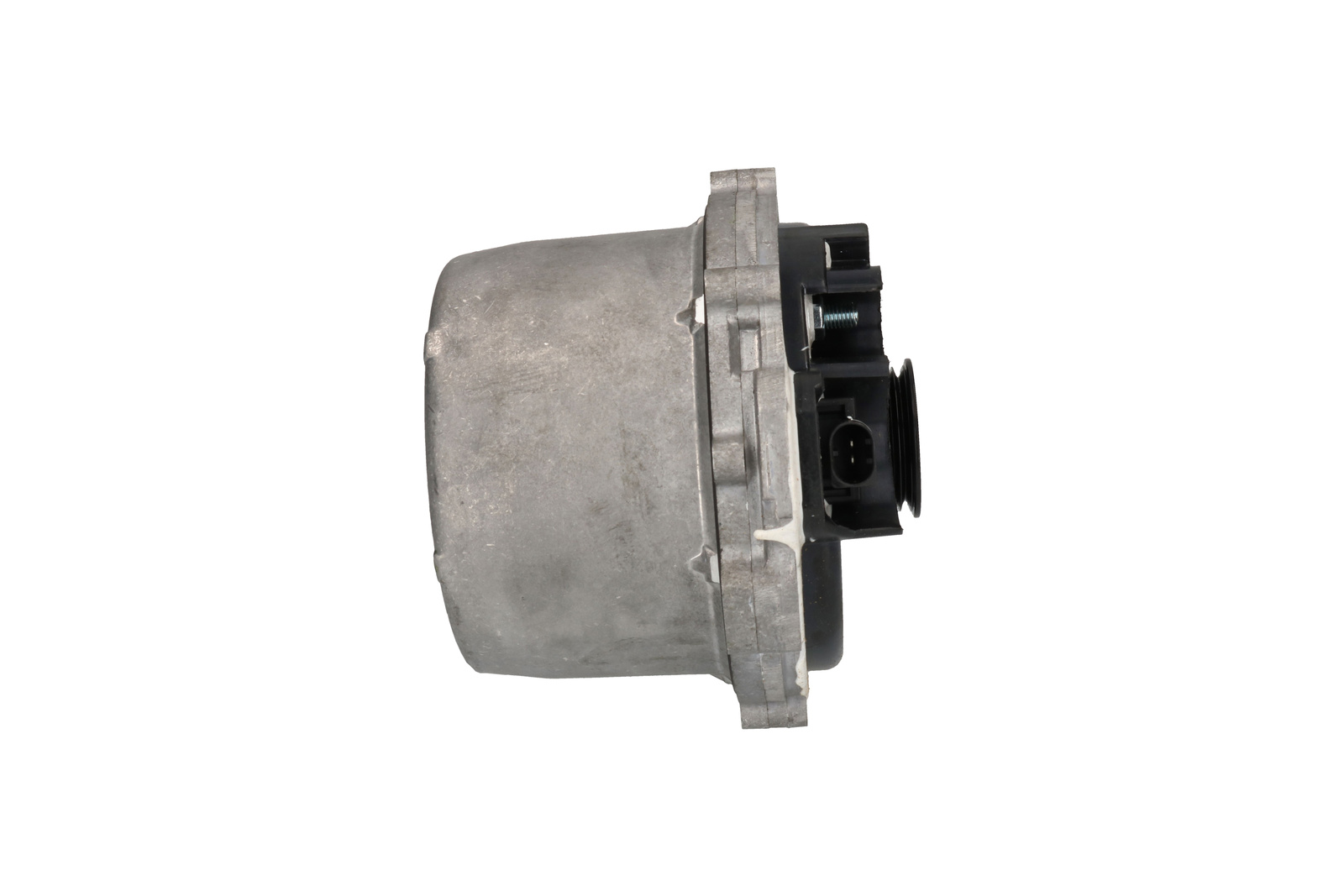

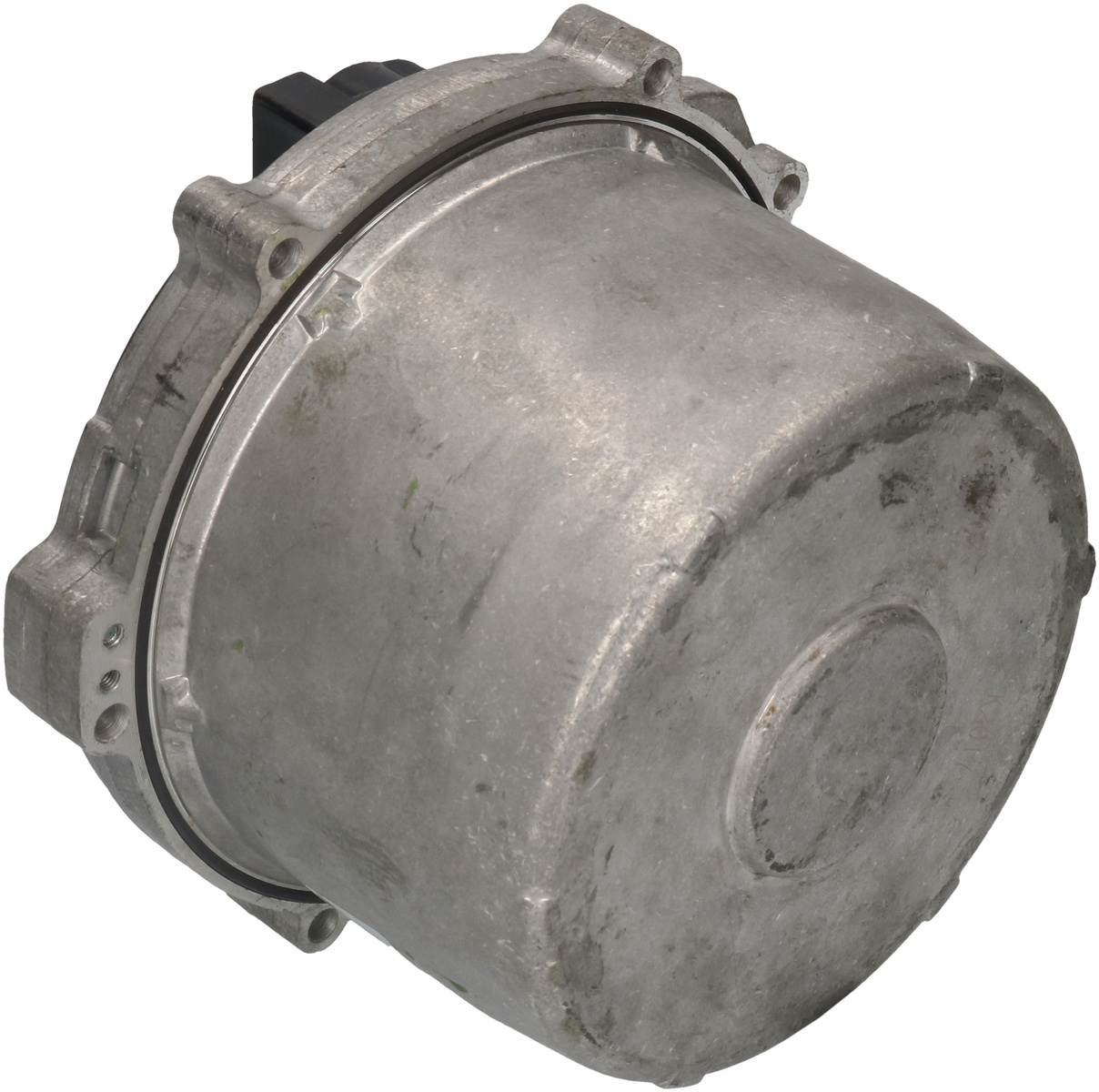

F032115473 - Alternator

Trade number 115473

Details & description

Voltage 14, Amp 180, Communication BSS, Pulley SP, Bracket Hole Size 1 M5, Pulley Diameter 49.00, Prod. info BN, Terminal type COM, Holder Arm Width 22.00, Pulley Distance 41.00, B+ M8, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL86, Radius 88.00, Rotation CW, Grooves/pulley 6, Regulator type IR, Remarks Water cooled., B+ Position 6, Total Length 158.00

Product information

Voltage:14

Amp:180

Communication:BSS

Pulley:SP

Bracket Hole Size 1:M5

Pulley Diameter:49.00

Prod. info:BN

Terminal type:COM

Holder Arm Width:22.00

Pulley Distance:41.00

B+:M8

Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Plug no. 1:PL86

Radius:88.00

Rotation:CW

Grooves/pulley:6

Regulator type:IR

Remarks:Water cooled.

B+ Position:6

Total Length:158.00

Replacing and BOMs

OEM number

7526286BMW

12317507741BMW

12317507995BMW

12317523606BMW

12317523608BMW

12317526286BMW

7507741BMW

7507995BMW

7523606BMW

7523608BMW

12310304582BMW

Competitor References

DRA0139AC DELCO

DRA0139NAC DELCO

553366RIAD KÜHNER

A0626SAUTOSTARTER POLAND

A0626PRAUTOSTARTER POLAND

01220AA090BOSCHBOM

01220AA160BOSCH

01220AA360BOSCH

0986047170BOSCH

0986047177BOSCH

0986047173BOSCH

CAL32181CASCO SRL

CAL10323CASCO SRL

215403180CV PSH

DRA0139DELCO REMY

DRA0139NDELCO REMY

2151671802DRI

284980ELSTOCK

12047170EUROTEC

111792FACROM

112319FACROM

9047170FRIESEN

9090521FRIESEN

115473HC-CARGO

11078LESTER

LRA02864LUCAS

600711VALEO

11078NWAI

11078RWAI

13976NWAI

13976RWAI
