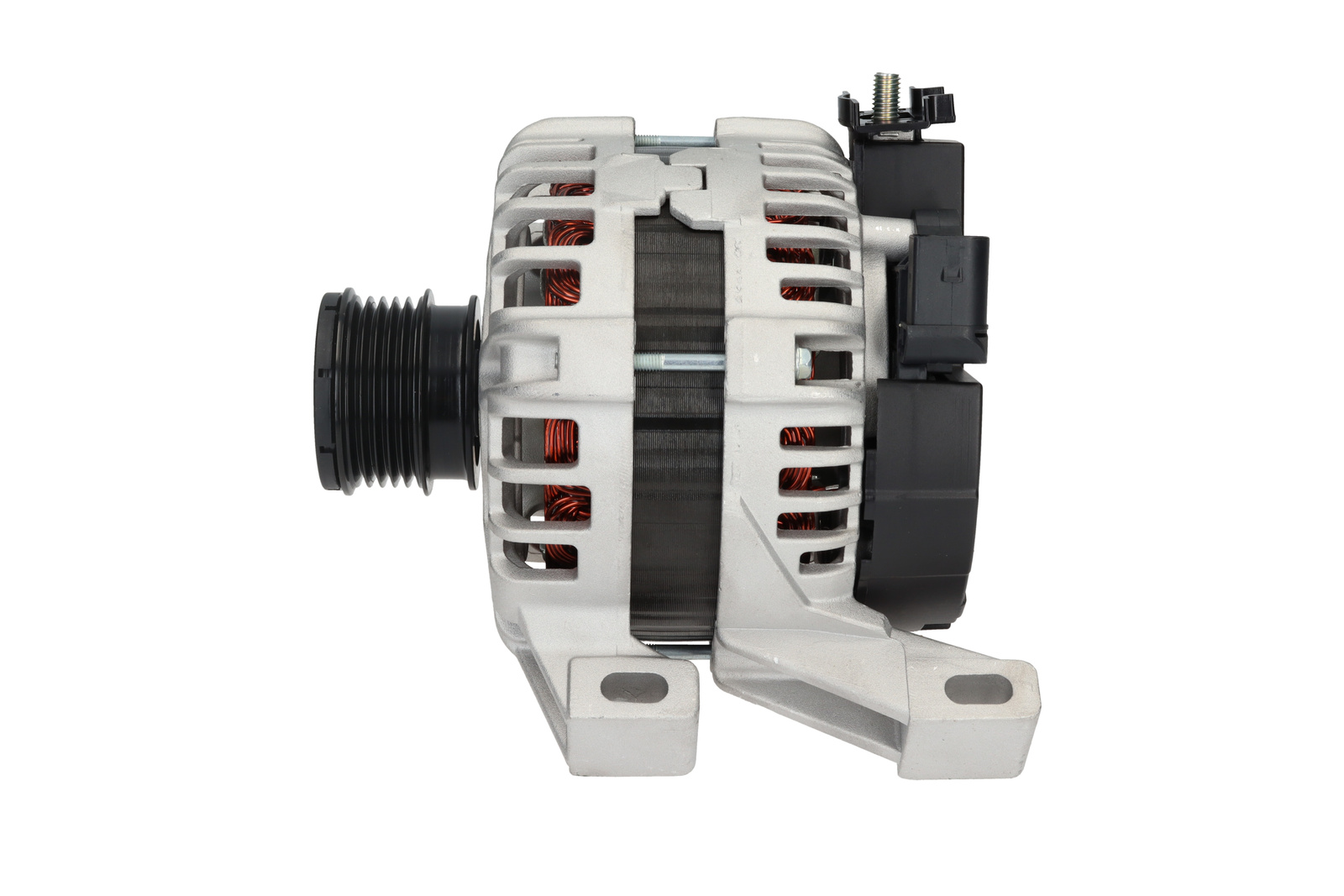

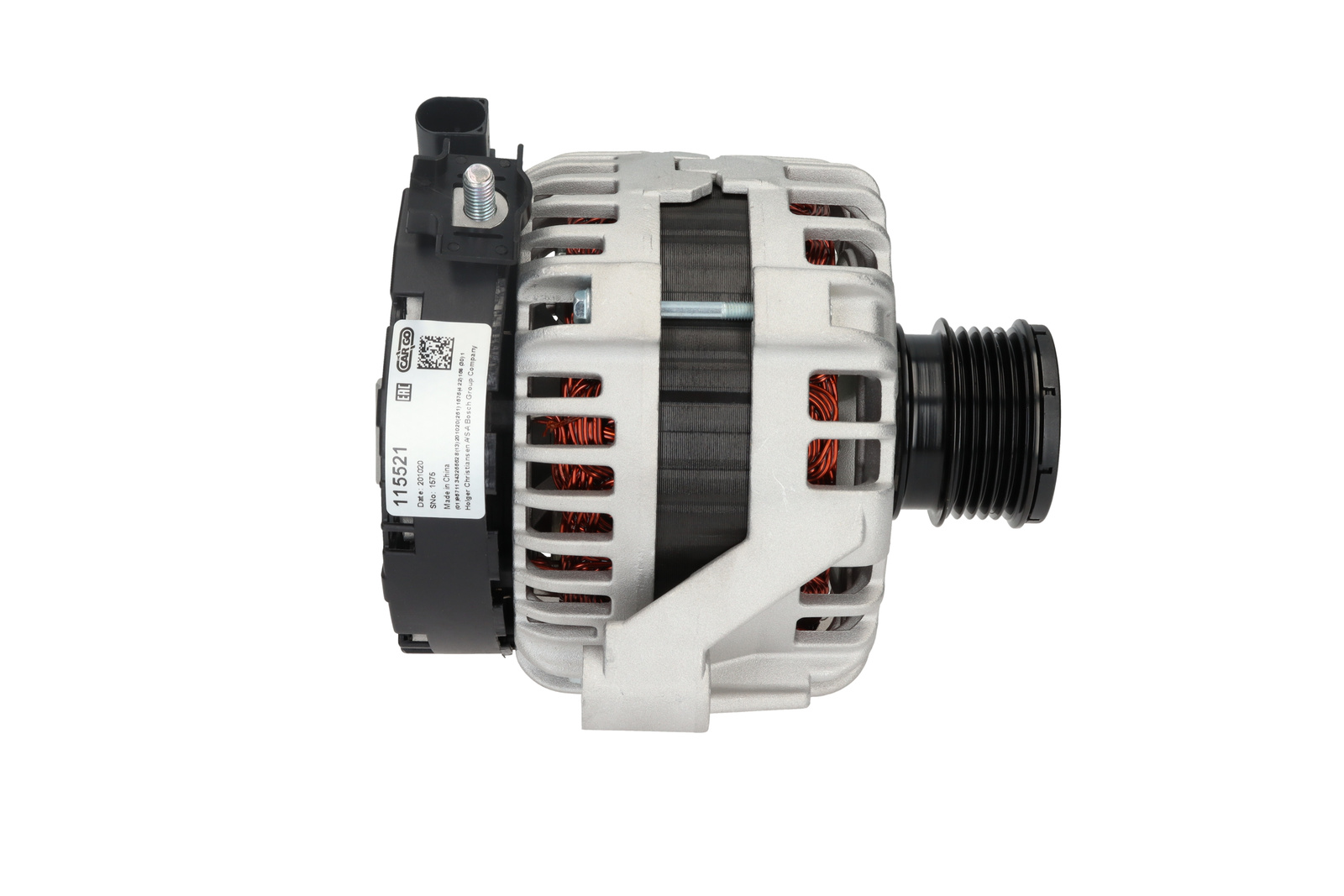

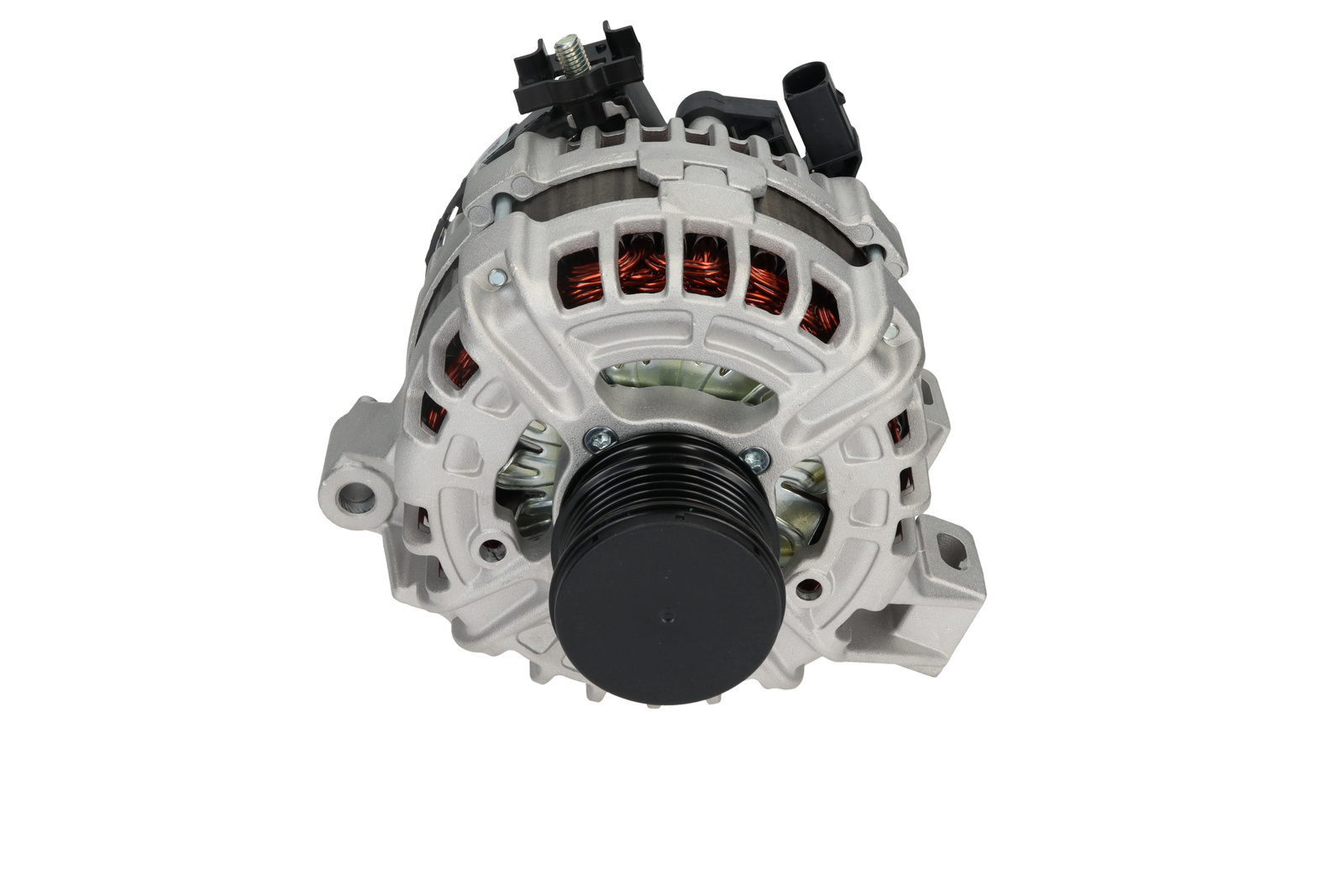

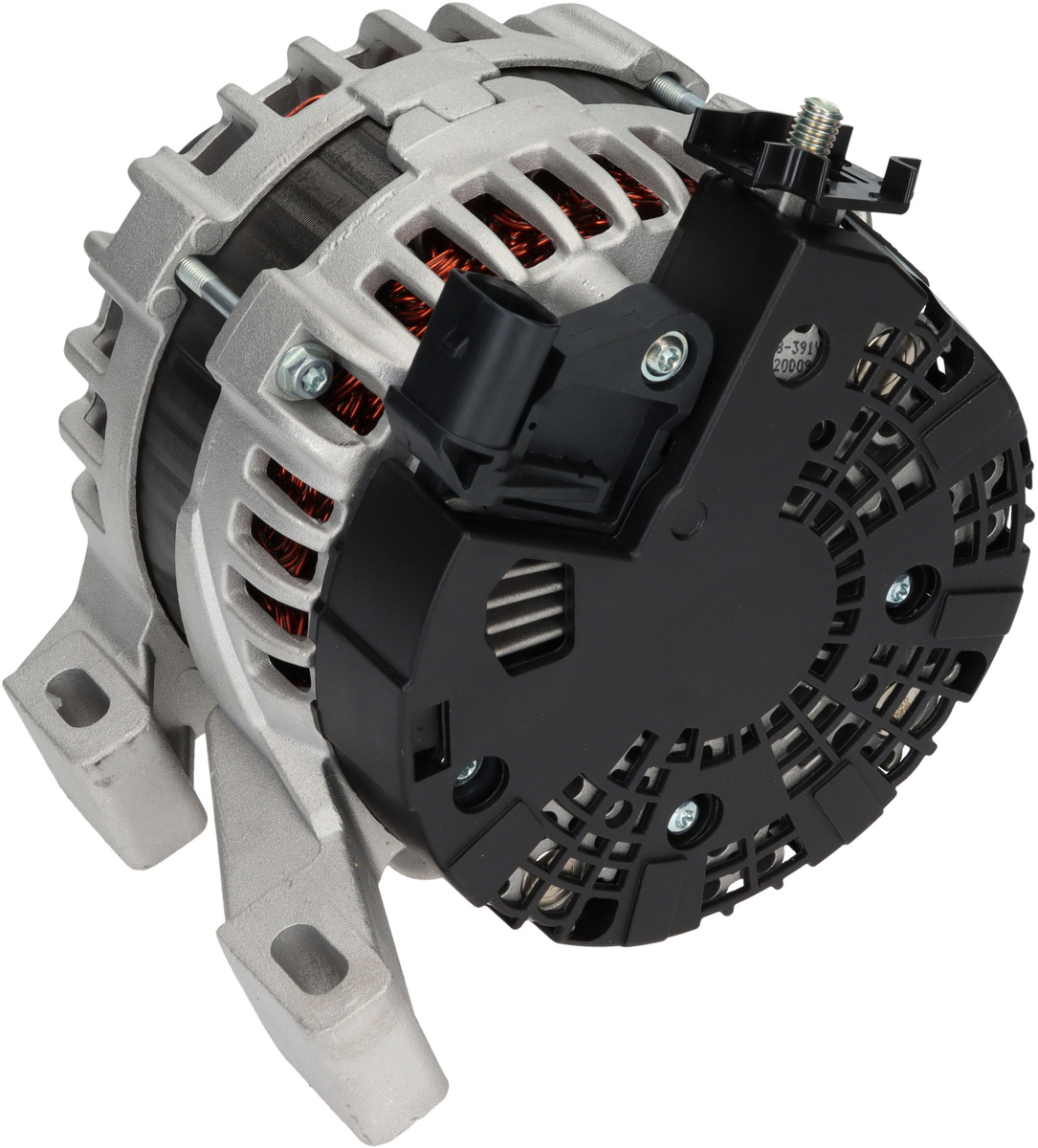

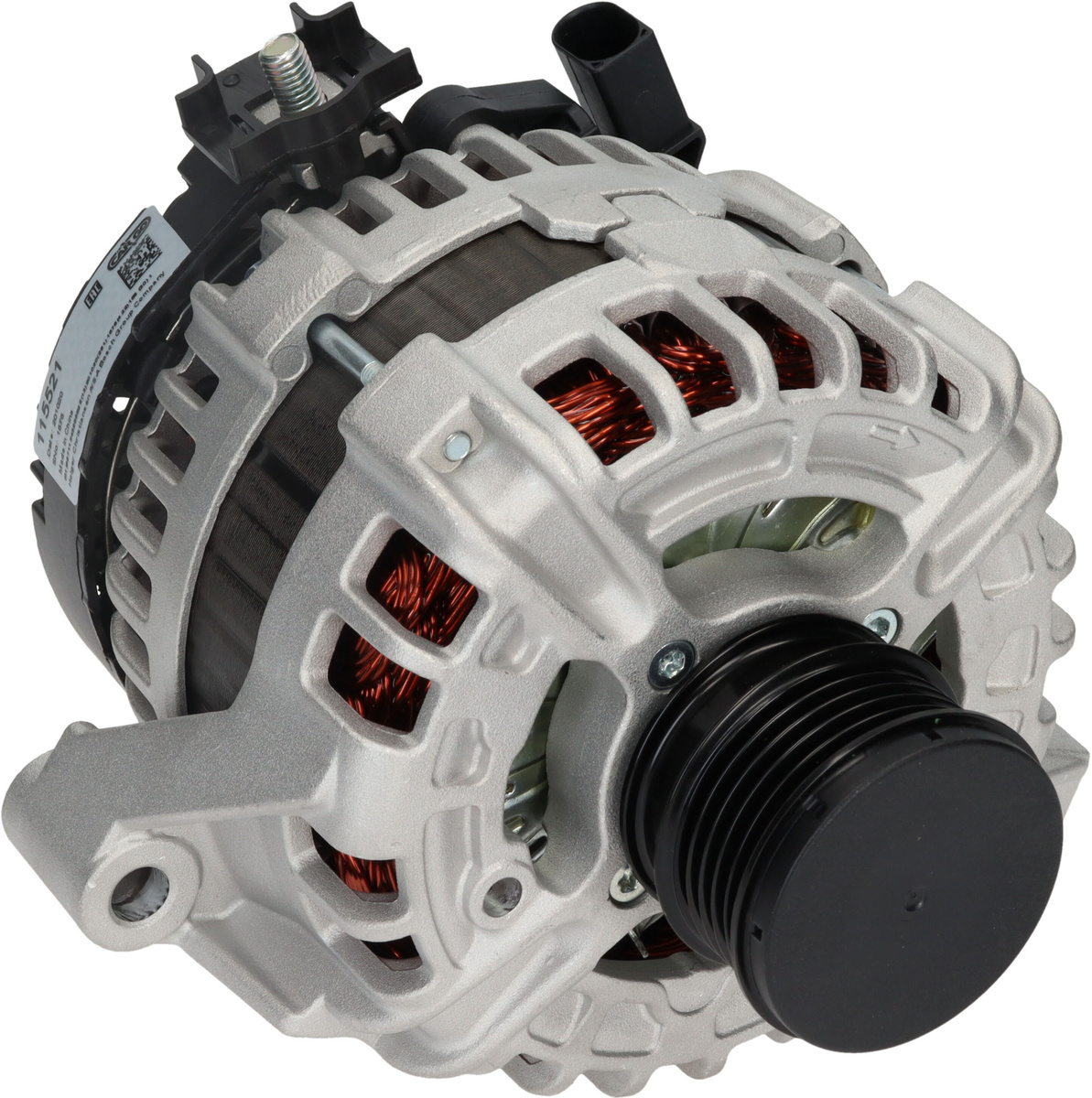

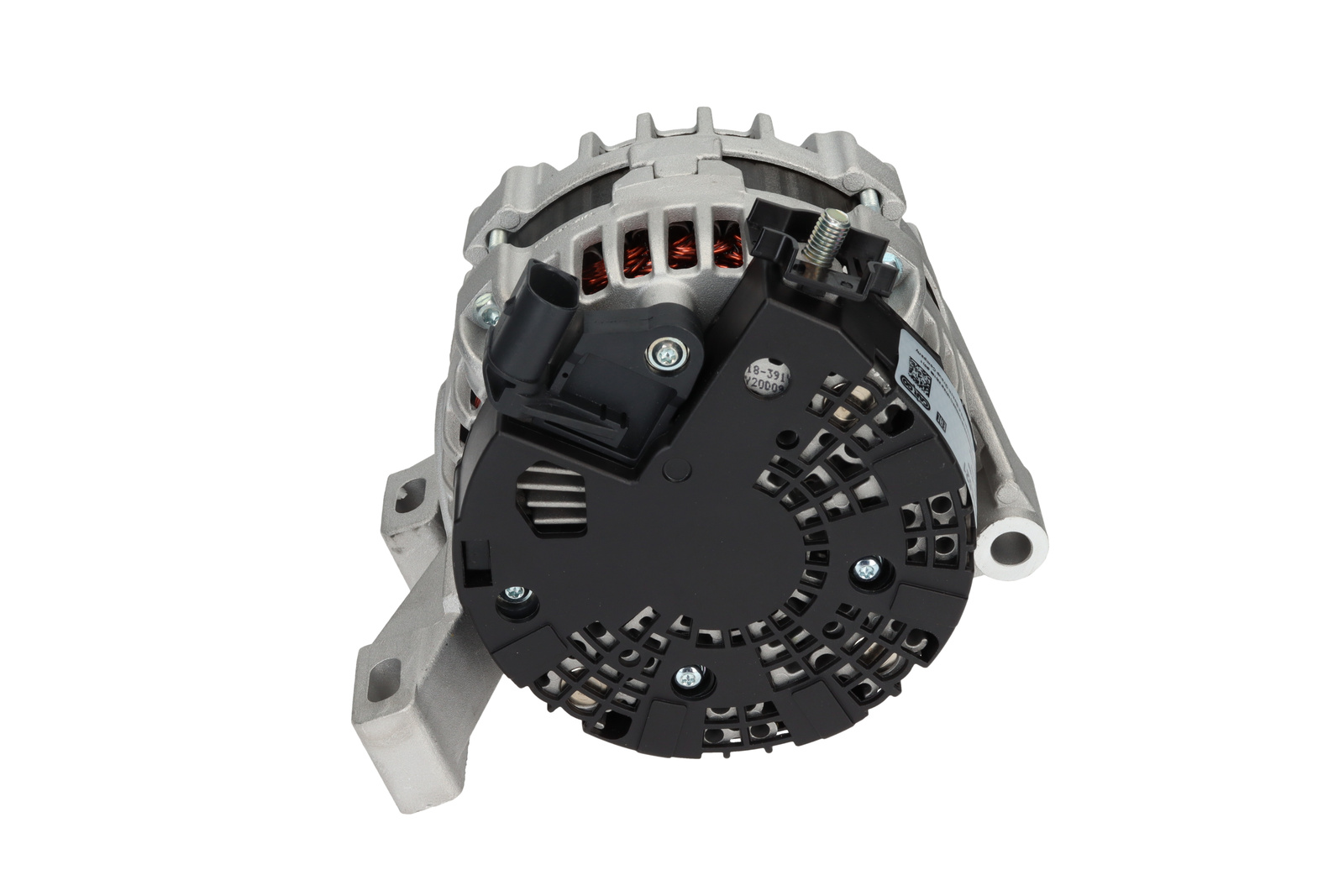

F032115521 - Alternator
Trade number 115521
Trade number 115521
Details & description
Terminal IF, Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 17.70x9.00, Pulley Diameter 54.00, Bracket Hole Size Rear 9.00x17.70, Terminal type COM, Holder Arm Width 31.70, Pulley Distance 61.00, B+ M8, Fan IF, Radius 2 90.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL137, Mounting Bracket Distance 90.00, Radius 92.50, Rotation CW, Belt Adjustment Bracket Hole 1 10.20, Grooves/pulley 5, Regulator type IR, Total Length 182.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp150
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- CommunicationLIN
- PulleySP/FW
- Bracket Hole Size 117.70x9.00
- Pulley Diameter54.00
- Bracket Hole Size Rear9.00x17.70
- Terminal typeCOM
- Holder Arm Width31.70
- Pulley Distance61.00
- B+M8
