F032115533 - Alternator

Trade number 115533

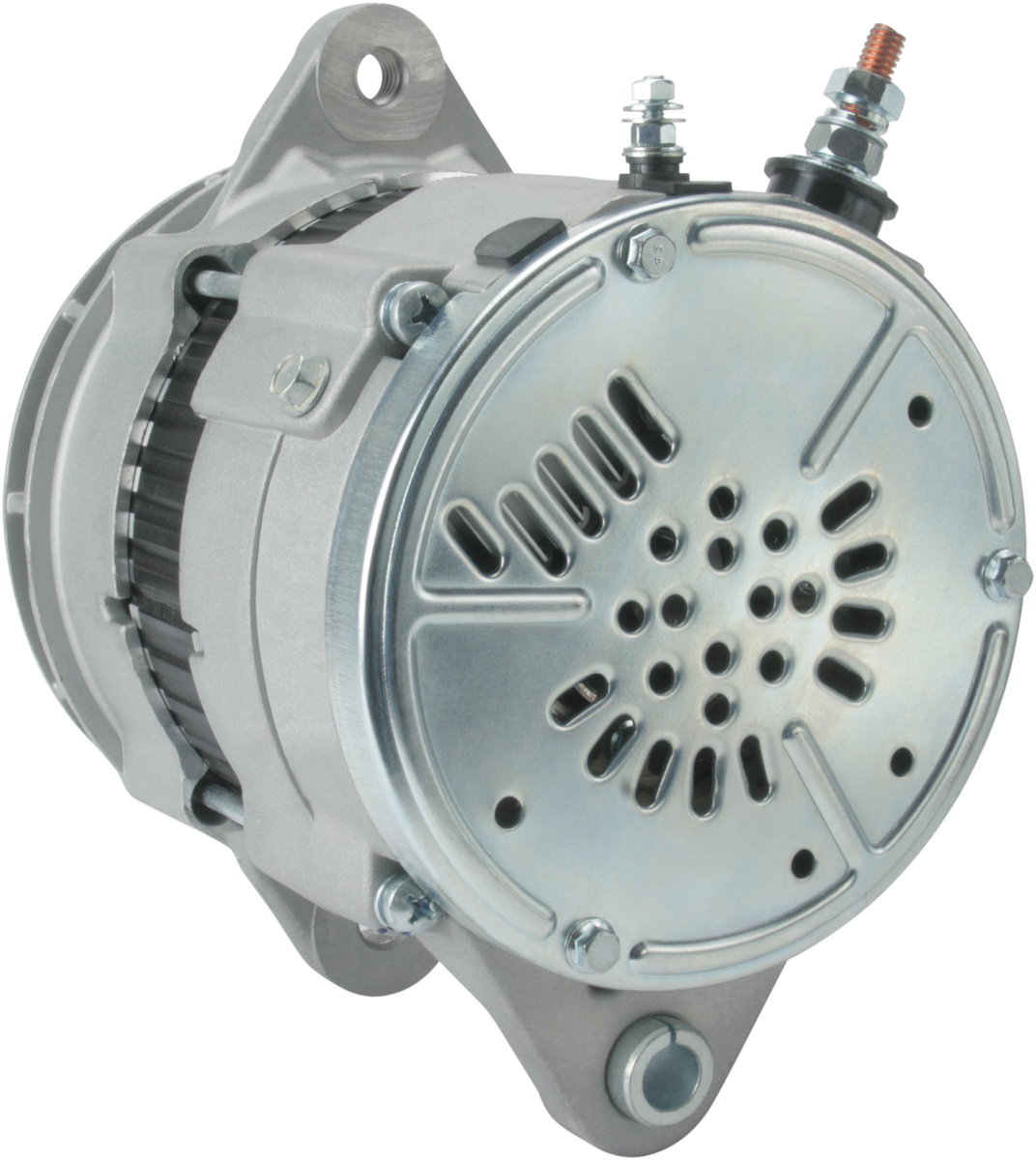

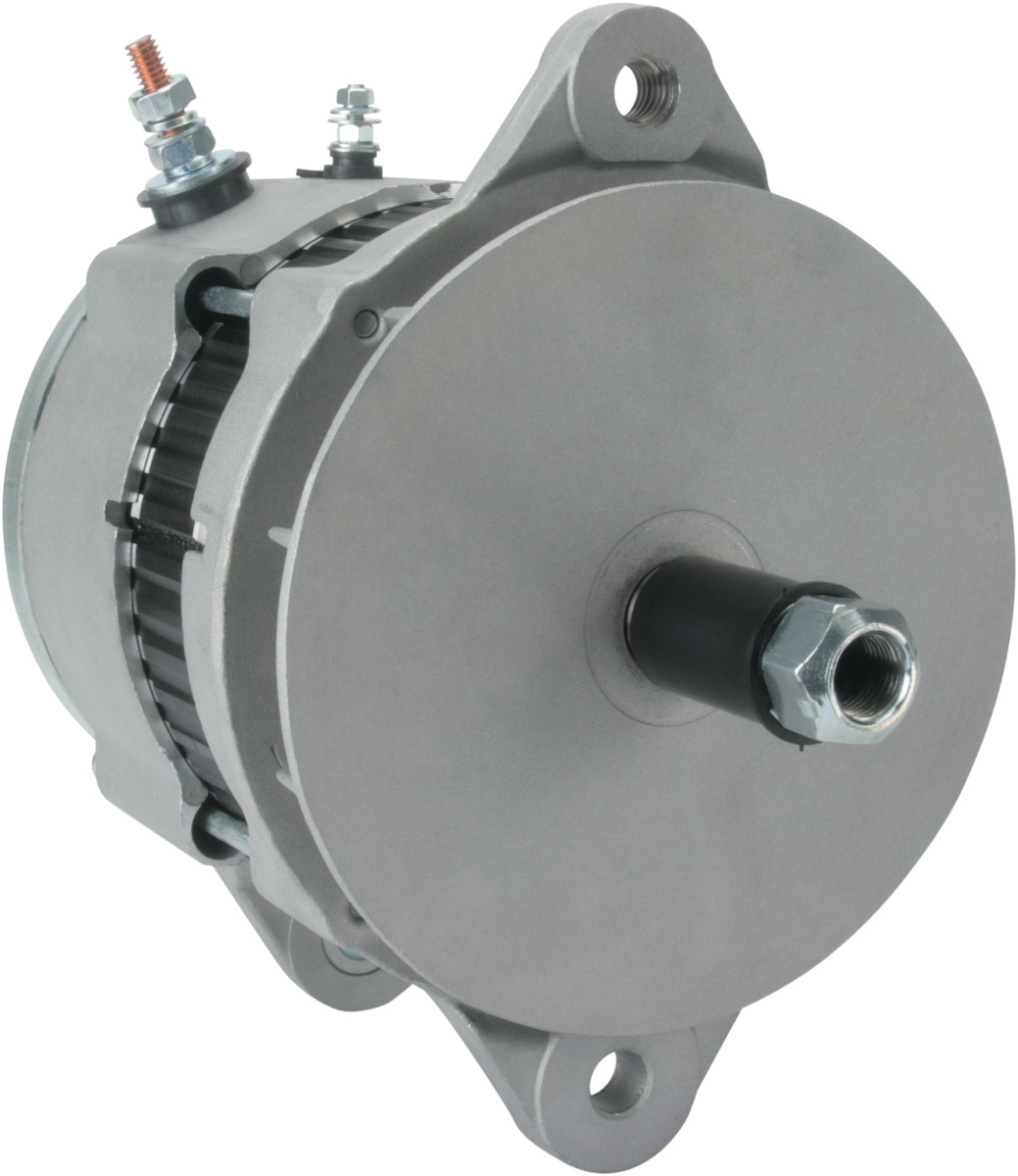

Product image - main
Trade number 115533

Details & description

Terminal W, Voltage 28, Amp 75, Pulley w/o, W plug type 10-24 UNC, Bracket Hole Size 1 13.00, Prod. info BN, Bracket Hole Size Rear 13.00, Holder Arm Width 14.30, B+ 5/16" UNC, Radius 2 98.50, One Wire hookup (Self exciting) Yes, Mounting Bracket Distance 102.00, Radius 98.00, Rotation CW/CCW, Belt Adjustment Bracket Hole 1 1/2" UNC, Regulator type IR, Position 52, B+ Position 3, Belt Adjustment Bracket Hole Position 60, Total Length 222.00

Product information

Terminal:W
Voltage:28
Amp:75
Pulley:w/o
W plug type:10-24 UNC
Bracket Hole Size 1:13.00
Prod. info:BN
Bracket Hole Size Rear:13.00
Holder Arm Width:14.30
B+:5/16" UNC
Radius 2:98.50
One Wire hookup (Self exciting):Yes
Mounting Bracket Distance:102.00
Radius:98.00
Rotation:CW/CCW
Belt Adjustment Bracket Hole 1:1/2" UNC
Regulator type:IR
Position:52
B+ Position:3
Belt Adjustment Bracket Hole Position:60
Total Length:222.00

Replacing and BOMs

OEM number

6008219560KOMATSU
6008219971KOMATSU
6008257110KOMATSU
6008219542KOMATSU
6008219510KOMATSU
6008219530KOMATSU
6008219540KOMATSU
6008219550KOMATSU

Competitor References

946003075CV PSH
112420FACROM
115533HC-CARGO
02142020310SAWAFUJI
02142020320SAWAFUJI
02142020330SAWAFUJI
02142020340SAWAFUJI
02142020410SAWAFUJI
