Competitor References

DRA4258AC DELCO

DRA4258NAC DELCO

DRA4258XAC DELCO

A9023AUTOSTARTER POLAND

A3595PRAUTOSTARTER POLAND

0986049141BOSCH

CAL14104CASCO SRL

CAL15284CASCO SRL

4713CEVAM

595543090CV PSH

595543104CV PSH

595580090CV PSH

DRA4258DELCO REMY

DRA4258NDELCO REMY

DRA4258XDELCO REMY

219162902DRI

274850ELSTOCK

210434ERA SPA

210434AERA SPA

12049140EUROTEC

112159FACROM

112951FACROM

9090255FRIESEN

115543HC-CARGO

CA1758IRHC-PARTS

8EL011710731HELLA

8EL738134001HELLA

32000903HERTH U. BUSS

32437453HERTH U. BUSS

LEA0462LUCAS

944390902MARELLI

944390902550MARELLI

9090255QUINTON HAZELL

2542736VALEOBOM

2542736AVALEOBOM

TG9C013VALEOBOM

437453VALEO

439488VALEO

439729VALEO

746898VALEO

200086VALEO

23348NWAI

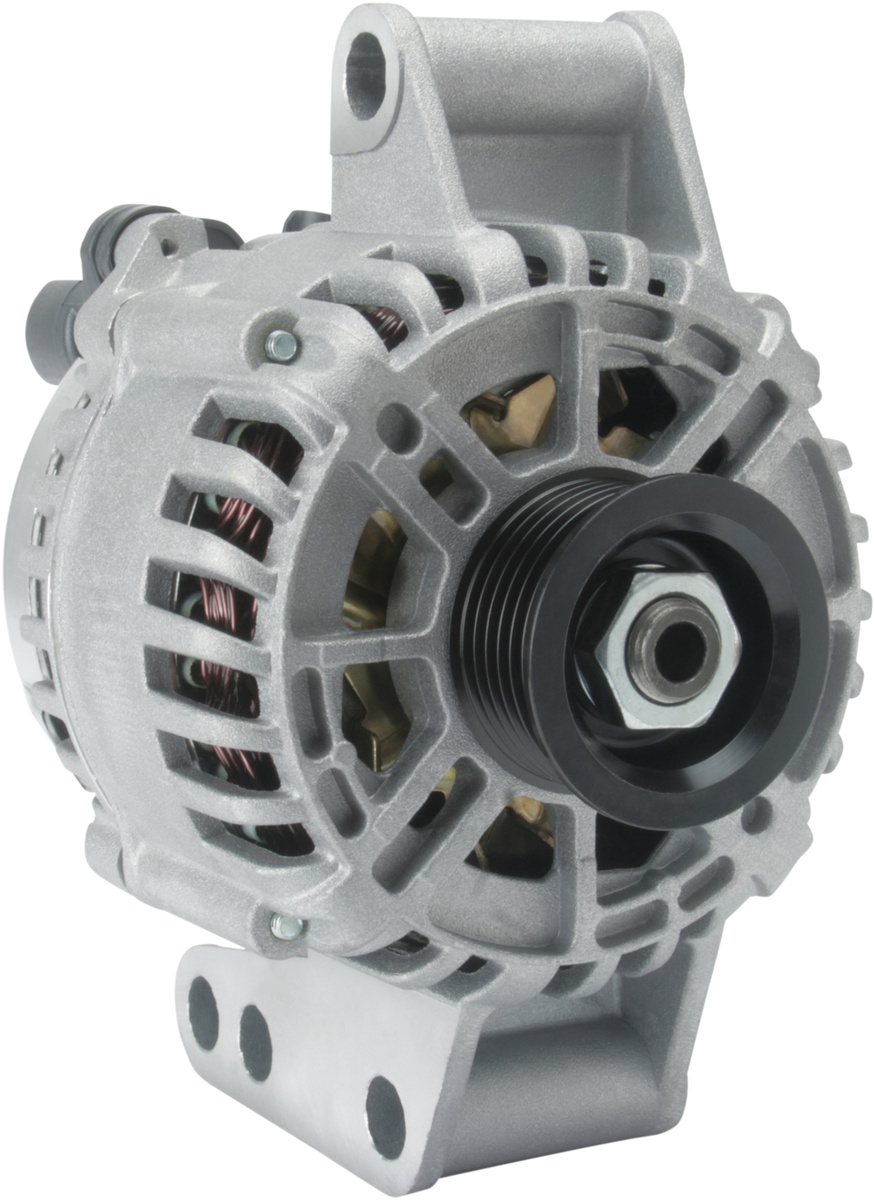

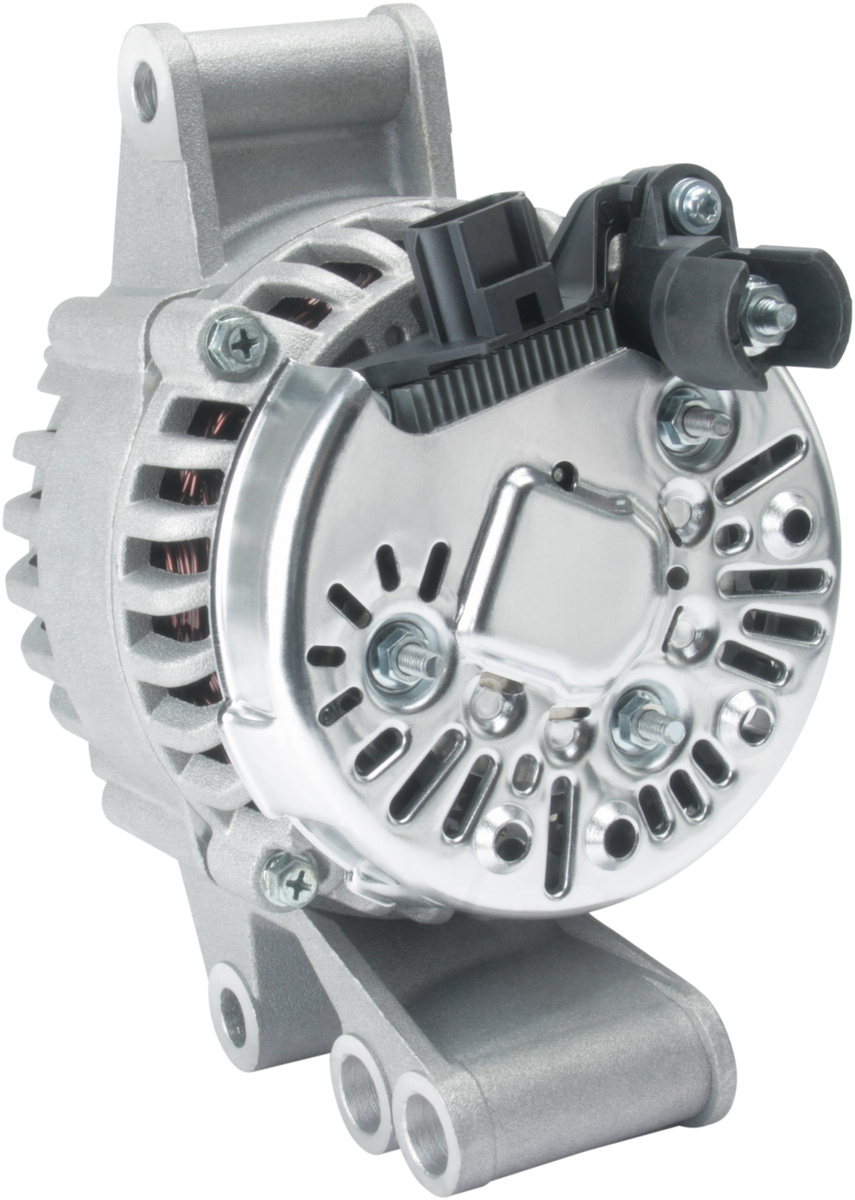

F032115543 - Alternator

Trade number 115543

Details & description

Voltage 14, Amp 90, Pulley SP, Bracket Hole Size 1 10.00x11.80, Pulley Diameter 48.00, Prod. info BN, Bracket Hole Size Rear 14.00, D+ Size Plug, D+ Position 58, Holder Arm Width 55.00, Pulley Distance 41.00, B+ M6, Plug no. 1 PL57, Mounting Bracket Distance 74.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.00, Grooves/pulley 6, Regulator type IR, Position 58, B+ Position 5, Belt Adjustment Bracket Hole Position 60, Total Length 171.00

Product information

Voltage:14

Amp:90

Pulley:SP

Bracket Hole Size 1:10.00x11.80

Pulley Diameter:48.00

Prod. info:BN

Bracket Hole Size Rear:14.00

D+ Size:Plug

D+ Position:58

Holder Arm Width:55.00

Pulley Distance:41.00

B+:M6

Plug no. 1:PL57

Mounting Bracket Distance:74.00

Rotation:CW

Belt Adjustment Bracket Hole 1:10.00

Grooves/pulley:6

Regulator type:IR

Position:58

B+ Position:5

Belt Adjustment Bracket Hole Position:60

Total Length:171.00

Replacing and BOMs

OEM number

1229424FORDBOM

1450644FORDBOM

3S5T10300AAFORDBOM

3S5T10300ABFORDBOM

3S5T10300ACFORD

1718577FORD
