F032115544 - Alternator

Trade number 115544

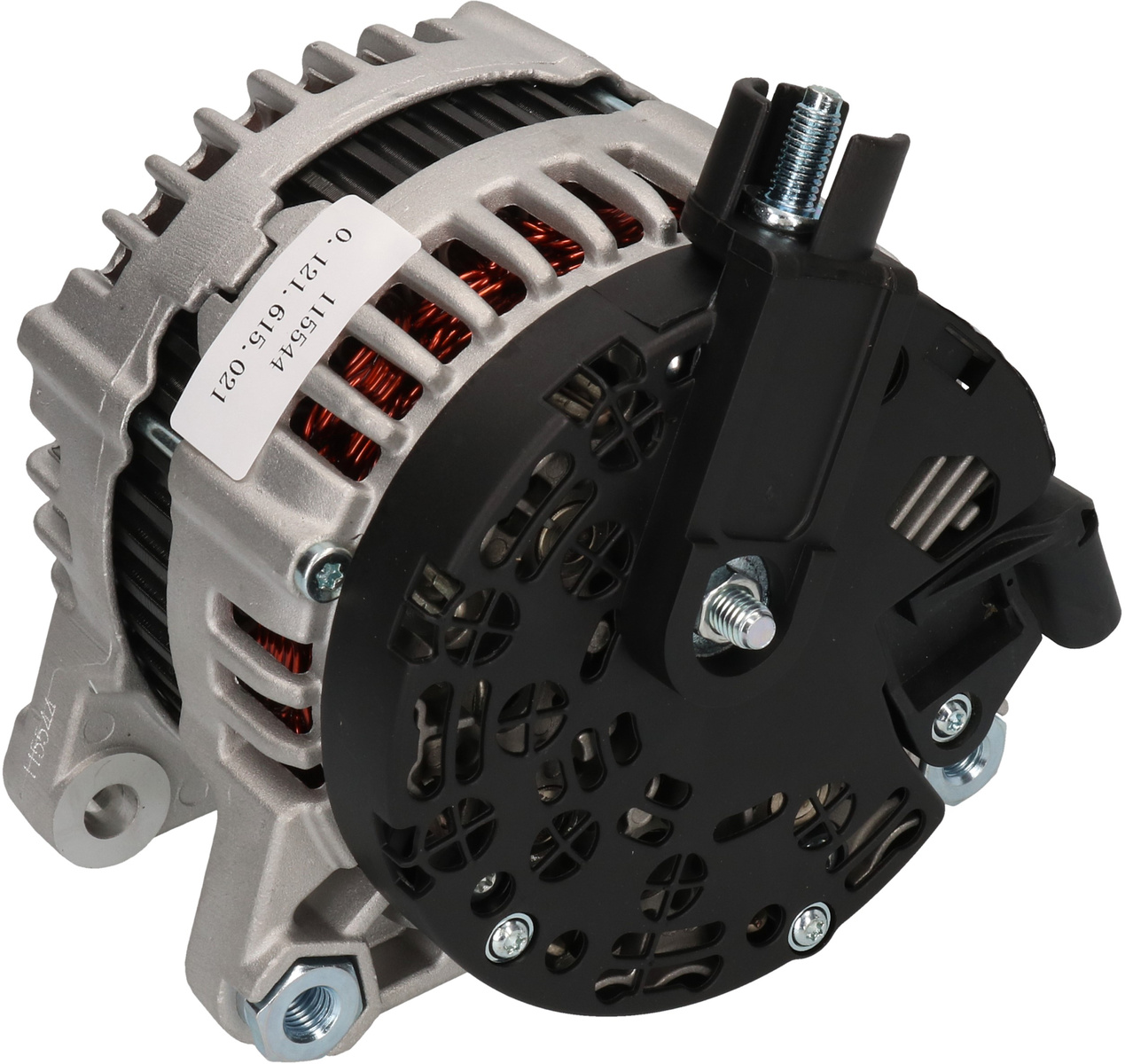

Product image - main
Trade number 115544

Details & description

Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Pulley Diameter 54.50, Bracket Hole Size Rear M10, Pulley Distance 42.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 46.00, Radius 90.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Belt Adjustment Bracket Hole 2 M10, Terminal type COM, Holder Arm Width 21.00, B+ M8, Radius 2 90.00, Plug no. 1 PL137, Rotation CW, B+ Position 60, Belt Adjustment Bracket Hole Position 30, Total Length 184.00

Product information

Voltage:14
Amp:150
Communication:LIN
Pulley:SP/FW
Pulley Diameter:54.50
Bracket Hole Size Rear:M10
Pulley Distance:42.50
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:46.00
Radius:90.00
Belt Adjustment Bracket Hole 1:10.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:10.50
Belt Adjustment Bracket Hole 2:M10
Terminal type:COM
Holder Arm Width:21.00
B+:M8
Radius 2:90.00
Plug no. 1:PL137
Rotation:CW
B+ Position:60
Belt Adjustment Bracket Hole Position:30
Total Length:184.00

Replacing and BOMs

OEM number

6G9N10300ADAFORD
6G9N10300ADBFORD
1435647FORD
1455494FORD
6G9J10300ADAFORD
2099447FORD
1790385FORD
LR002899ROVER
LR007088ROVER

Competitor References

DRA0059AC DELCO
553216RIAD KÜHNER
A0288AUTOSTARTER POLAND
A0288PRAUTOSTARTER POLAND
0121615021BOSCHBOM
0121615058BOSCHBOM
0121615121BOSCHBOM
0986081400BOSCH
1986A00674BOSCH
CAL10375CASCO SRL
595568150CV PSH
DRA0059DELCO REMY
2191911502DRI
285587ELSTOCK
210426ERA SPA
210426AERA SPA
12090257EUROTEC
112976FACROM
9090369FRIESEN
115544HC-CARGO
CA2113IRHC-PARTS
8EL011712611HELLA
23973LESTER
LEA0755LUCAS
LRA02973LUCAS
944390903690MARELLI
063536151210MARELLI
MAN2047MARELLI
9090369QUINTON HAZELL
440480VALEO
23973NWAI
