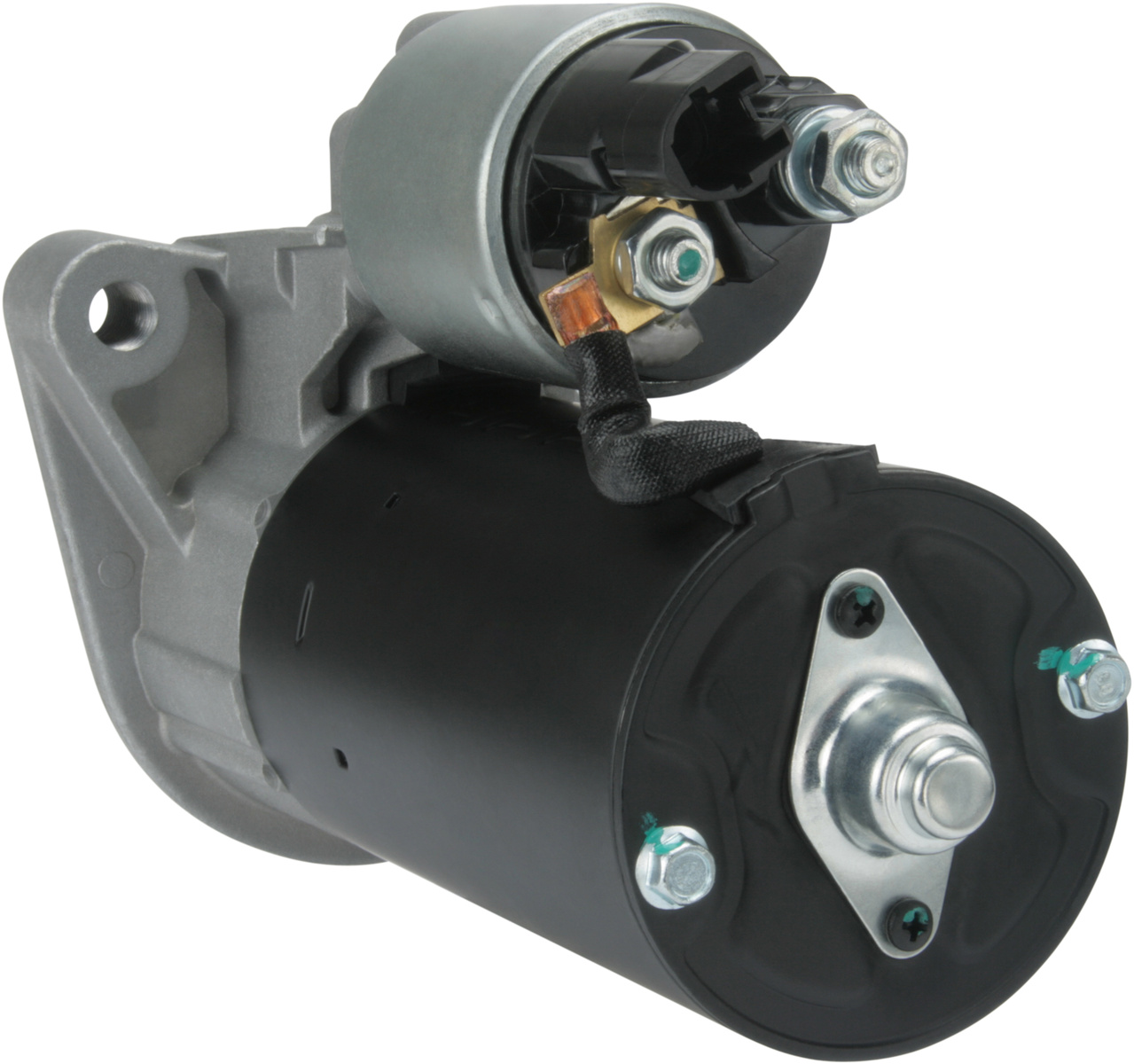

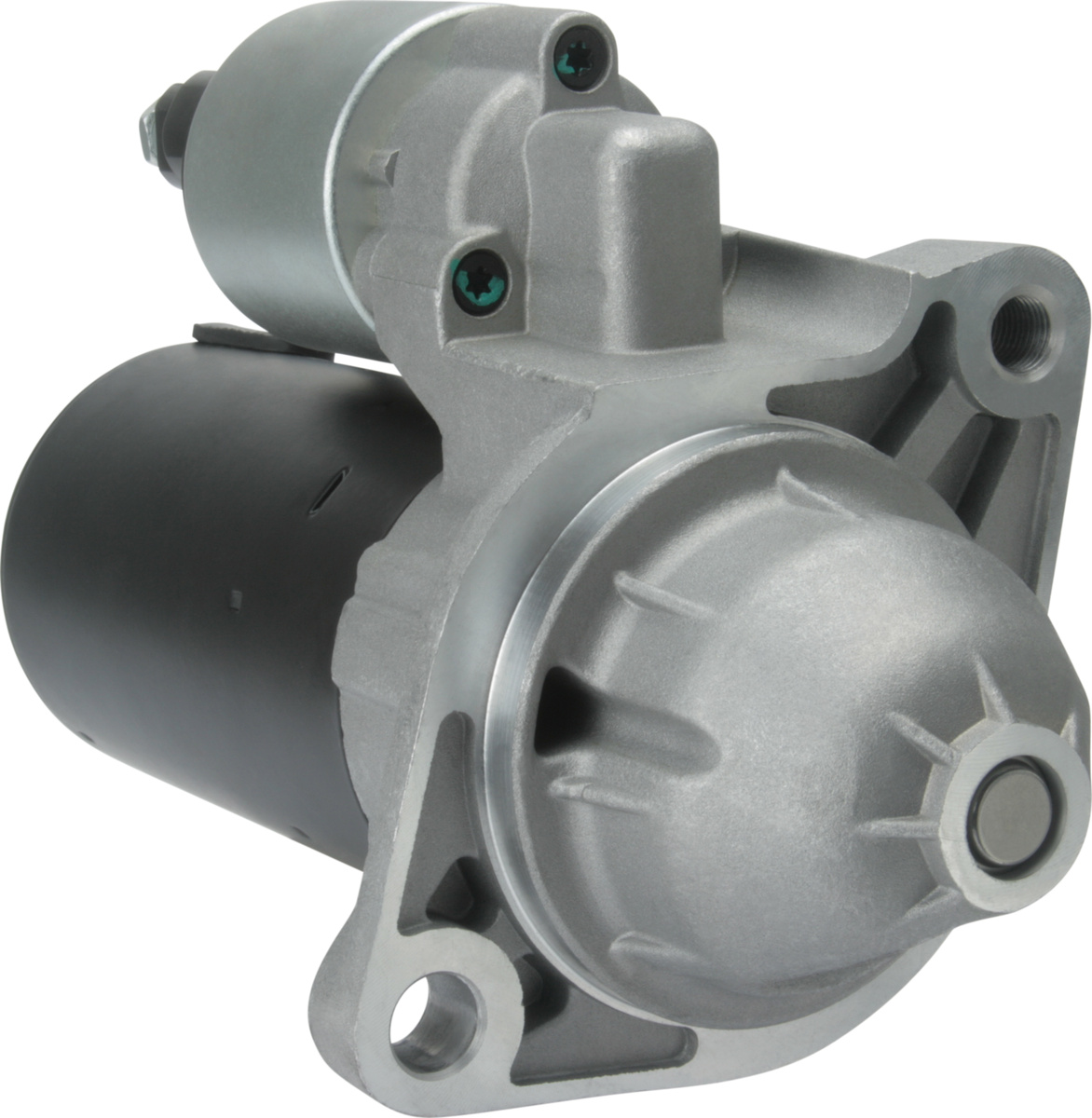

F032115594 - Starter
Trade number 115594
Trade number 115594
Details & description
kW 2.2, Voltage 12, No./mount. holes 2 (1), Mounting Hole 2 13.00, Rear Distance 180.00, Prod. info BN, Front Distance 57.50, Drive Distance 18.00, B+ M8, Terminal 50 Plug, Mounting Flange 82.50, Distance 129.00, Rotation CW, Mounting Holes with Thread 1, Position 55, Gear type GR, No./teeth 9, Amount of Mounting Holes 2, Total Length 250.50
Product information
Electrical information
- kW2.2
- Voltage12
Catalogue information
- Prod. infoBN
Physical information
- No./mount. holes2 (1)
- Mounting Hole 213.00
- Rear Distance180.00
- Front Distance57.50
- Drive Distance18.00
- B+M8
- Terminal 50Plug
- Mounting Flange82.50
- Distance129.00
