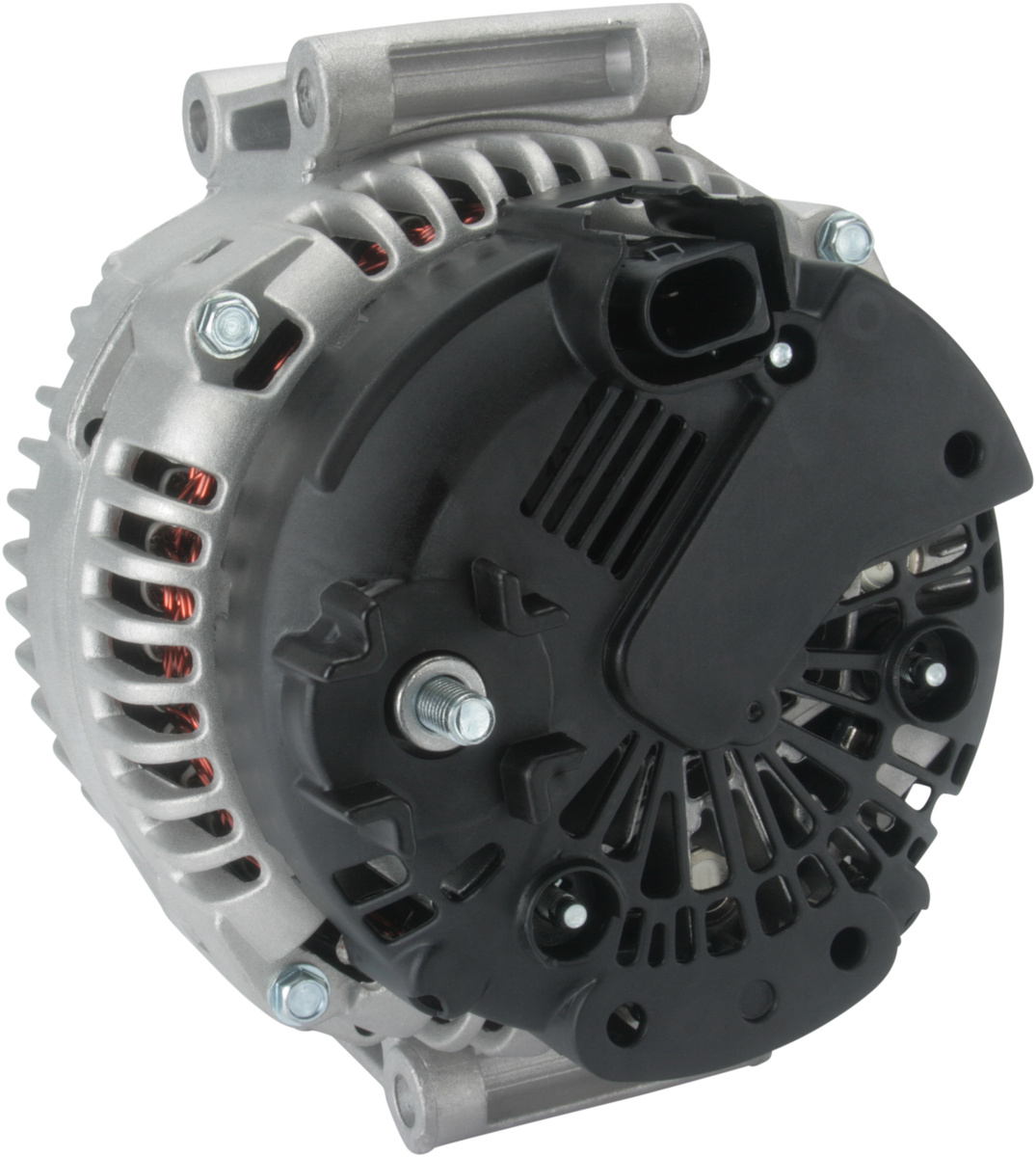

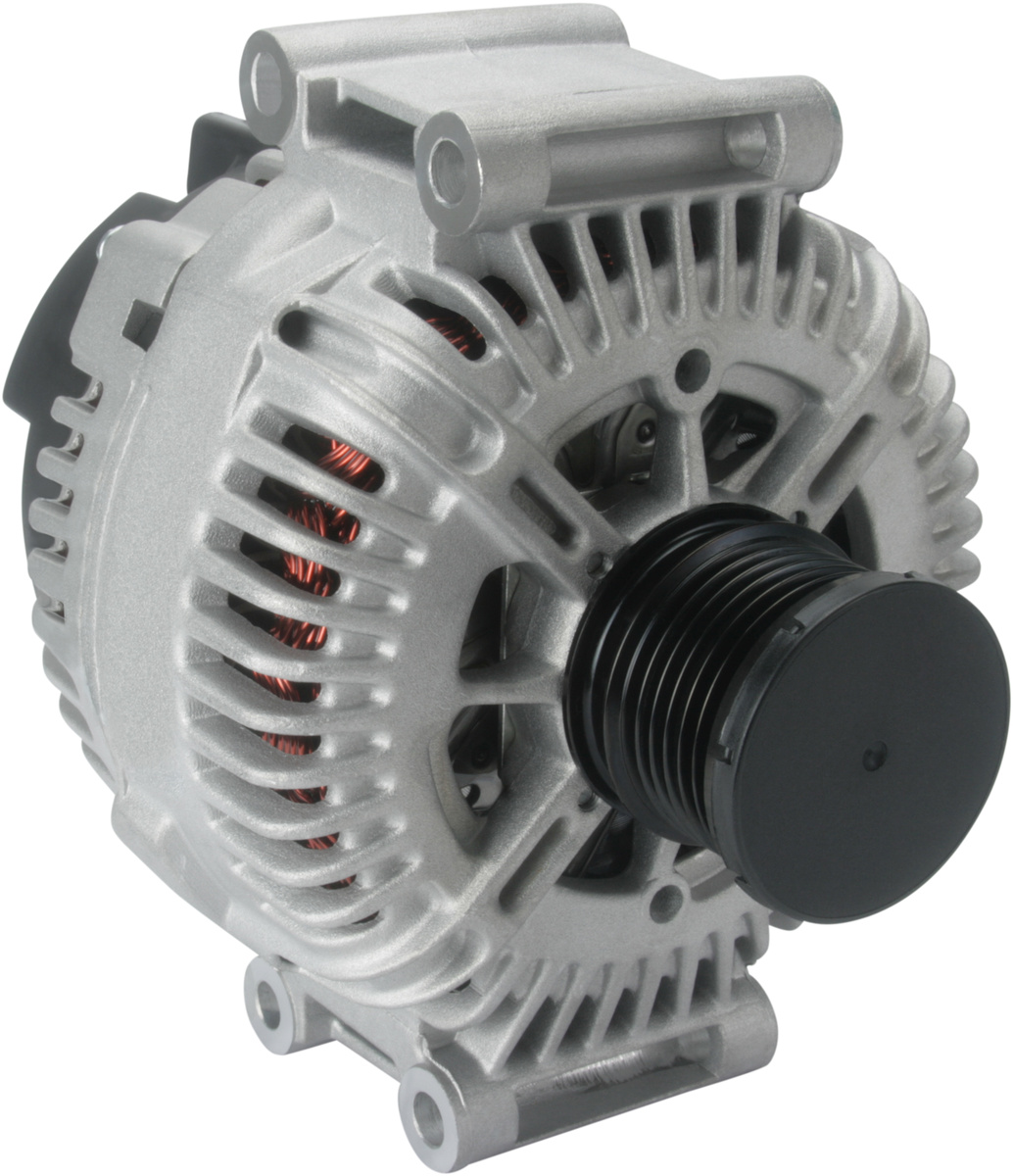

F032116068 - Alternator
Trade number 116068
Replacing and BOMs
OEM number
6461540102MERCEDES-BENZ
6461541102MERCEDES-BENZ
A6461540102MERCEDES-BENZ
A6461541102MERCEDES-BENZ
Competitor References
DRA0198AC DELCO
553246RIAD KÜHNER
A3107AUTOSTARTER POLAND
A3107VALEOAUTOSTARTER POLAND
0986081910BOSCH
F042A0H193BOSCH
1986A01202BOSCH
CAL15349CASCO SRL
4823CEVAM
555577180CV PSH
DRA0198DELCO REMY
2251771802DRI
285641ELSTOCK
210614ERA SPA
210614AERA SPA
12090266EUROTEC
112729FACROM
112761FACROM
9090459FRIESEN
116068HC-CARGO
8EL738212661HELLA
8EL012430201HELLA
32081910HERTH U. BUSS
23290LESTER
LRA03029LUCAS
944390904590MARELLI
9090459QUINTON HAZELL
ALTH193UNIPOINT
439619VALEO
439585VALEO
440057VALEO
440176VALEO
747043VALEO
747066VALEO
200198VALEO
F032116068 - Alternator
Details & description
Voltage 14, Amp 180, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 8.50, Pulley Diameter 49.00, Terminal type COM, Holder Arm Width 70.00, Pulley Distance 30.00, B+ M8, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL86, Mounting Bracket Distance 56.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, B+ Position 45, Total Length 200.00
Product information
Voltage:14
Amp:180
Communication:LIN
Pulley:SP/FW
Bracket Hole Size 1:8.50
Pulley Diameter:49.00
Terminal type:COM
Holder Arm Width:70.00
Pulley Distance:30.00
B+:M8
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Plug no. 1:PL86
Mounting Bracket Distance:56.00
Rotation:CW
Belt Adjustment Bracket Hole 1:8.50
Grooves/pulley:6
Regulator type:IR
B+ Position:45
Total Length:200.00
Replacing and BOMs
OEM number
6461540102MERCEDES-BENZ
6461541102MERCEDES-BENZ
A6461540102MERCEDES-BENZ
A6461541102MERCEDES-BENZ
Competitor References
DRA0198AC DELCO
553246RIAD KÜHNER
A3107AUTOSTARTER POLAND
A3107VALEOAUTOSTARTER POLAND
0986081910BOSCH
F042A0H193BOSCH
1986A01202BOSCH
CAL15349CASCO SRL
4823CEVAM
555577180CV PSH
DRA0198DELCO REMY
2251771802DRI
285641ELSTOCK
210614ERA SPA
210614AERA SPA
12090266EUROTEC
112729FACROM
112761FACROM
9090459FRIESEN
116068HC-CARGO
8EL738212661HELLA
8EL012430201HELLA
32081910HERTH U. BUSS
23290LESTER
LRA03029LUCAS
944390904590MARELLI
9090459QUINTON HAZELL
ALTH193UNIPOINT
439619VALEO
439585VALEO
440057VALEO
440176VALEO
747043VALEO
747066VALEO
200198VALEO
