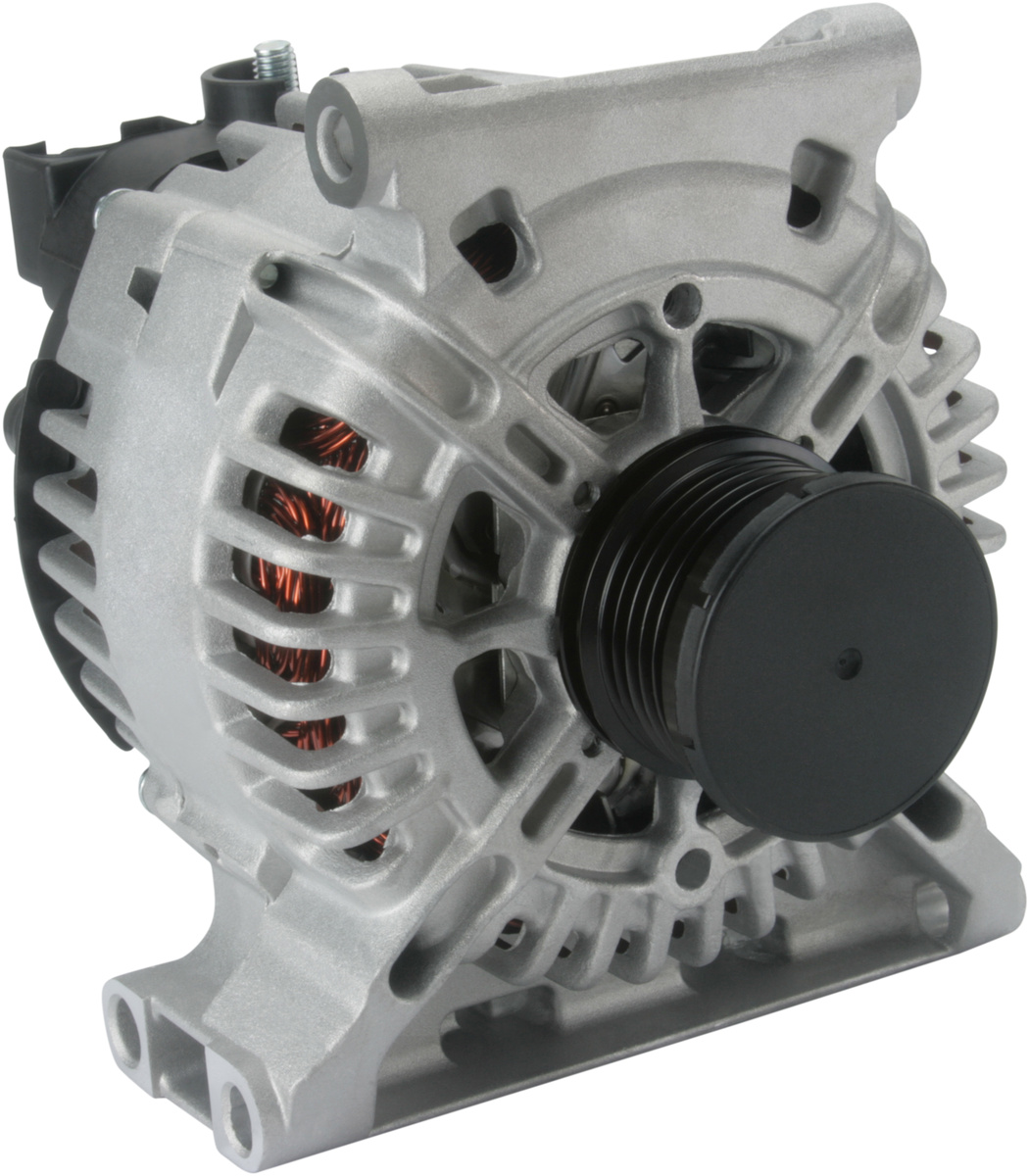

F032116069 - Alternator
Trade number 116069
Replacing and BOMs
OEM number
Competitor References
DRA4273AC DELCO
DRA4273XAC DELCO
301873RIAD KÜHNER
A3158AUTOSTARTER POLAND
0986080040BOSCH
F042A0H197BOSCH
CAL15286CASCO SRL
4797CEVAM
555556150CV PSH
DRA4273DELCO REMY
DRA4273XDELCO REMY
2251521502DRI
285502ELSTOCK
210395ERA SPA
210395AERA SPA
12090177EUROTEC
112515FACROM
9090374FRIESEN
9090397FRIESEN
116069HC-CARGO
8EL738211421HELLA
8EL012429401HELLA
32437545HERTH U. BUSS
23896LESTER
LRA02885LUCAS
944390903740MARELLI
9212962POWER MAX
9090374QUINTON HAZELL
9090397QUINTON HAZELL
ALTH197UNIPOINT
2543363AVALEO
2543570QVALEO
437545VALEO
439552VALEO
747095VALEO
747895VALEO
839033VALEO
200028VALEO
F032116069 - Alternator
Details & description
Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 10.00, Pulley Diameter 50.00, Terminal type COM, Holder Arm Width 151.00, Pulley Distance 30.00, B+ M8, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL125, Rotation CW, Belt Adjustment Bracket Hole 1 9.50, Grooves/pulley 5, Regulator type IR, Position 22, B+ Position 60, Total Length 183.00
Product information
Voltage:14
Amp:150
Communication:LIN
Pulley:SP/FW
Bracket Hole Size 1:10.00
Pulley Diameter:50.00
Terminal type:COM
Holder Arm Width:151.00
Pulley Distance:30.00
B+:M8
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Plug no. 1:PL125
Rotation:CW
Belt Adjustment Bracket Hole 1:9.50
Grooves/pulley:5
Regulator type:IR
Position:22
B+ Position:60
Total Length:183.00
Replacing and BOMs
OEM number
Competitor References
DRA4273AC DELCO
DRA4273XAC DELCO
301873RIAD KÜHNER
A3158AUTOSTARTER POLAND
0986080040BOSCH
F042A0H197BOSCH
CAL15286CASCO SRL
4797CEVAM
555556150CV PSH
DRA4273DELCO REMY
DRA4273XDELCO REMY
2251521502DRI
285502ELSTOCK
210395ERA SPA
210395AERA SPA
12090177EUROTEC
112515FACROM
9090374FRIESEN
9090397FRIESEN
116069HC-CARGO
8EL738211421HELLA
8EL012429401HELLA
32437545HERTH U. BUSS
23896LESTER
LRA02885LUCAS
944390903740MARELLI
9212962POWER MAX
9090374QUINTON HAZELL
9090397QUINTON HAZELL
ALTH197UNIPOINT
2543363AVALEO
2543570QVALEO
437545VALEO
439552VALEO
747095VALEO
747895VALEO
839033VALEO
200028VALEO
