F032116089 - Alternator

Trade number 116089

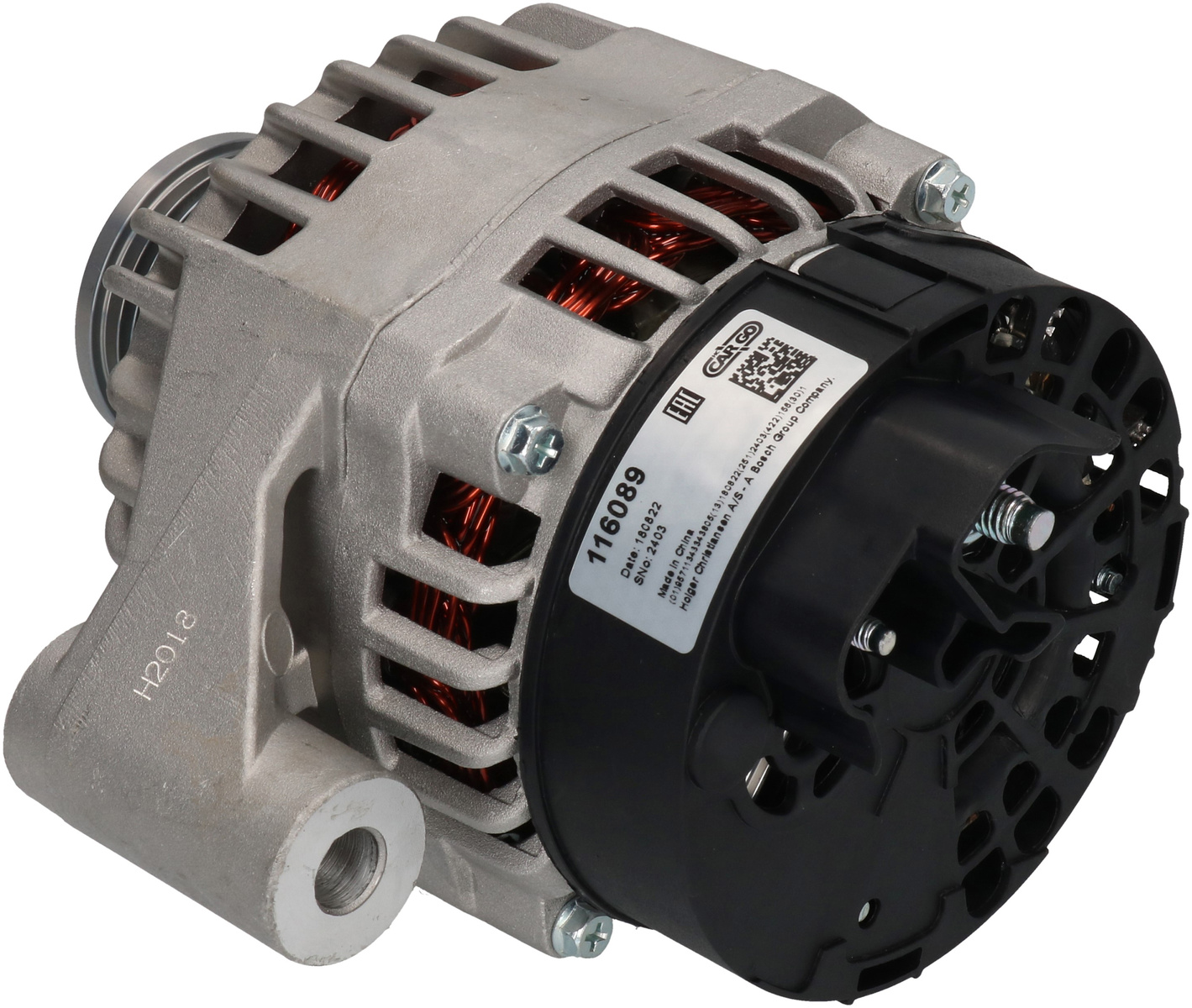

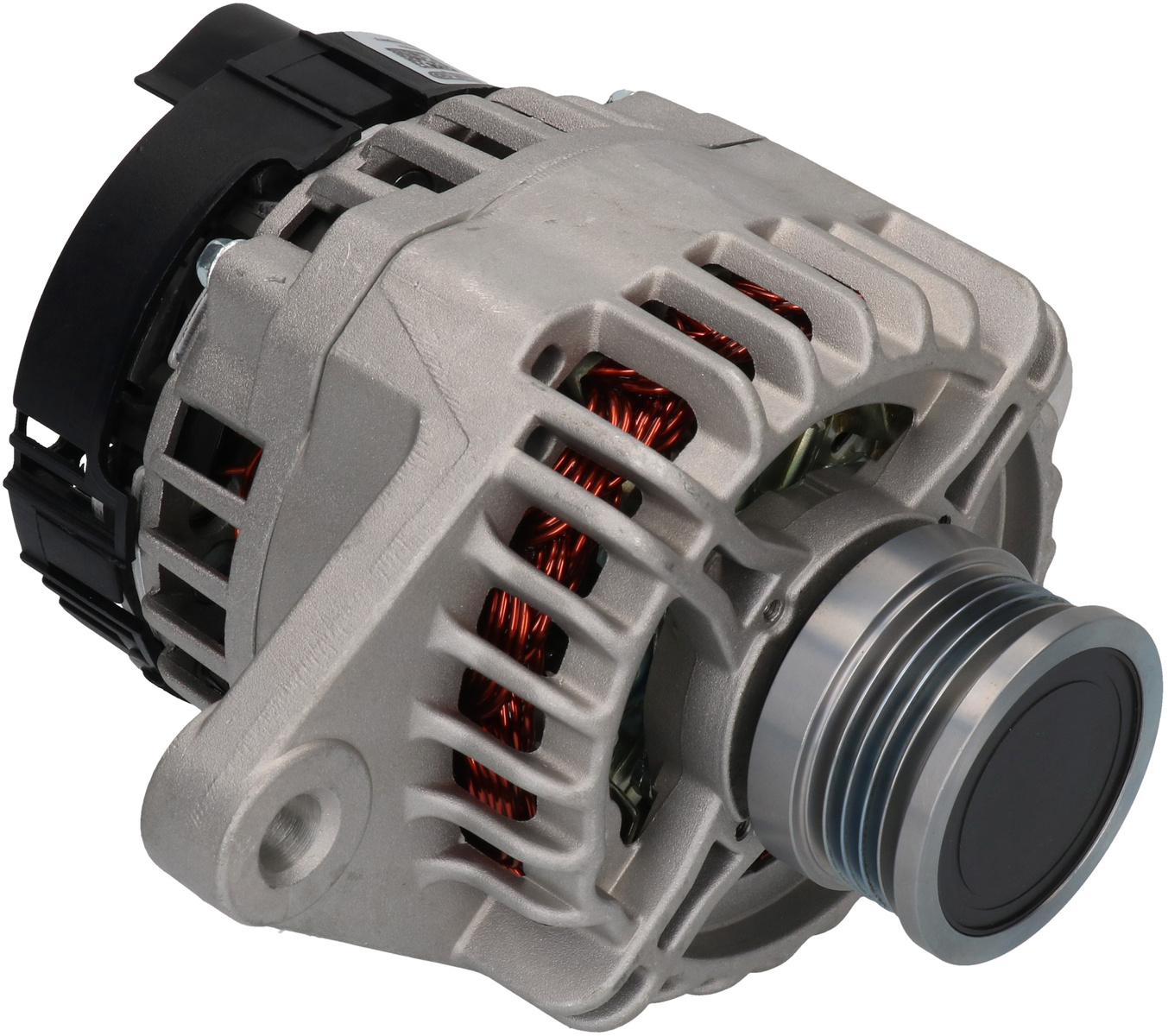

Product image - main
Trade number 116089

Details & description

Voltage 14, Amp 120, Pulley SP/FW, Bracket Hole Size 1 12.30, Pulley Diameter 54.00, D+ Size M5, Holder Arm Width 61.00, Pulley Distance 116.00, B+ M8, Fan IF, Radius 2 90.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 12.30, Grooves/pulley 5, Regulator type IR, Belt Adjustment Bracket Hole Position 59, Total Length 199.00

Product information

Electrical information

  • Voltage14
  • Amp120

Physical information

  • PulleySP/FW
  • Bracket Hole Size 112.30
  • Pulley Diameter54.00
  • D+ SizeM5
  • Holder Arm Width61.00
  • Pulley Distance116.00
  • B+M8
  • FanIF
  • Radius 290.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 52003514FIAT
    • 51820622FIAT
    • 51854917FIAT

    Competitor References

    • 554151RIAD KÜHNER
    • A6165DENSOAUTOSTARTER POLAND
    • CAL30238CASCO SRL
    • 1012101331DENSO
    • 1012101330DENSO
    • DAN1083DENSO
    • 2183241202DRI
    • 286797ELSTOCK
    • 209105ERA SPA
