F032116095 - Alternator

Trade number 116095

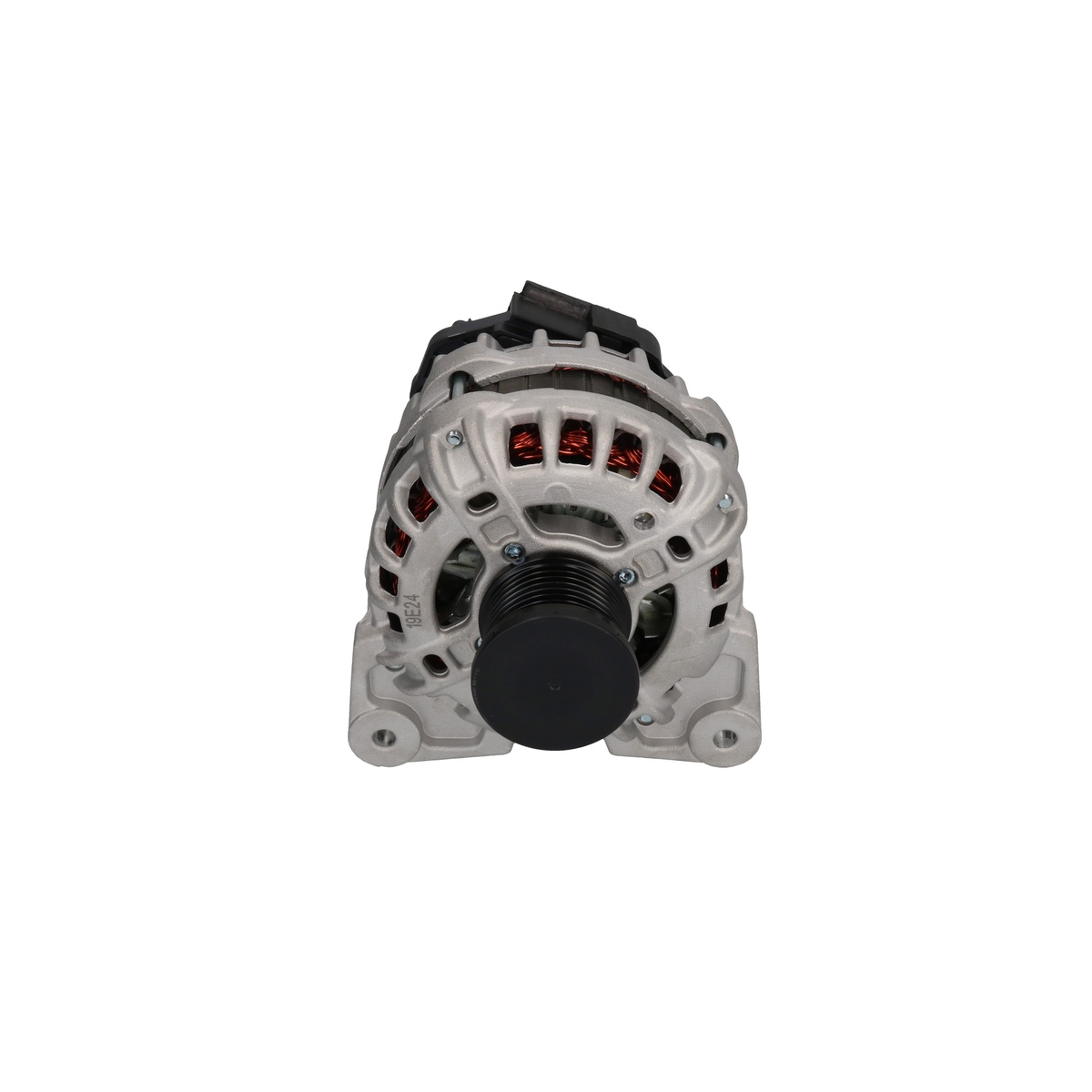

Product image - main
Trade number 116095

Details & description

Voltage 14, Amp 90, Communication LIN, Pulley SP/FW, Pulley Diameter 49.00, Bracket Hole Size Rear M8, Pulley Distance 32.30, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.50, B+ M8, Radius 2 90.00, Plug no. 1 PL131, Rotation CW, B+ Position 45, Belt Adjustment Bracket Hole Position 45, Total Length 179.00

Product information

Electrical information

  • Voltage14
  • Amp90

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter49.00
  • Bracket Hole Size RearM8
  • Pulley Distance32.30
  • Mounting Bracket Distance61.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley7

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 4539063900MERCEDES-BENZ
    • A4539063900MERCEDES-BENZ
    • 231002243RNISSAN
    • 231006007RNISSAN
    • 231008593RNISSAN
    • 231007644RNISSAN
    • 231008593RRENAULT
    • 231006007RRENAULT
    • 231002854RRENAULT

    • Competitor References

    • DRA1365AC DELCO
    • 554467RIAD KÜHNER
    • A0710SAUTOSTARTER POLAND
    • F000BL0410BOSCHBOM
    • F000BL04BFBOSCHBOM
    • F000BL04C3BOSCHBOM
    • F000BL04C4BOSCHBOM
    • F000BL04CXBOSCHBOM
    • 0986085170BOSCH

    • Compatible products
