F032116105 - Alternator

Trade number 116105

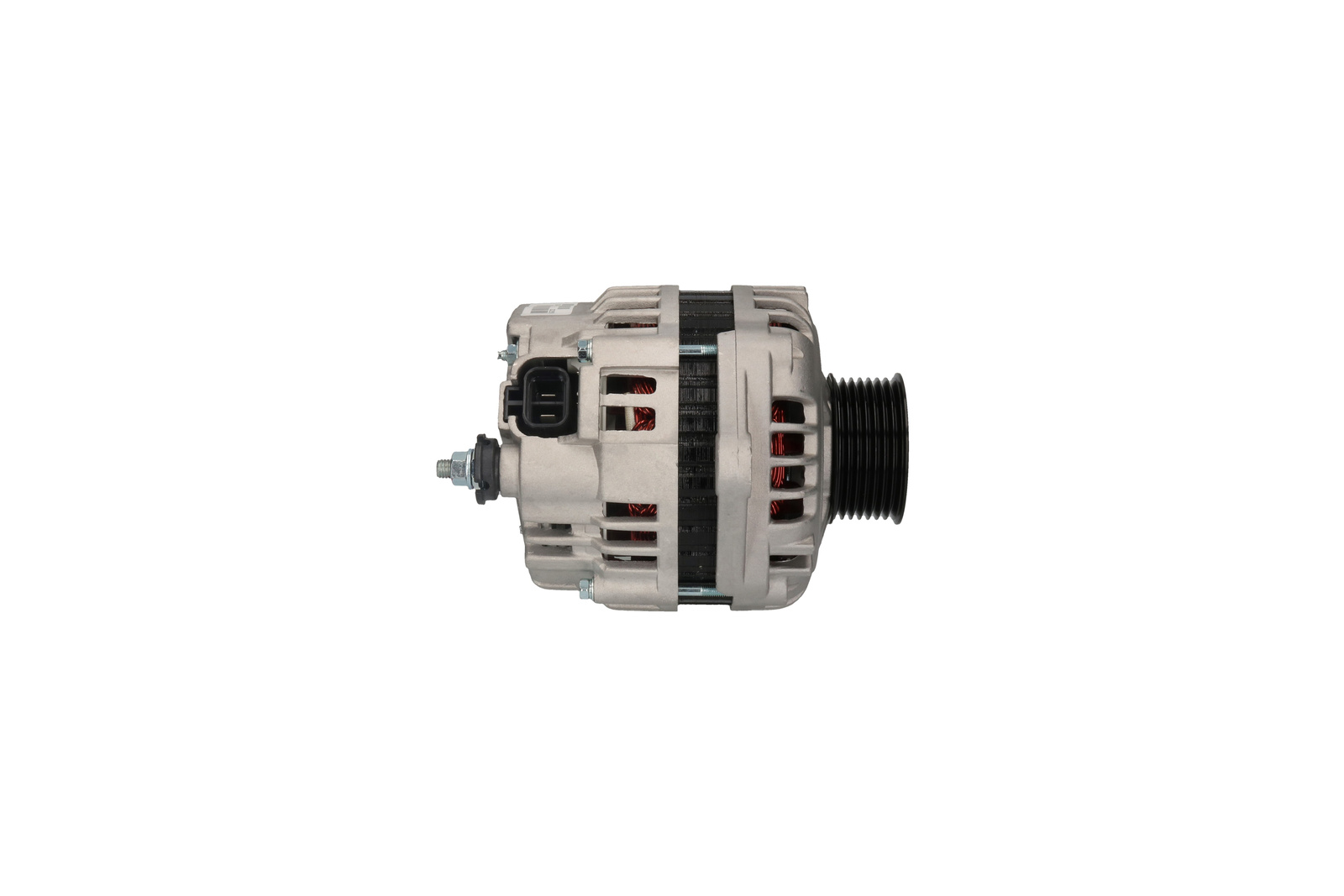

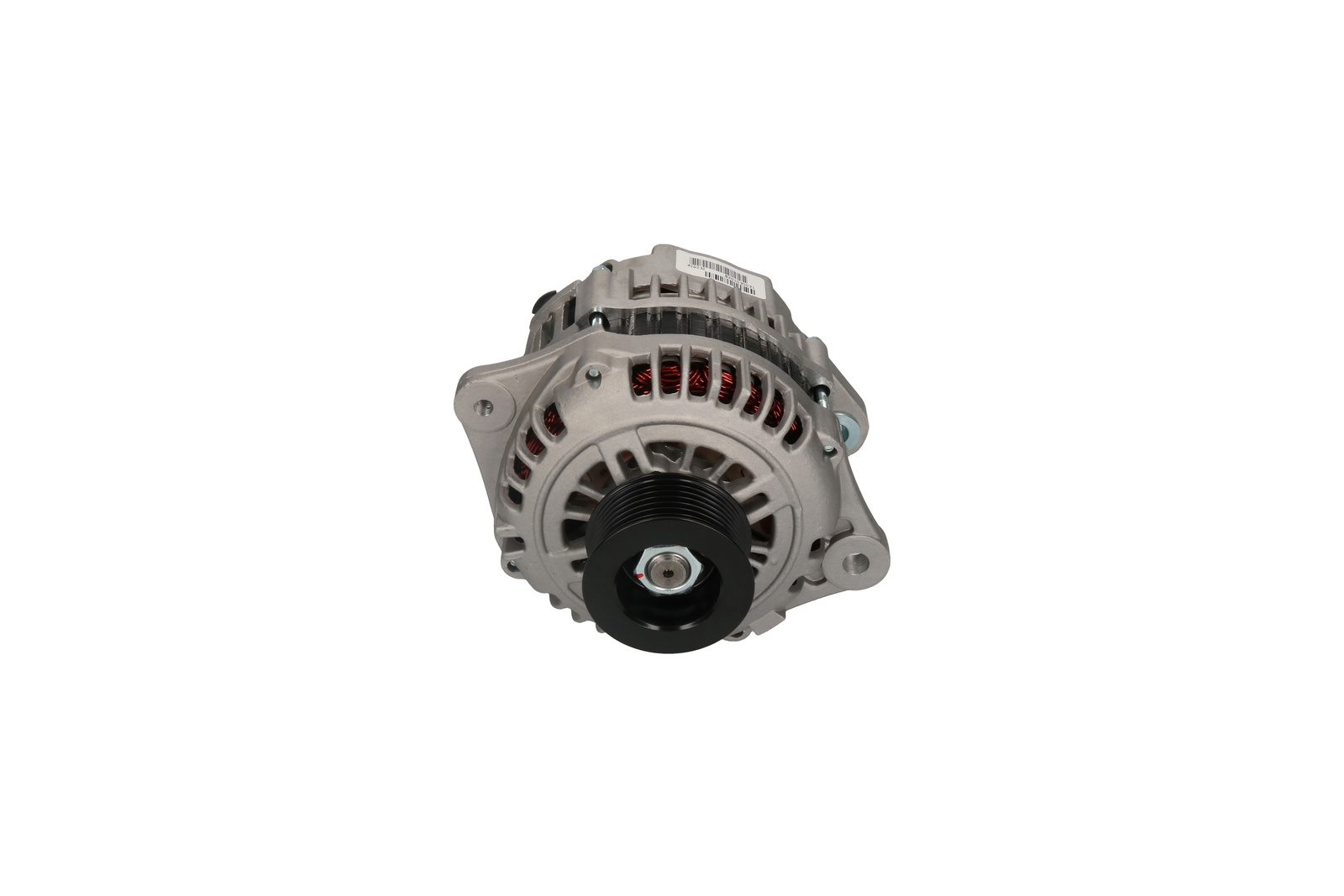

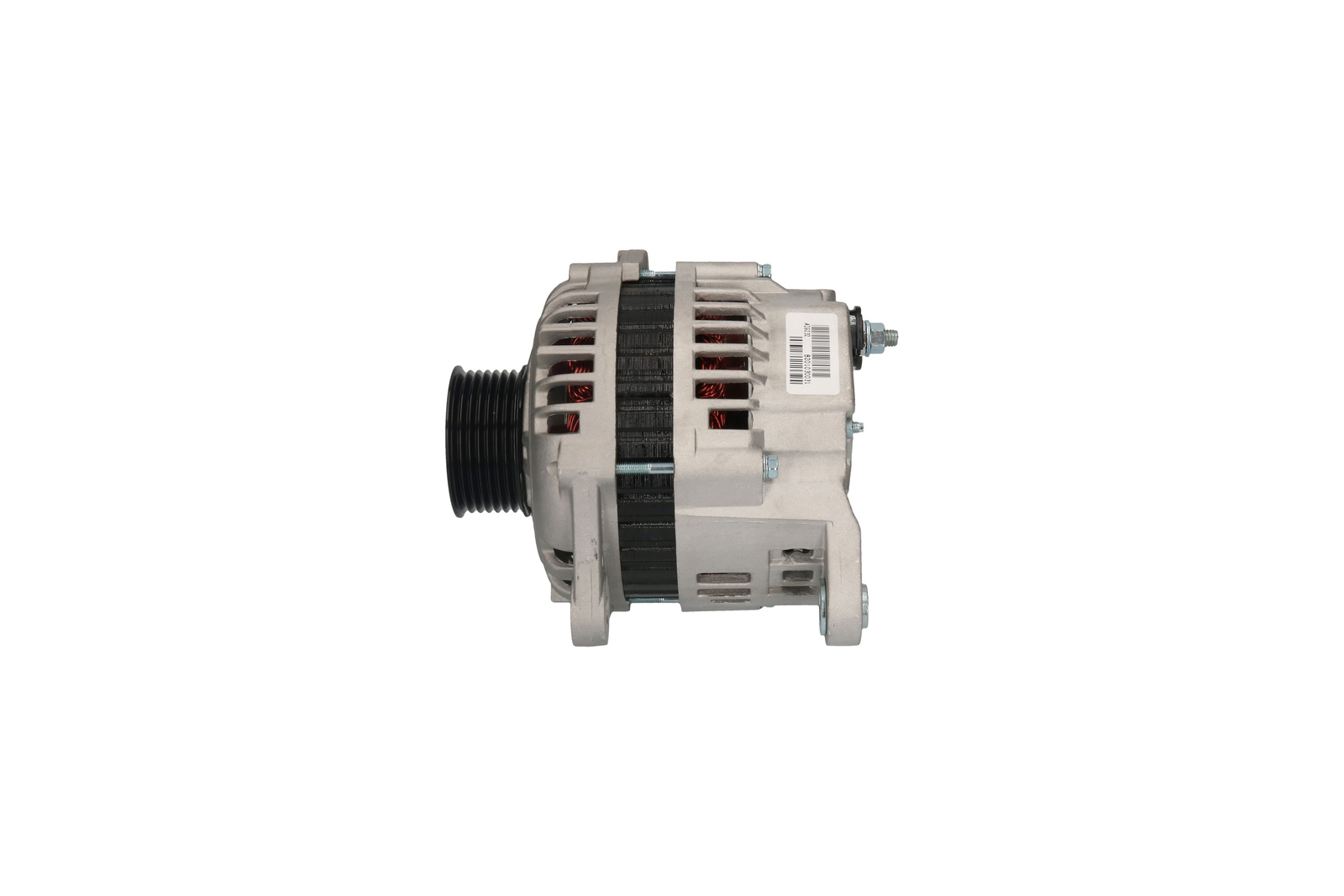

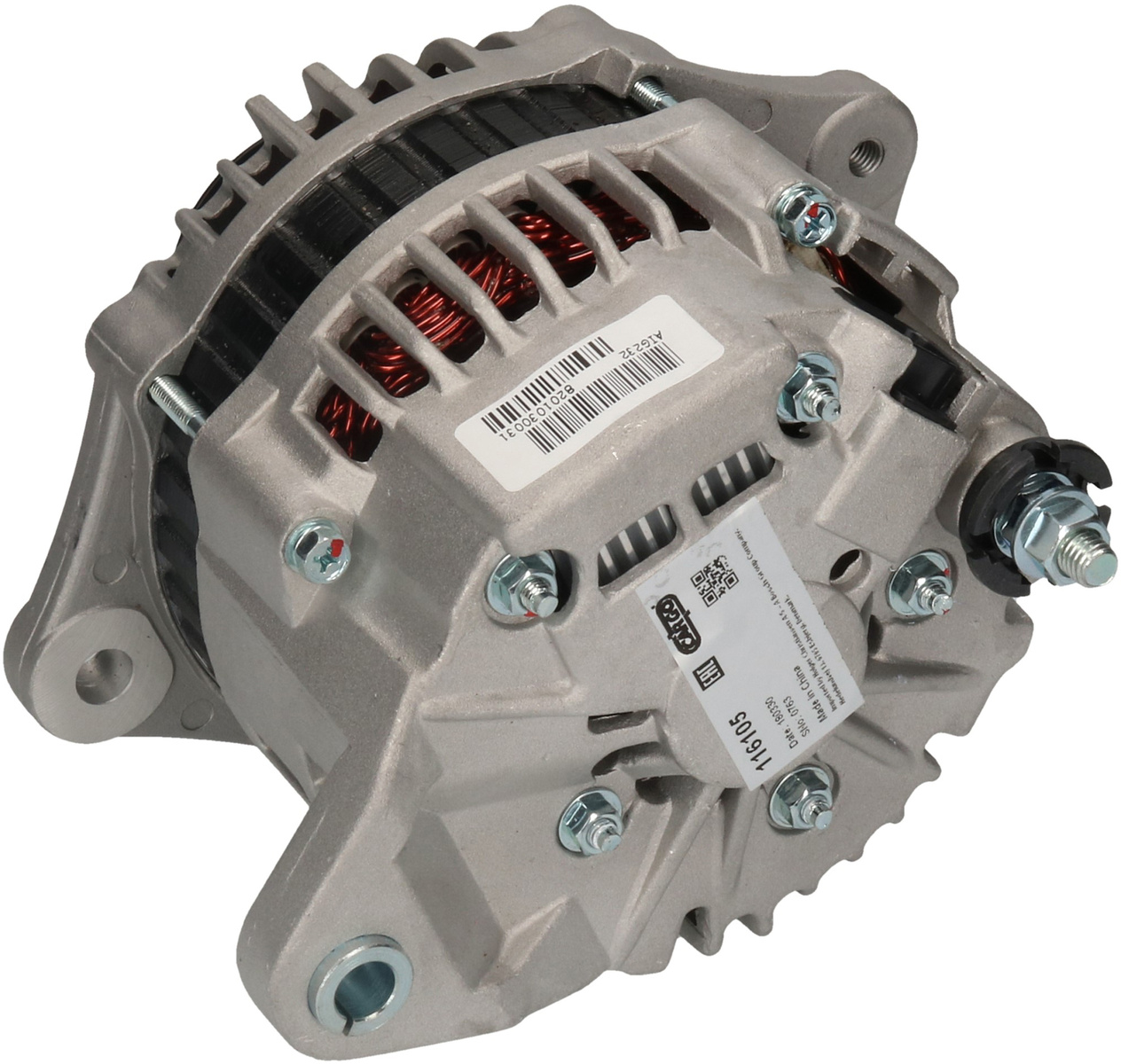

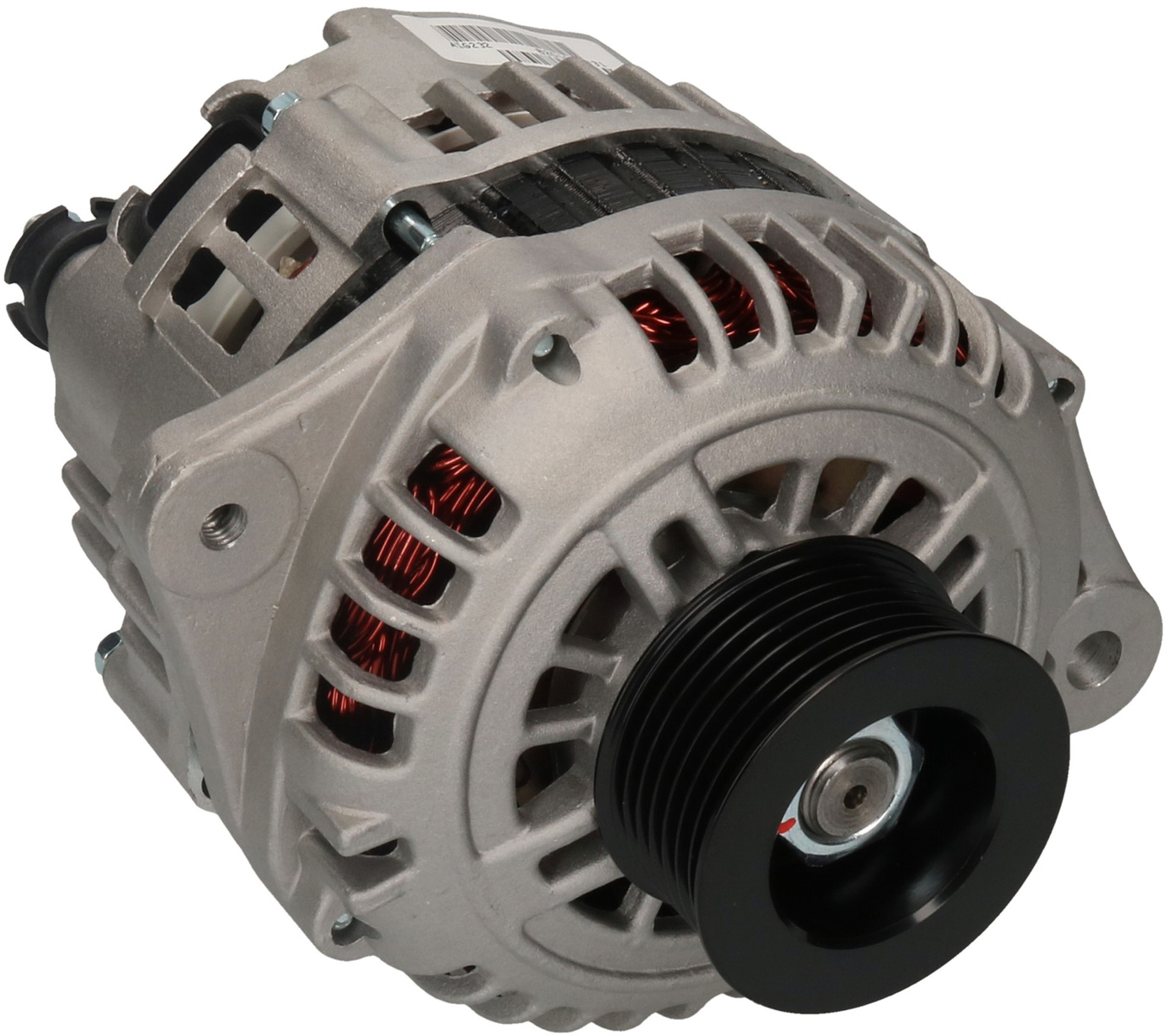

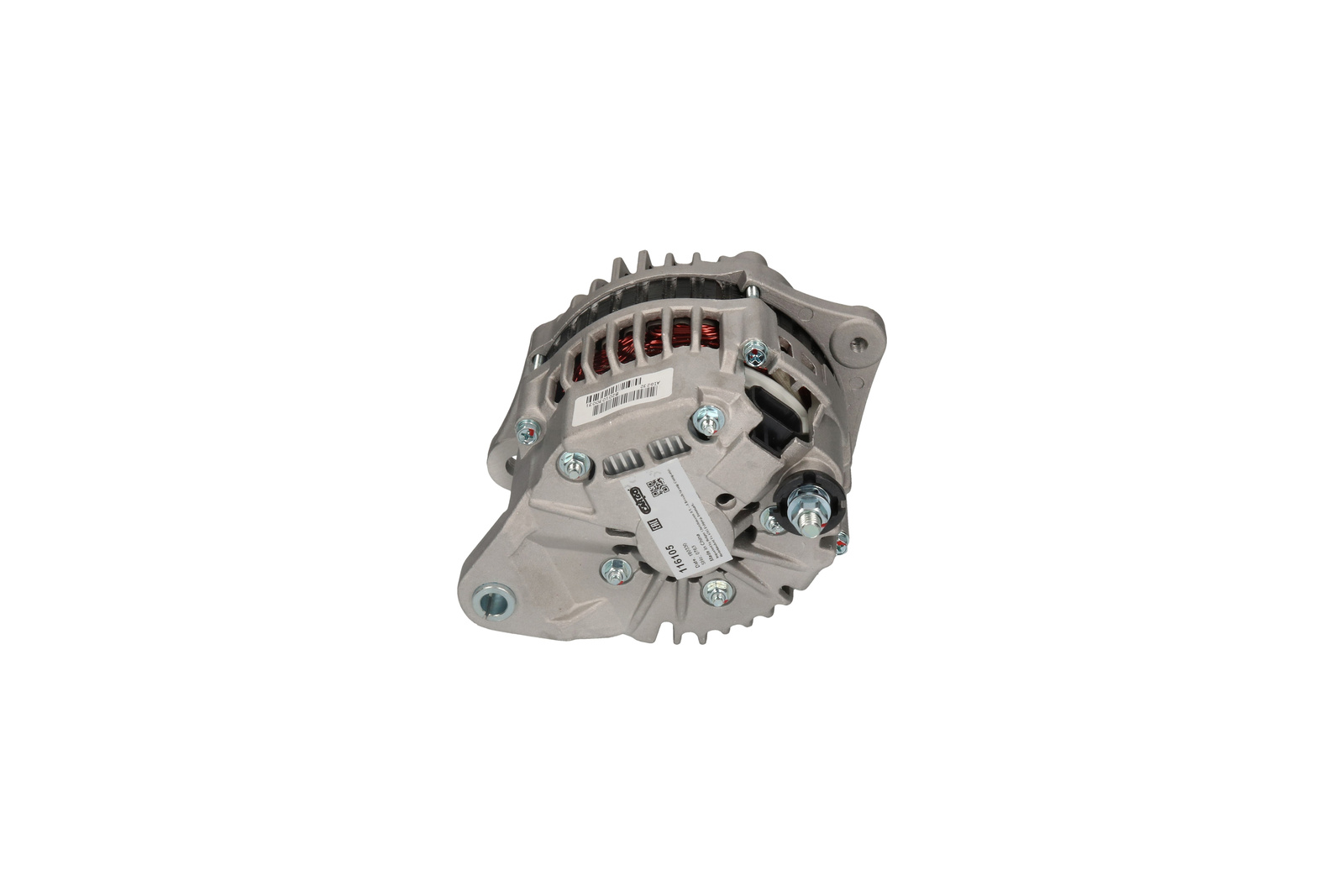

Product image - main
Trade number 116105

Details & description

Voltage 14, Amp 90, Pulley SP, Bracket Hole Size 1 10.50, Pulley Diameter 59.00, Bracket Hole Size Rear 10.50, D+ Size Plug, D+ Position 55, Holder Arm Width 13.00, Pulley Distance 39.00, B+ M8, Radius 2 80.00, Plug no. 1 PL07, Mounting Bracket Distance 81.00, Radius 80.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 7, Regulator type IR, B+ Position 60, Belt Adjustment Bracket Hole Position 1, Total Length 184.00

Product information

Electrical information

  • Voltage14
  • Amp90

Physical information

  • PulleySP
  • Bracket Hole Size 110.50
  • Pulley Diameter59.00
  • Bracket Hole Size Rear10.50
  • D+ SizePlug
  • D+ Position55
  • Holder Arm Width13.00
  • Pulley Distance39.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 8980060840ISUZU

    Competitor References

    • 553542RIAD KÜHNER
    • F042205024BOSCH
    • CAL20233CASCO SRL
    • 135568090CV PSH
    • 104210903DENSO
    • 243129902DRI
    • 285909ELSTOCK
    • 12060969EUROTEC
    • 113322FACROM
