F032116125 - Alternator

Trade number 116125

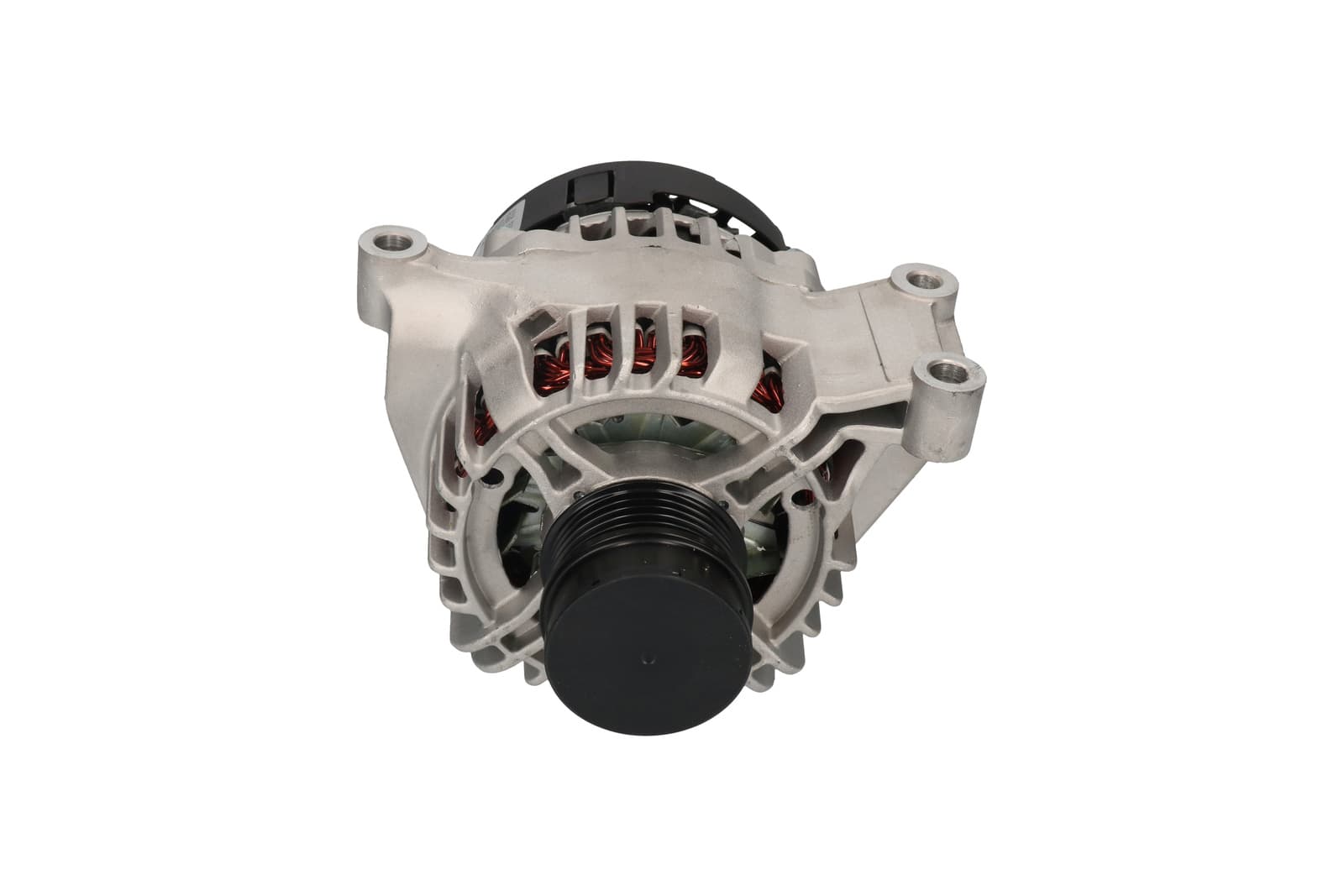

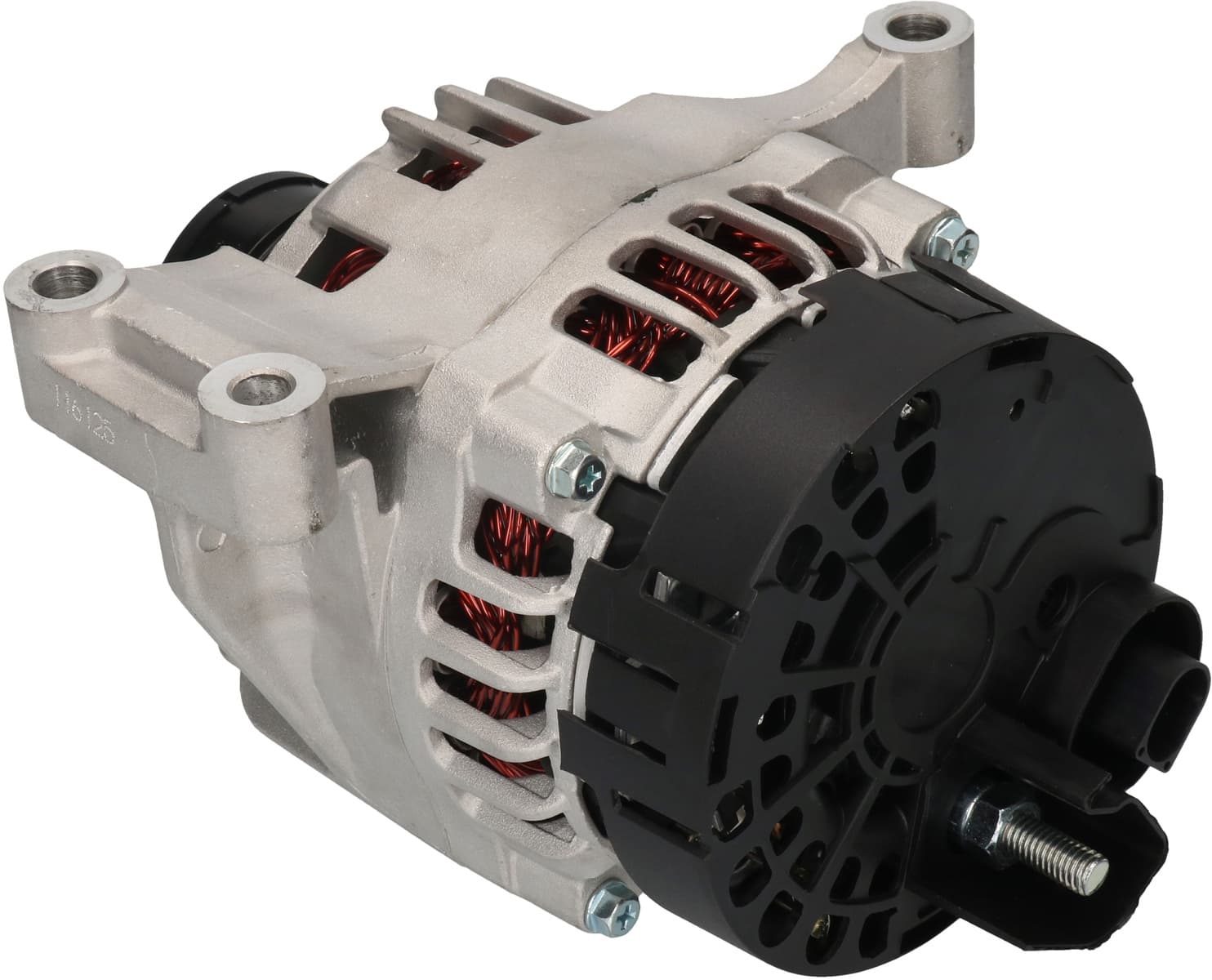

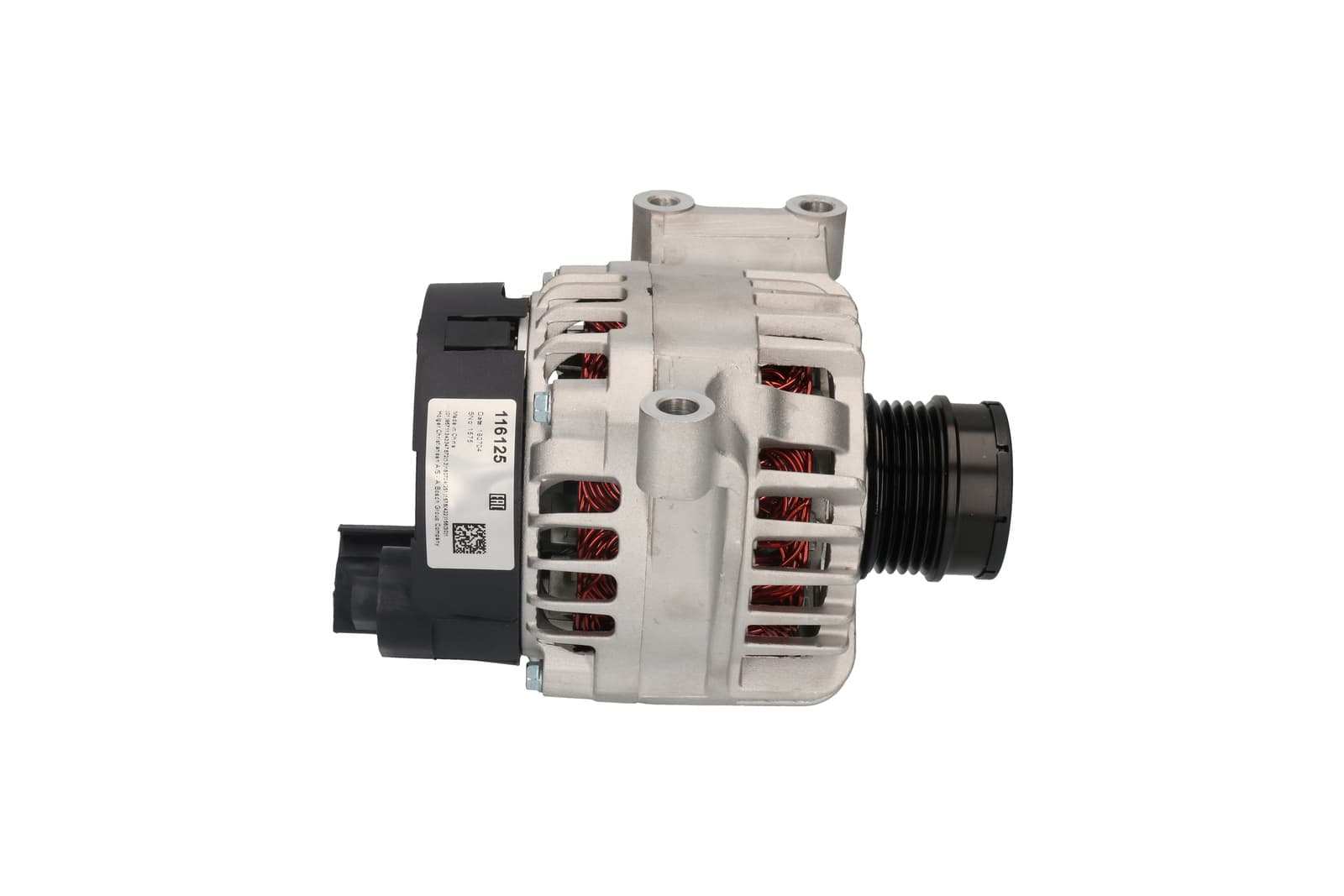

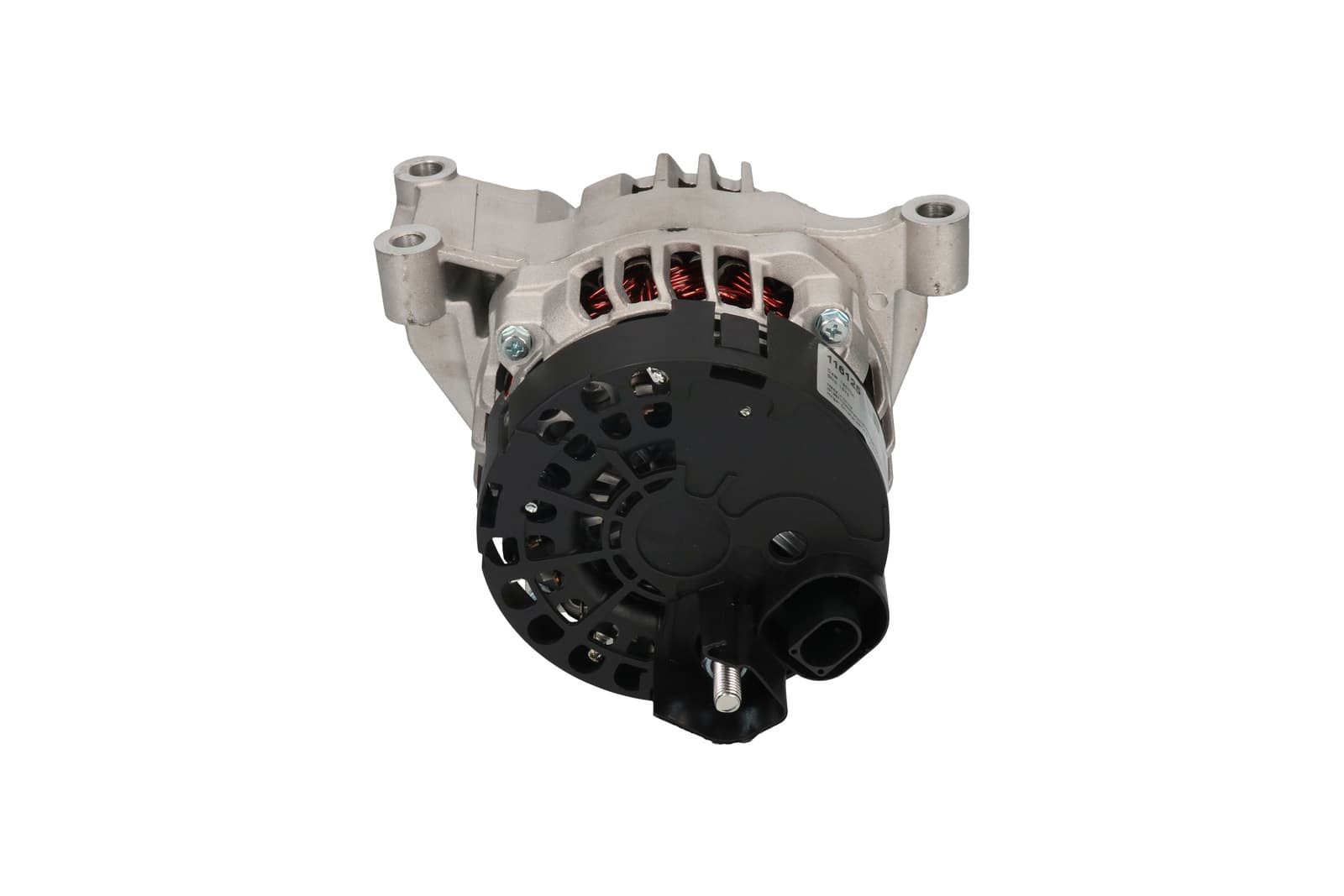

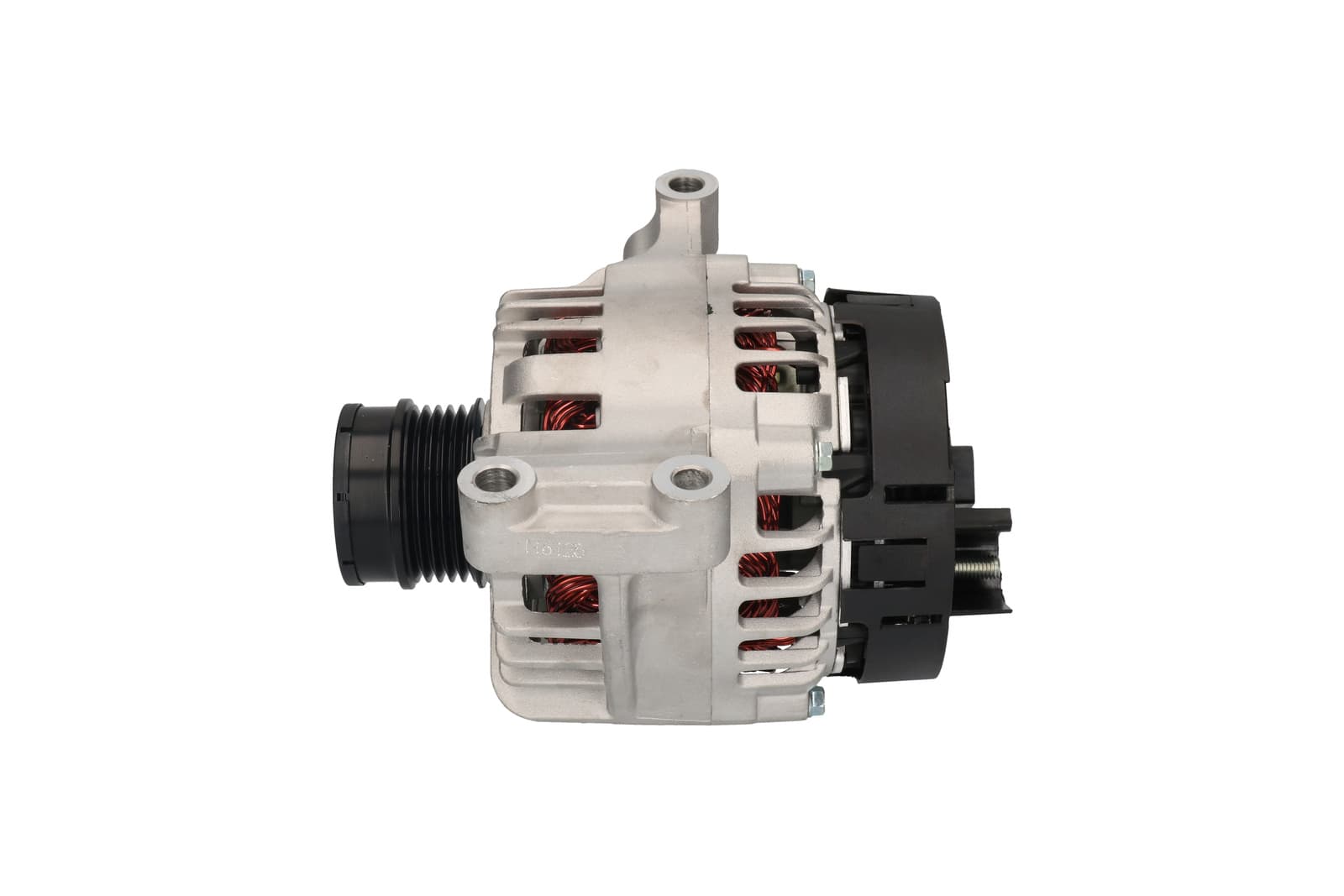

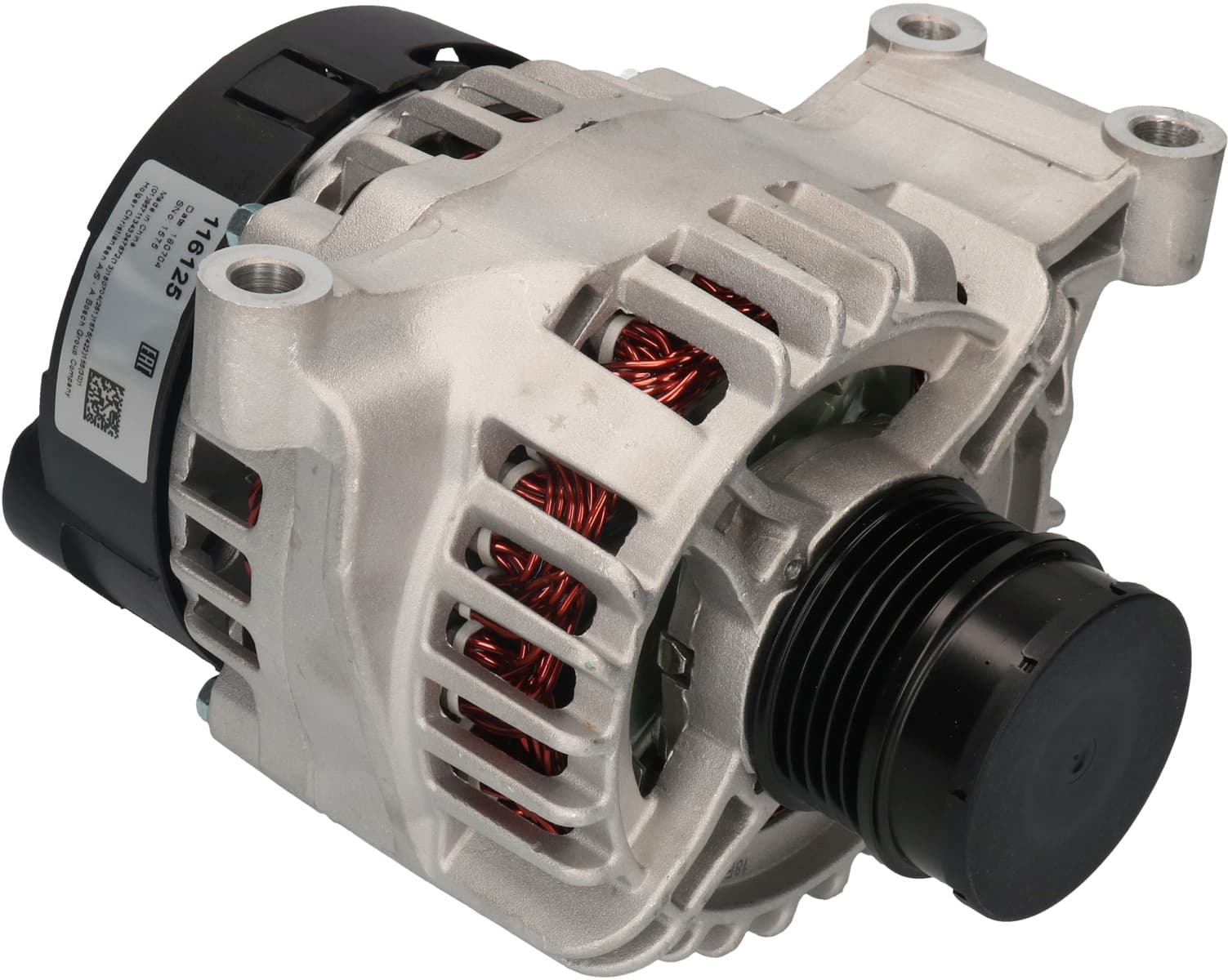

Product image - main
Trade number 116125

Details & description

Voltage 14, Amp 120, Communication LIN, Pulley SP/FW, Pulley Diameter 54.00, Prod. info BN, Bracket Hole Size Rear 8.50, Pulley Distance 17.00, Bracket Hole Size 2 10.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 50.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 5, Regulator type IR, Bracket Hole Size 1 8.50, Belt Adjustment Bracket Hole 2 10.50, Terminal type COM, Holder Arm Width 24.00, B+ M8, Plug no. 1 PL174, Rotation CW, B+ Position 10, Total Length 197.00

Product information

Electrical information

  • Voltage14
  • Amp120

Catalogue information

  • Prod. infoBN
  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter54.00
  • Bracket Hole Size Rear8.50
  • Pulley Distance17.00
  • Bracket Hole Size 210.50
  • Mounting Bracket Distance50.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley5
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 51874104FIAT
    • 51874105FIAT
    • 51929095FIAT
    • 52137908FIAT

    Competitor References

    • DRA1318AC DELCO
    • 553583RIAD KÜHNER
    • 553584RIAD KÜHNER
    • A6130AUTOSTARTER POLAND
    • A6130DENSOAUTOSTARTER POLAND
    • A6130SAUTOSTARTER POLAND
    • 0986084710BOSCH
    • 1986A00607BOSCH
    • CAL40372CASCO SRL
