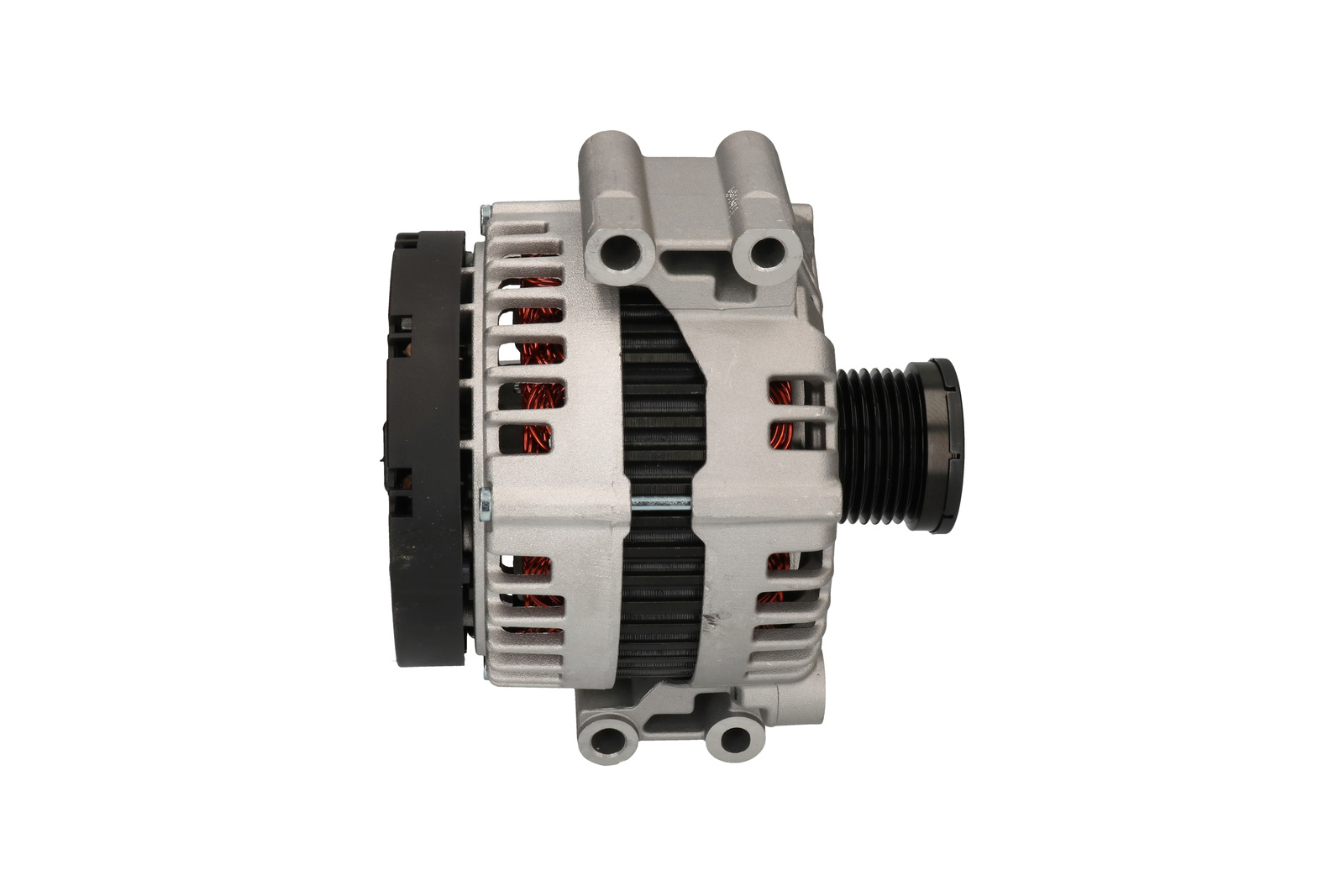

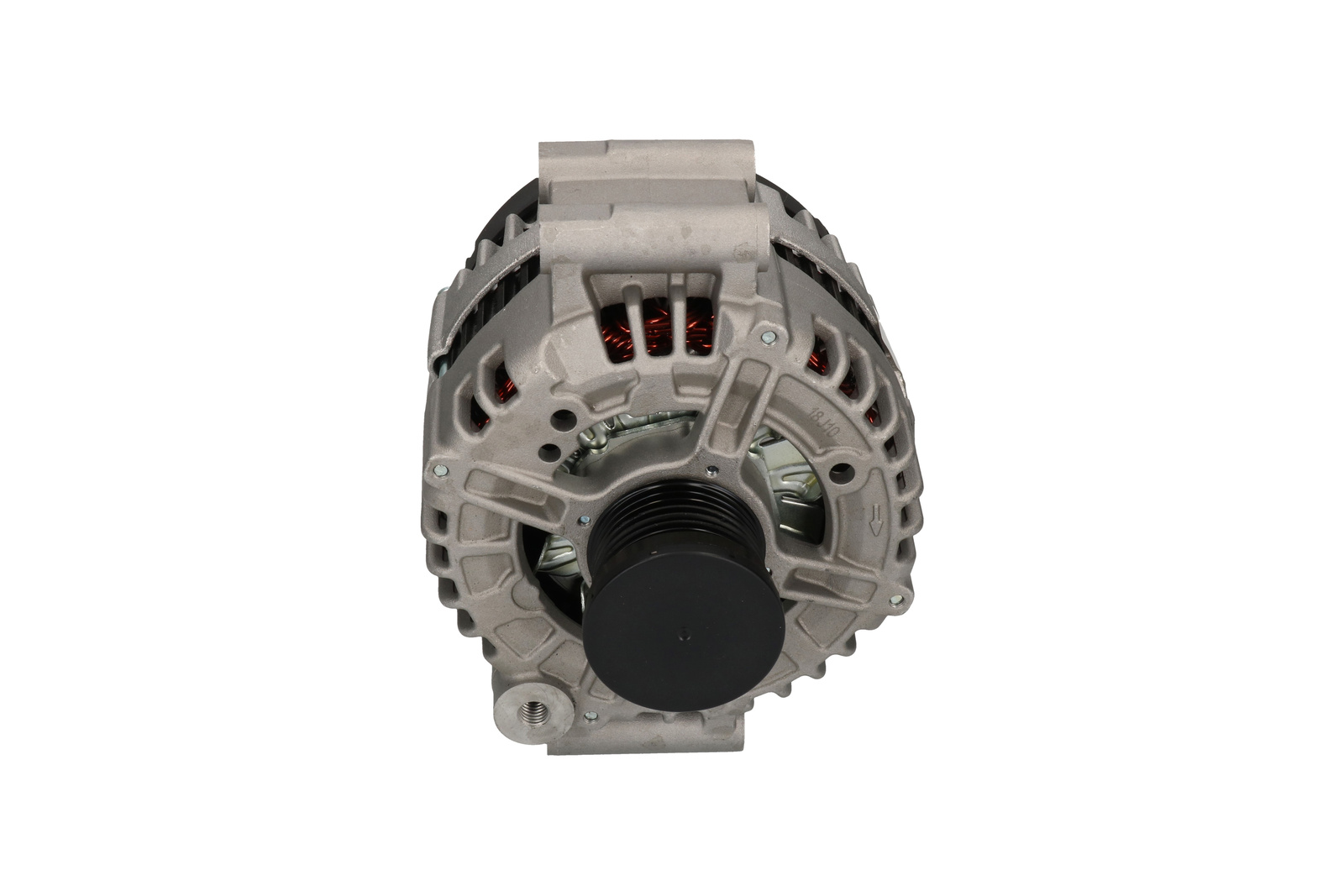

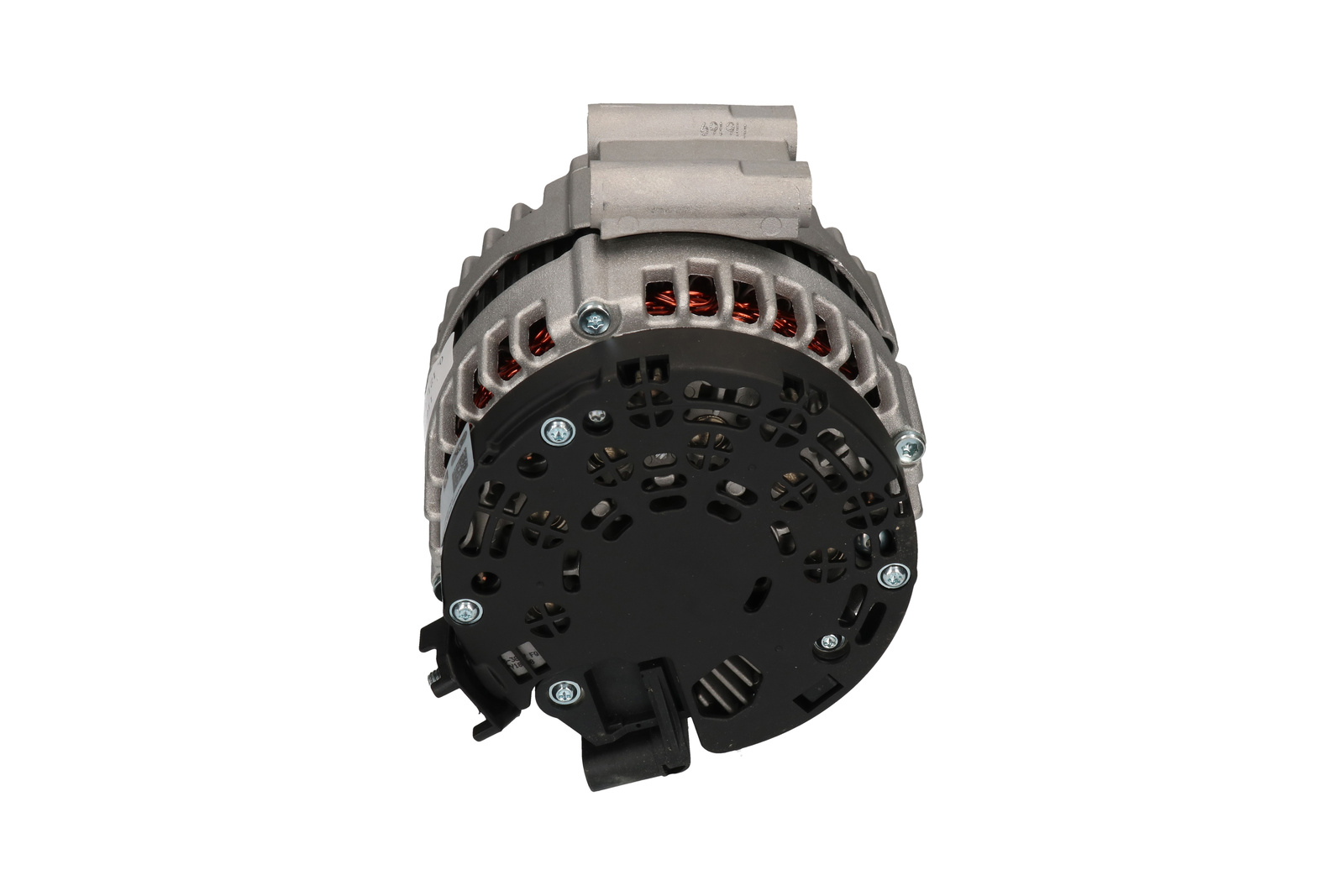

F032116169 - Alternator
Trade number 116169
Trade number 116169
Details & description
Voltage 14, Amp 180, Communication BSS, Pulley SP/FW, Bracket Hole Size 1 9.30, Pulley Diameter 49.00, Bracket Hole Size Rear 10.60, Terminal type COM, Holder Arm Width 62.70, Pulley Distance 31.00, B+ M8, Radius 2 87.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL86, Mounting Bracket Distance 40.80, Radius 87.00, Rotation CW, Belt Adjustment Bracket Hole 1 9.30, Grooves/pulley 7, Regulator type IR, B+ Position 10, Total Length 179.00
Product information
Electrical information
- Voltage14
- Amp180
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- CommunicationBSS
- PulleySP/FW
- Bracket Hole Size 19.30
- Pulley Diameter49.00
- Bracket Hole Size Rear10.60
- Terminal typeCOM
- Holder Arm Width62.70
- Pulley Distance31.00
- B+M8
