F032116172 - Alternator

Trade number 116172

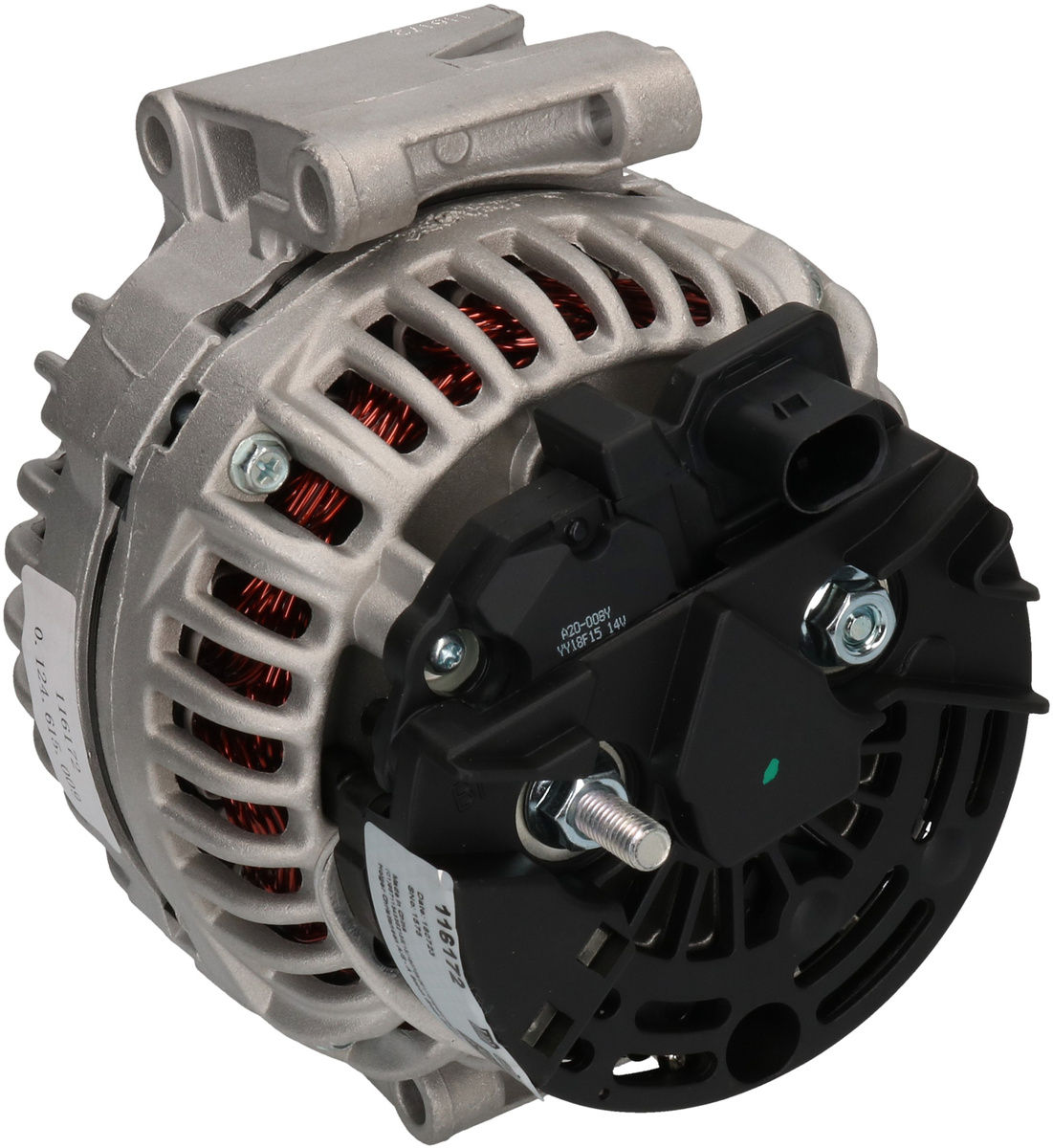

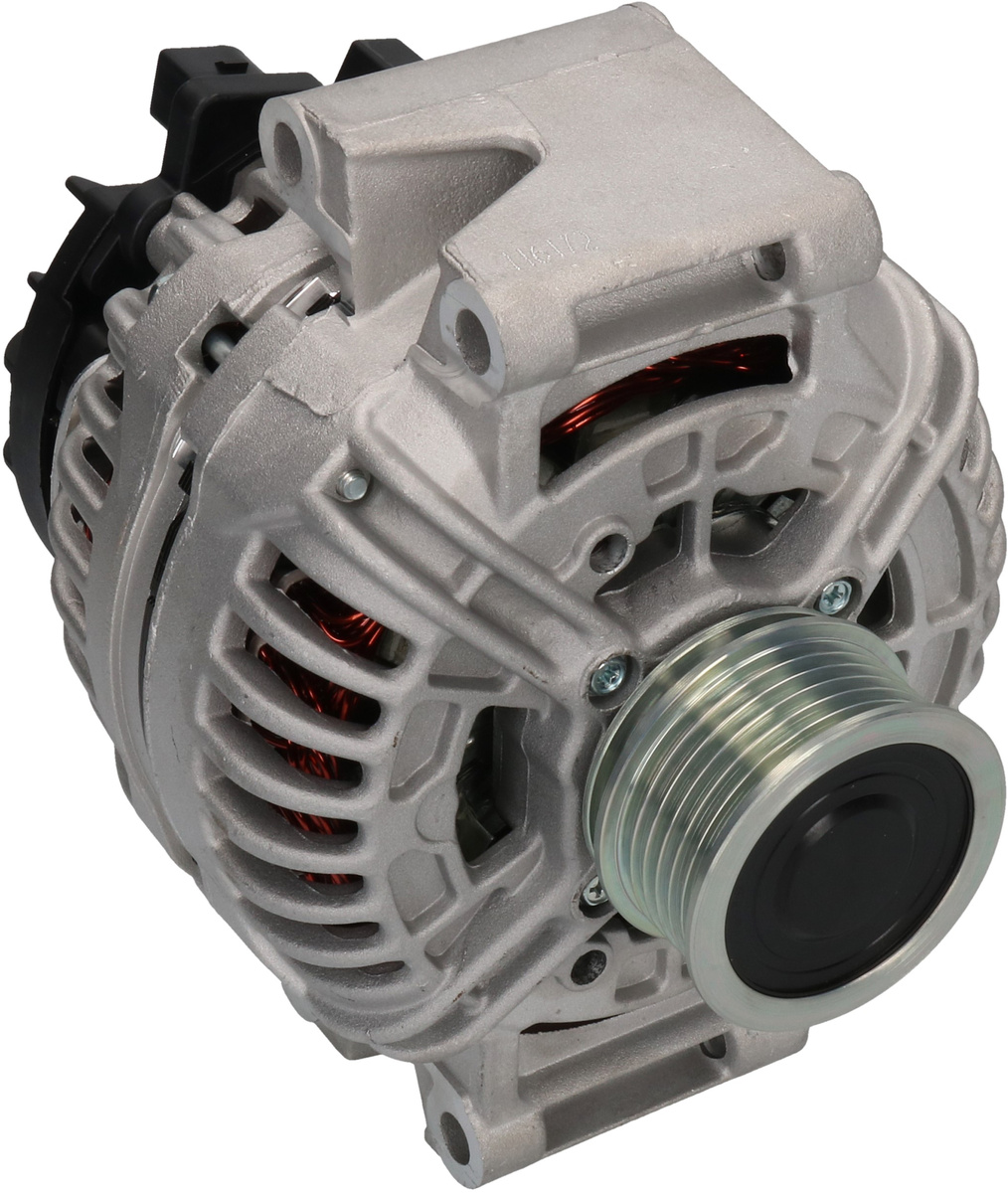

Product image - main
Trade number 116172

Details & description

Voltage 14, Amp 150, Pulley SP/FW, Pulley Diameter 56.00, Bracket Hole Size Rear 8.50, D+ Position 59, Pulley Distance 28.50, Mounting Bracket Distance 56.00, Radius 81.50, Belt Adjustment Bracket Hole 1 9.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.00, Belt Adjustment Bracket Hole 2 9.00, Terminal type L-DFM, D+ Size Plug, Holder Arm Width 70.00, B+ M8, Fan IF, Radius 2 81.50, Plug no. 1 PL61, Rotation CW, B+ Position 45, Total Length 197.00

Product information

Electrical information

  • Voltage14
  • Amp150

Physical information

  • PulleySP/FW
  • Pulley Diameter56.00
  • Bracket Hole Size Rear8.50
  • D+ Position59
  • Pulley Distance28.50
  • Mounting Bracket Distance56.00
  • Radius81.50
  • Belt Adjustment Bracket Hole 19.00
  • Grooves/pulley6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 06B903016QVW (VOLKSWAGEN)
    • 06B903016ACVW (VOLKSWAGEN)
    • 06D903016VW (VOLKSWAGEN)
    • 06B903016QXVW (VOLKSWAGEN)
    • 06B903019GVW (VOLKSWAGEN)
    • 06B903019GXVW (VOLKSWAGEN)
    • 06D903016XVW (VOLKSWAGEN)

    Competitor References

    • DRB4910AC DELCO
    • 301769RIAD KÜHNER
    • A3305PRAUTOSTARTER POLAND
    • A0076AUTOSTARTER POLAND
    • A3394SAUTOSTARTER POLAND
    • A3131PRAUTOSTARTER POLAND
    • A3611PRAUTOSTARTER POLAND
    • 0124615009BOSCHBOM
    • 0986044910BOSCH
