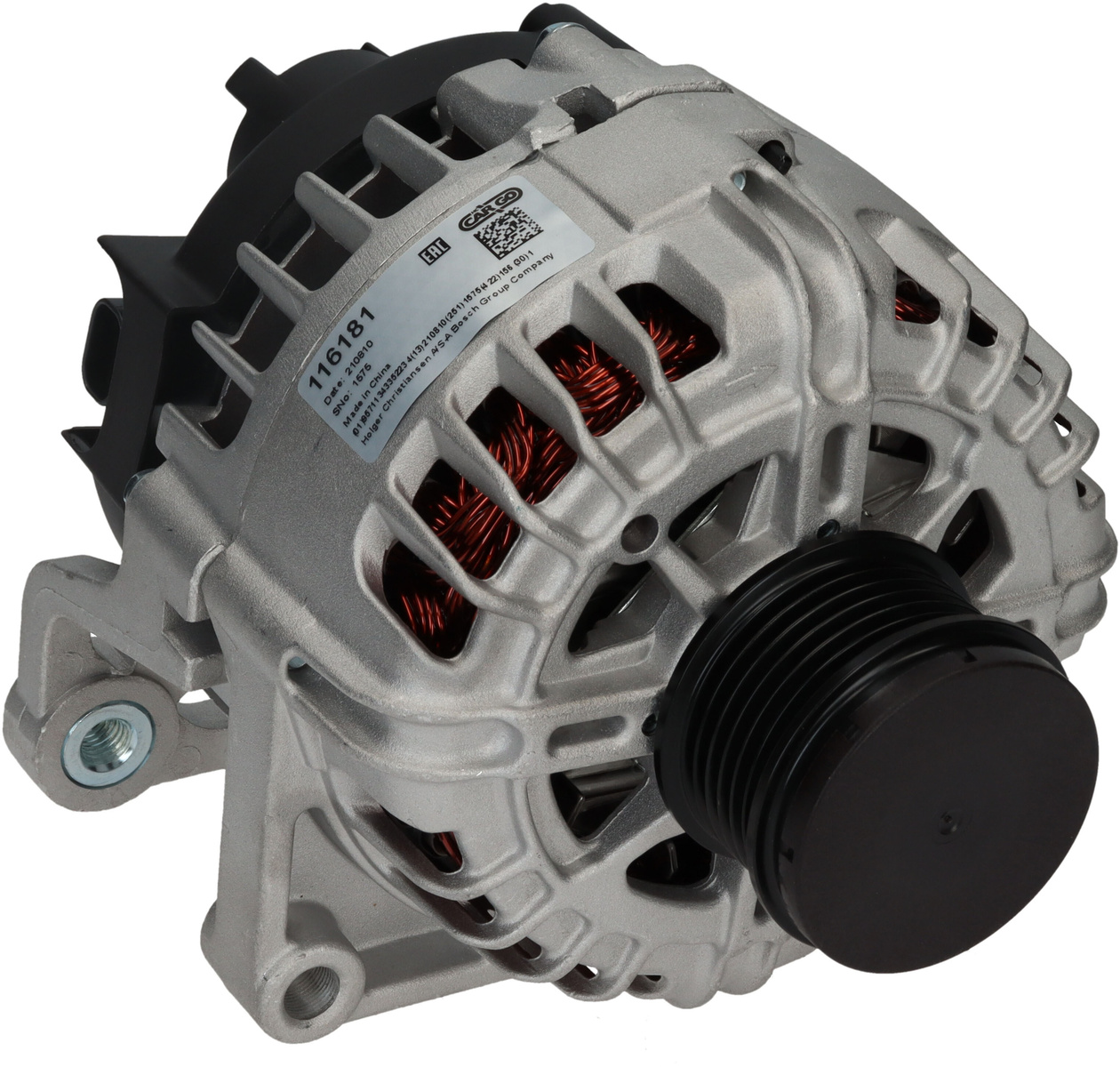

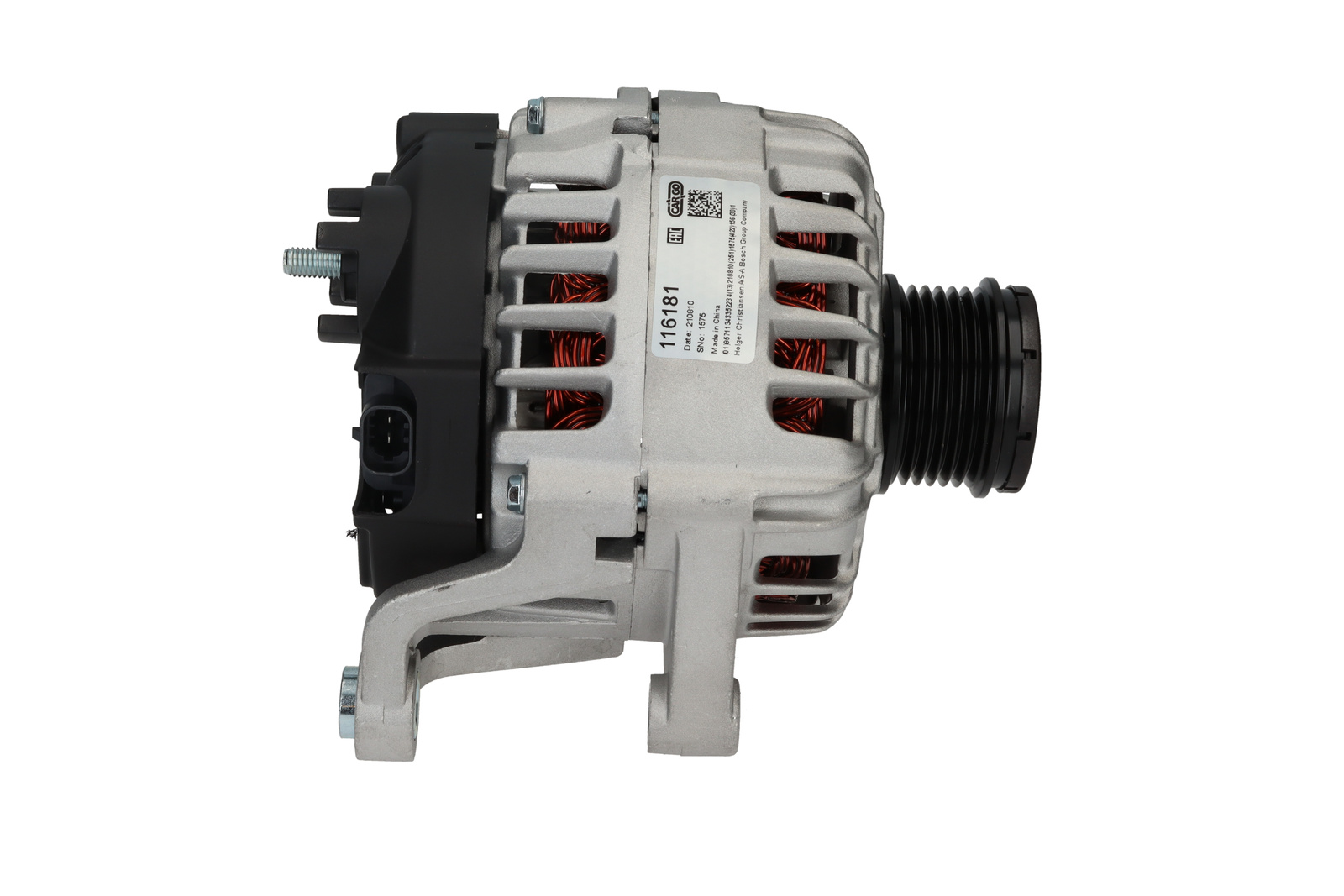

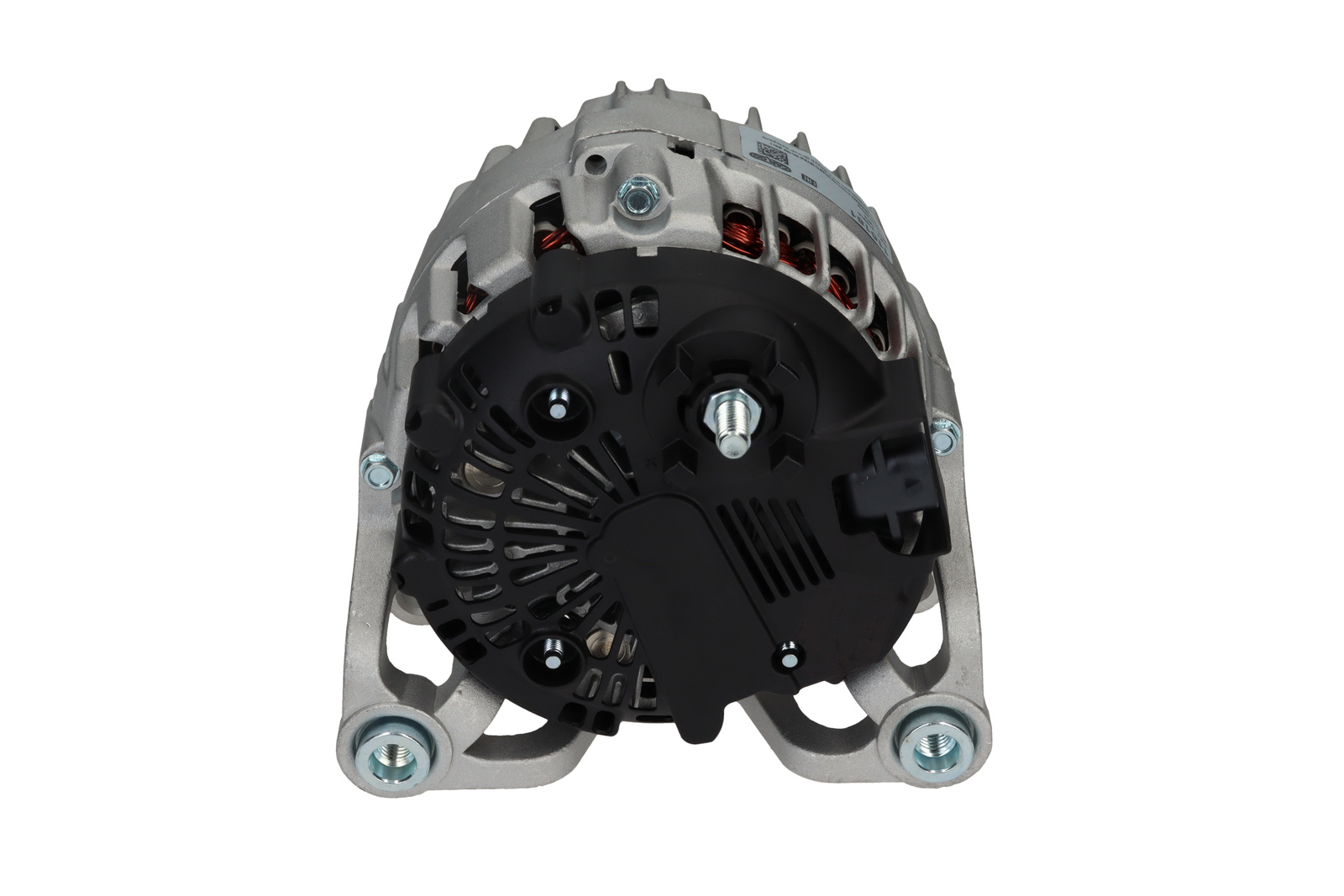

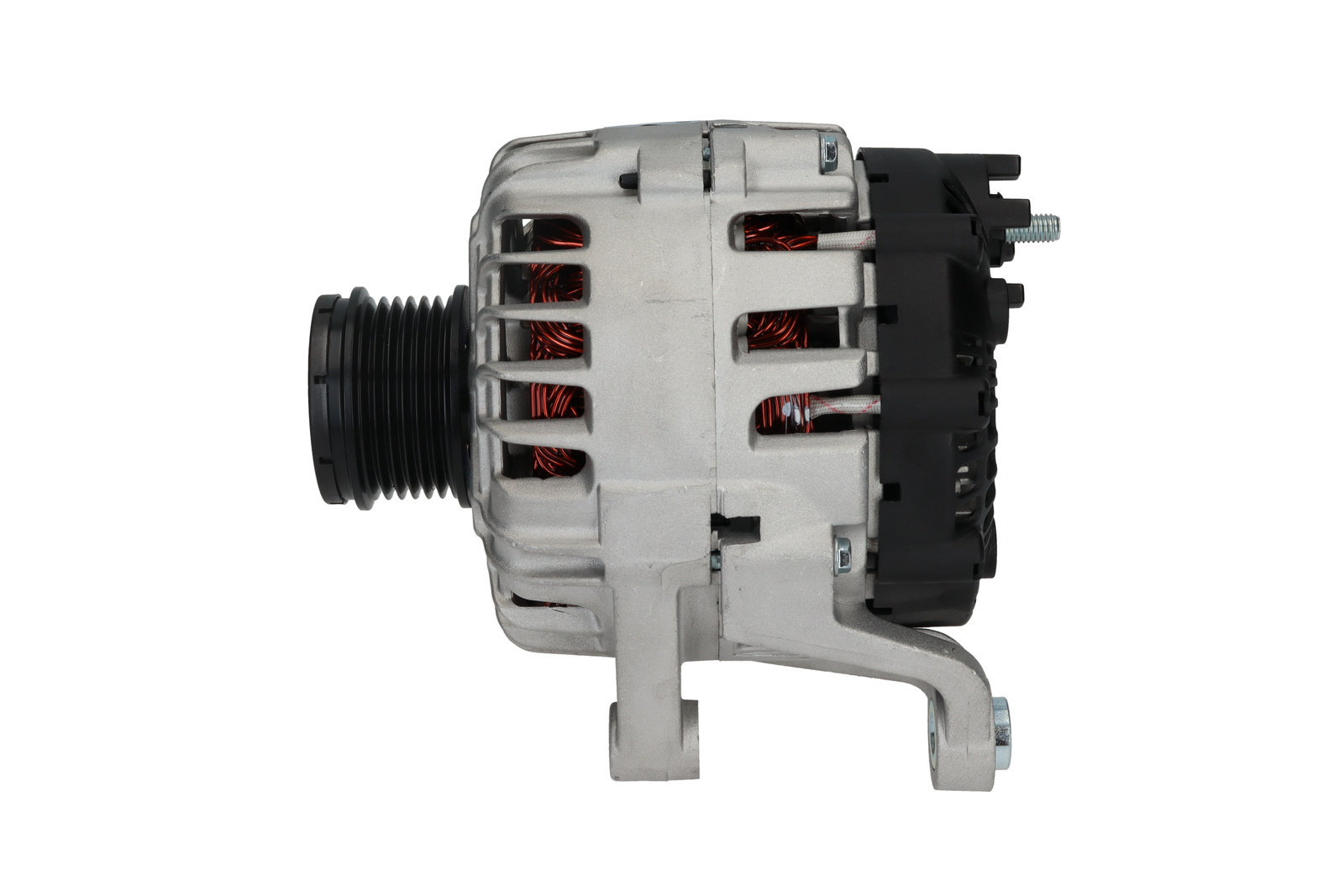

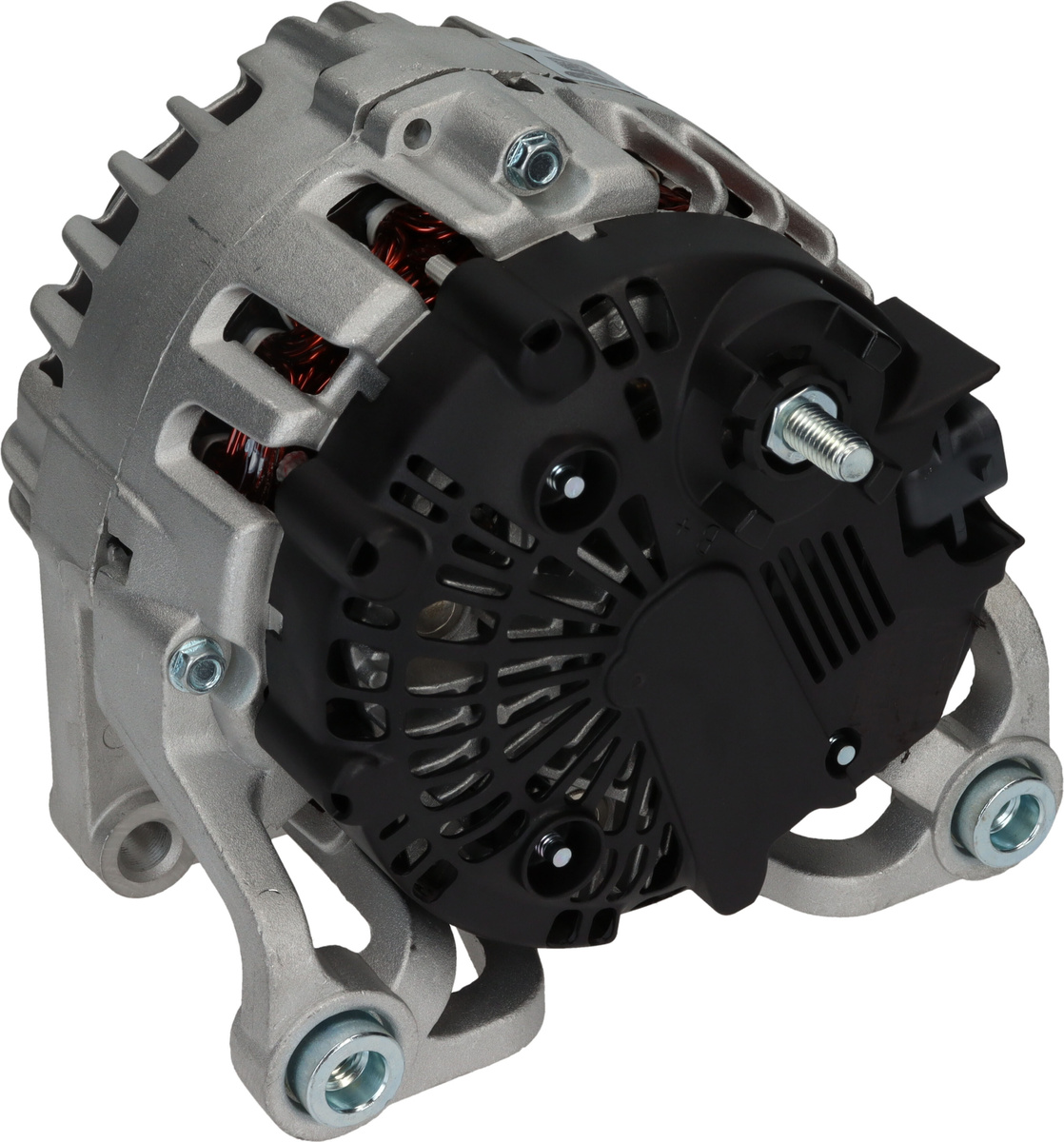

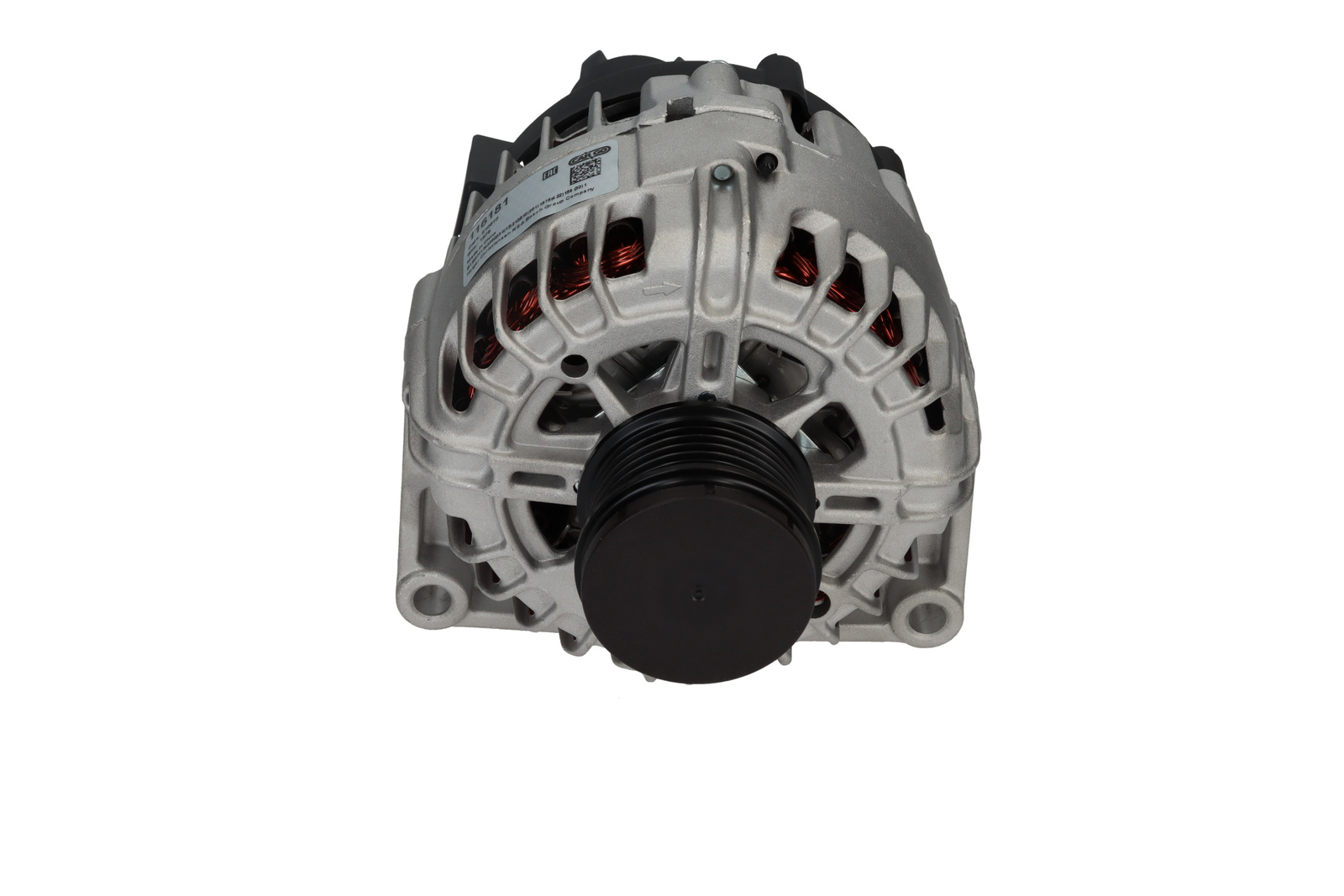

F032116181 - Alternator

Trade number 116181
Product image - main
Trade number 116181

Details & description

Voltage 14, Amp 120, Communication PWM, Pulley SP/FW, Pulley Diameter 59.00, Bracket Hole Size Rear M10, D+ Position 5, Pulley Distance 64.50, Remarks 3 This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 59.00, Radius 92.00, Belt Adjustment Bracket Hole 1 10.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.20, Terminal type L-F, D+ Size Plug, Holder Arm Width 23.00, B+ M8, Fan IF, Radius 2 92.00, Plug no. 1 PL180, Rotation CW, B+ Position 55, Belt Adjustment Bracket Hole Position 46, Total Length 194.00

Product information

Electrical information

  • Voltage14
  • Amp120

Catalogue information

  • Remarks 3This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationPWM
  • PulleySP/FW
  • Pulley Diameter59.00
  • Bracket Hole Size RearM10
  • D+ Position5
  • Pulley Distance64.50
  • Mounting Bracket Distance59.00
  • Radius92.00
  • Belt Adjustment Bracket Hole 110.20
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 1202332OPEL
    • 1204622OPEL
    • 13500586OPEL
    • 13588301OPEL
    • 13512748OPEL

    Competitor References

    • DRA0878AC DELCO
    • DRA1044AC DELCO
    • 554177RIAD KÜHNER
    • CAL15507CASCO SRL
    • 135563120CV PSH
    • 135924120CV PSH
    • DRA1044DELCO REMY
    • DRA0878DELCO REMY
    • 2281801202DRI
