F032116191 - Alternator

Trade number 116191

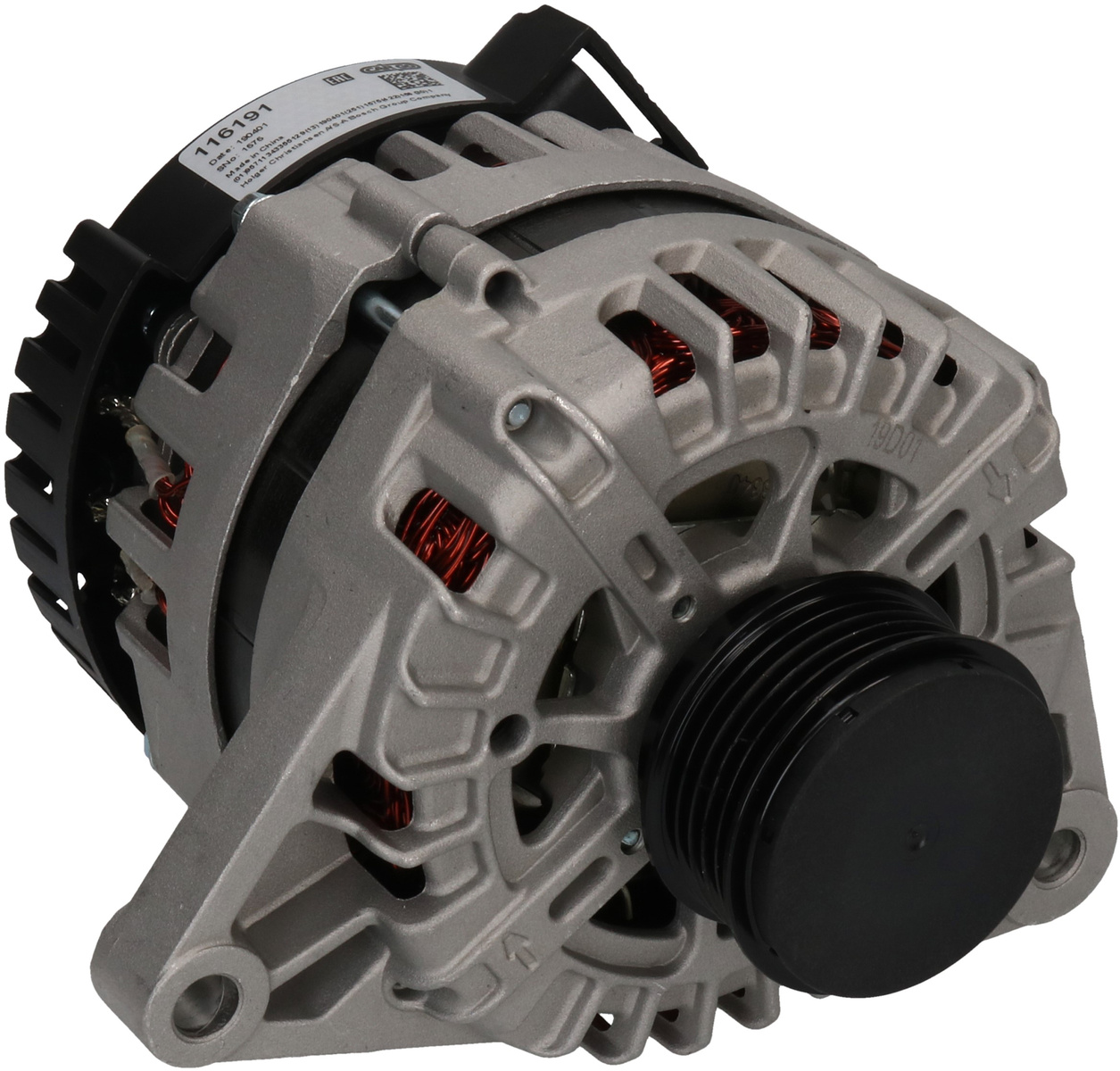

Product image - main
Trade number 116191

Details & description

Voltage 14, Amp 130, Pulley SP/FW, Bracket Hole Size 1 10.50, Pulley Diameter 57.00, Bracket Hole Size Rear M10-1.25, Holder Arm Width 50.30, Pulley Distance 33.40, B+ M8, Radius 2 97.00, Plug no. 1 PL176, Mounting Bracket Distance 50.30, Radius 86.00, Rotation CW, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 5, Regulator type IR, Position 45, B+ Position 38, Belt Adjustment Bracket Hole Position 50, Total Length 175.50

Product information

Electrical information

  • Voltage14
  • Amp130

Physical information

  • PulleySP/FW
  • Bracket Hole Size 110.50
  • Pulley Diameter57.00
  • Bracket Hole Size RearM10-1.25
  • Holder Arm Width50.30
  • Pulley Distance33.40
  • B+M8
  • Radius 297.00
  • Plug no. 1PL176

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 373002A800HYUNDAI
    • 373002A850HYUNDAI
    • 373002A805HYUNDAI

    Competitor References

    • DRA0997AC DELCO
    • DRA0997NAC DELCO
    • 554139RIAD KÜHNER
    • A3316SAUTOSTARTER POLAND
    • A3316VALEOAUTOSTARTER POLAND
    • 0986082820BOSCH
    • 1986A01278BOSCH
    • CAL32158CASCO SRL
    • 255517130CV PSH
