F032116192 - Alternator

Trade number 116192

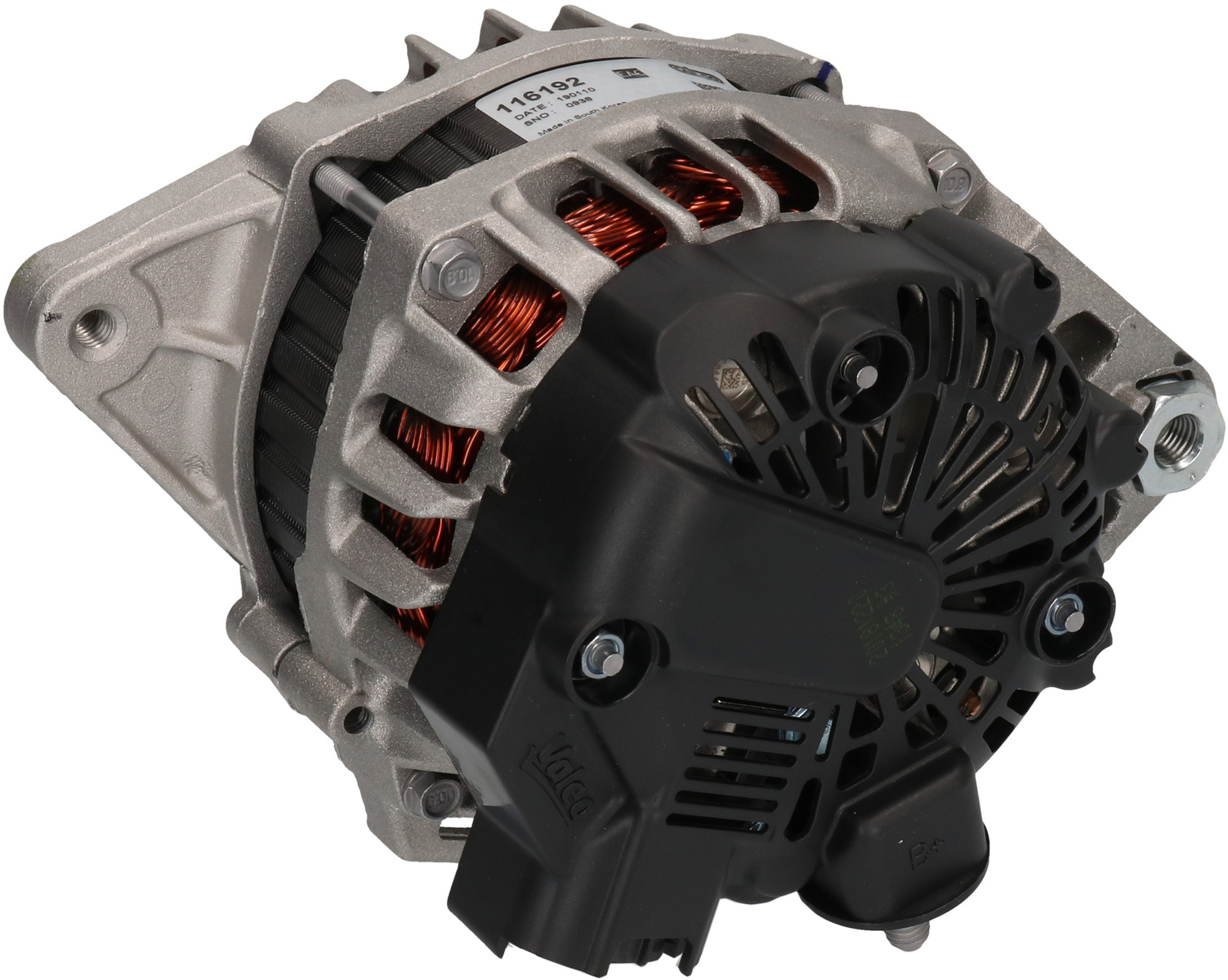

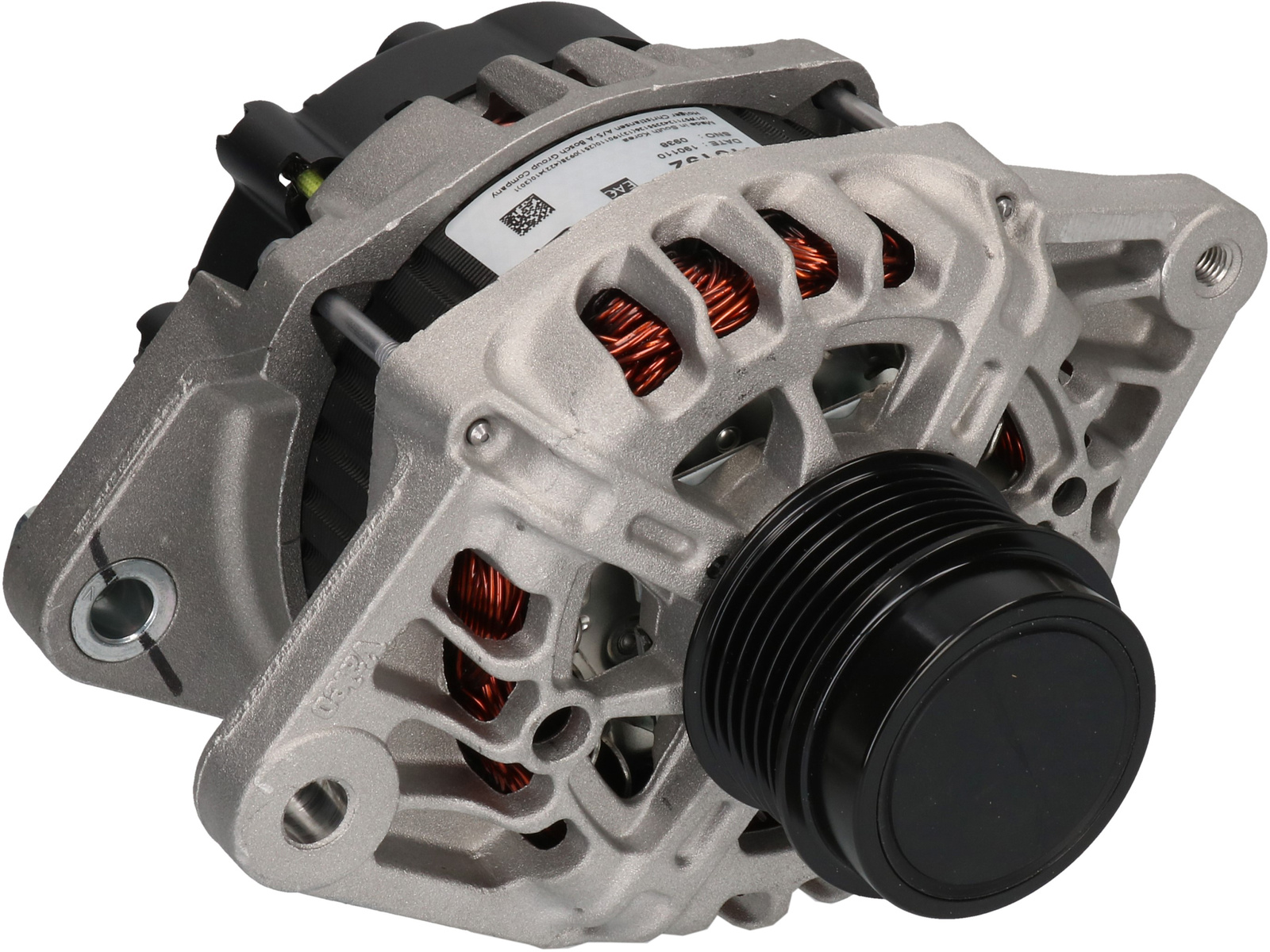

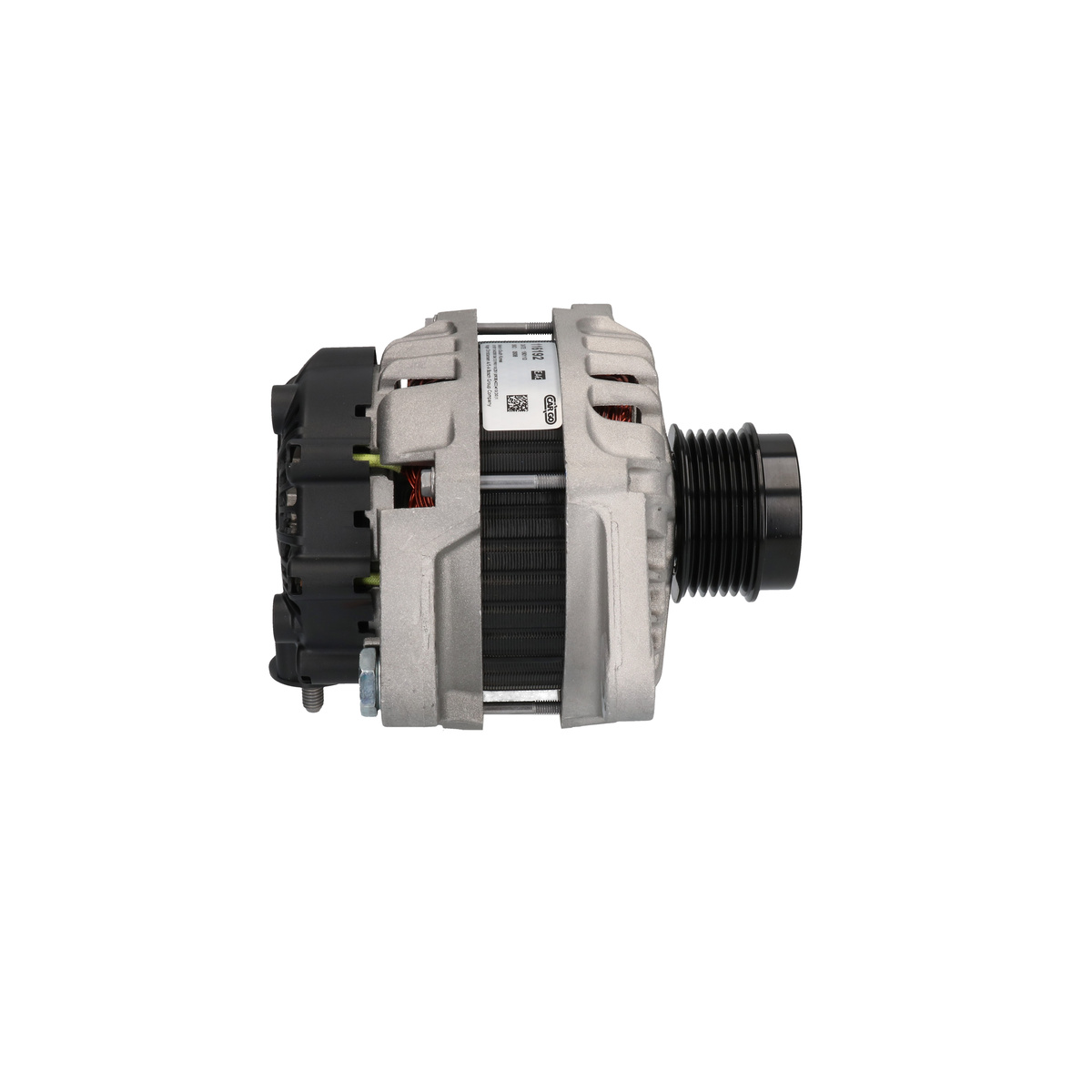

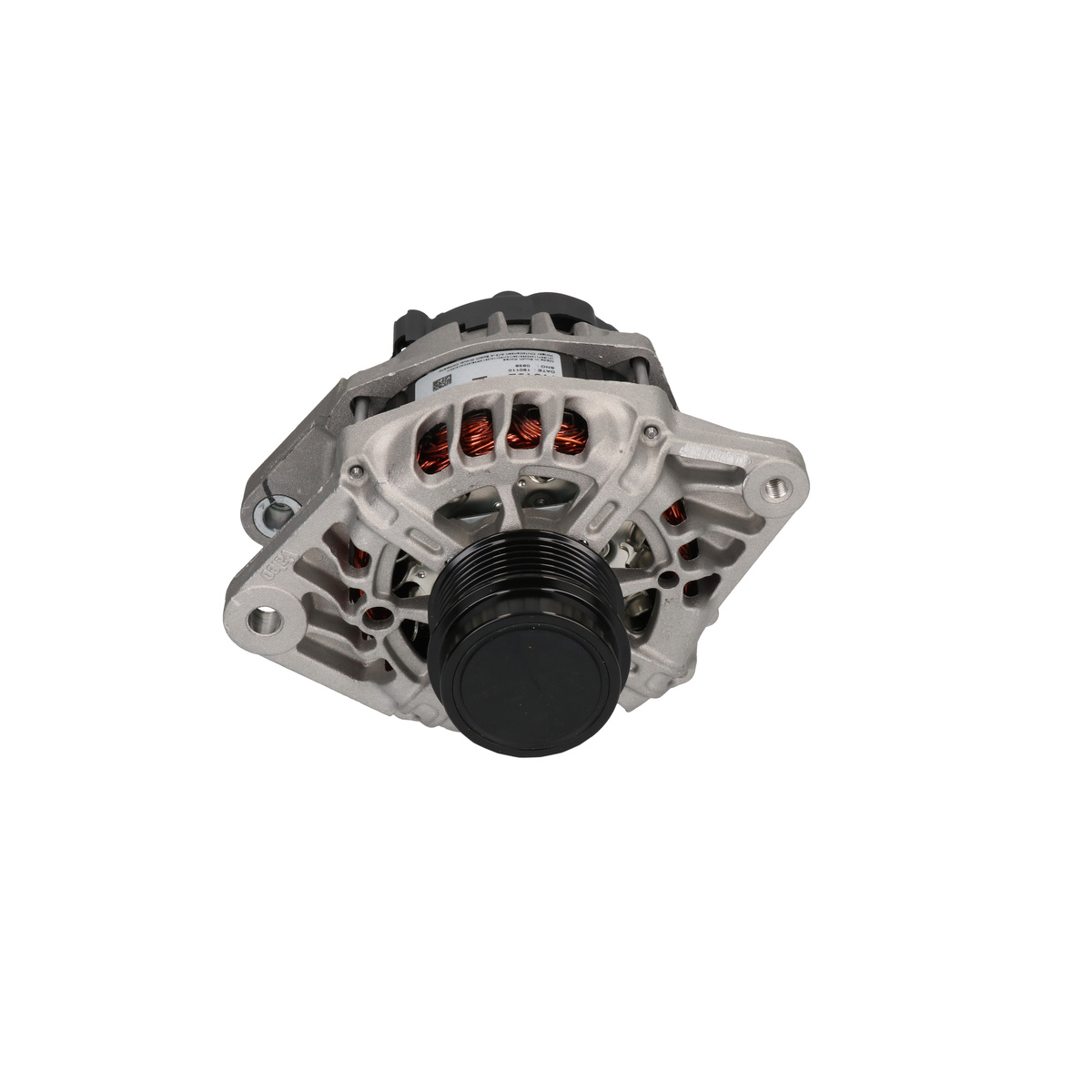

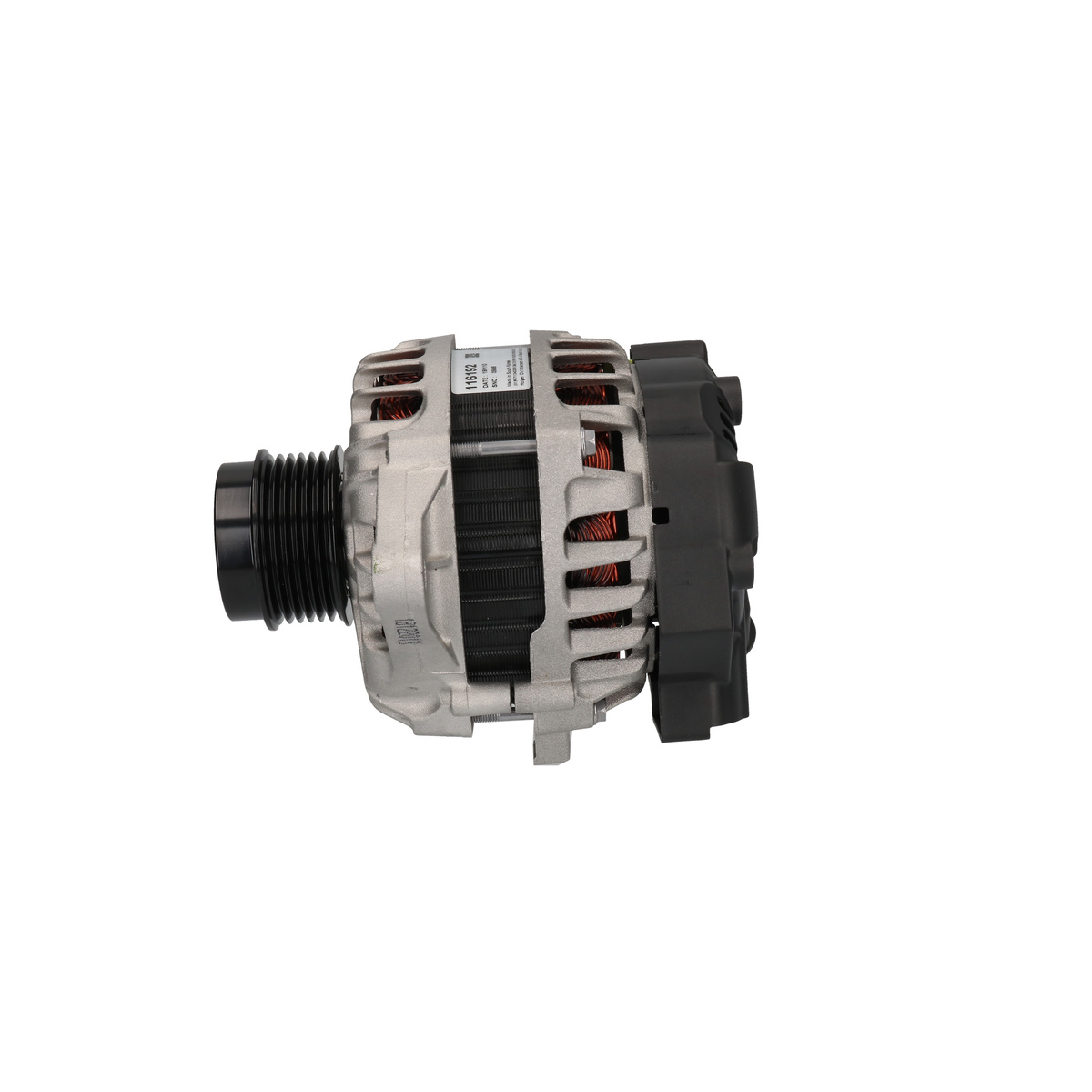

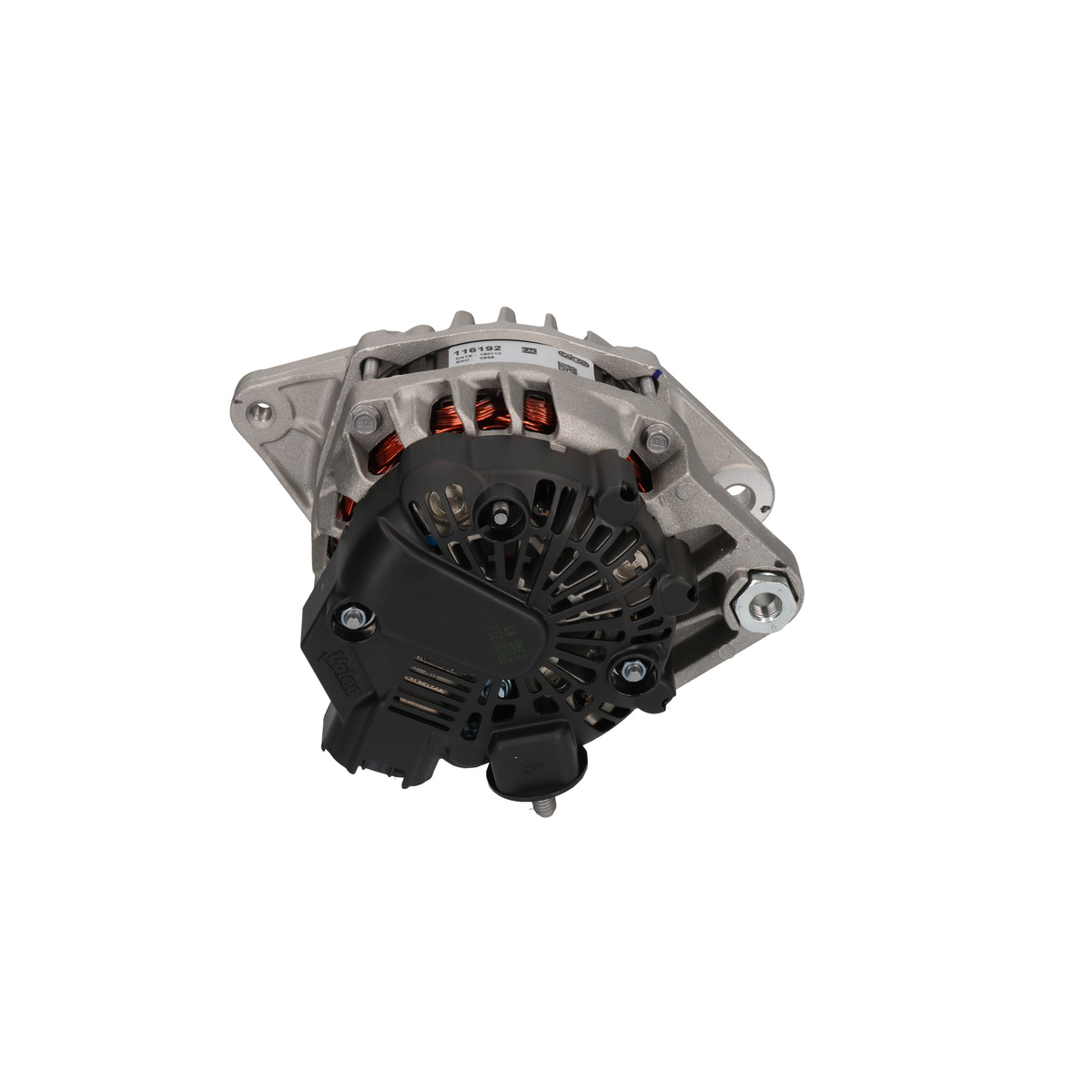

Product image - main
Trade number 116192

Details & description

Voltage 14, Amp 90, Pulley OAD, Bracket Hole Size 1 10.50, Pulley Diameter 58.00, Bracket Hole Size Rear M10, D+ Size Plug, D+ Position 45, Holder Arm Width 15.00, Pulley Distance 33.00, B+ M8, Radius 2 86.00, Plug no. 1 PL176, Mounting Bracket Distance 50.50, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, B+ Position 40, Belt Adjustment Bracket Hole Position 55, Total Length 175.00

Product information

Electrical information

  • Voltage14
  • Amp90

Physical information

  • PulleyOAD
  • Bracket Hole Size 110.50
  • Pulley Diameter58.00
  • Bracket Hole Size RearM10
  • D+ SizePlug
  • D+ Position45
  • Holder Arm Width15.00
  • Pulley Distance33.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 373002B700HYUNDAI
    • 373002B710HYUNDAI
    • 373002B520HYUNDAI

    Competitor References

    • DRA1309AC DELCO
    • 554150RIAD KÜHNER
    • A9342SAUTOSTARTER POLAND
    • 0986083650BOSCH
    • CAL32161CASCO SRL
    • 255526090CV PSH
    • DRA1309DELCO REMY
    • 286732ELSTOCK
    • 209023ERA SPA
