F032116193 - Alternator

Trade number 116193

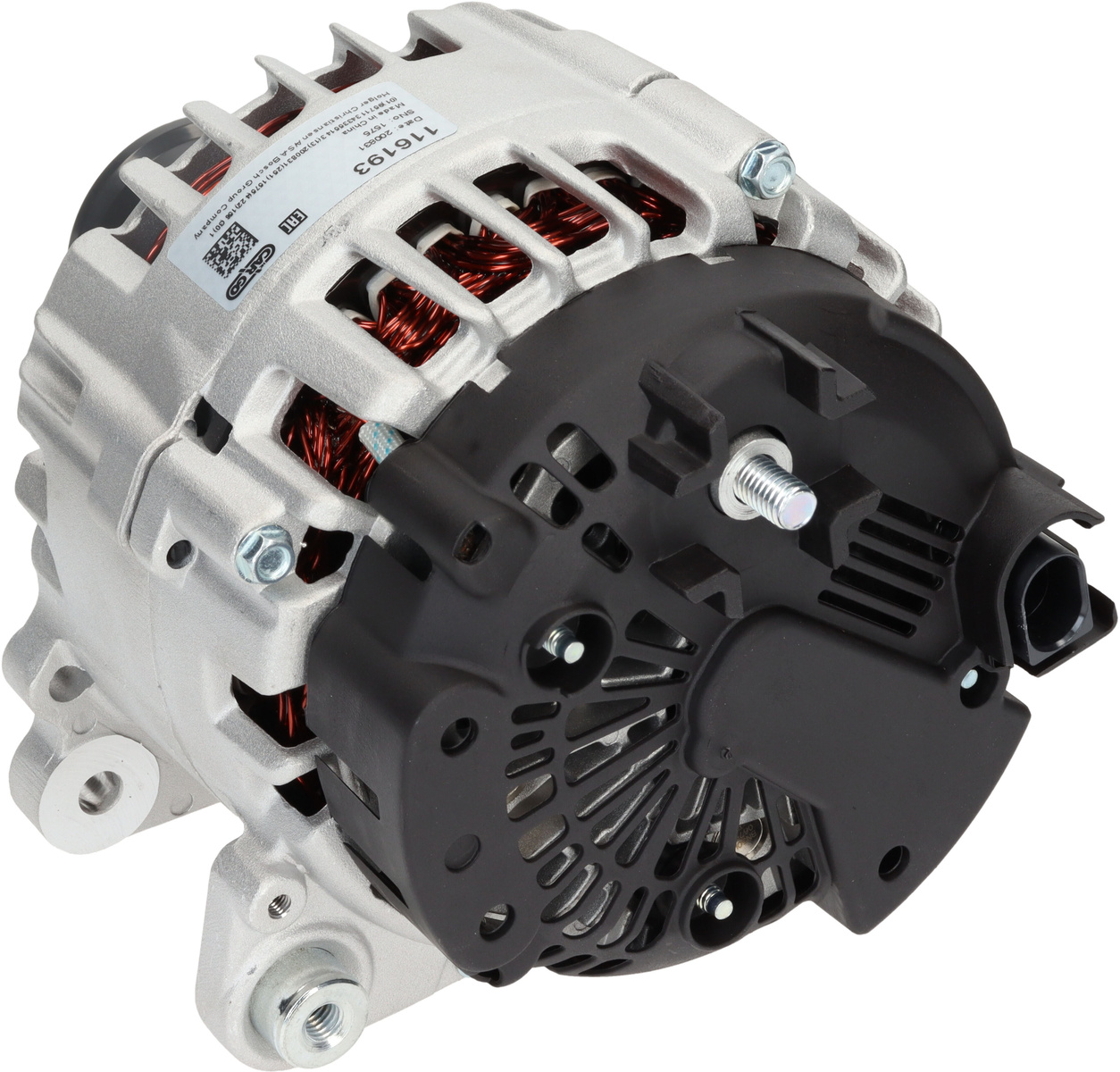

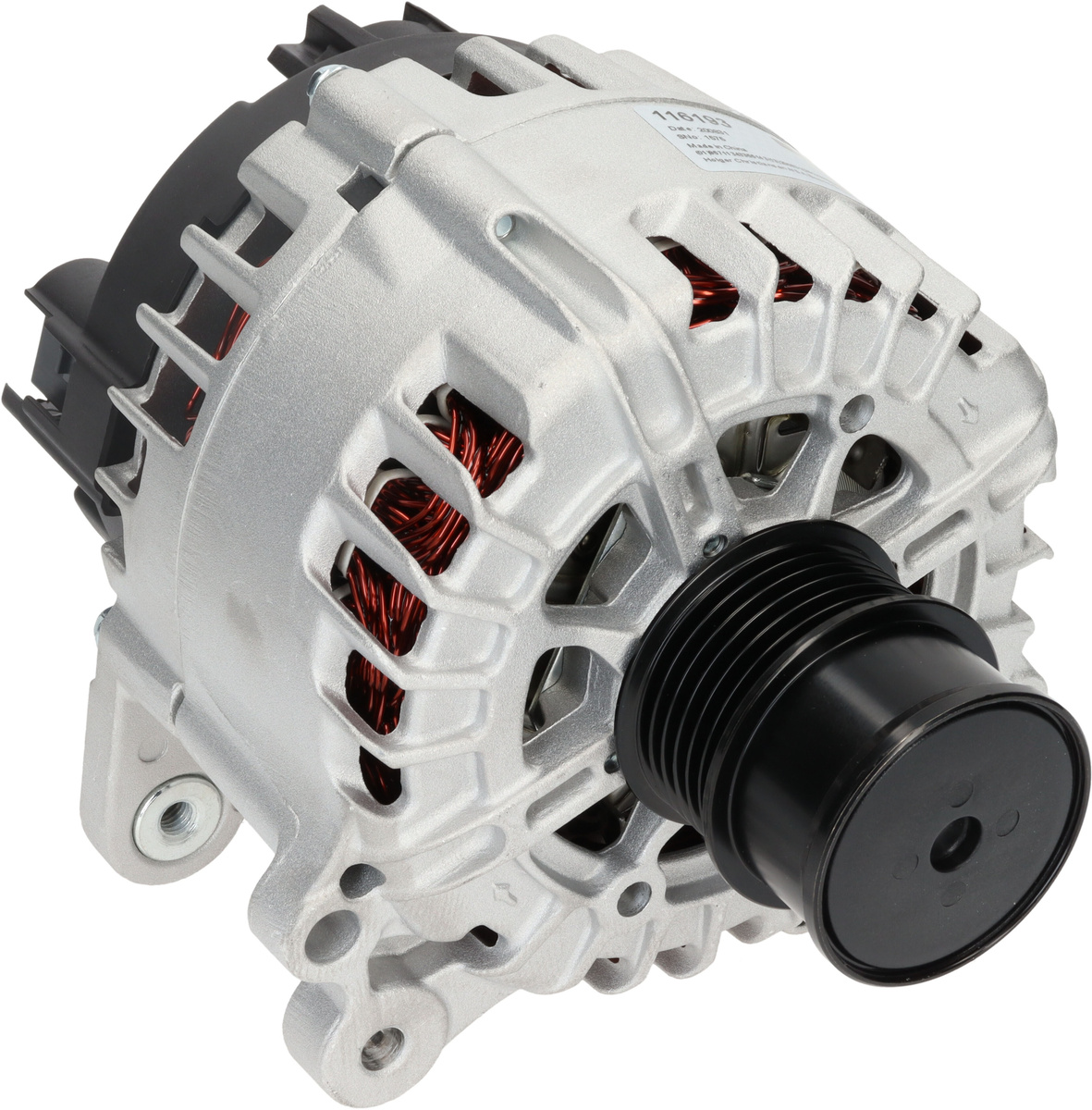

Product image - main
Trade number 116193

Details & description

Voltage 14, Amp 140, Pulley SP/FW, Pulley Diameter 52.40, Bracket Hole Size Rear M8, Pulley Distance 31.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Belt Adjustment Bracket Hole 2 M8, Terminal type COM, Holder Arm Width 14.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL125, Rotation CW, B+ Position 53, Belt Adjustment Bracket Hole Position 45, Total Length 208.00

Product information

Electrical information

  • Voltage14
  • Amp140

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • PulleySP/FW
  • Pulley Diameter52.40
  • Bracket Hole Size RearM8
  • Pulley Distance31.00
  • Mounting Bracket Distance61.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley6
  • Regulator typeIR

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 04C903023KXVW (VOLKSWAGEN)
    • 04C903023MVW (VOLKSWAGEN)
    • 04C903023KVW (VOLKSWAGEN)
    • 4C903023KVW (VOLKSWAGEN)
    • 4C903023KXVW (VOLKSWAGEN)
    • 04C903021AVW (VOLKSWAGEN)

    Competitor References

    • DRA1346AC DELCO
    • 554055RIAD KÜHNER
    • A3340PRAUTOSTARTER POLAND
    • A0627PRAUTOSTARTER POLAND
    • A0627SAUTOSTARTER POLAND
    • A3340SAUTOSTARTER POLAND
    • A3340SRAUTOSTARTER POLAND
    • 0986083340BOSCH
    • CAL15594CASCO SRL
