F032116194 - Alternator

Trade number 116194

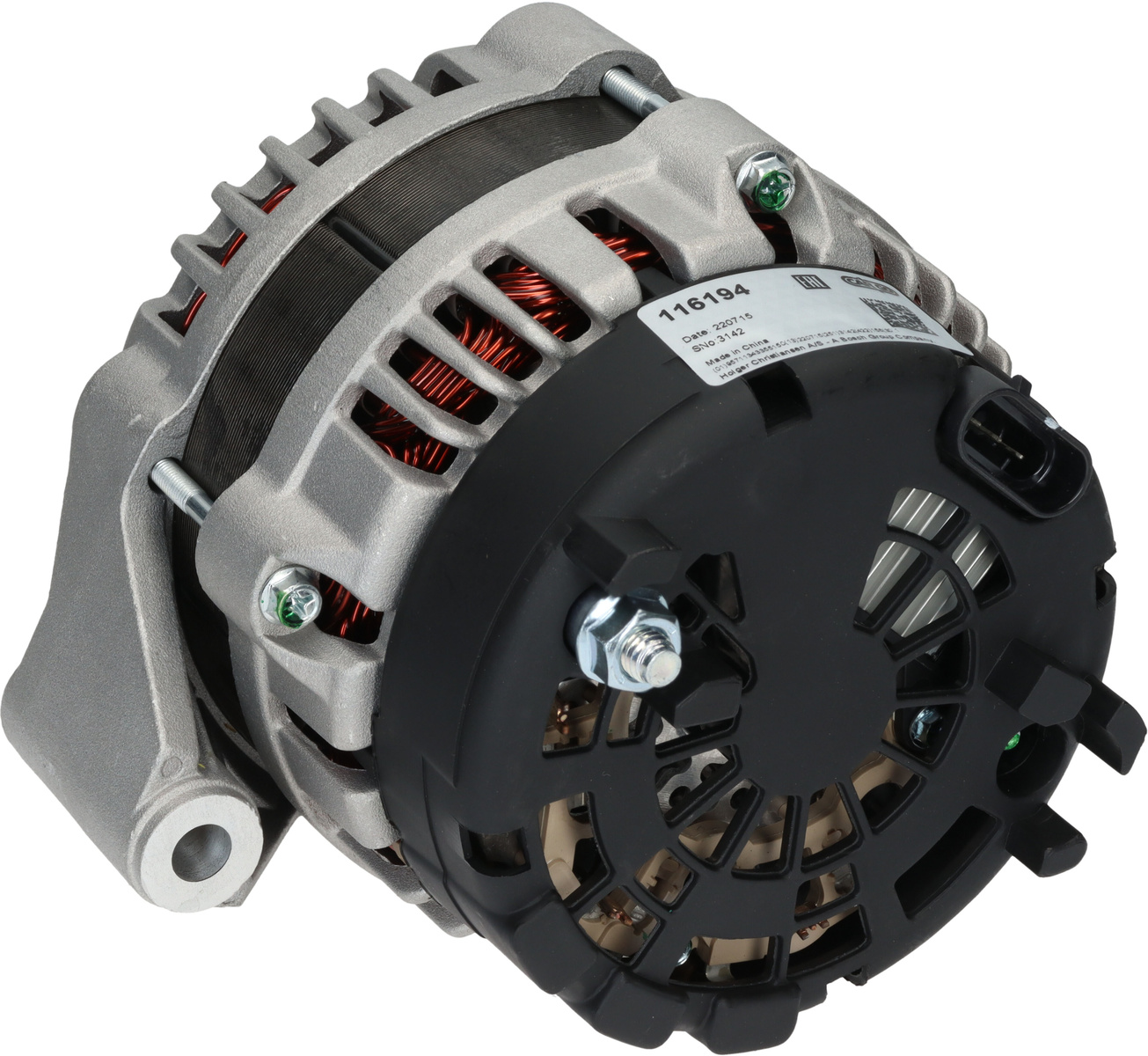

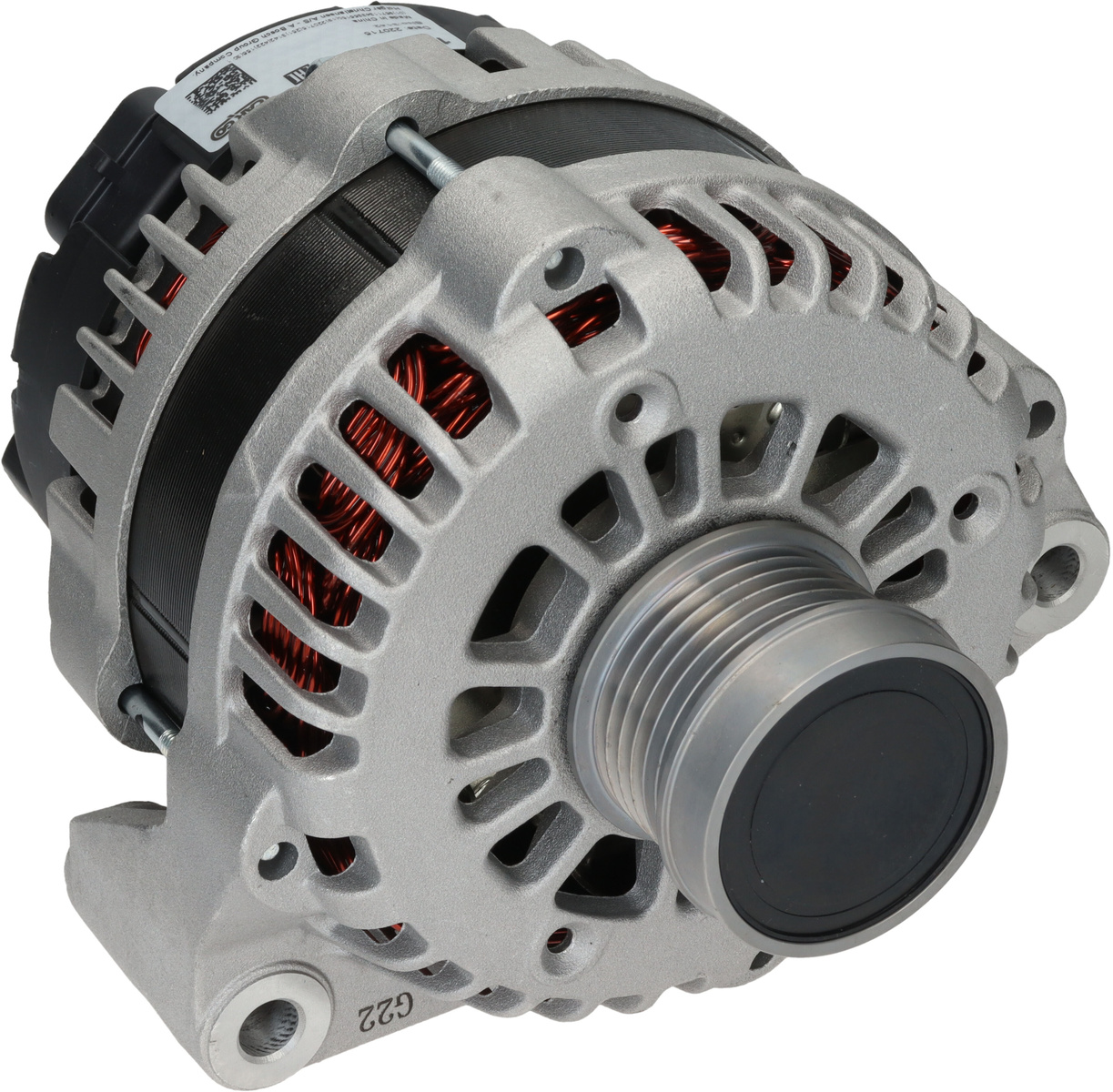

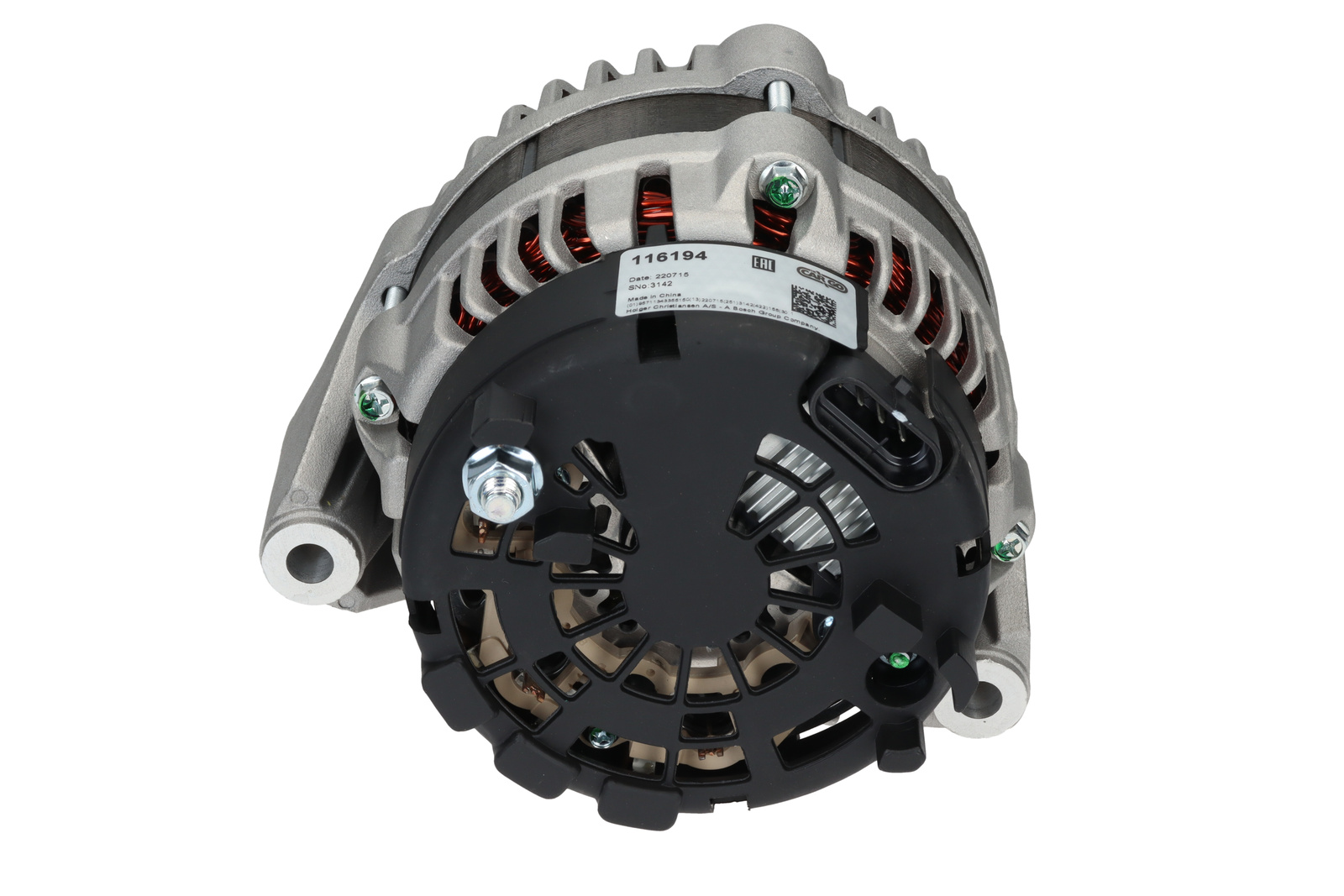

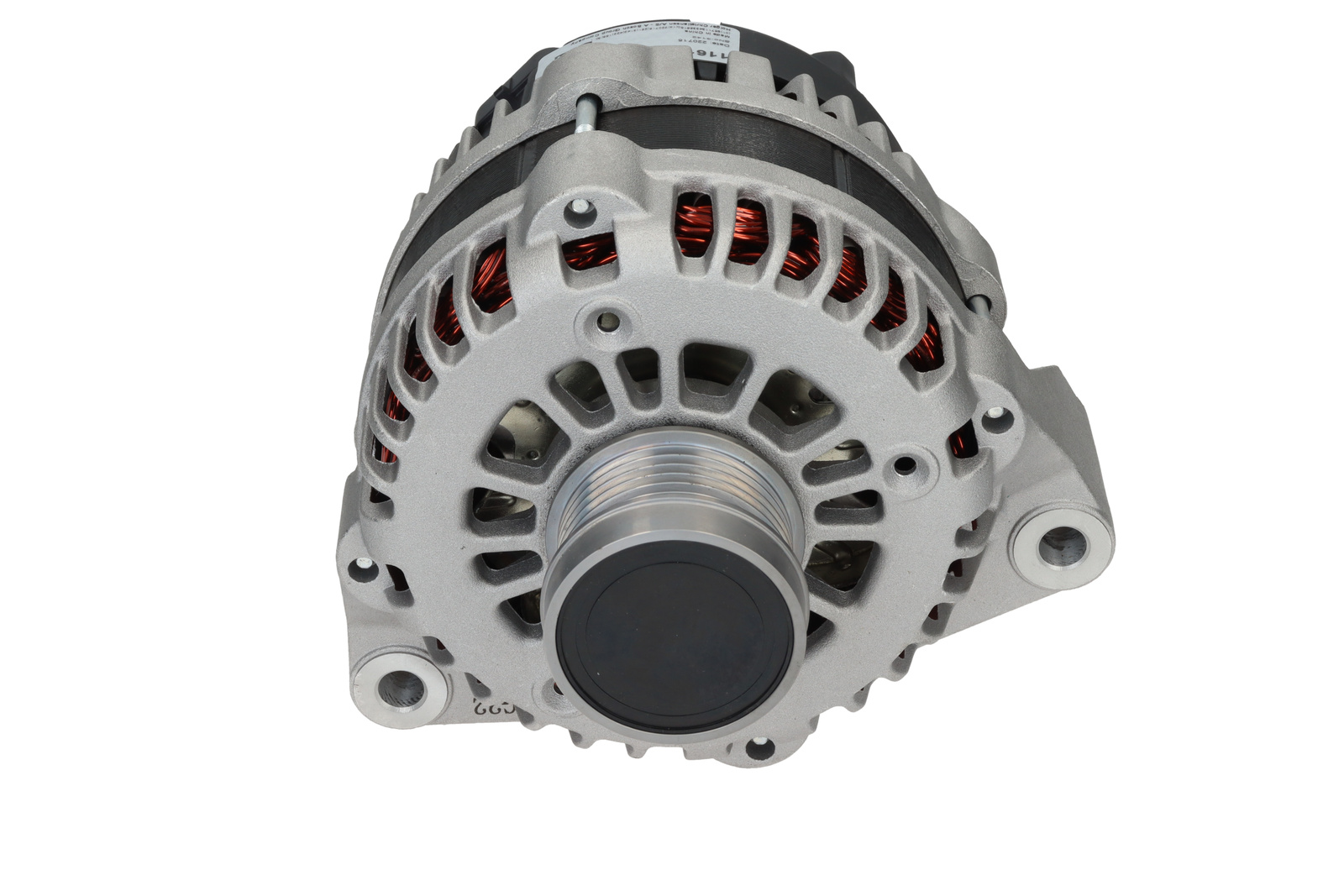

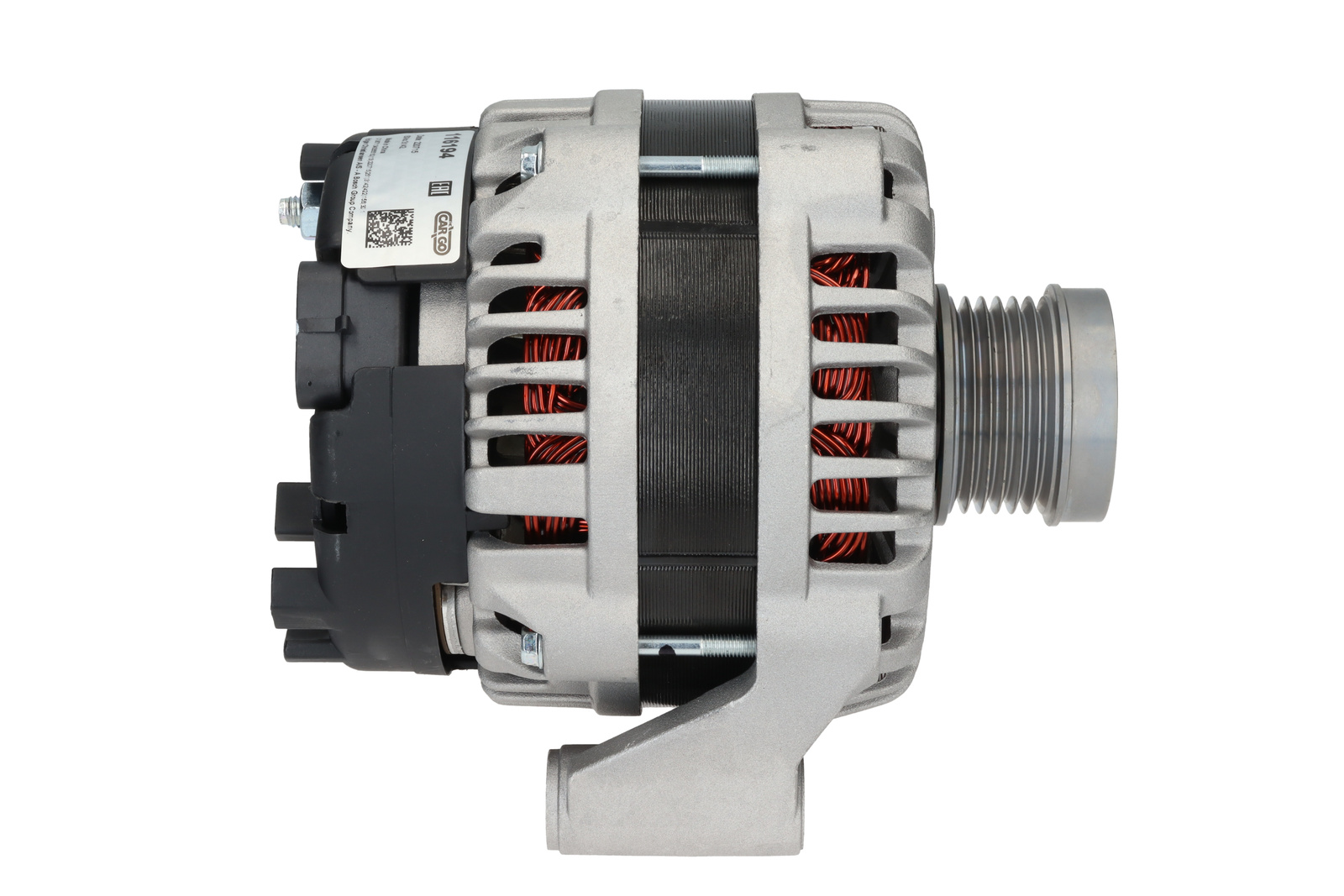

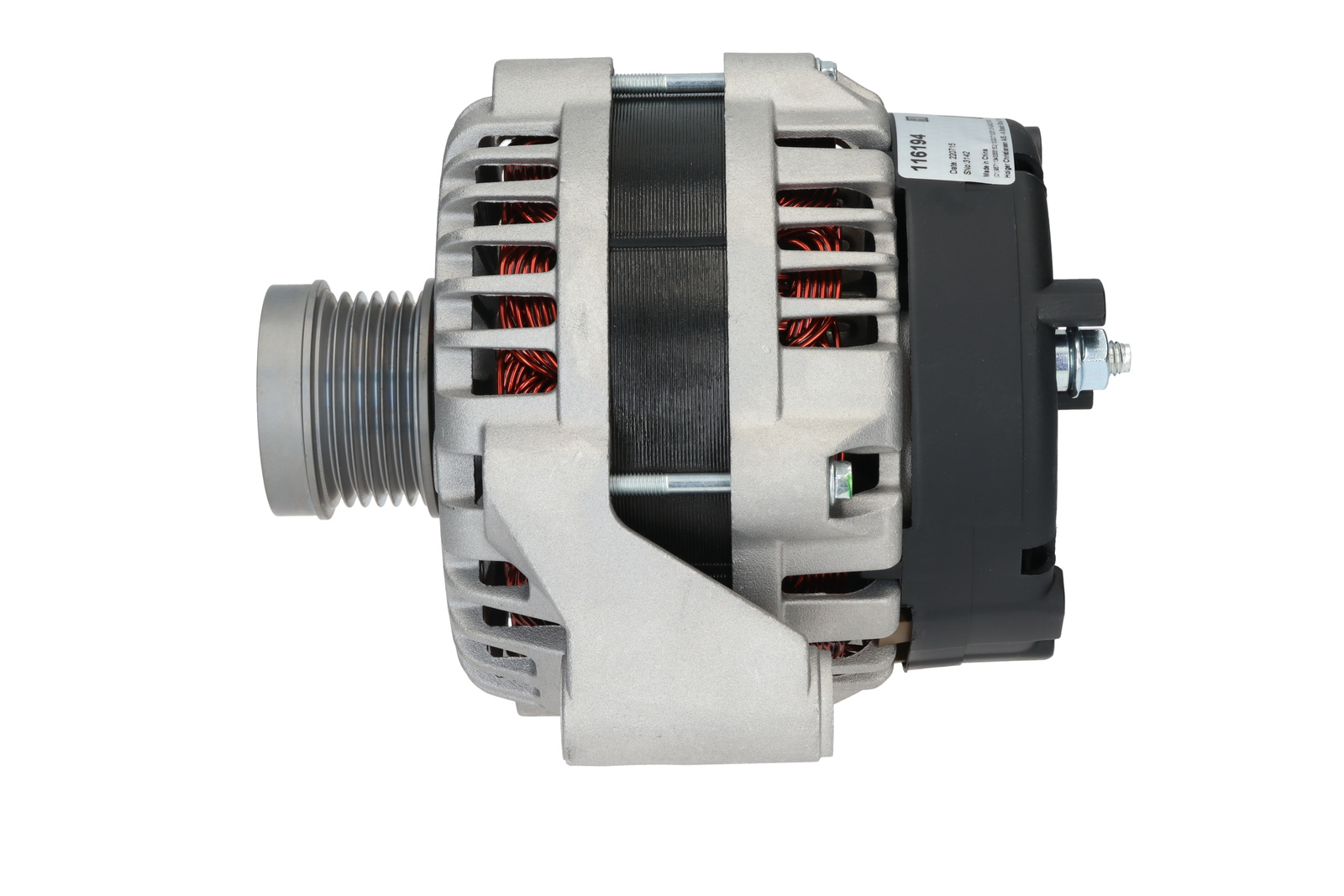

Product image - main
Trade number 116194

Details & description

Voltage 14, Amp 140, Pulley SP/FW, Bracket Hole Size 1 10.50, Pulley Diameter 49.70, D+ Size Plug, D+ Position 54, Holder Arm Width 56.00, Pulley Distance 92.00, B+ M8, Radius 2 90.00, Plug no. 1 PL122, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, B+ Position 38, Belt Adjustment Bracket Hole Position 50, Total Length 189.00

Product information

Electrical information

  • Voltage14
  • Amp140

Physical information

  • PulleySP/FW
  • Bracket Hole Size 110.50
  • Pulley Diameter49.70
  • D+ SizePlug
  • D+ Position54
  • Holder Arm Width56.00
  • Pulley Distance92.00
  • B+M8
  • Radius 290.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 6641540102MERCEDES-BENZ
    • A6641540102MERCEDES-BENZ
    • 6641540102SSANGYONG
    • A6641540102SSANGYONG

    Competitor References

    • DRA0712AC DELCO
    • 553212RIAD KÜHNER
    • A9299SAUTOSTARTER POLAND
    • CAL42124CASCO SRL
    • 935502115CV PSH
    • DRA0712DELCO REMY
    • 2251621152DRI
    • 285874ELSTOCK
    • 12061173EUROTEC
