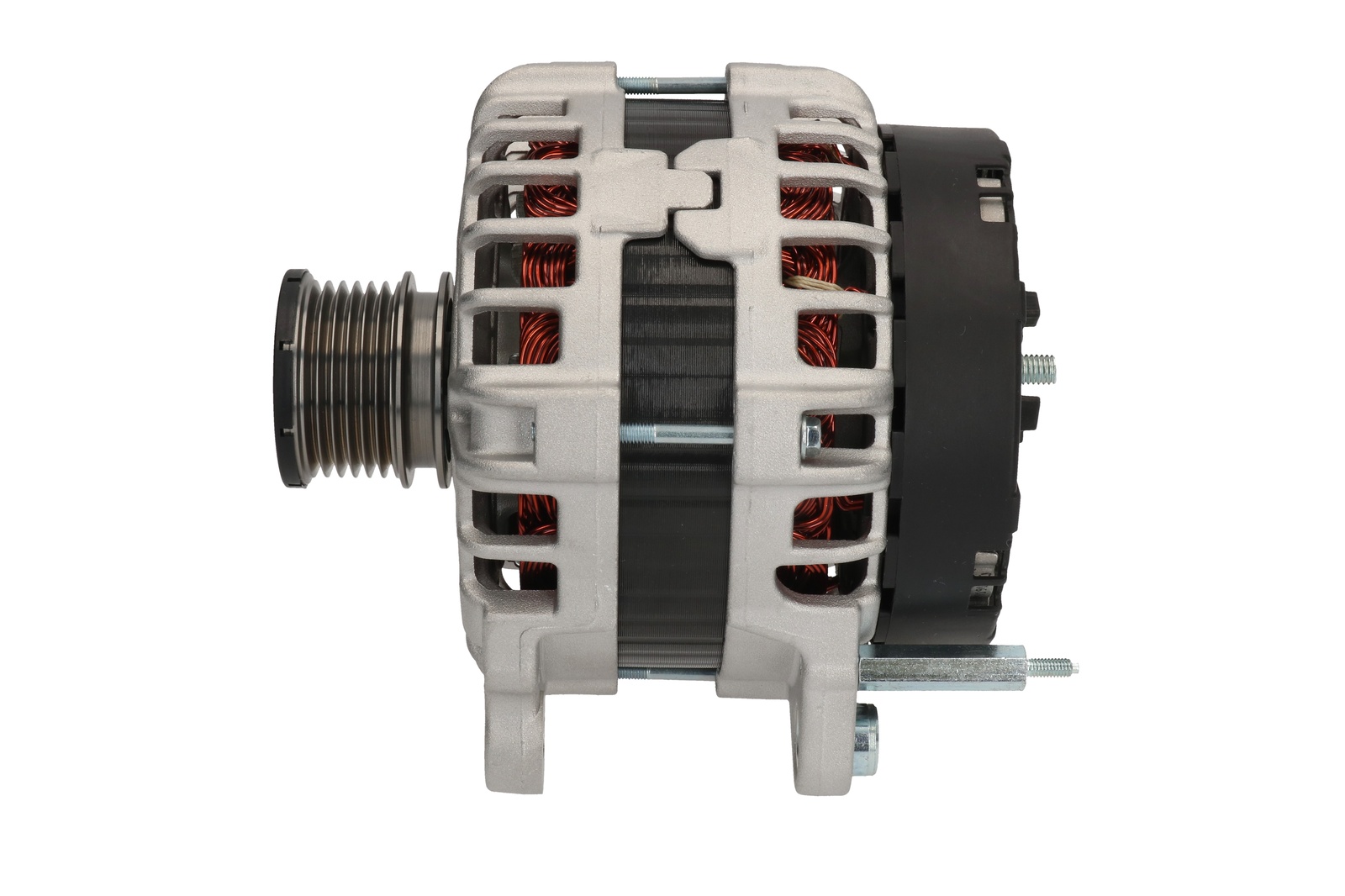

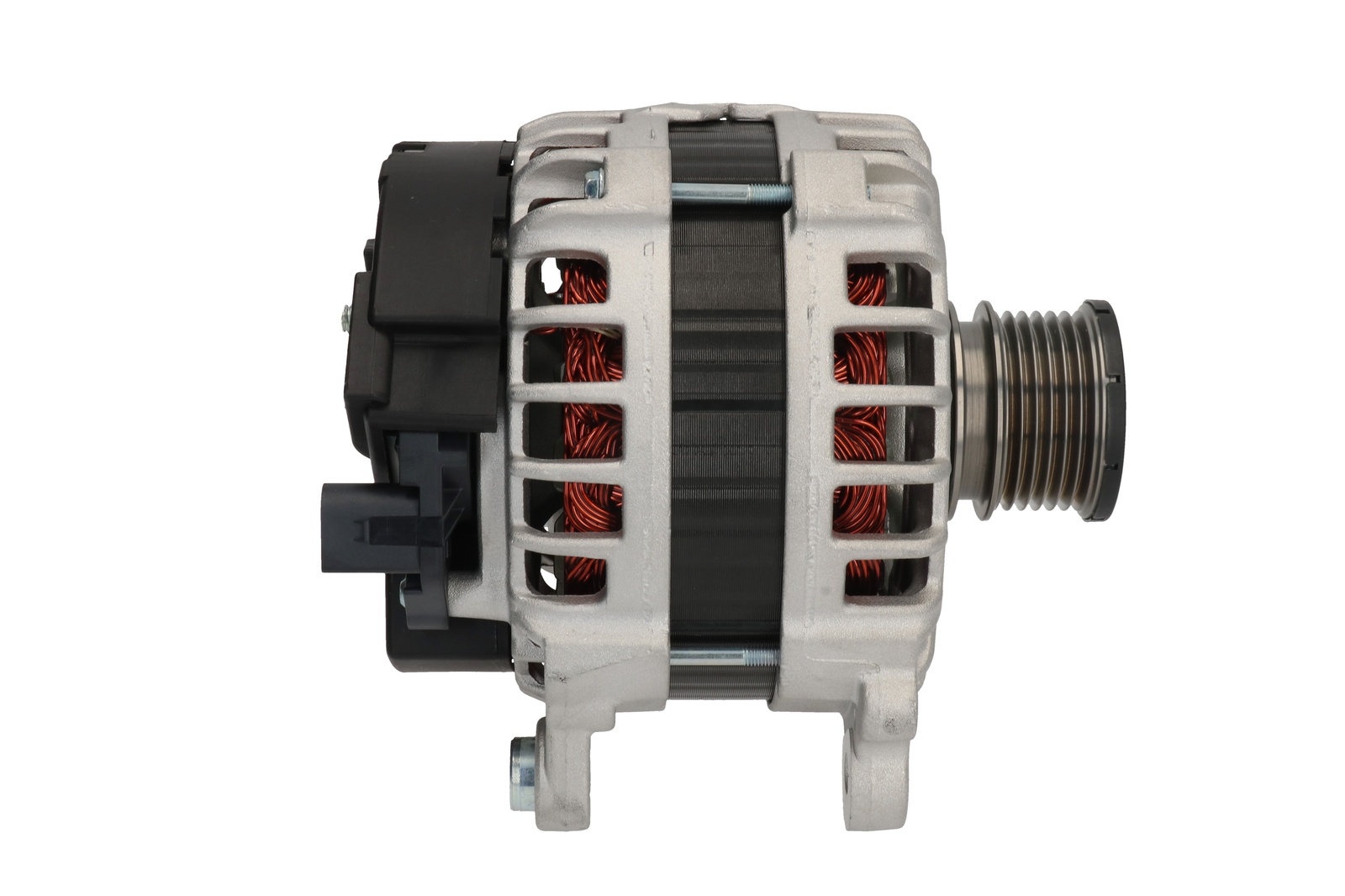

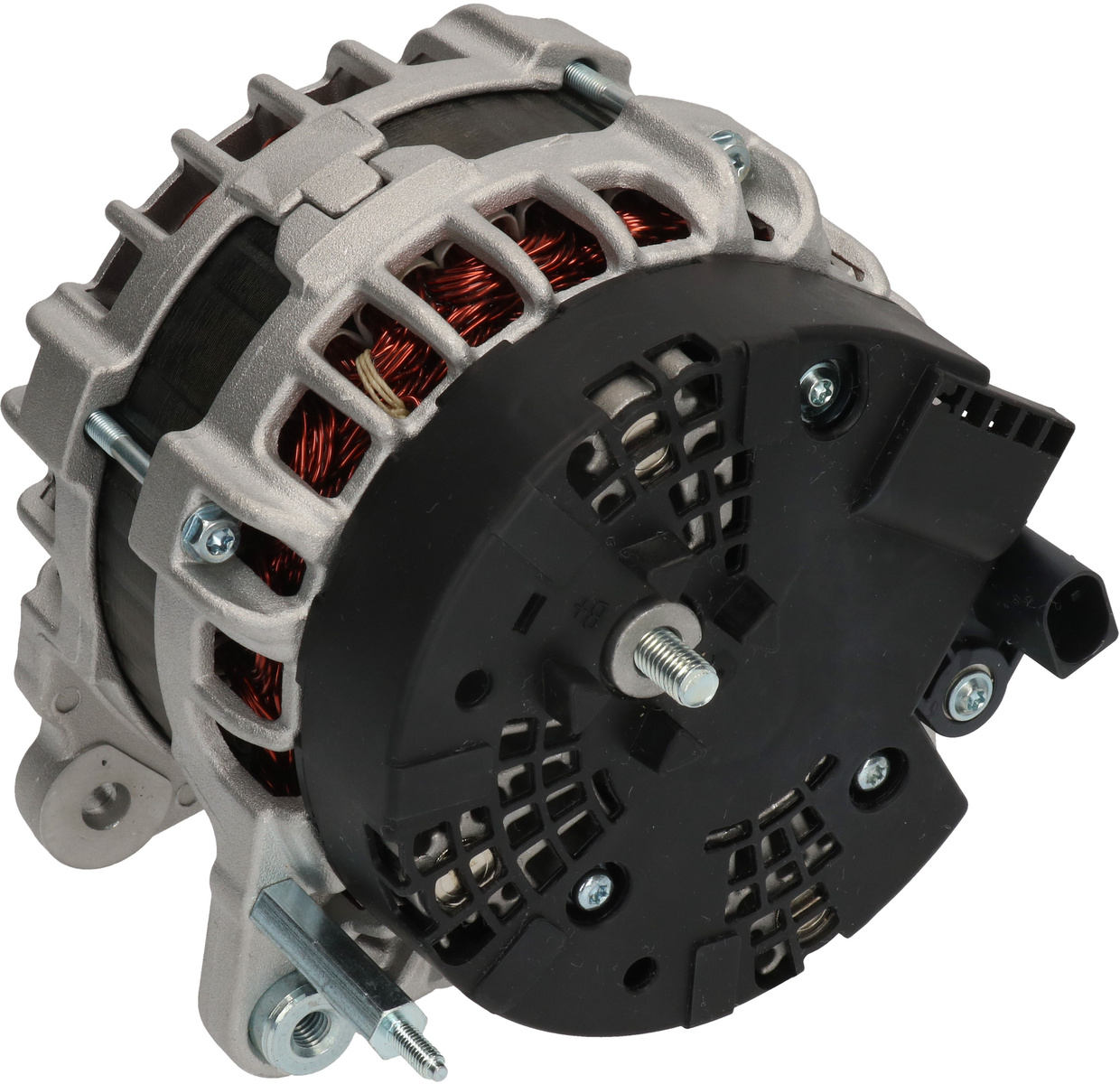

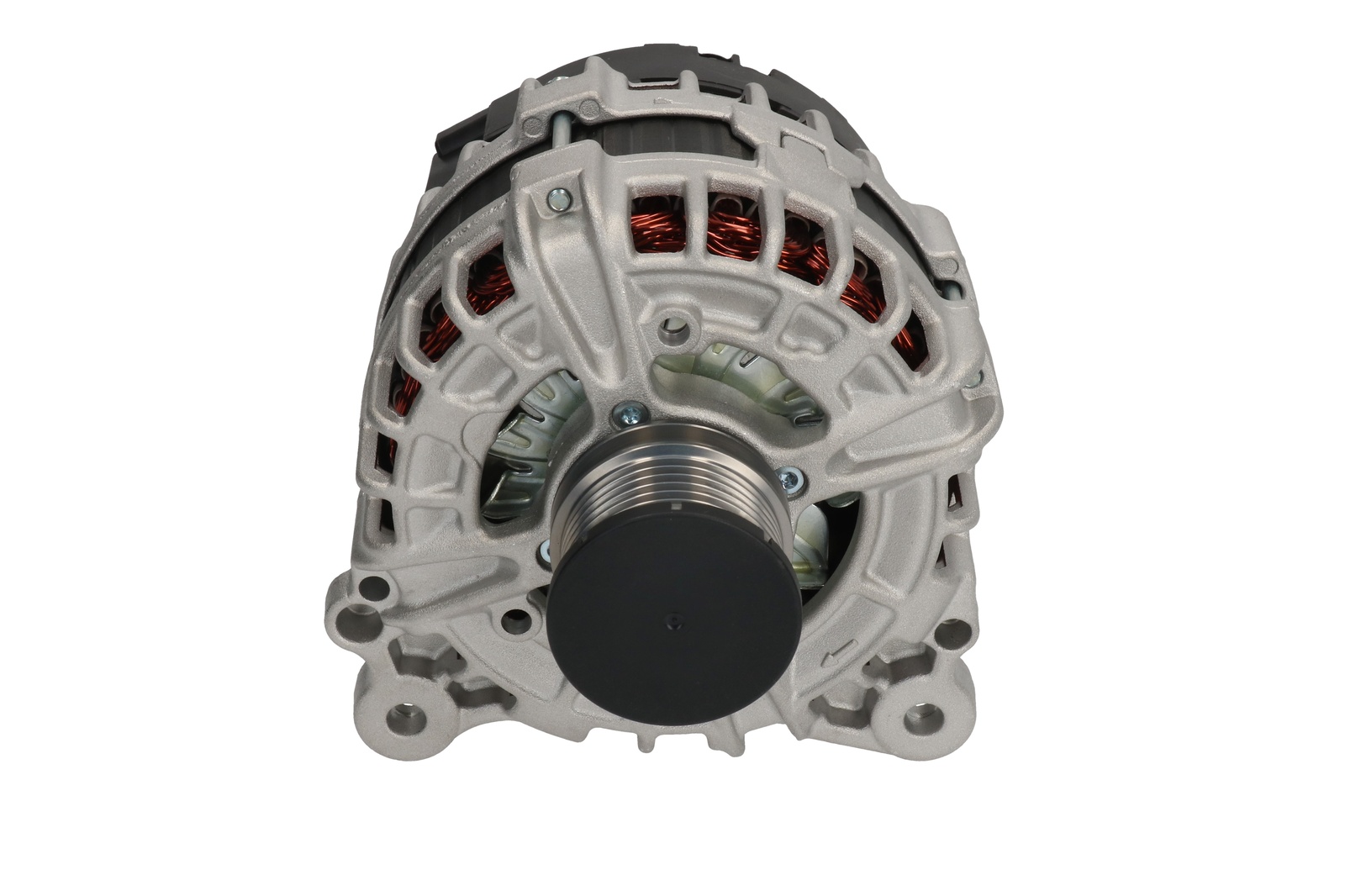

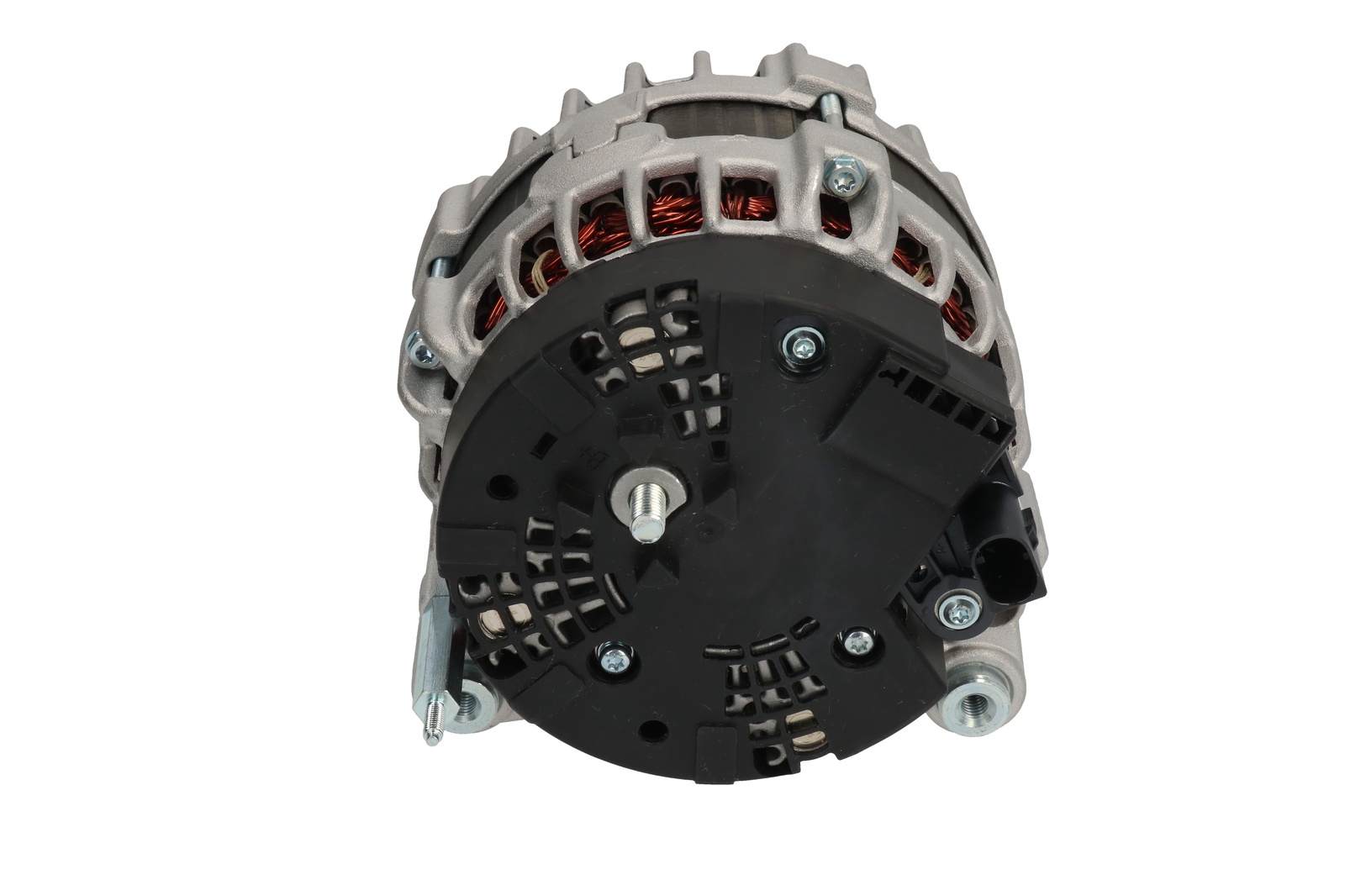

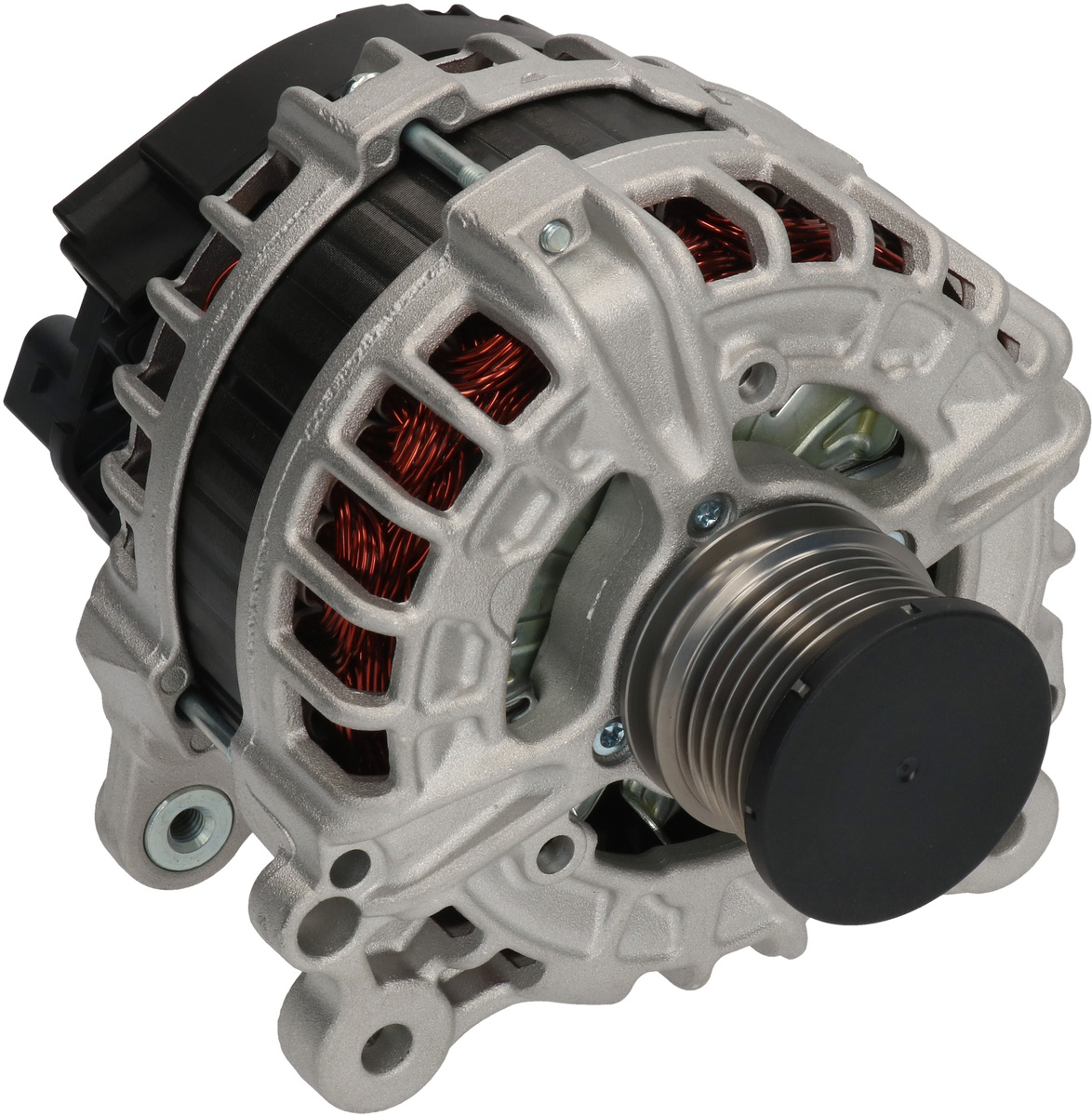

F032116195 - Alternator
Trade number 116195
Replacing and BOMs
OEM number
- 03L903023MXVW (VOLKSWAGEN)
- 03L903023MVW (VOLKSWAGEN)
- 03L903024LVW (VOLKSWAGEN)
- 03L903024NVW (VOLKSWAGEN)
Competitor References
- DRA0674AC DELCO
- 554111RIAD KÜHNER
- A0492AUTOSTARTER POLAND
- A0492PRAUTOSTARTER POLAND
- A0561SAUTOSTARTER POLAND
- A0607PRAUTOSTARTER POLAND
- A3308PRAUTOSTARTER POLAND
- A3308SAUTOSTARTER POLAND
Trade number 116195
Details & description
Voltage 14, Amp 180, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., ID Code 40, Grooves/pulley 6, Regulator type IR, Belt Adjustment Bracket Hole 1 8.60, Mounting Bracket Distance 61.00, Radius 90.00, Pulley Diameter 50.00, Bracket Hole Size Rear M8, Pulley SP/FW, Pulley Distance 39.30, Plug no. 1 PL125, Radius 2 90.00, B+ M8, Rotation CW, Bracket Hole Size 1 8.60, Terminal type COM, Holder Arm Width 14.00, Belt Adjustment Bracket Hole Position 45, Total Length 193.00, B+ Position 43
Product information
Electrical information
- Voltage14
- Amp180
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- ID Code40
- Grooves/pulley6
- Regulator typeIR
- Belt Adjustment Bracket Hole 18.60
- Mounting Bracket Distance61.00
- Radius90.00
- Pulley Diameter50.00
- Bracket Hole Size RearM8
- PulleySP/FW
Replacing and BOMs
OEM number
- 03L903023MXVW (VOLKSWAGEN)
- 03L903023MVW (VOLKSWAGEN)
- 03L903024LVW (VOLKSWAGEN)
- 03L903024NVW (VOLKSWAGEN)
Competitor References
- DRA0674AC DELCO
- 554111RIAD KÜHNER
- A0492AUTOSTARTER POLAND
- A0492PRAUTOSTARTER POLAND
- A0561SAUTOSTARTER POLAND
- A0607PRAUTOSTARTER POLAND
- A3308PRAUTOSTARTER POLAND
- A3308SAUTOSTARTER POLAND
