F032116201 - Alternator

Trade number 116201

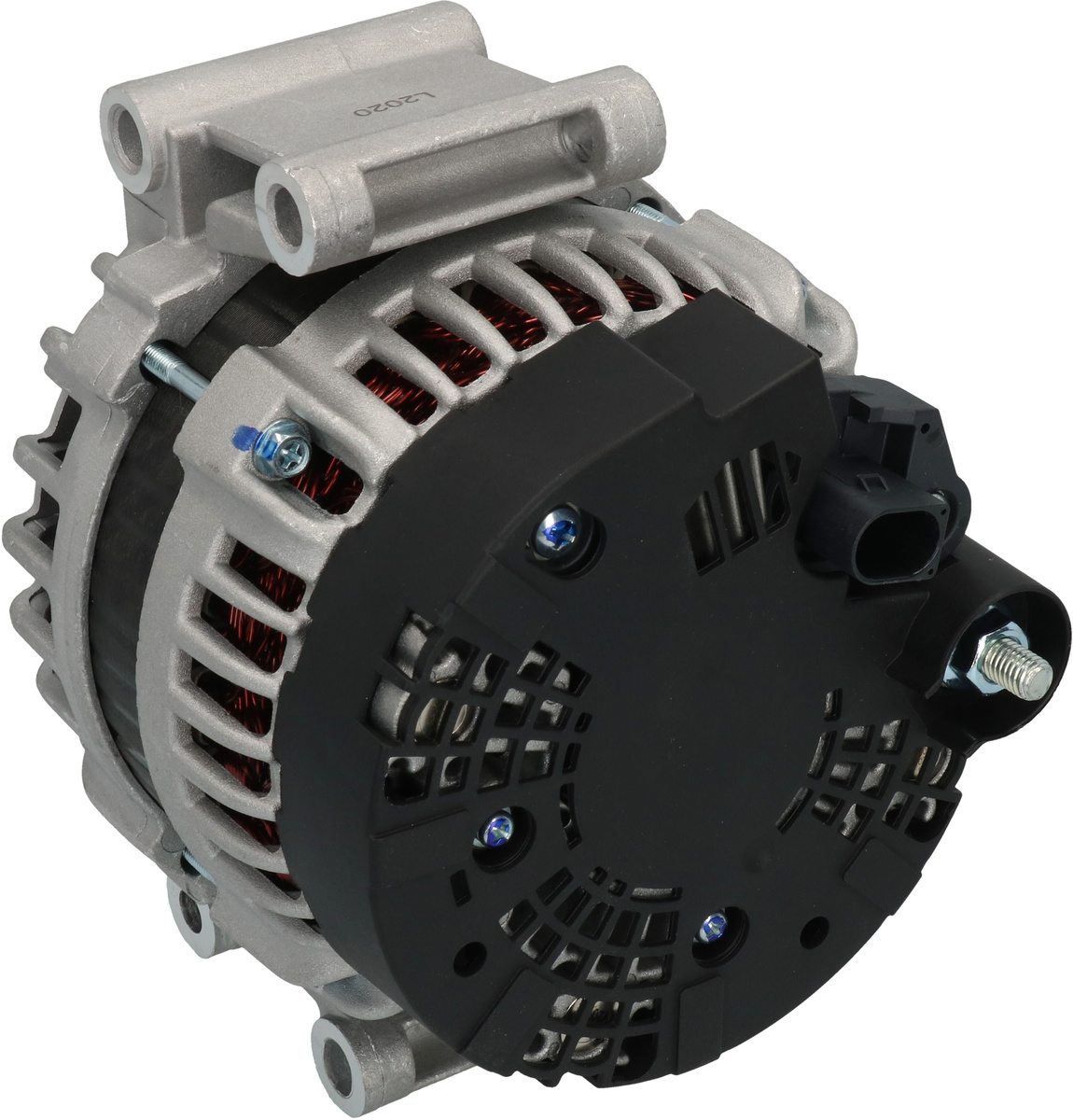

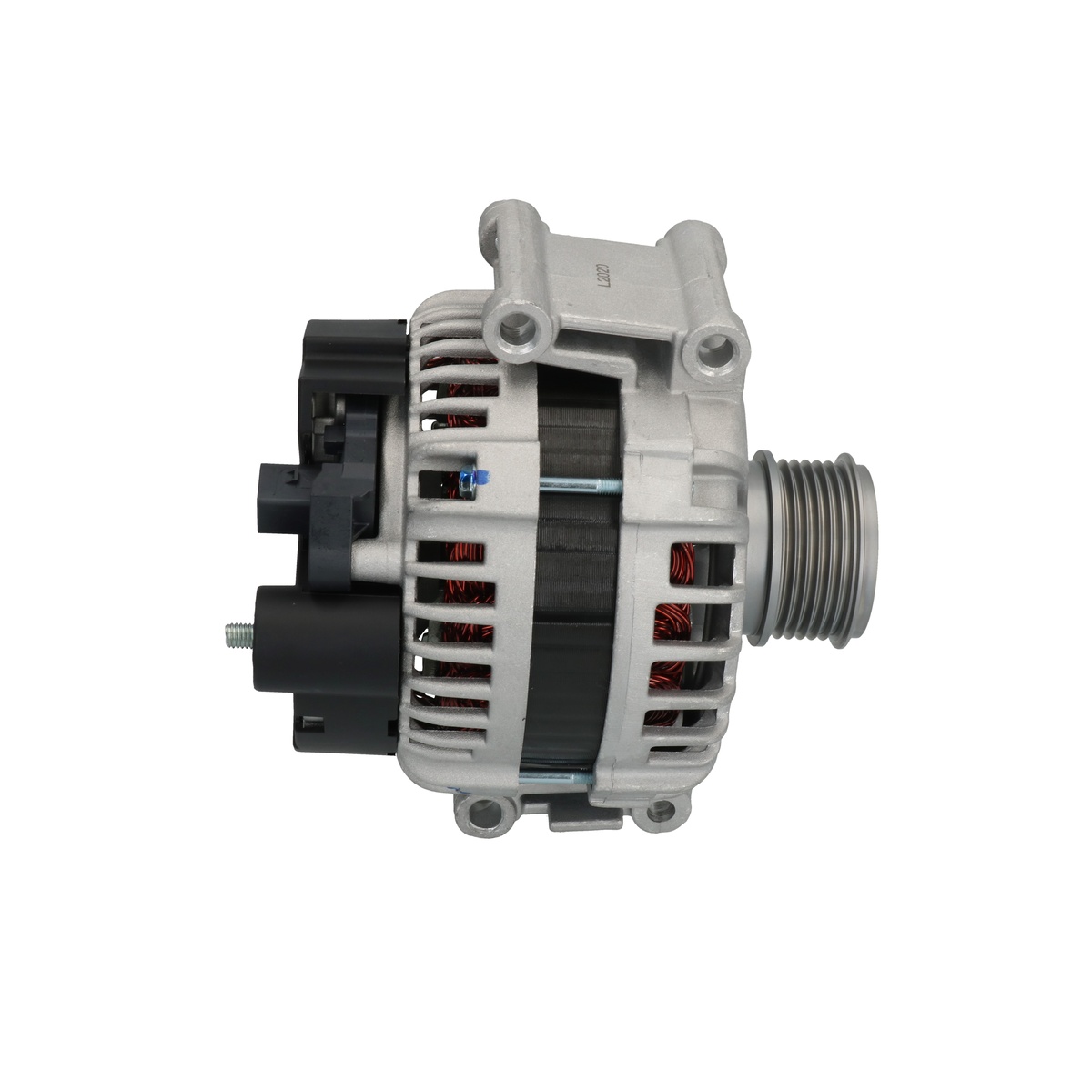

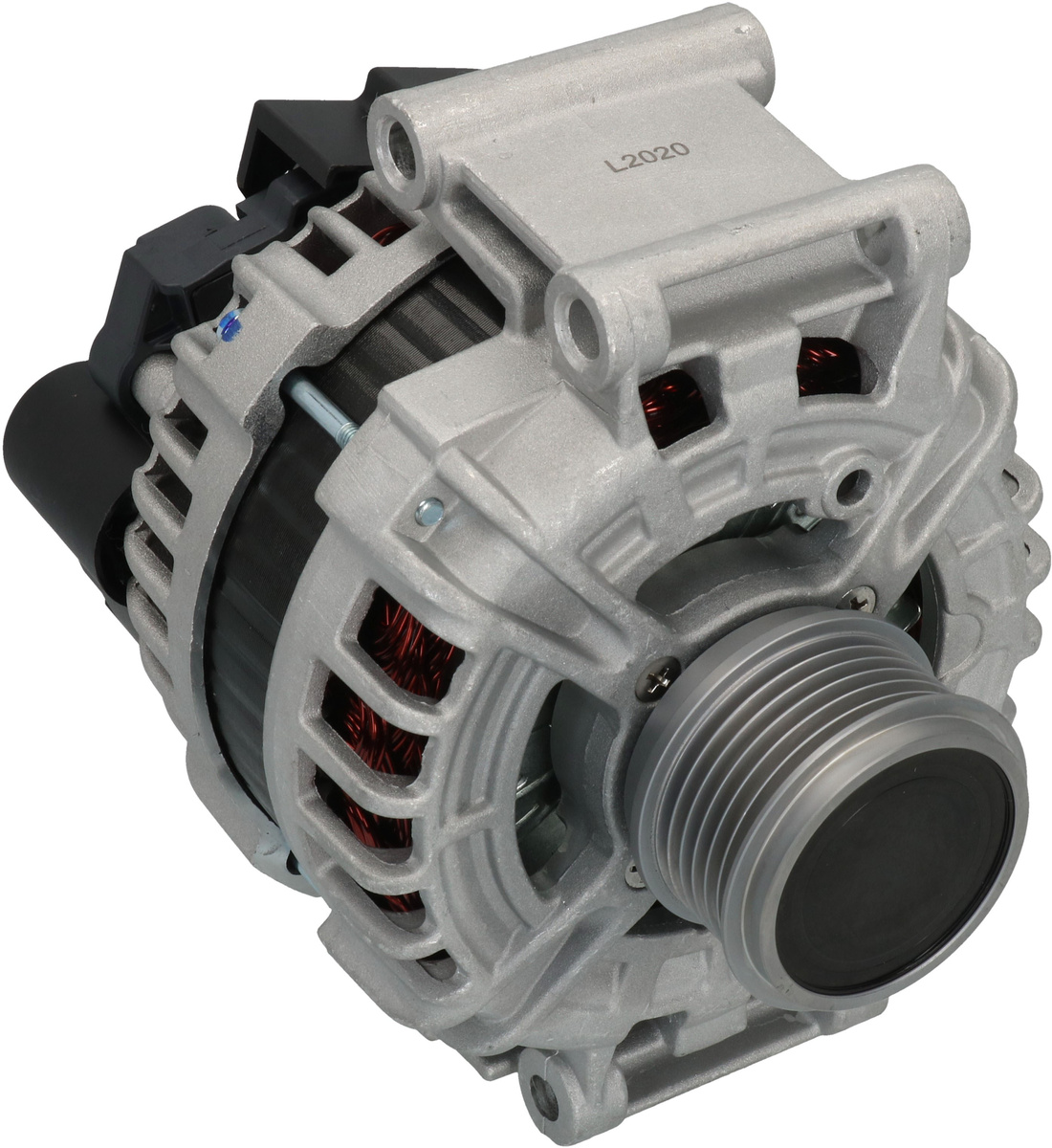

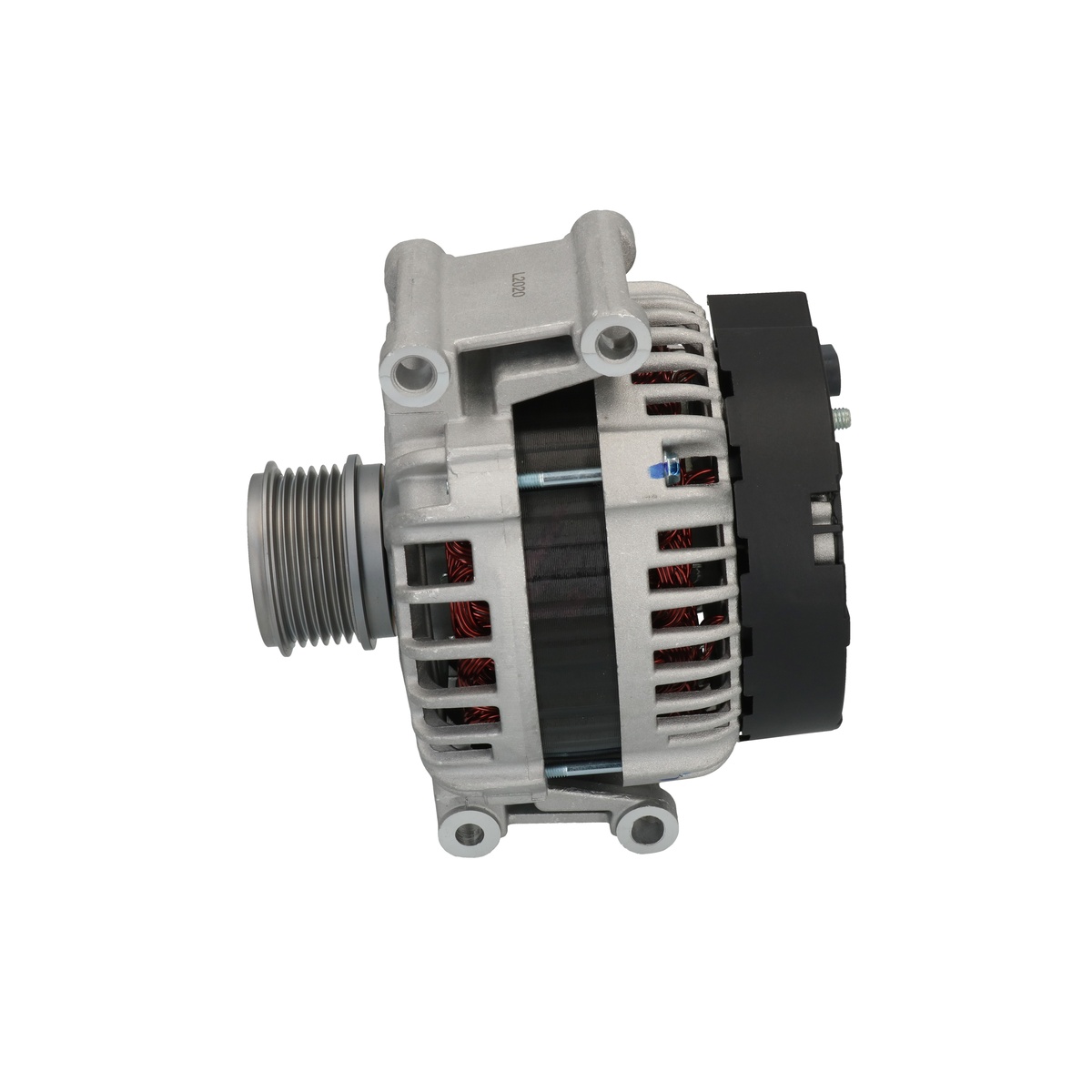

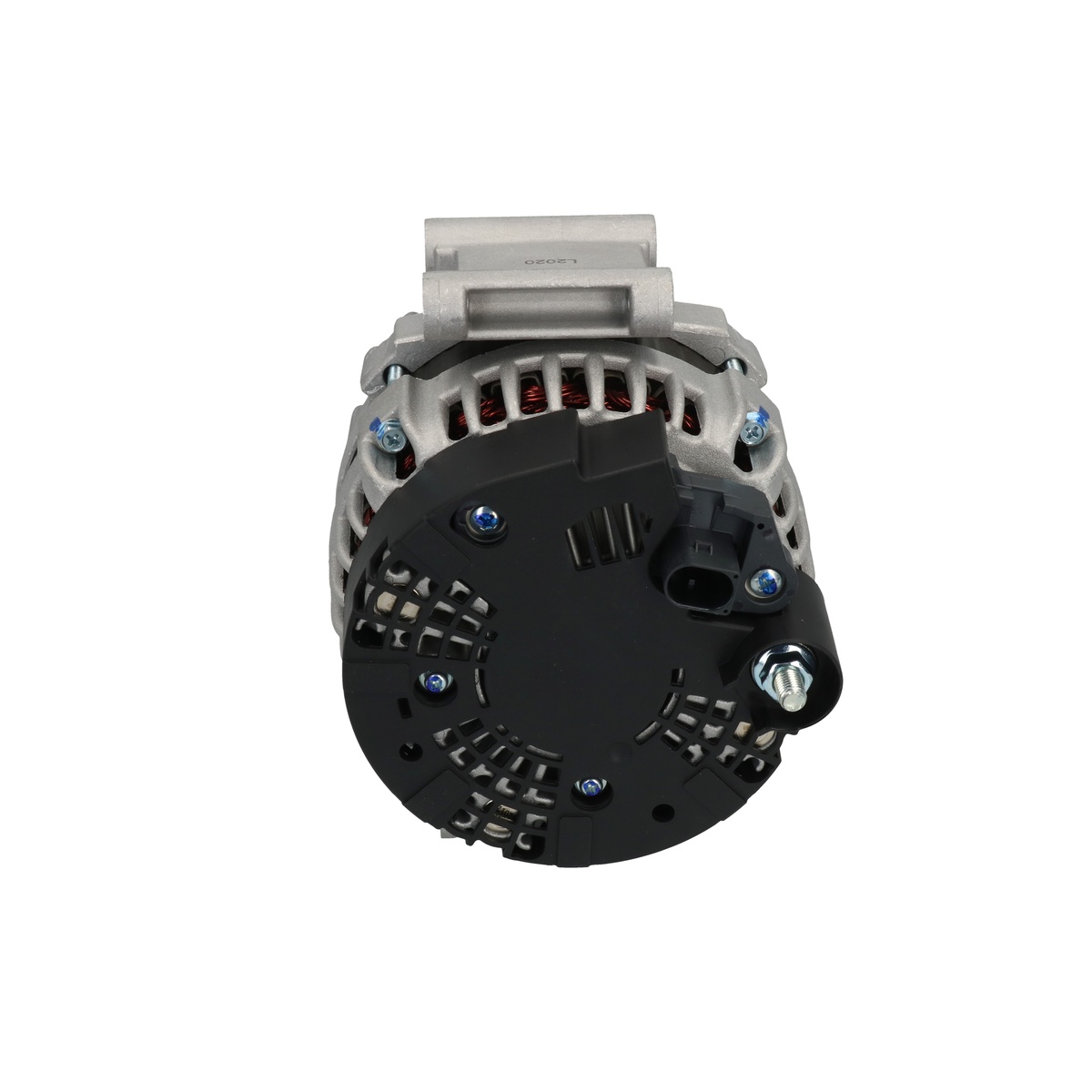

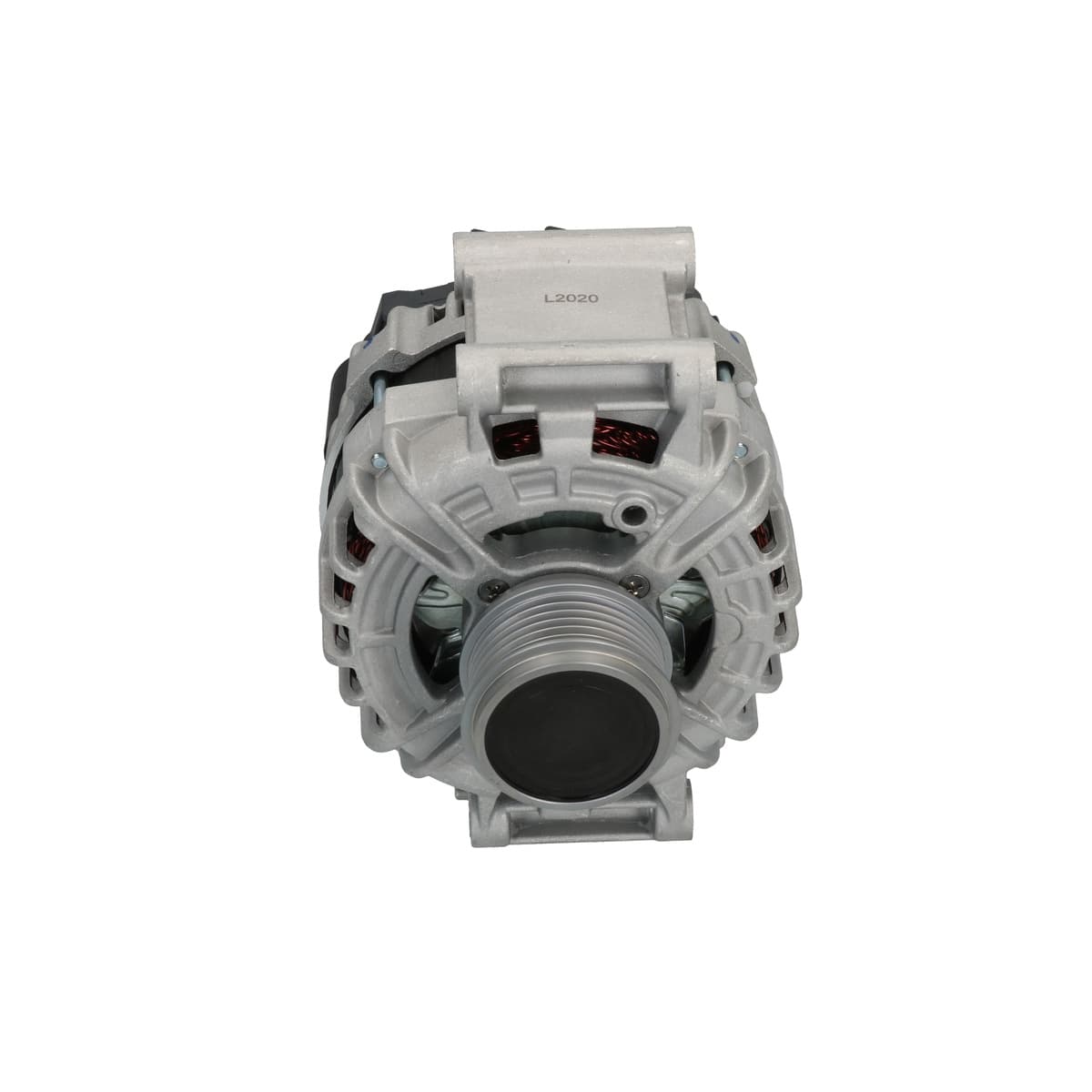

Product image - main
Trade number 116201

Details & description

Voltage 14, Amp 150, Communication LIN, Pulley SP/FW, Pulley Diameter 56.00, Bracket Hole Size Rear 10.20, Pulley Distance 29.50, ID Code 64, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 56.30, Radius 81.50, Belt Adjustment Bracket Hole 1 10.20, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.20, Lamp type Active, Belt Adjustment Bracket Hole 2 10.20, Terminal type COM, Holder Arm Width 70.00, B+ M8, Radius 2 81.50, Plug no. 1 PL86, Rotation CW, B+ Position 44, Total Length 192.50

Product information

Electrical information

  • Voltage14
  • Amp150

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter56.00
  • Bracket Hole Size Rear10.20
  • Pulley Distance29.50
  • ID Code64
  • Mounting Bracket Distance56.30
  • Radius81.50
  • Belt Adjustment Bracket Hole 110.20

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 06H903017JVW (VOLKSWAGEN)
    • 06H903017JXVW (VOLKSWAGEN)
    • 06H903017TVW (VOLKSWAGEN)BOM
    • 06H903017TXVW (VOLKSWAGEN)
    • 06H903017XVW (VOLKSWAGEN)
    • 06H903018HVW (VOLKSWAGEN)
    • 06H903018HXVW (VOLKSWAGEN)
    • 06H903018PVW (VOLKSWAGEN)

    Competitor References

    • DRA1029AC DELCO
    • DRA1397AC DELCO
    • 554171RIAD KÜHNER
    • A0566SAUTOSTARTER POLAND
    • A0567PRAUTOSTARTER POLAND
    • A0567SAUTOSTARTER POLAND
    • A0567S2AUTOSTARTER POLAND
    • 0125711127BOSCHBOM
    • 0121711051BOSCH
