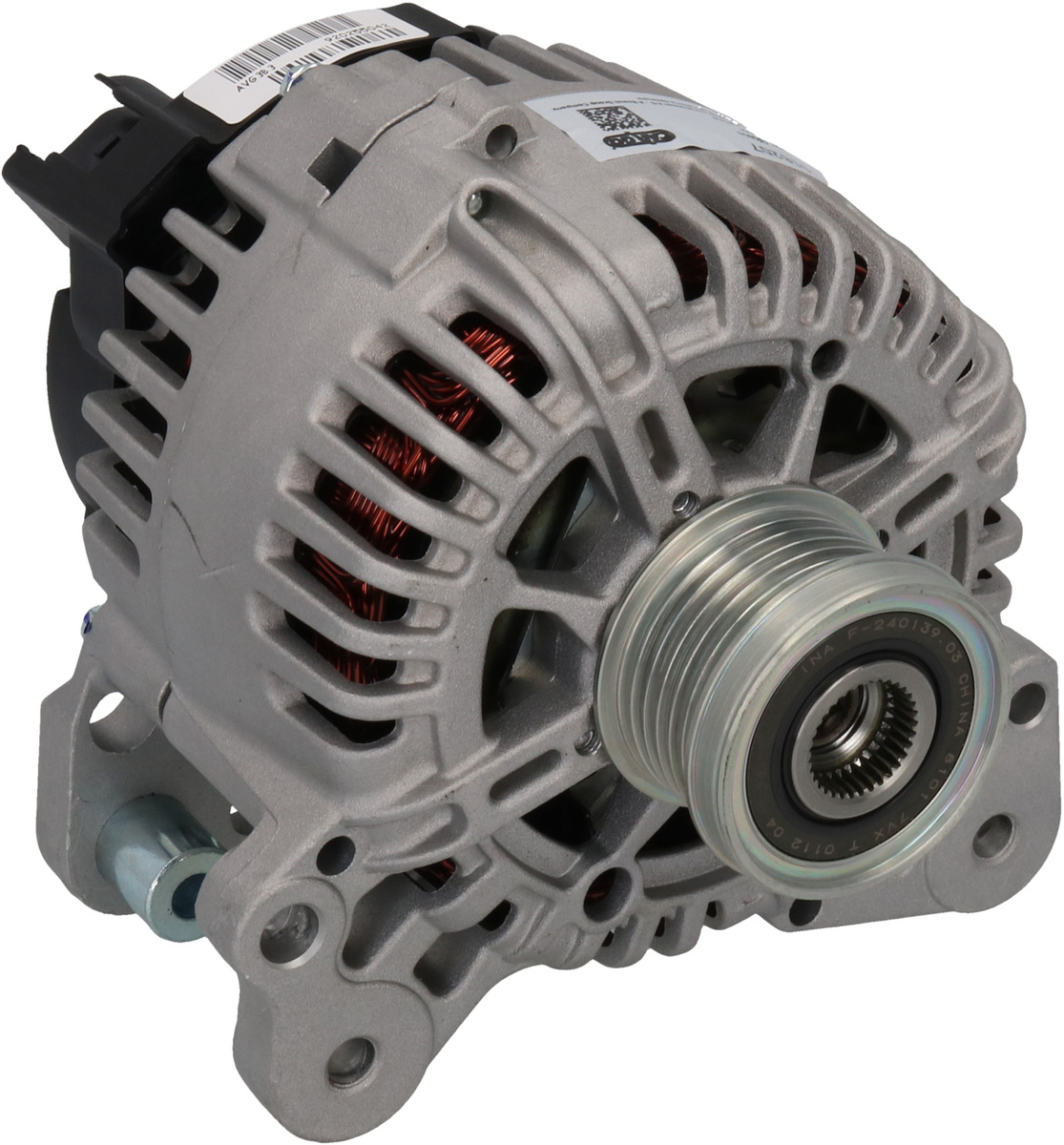

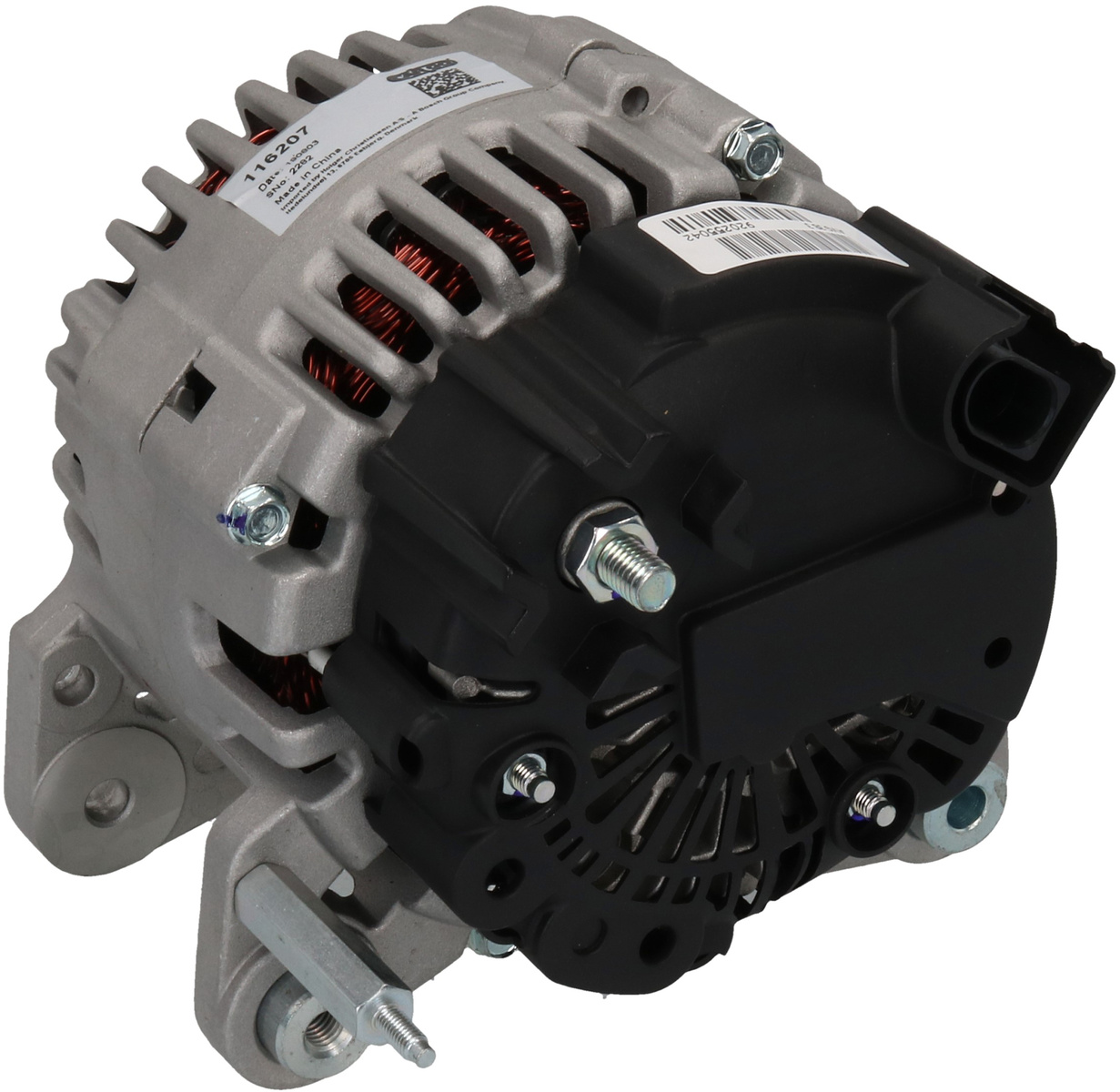

F032116207 - Alternator
Trade number 116207
Replacing and BOMs
OEM number
03F903023VW (VOLKSWAGEN)
03F903023EVW (VOLKSWAGEN)
03F903023EXVW (VOLKSWAGEN)
3F903023EVW (VOLKSWAGEN)
3F903023EXVW (VOLKSWAGEN)
Competitor References
DRA0961AC DELCO
554090RIAD KÜHNER
A3508SAUTOSTARTER POLAND
A3508VALEOAUTOSTARTER POLAND
0986086330BOSCH
1986A01453BOSCH
CAL15451CASCO SRL
305591110CV PSH
DRA0961DELCO REMY
2113721802DRI
285926ELSTOCK
209218ERA SPA
209218AERA SPA
12090565EUROTEC
113455FACROM
9090614FRIESEN
116207HC-CARGO
8EL015630501HELLA
32439733HERTH U. BUSS
LRA03314LUCAS
2608430AVALEO
A608430AVALEO
439733VALEO
440323VALEO
200226VALEO
20588NWAI
20588OSWAI
F032116207 - Alternator
Details & description
Voltage 14, Amp 110, Pulley SP/FW, Pulley Diameter 49.50, Bracket Hole Size Rear M8, D+ Position 60, Pulley Distance 30.00, Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type L-DFM, D+ Size Plug, Holder Arm Width 14.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL61, Rotation CW, B+ Position 45, Belt Adjustment Bracket Hole Position 45, Total Length 190.00
Product information
Voltage:14
Amp:110
Pulley:SP/FW
Pulley Diameter:49.50
Bracket Hole Size Rear:M8
D+ Position:60
Pulley Distance:30.00
Mounting Bracket Distance:61.00
Radius:90.00
Belt Adjustment Bracket Hole 1:8.50
Grooves/pulley:6
Regulator type:IR
Bracket Hole Size 1:8.50
Terminal type:L-DFM
D+ Size:Plug
Holder Arm Width:14.00
B+:M8
Fan:IF
Radius 2:90.00
Plug no. 1:PL61
Rotation:CW
B+ Position:45
Belt Adjustment Bracket Hole Position:45
Total Length:190.00
Replacing and BOMs
OEM number
03F903023VW (VOLKSWAGEN)
03F903023EVW (VOLKSWAGEN)
03F903023EXVW (VOLKSWAGEN)
3F903023EVW (VOLKSWAGEN)
3F903023EXVW (VOLKSWAGEN)
Competitor References
DRA0961AC DELCO
554090RIAD KÜHNER
A3508SAUTOSTARTER POLAND
A3508VALEOAUTOSTARTER POLAND
0986086330BOSCH
1986A01453BOSCH
CAL15451CASCO SRL
305591110CV PSH
DRA0961DELCO REMY
2113721802DRI
285926ELSTOCK
209218ERA SPA
209218AERA SPA
12090565EUROTEC
113455FACROM
9090614FRIESEN
116207HC-CARGO
8EL015630501HELLA
32439733HERTH U. BUSS
LRA03314LUCAS
2608430AVALEO
A608430AVALEO
439733VALEO
440323VALEO
200226VALEO
20588NWAI
20588OSWAI
