F032116208 - Alternator

Trade number 116208

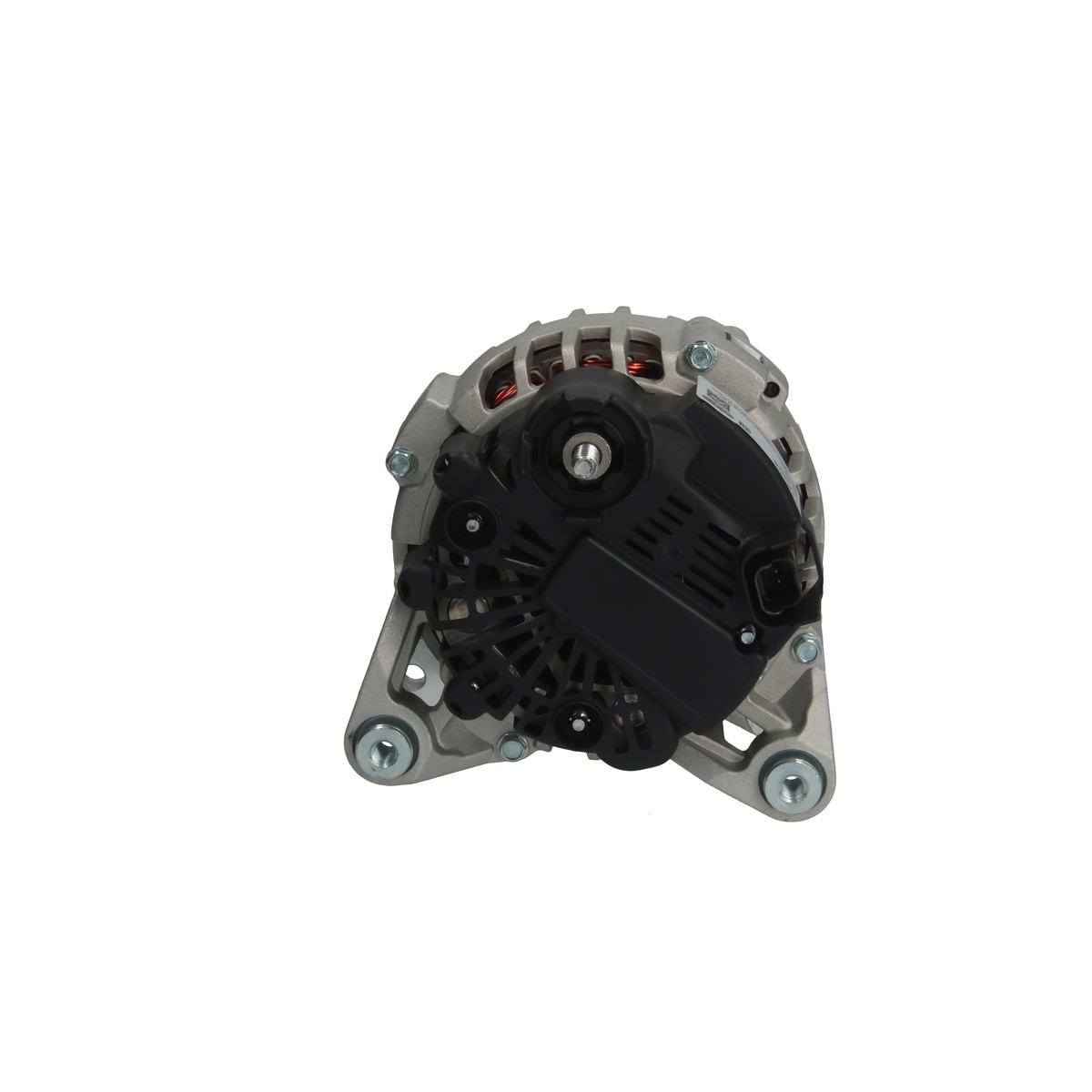

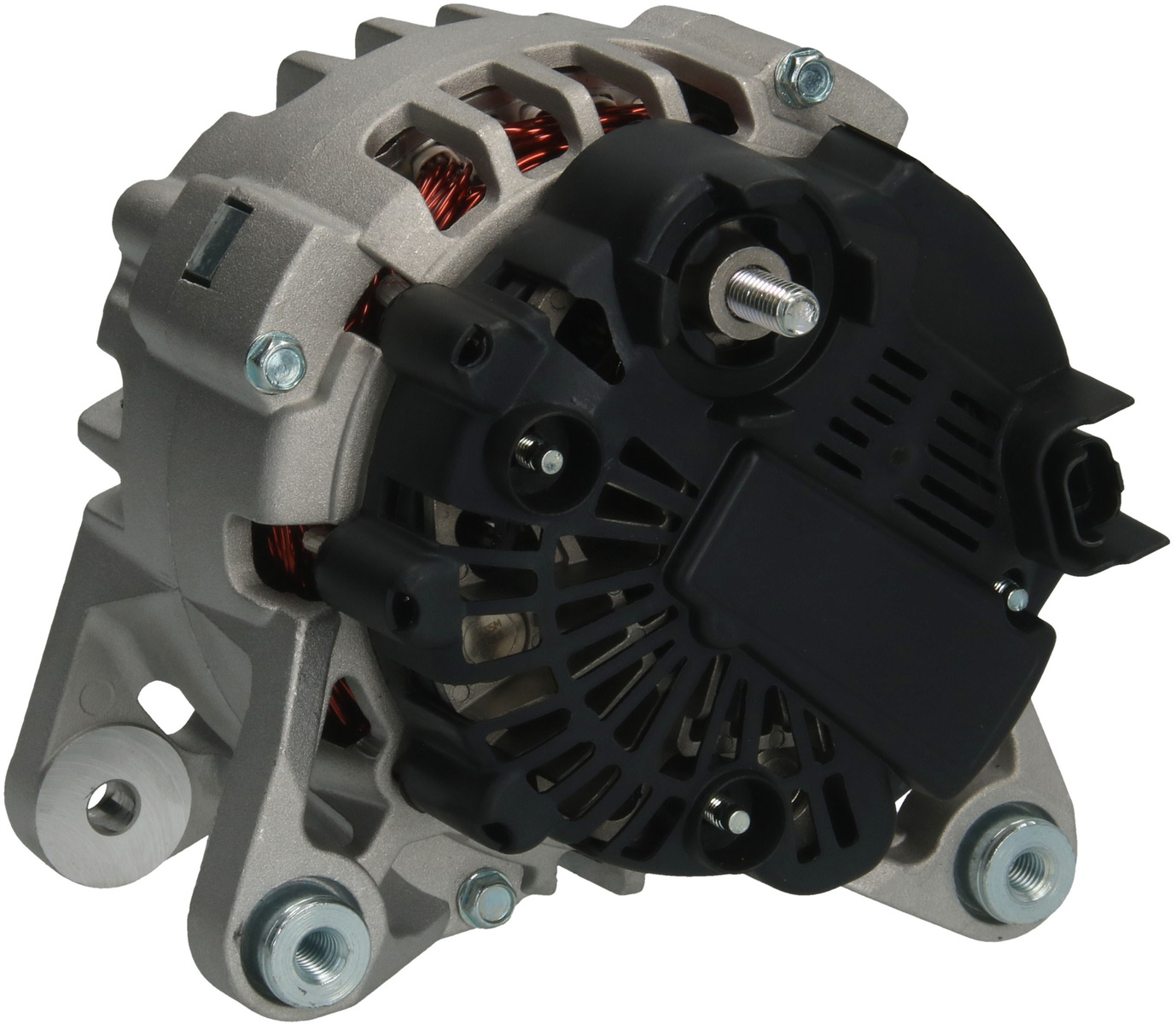

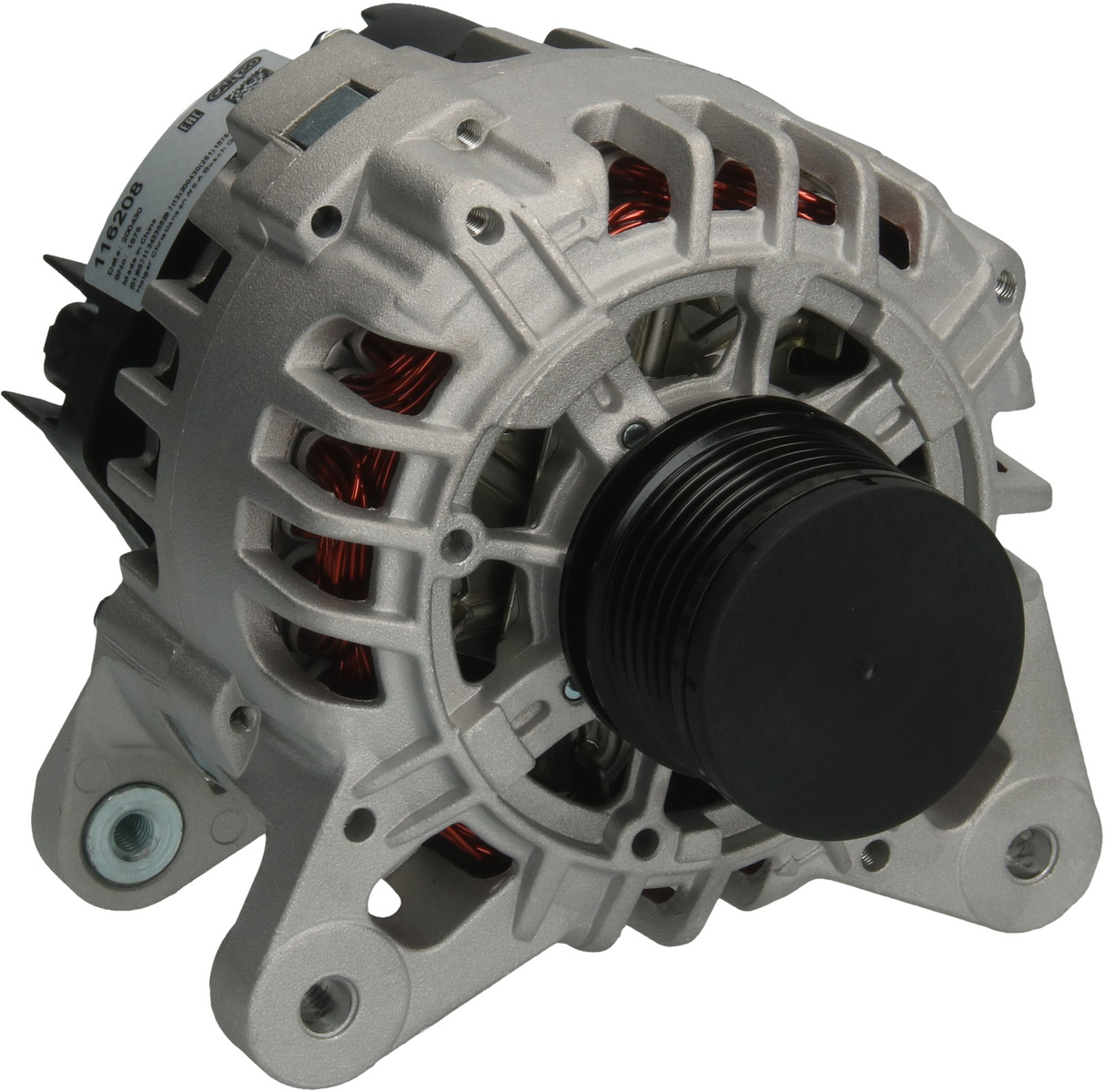

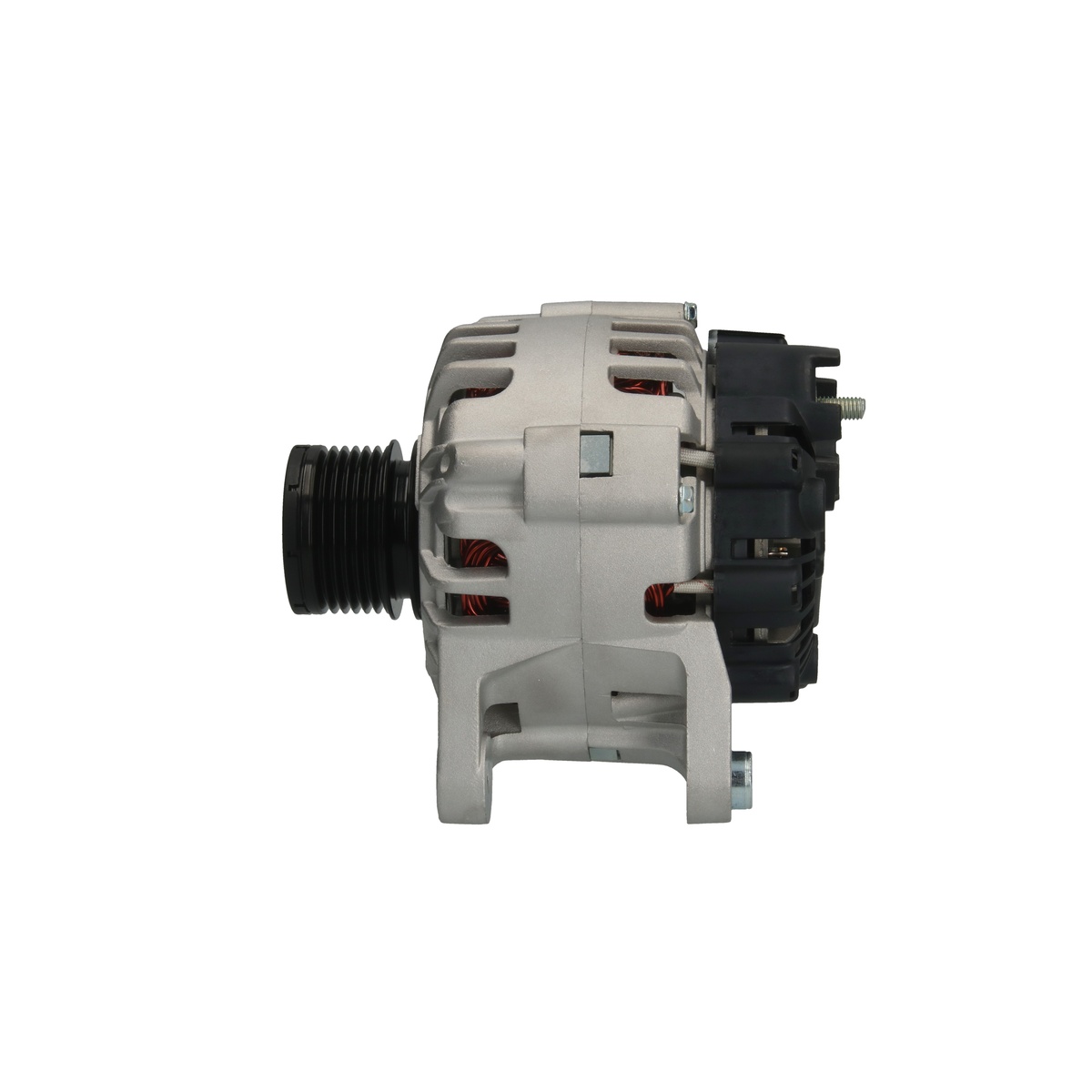

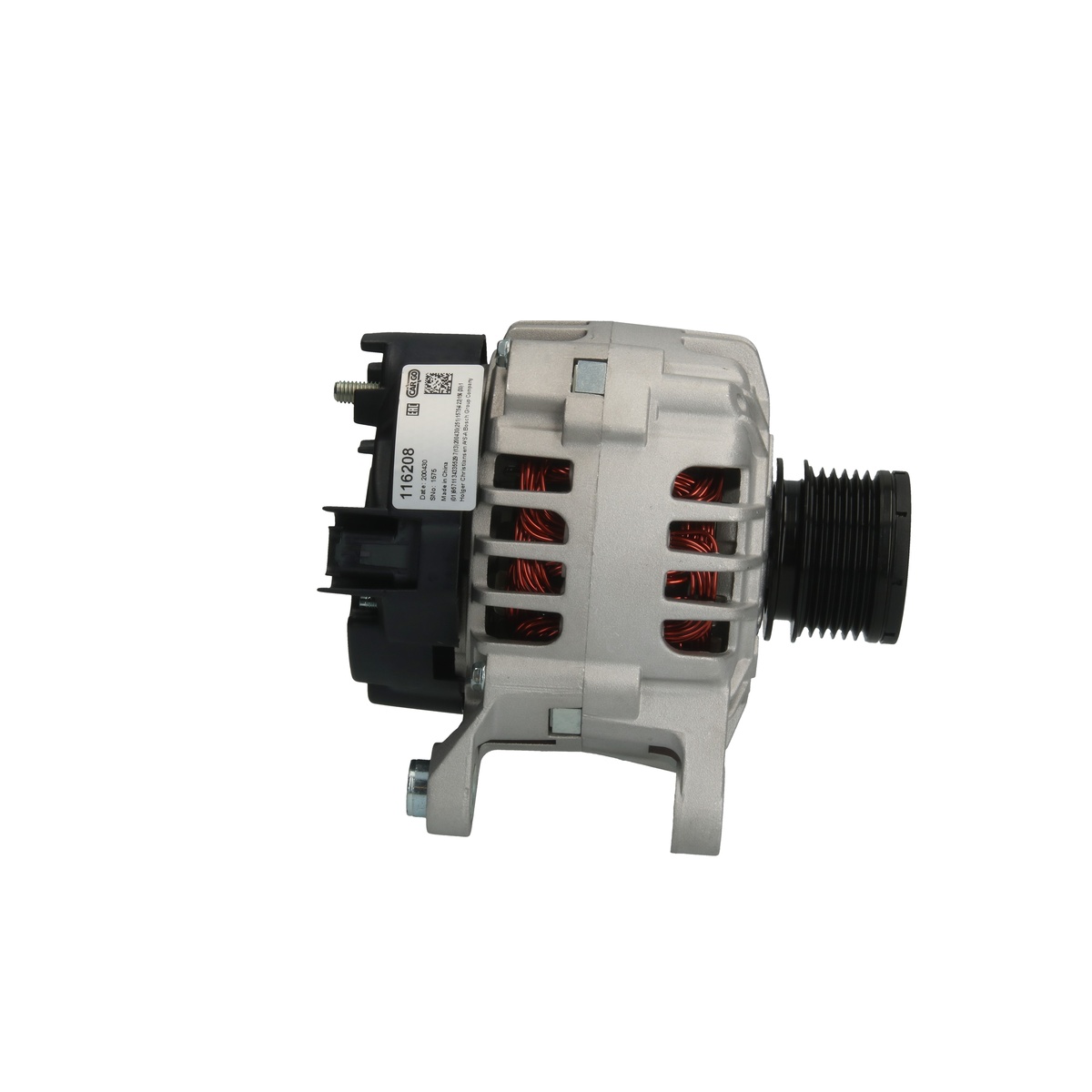

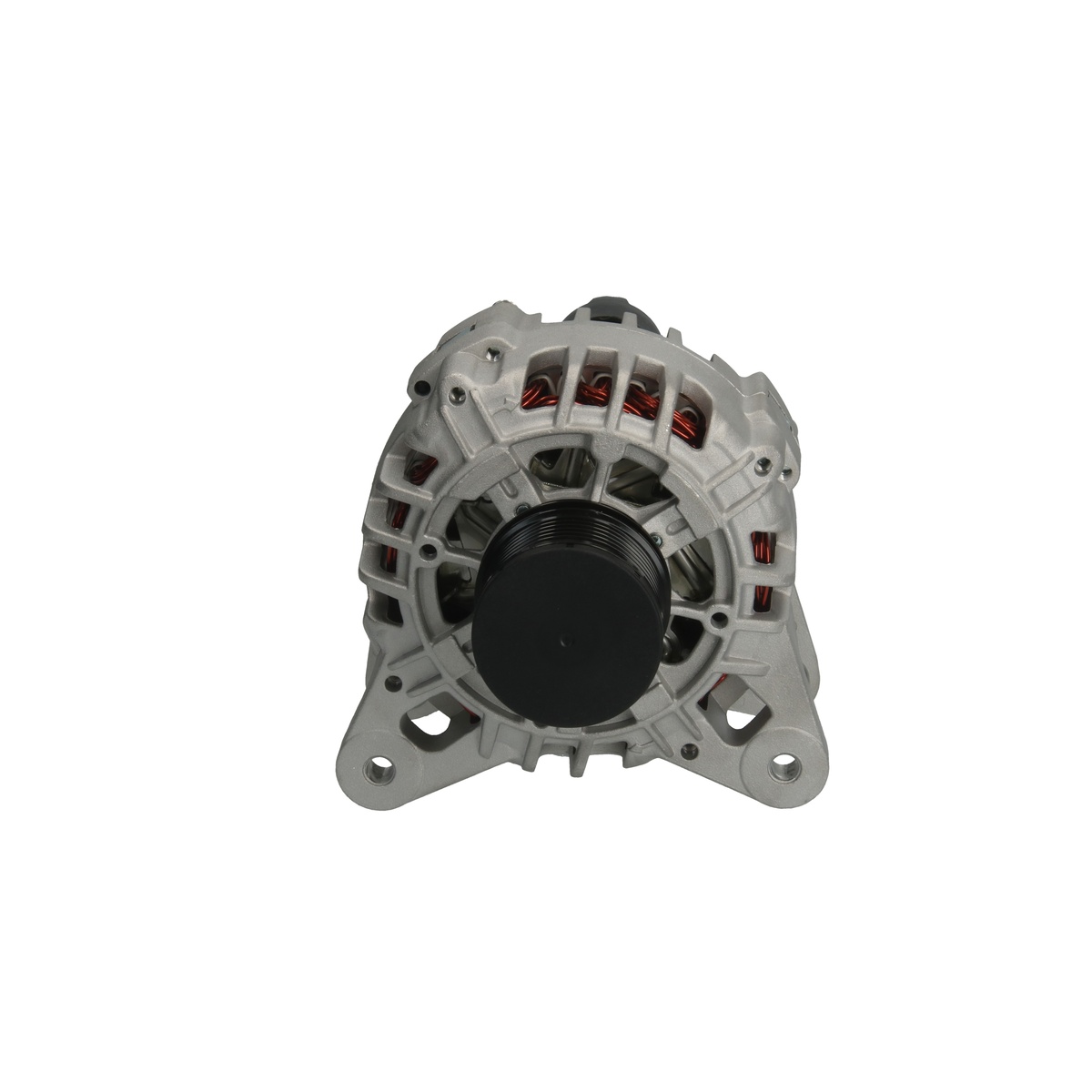

Product image - main
Trade number 116208

Details & description

Voltage 14, Amp 90, Pulley SP/FW, Bracket Hole Size 1 8.50, Pulley Diameter 55.00, Bracket Hole Size Rear M8, D+ Size Plug, D+ Position 6, Holder Arm Width 15.00, Pulley Distance 38.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL72, Mounting Bracket Distance 60.50, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, B+ Position 51, Belt Adjustment Bracket Hole Position 45, Total Length 186.00

Product information

Electrical information

  • Voltage14
  • Amp90

Physical information

  • PulleySP/FW
  • Bracket Hole Size 18.50
  • Pulley Diameter55.00
  • Bracket Hole Size RearM8
  • D+ SizePlug
  • D+ Position6
  • Holder Arm Width15.00
  • Pulley Distance38.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 8200674760RENAULT
    • 8200810614RENAULT

    Competitor References

    • DRA0966AC DELCO
    • 553574RIAD KÜHNER
    • A3345SAUTOSTARTER POLAND
    • 1986A01325BOSCH
    • CAL15517CASCO SRL
    • 575921090CV PSH
    • DRA0966DELCO REMY
    • 286834ELSTOCK
    • 209289ERA SPA
