F032116452 - Alternator

Trade number 116452

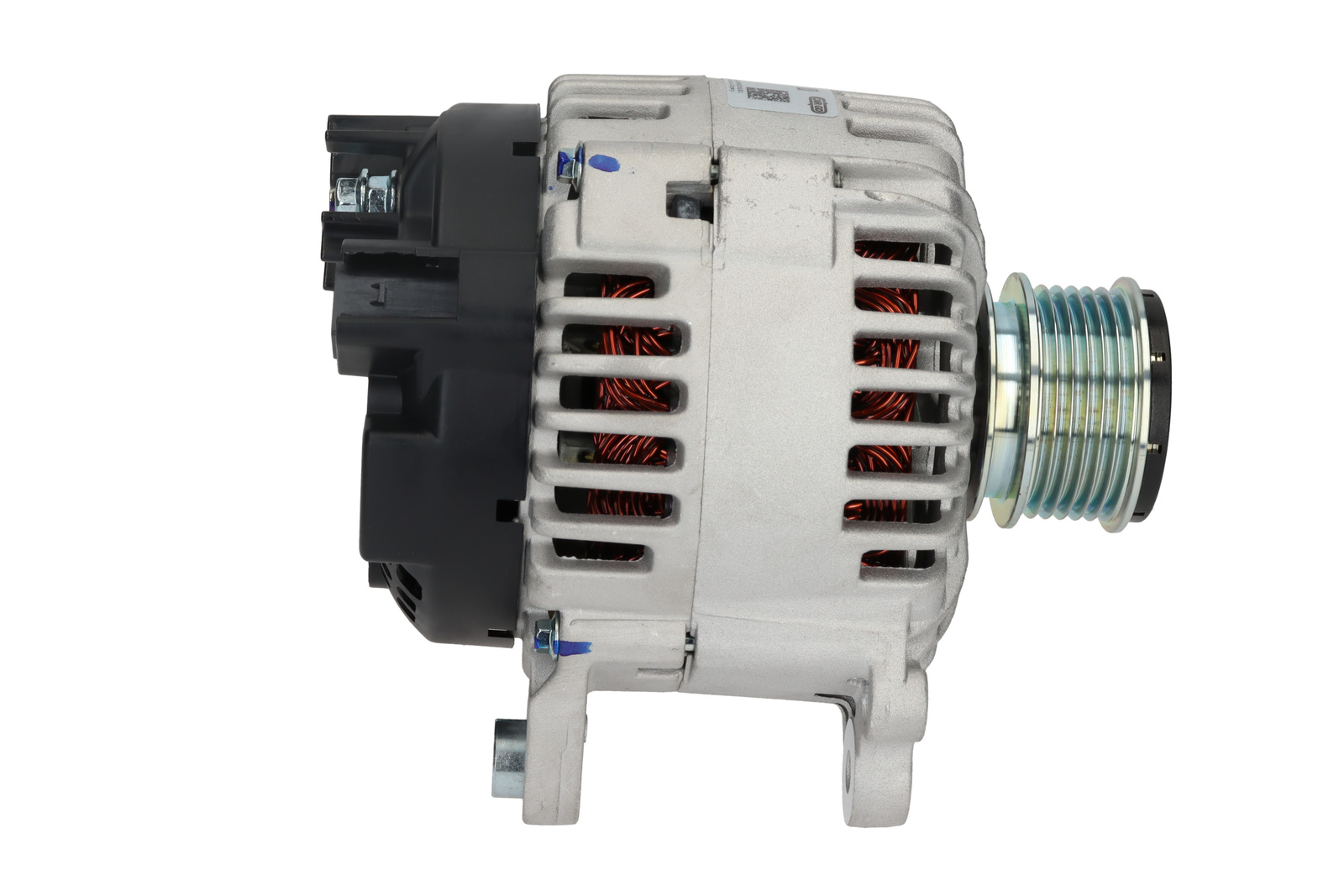

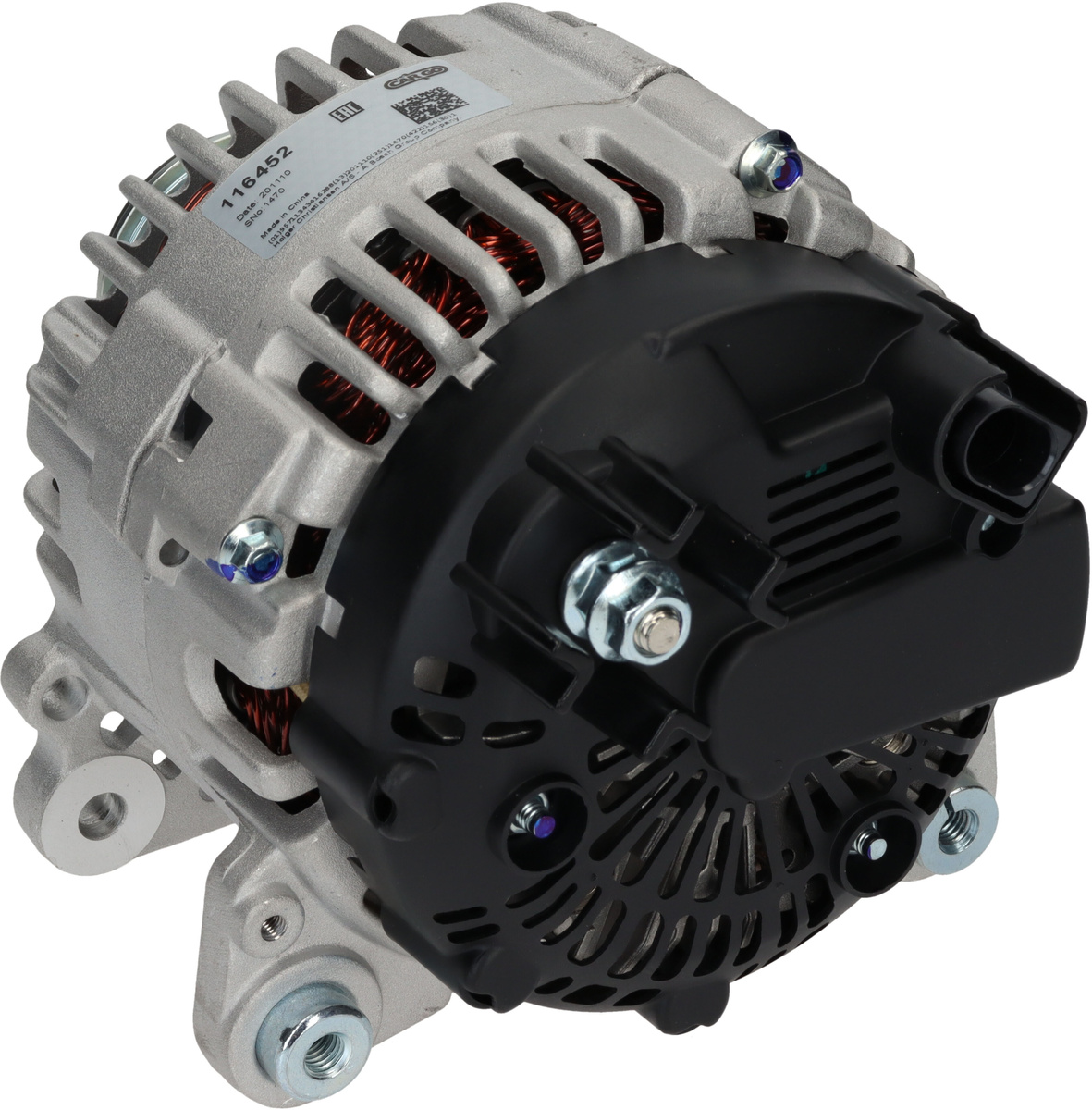

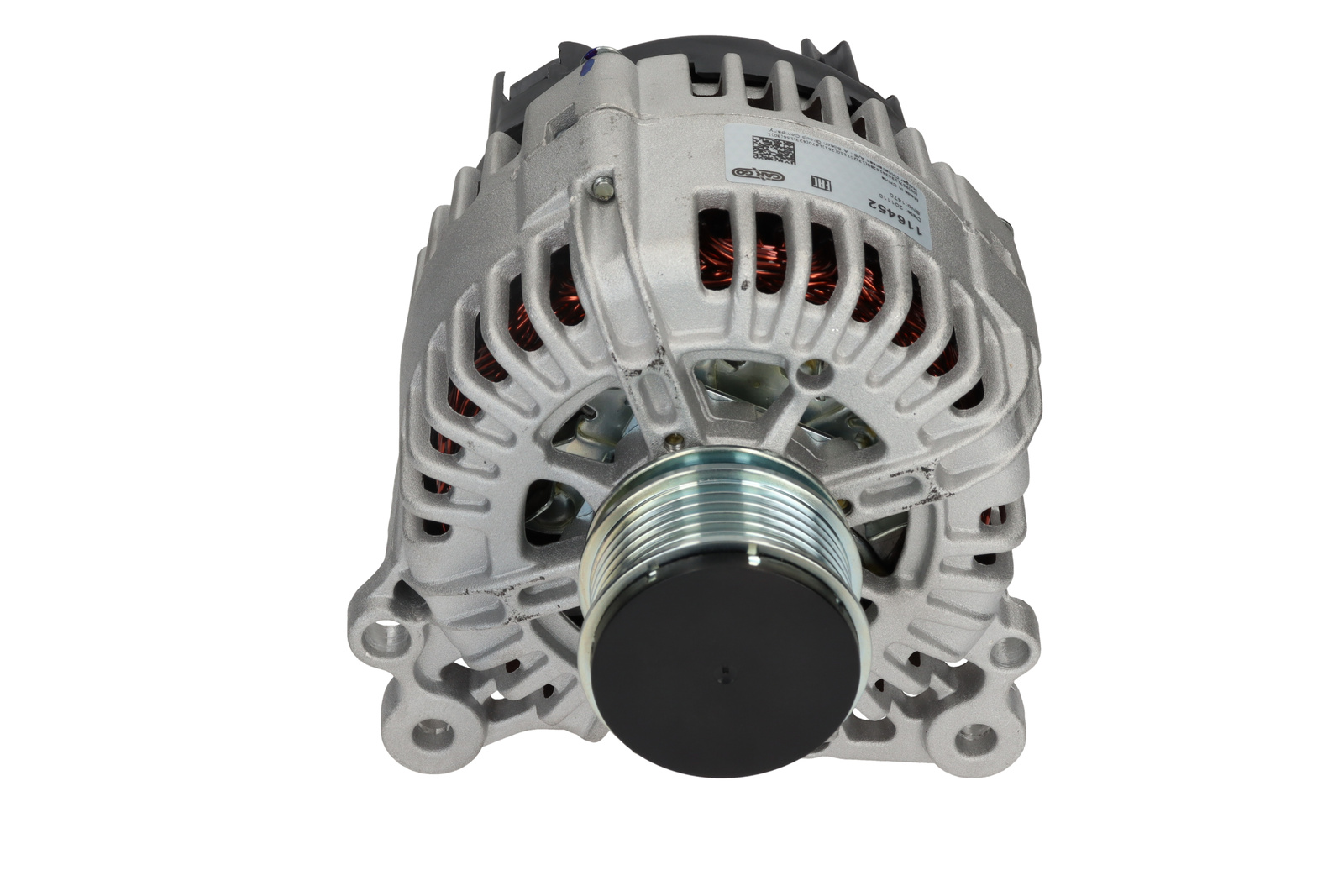

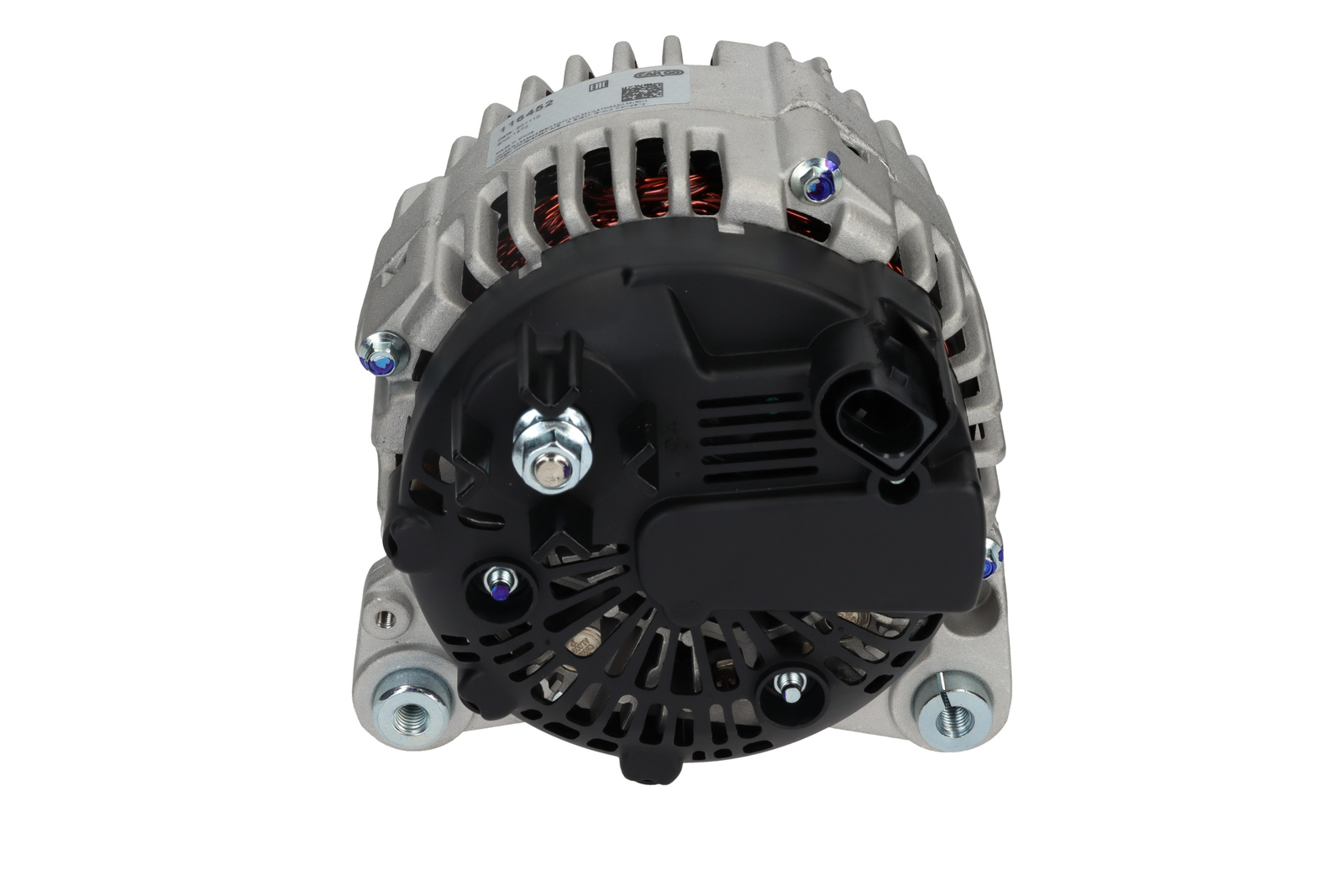

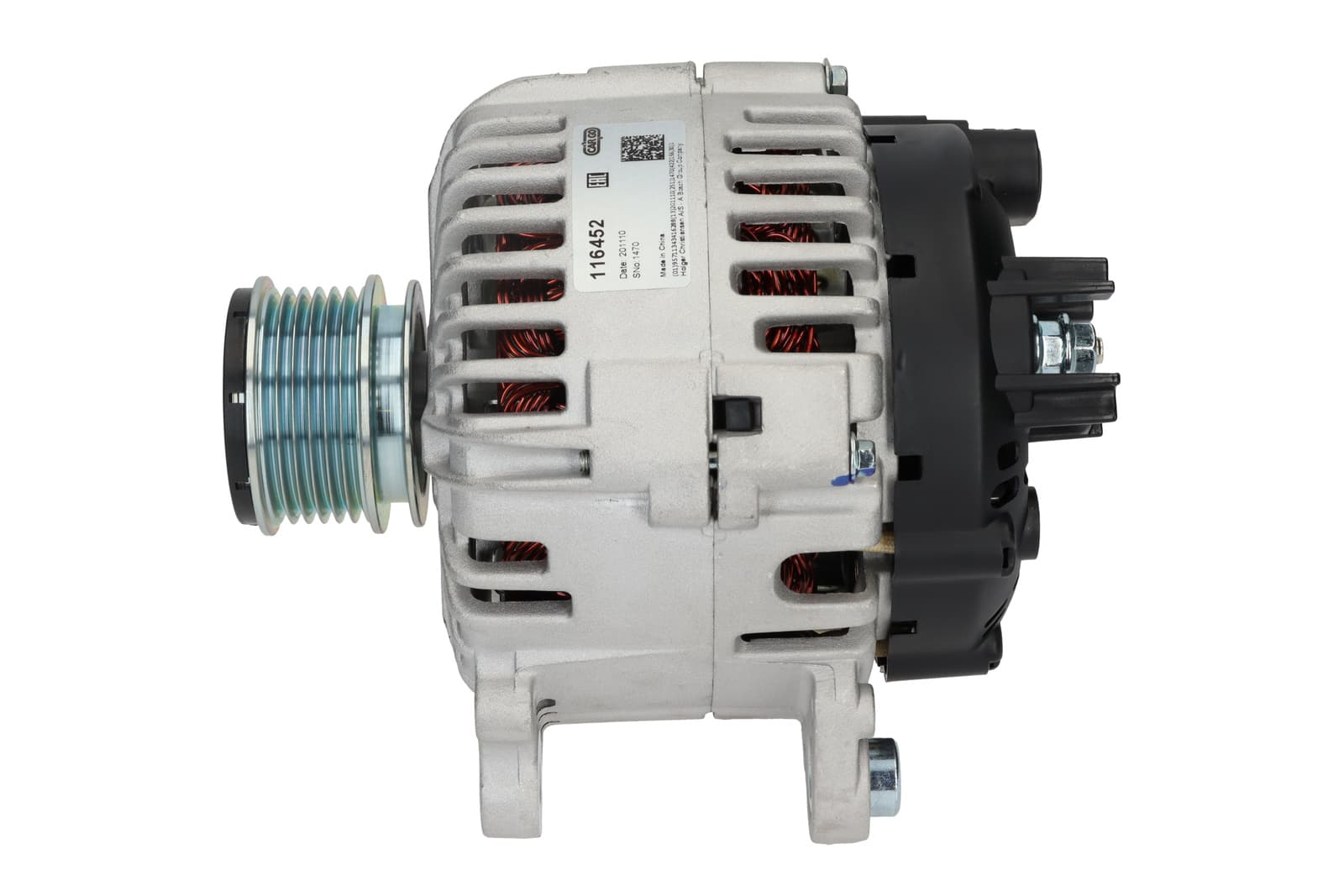

Product image - main
Trade number 116452

Details & description

Voltage 14, Amp 140, Communication LIN, Pulley SP/FW, Pulley Diameter 56.00, Bracket Hole Size Rear M8, Pulley Distance 40.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Belt Adjustment Bracket Hole 2 M8, Terminal type COM, Holder Arm Width 13.70, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL181, Rotation CW, B+ Position 46, Belt Adjustment Bracket Hole Position 45, Total Length 189.00

Product information

Electrical information

  • Voltage14
  • Amp140

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter56.00
  • Bracket Hole Size RearM8
  • Pulley Distance40.00
  • Mounting Bracket Distance61.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 03L903023AVW (VOLKSWAGEN)
    • 03L903023AXVW (VOLKSWAGEN)

    Competitor References

    • 302011RIAD KÜHNER
    • A3273AUTOSTARTER POLAND
    • A3273VALEOAUTOSTARTER POLAND
    • A3273PRAUTOSTARTER POLAND
    • 0986081160BOSCH
    • CAL10395CASCO SRL
    • CAL15457CASCO SRL
    • 305582140CV PSH
    • 305573140CV PSH
