F032116469 - Alternator

Trade number 116469

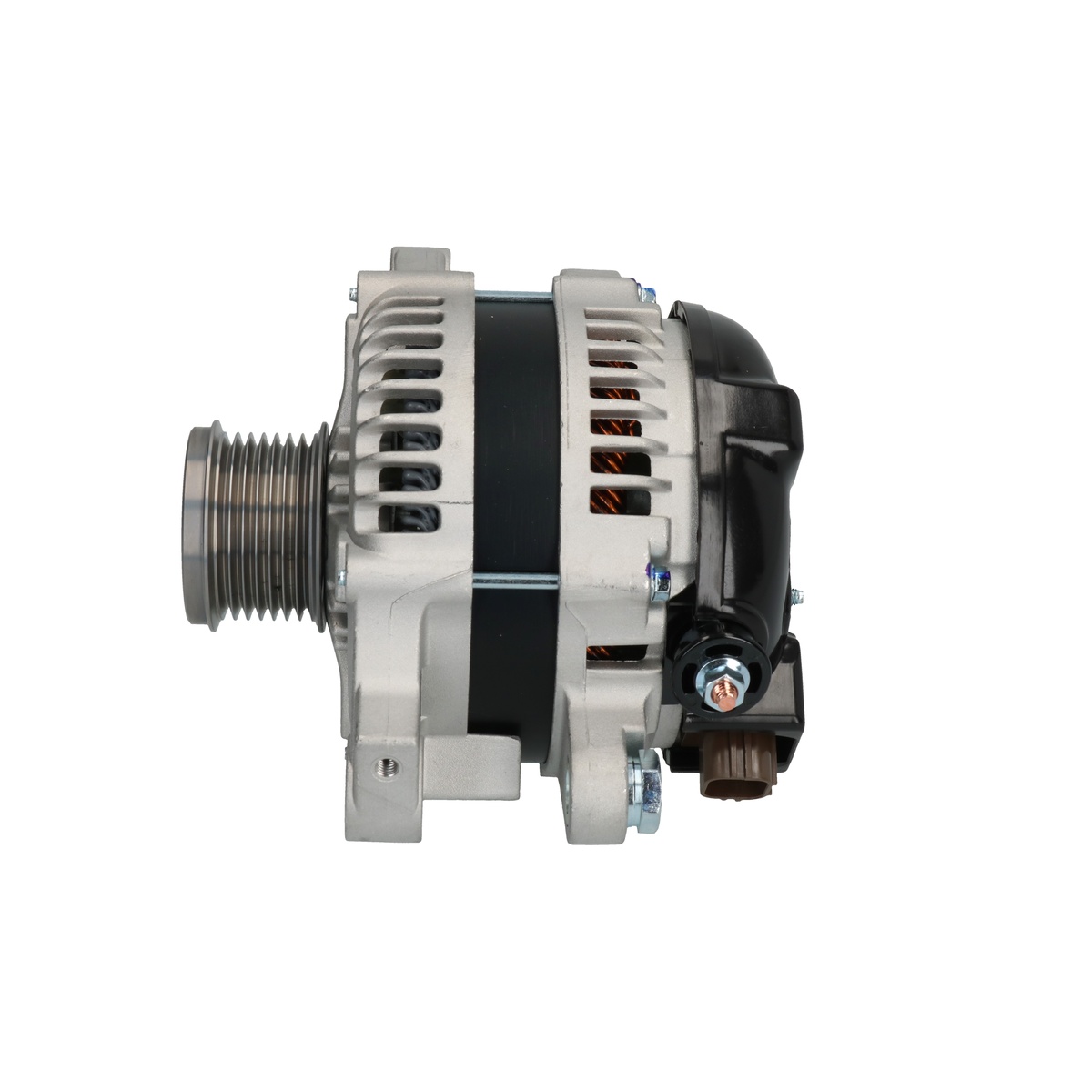

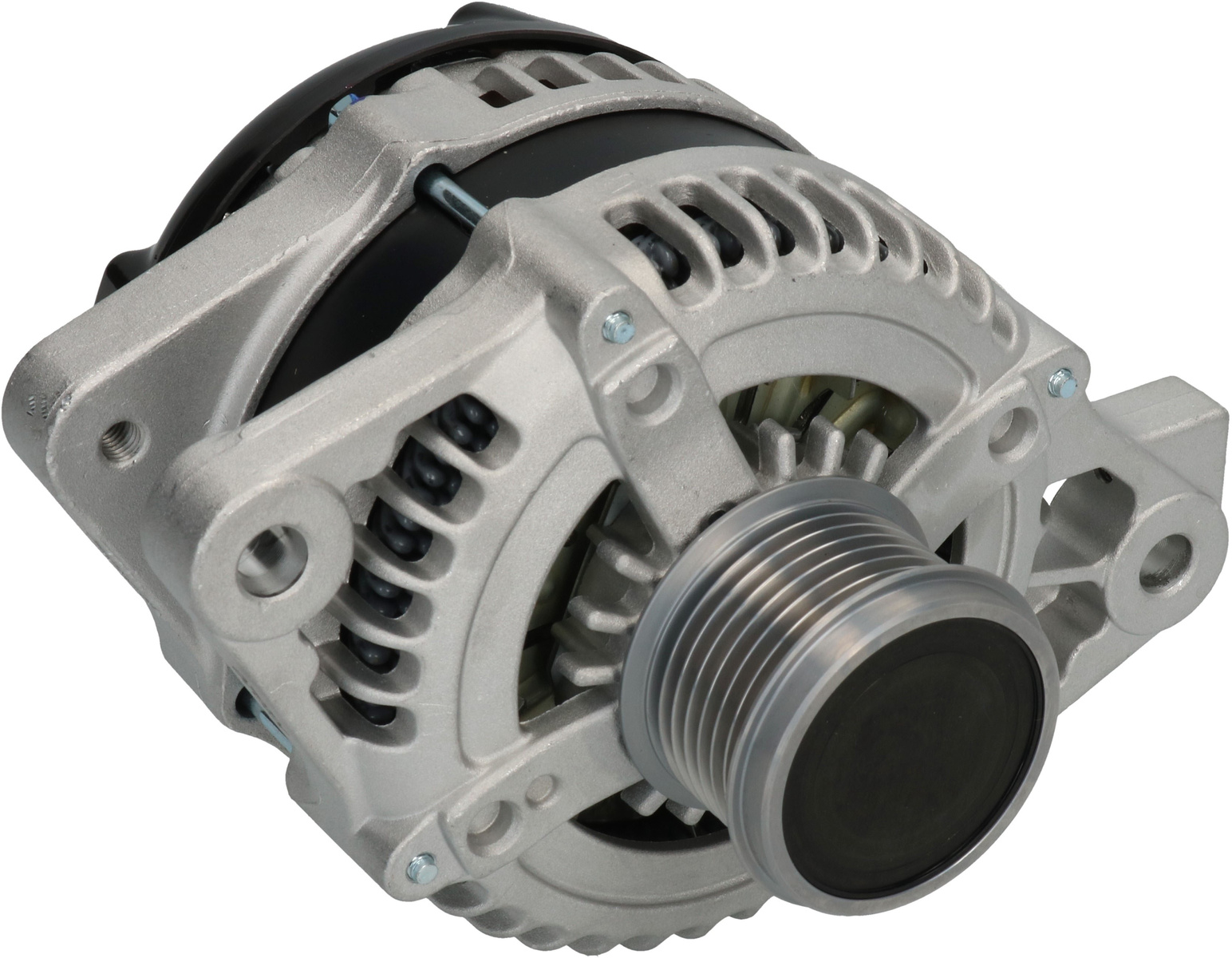

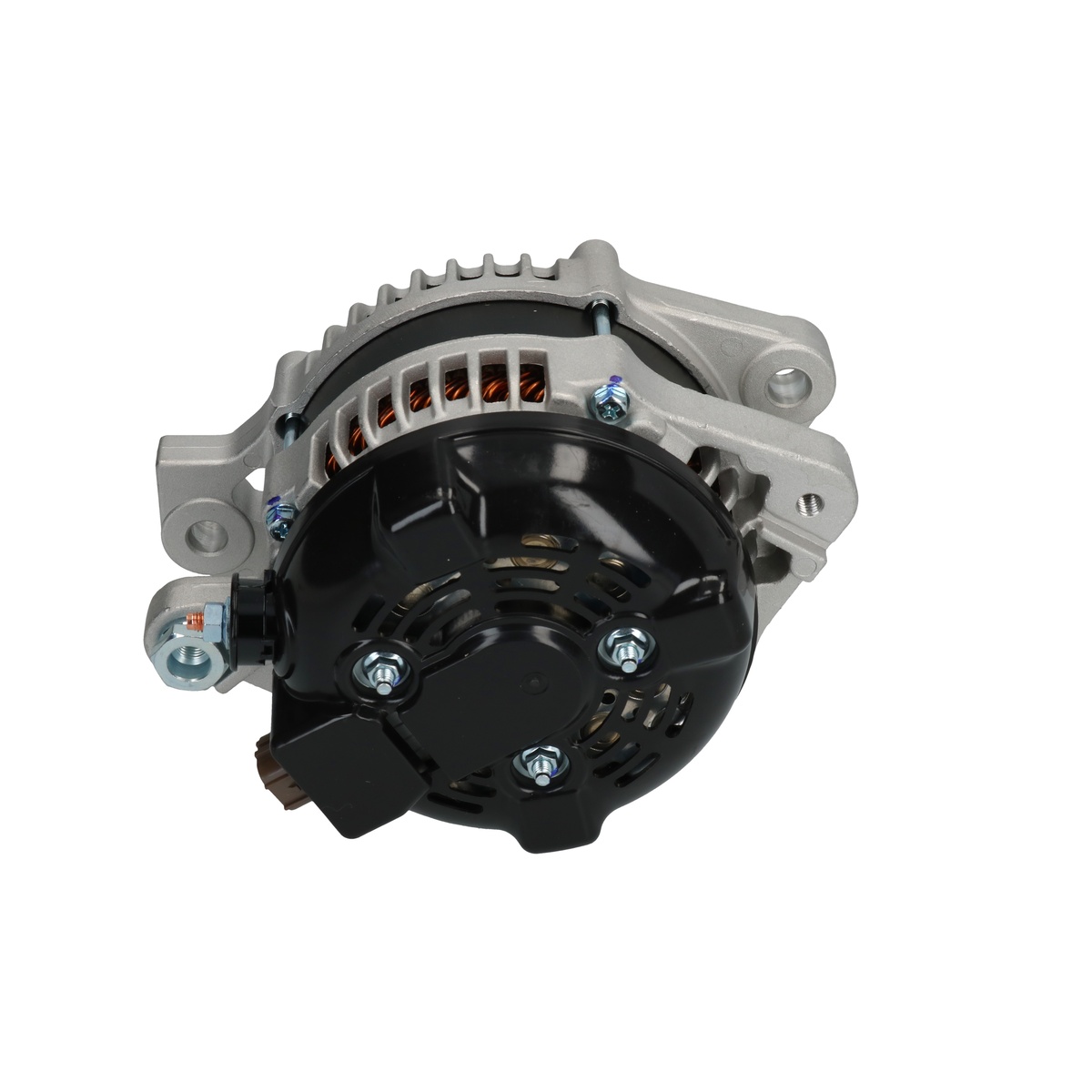

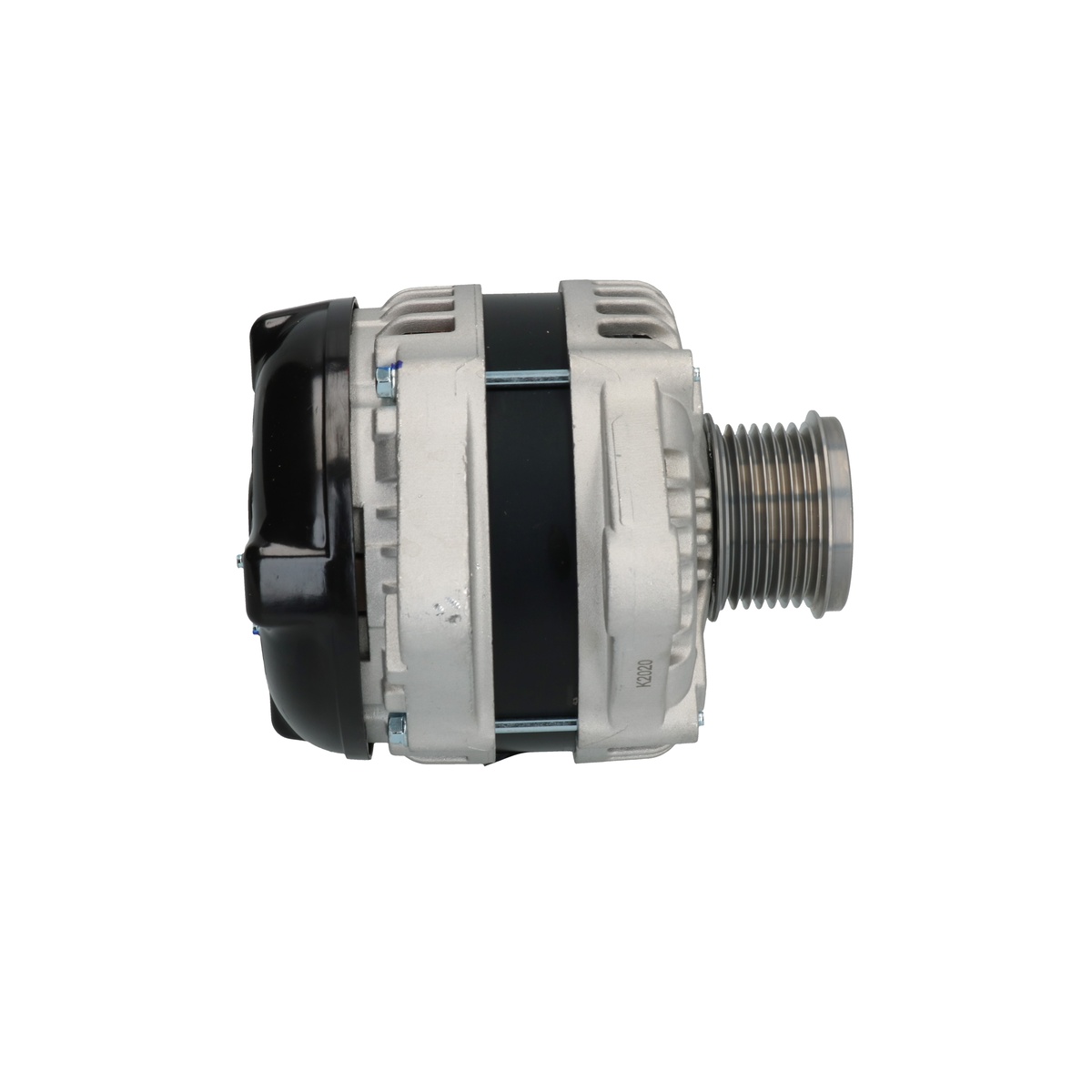

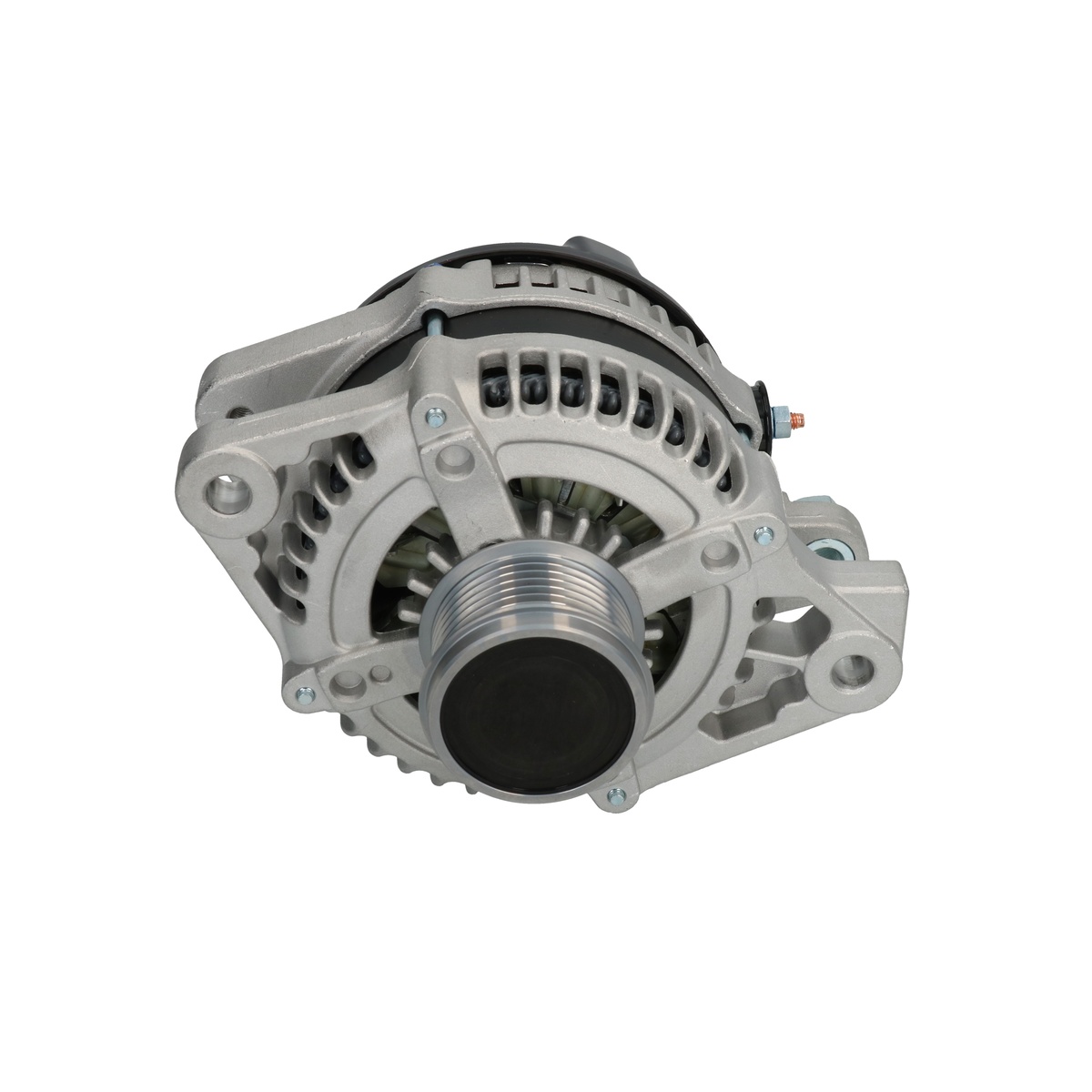

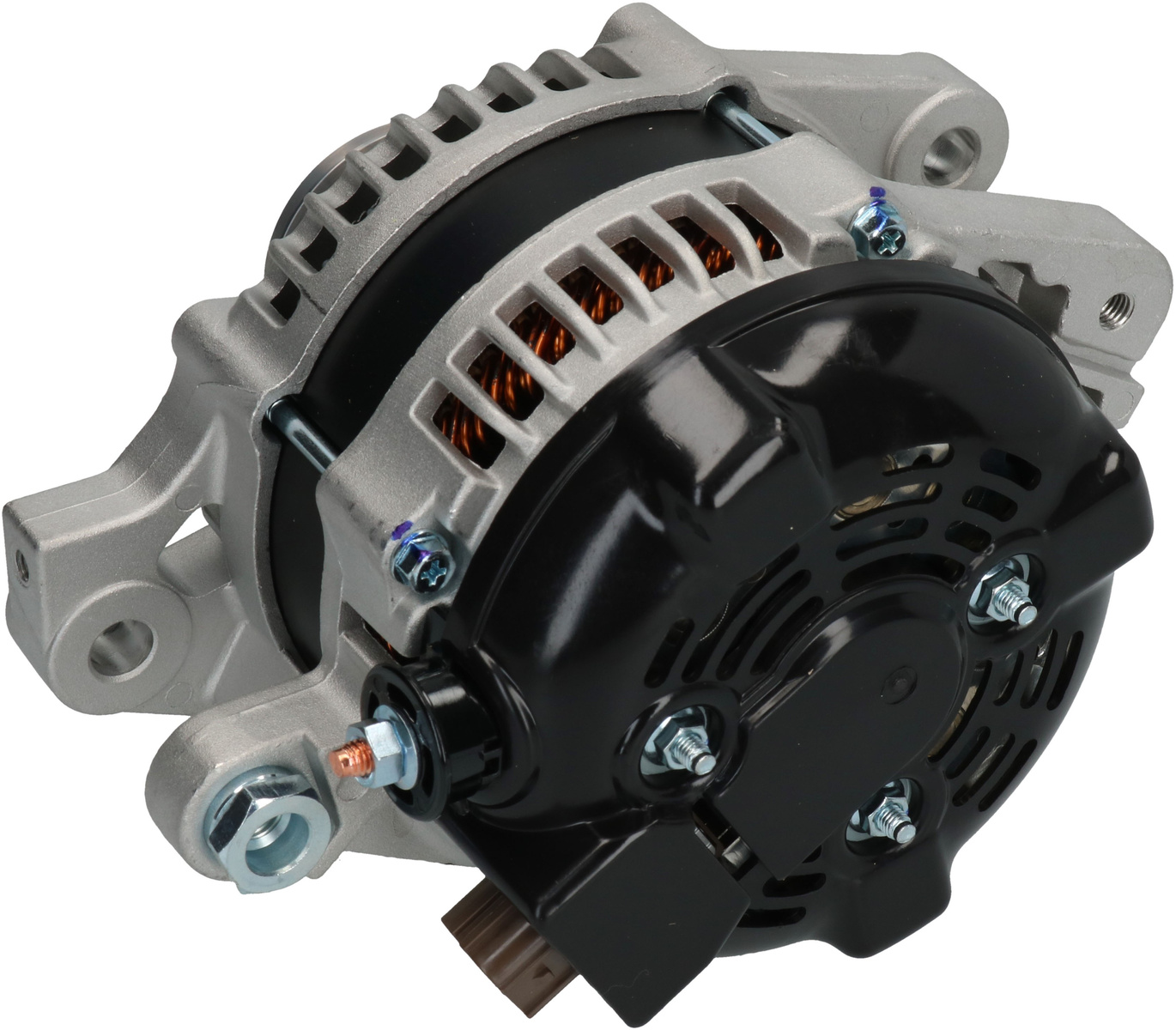

Product image - main
Trade number 116469

Details & description

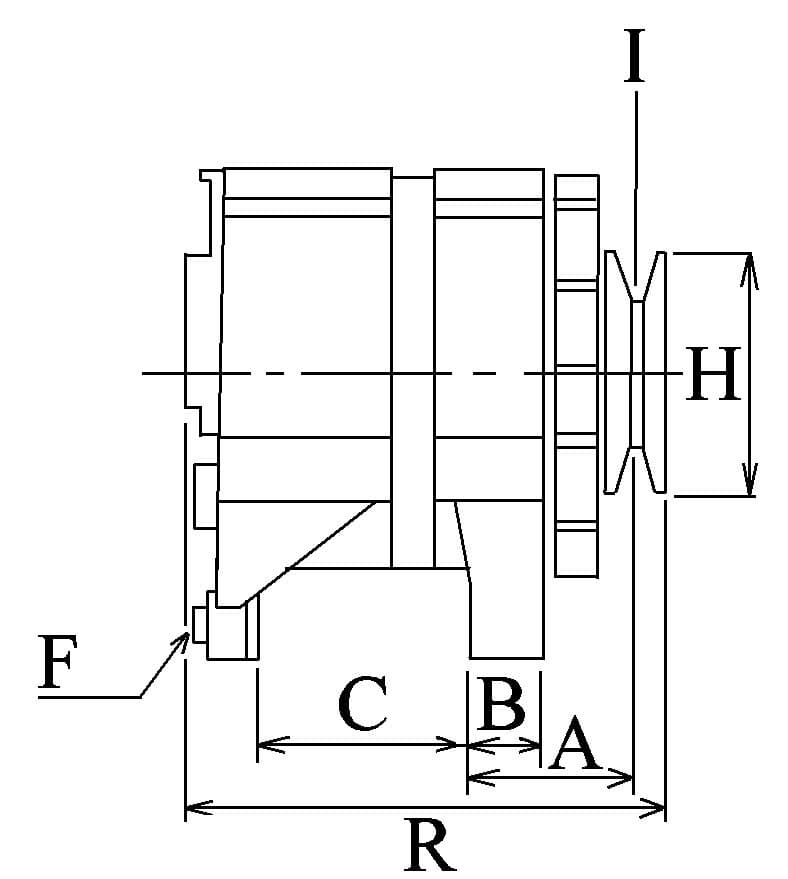

Voltage 14, Amp 150, Pulley SP/FW, Pulley Diameter 52.50, Bracket Hole Size Rear M8, D+ Position 58, Pulley Distance 38.30, Mounting Bracket Distance 33.00, Radius 84.00, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 11.00, Belt Adjustment Bracket Hole 2 M10, Terminal type RLO, D+ Size Plug, Holder Arm Width 18.00, B+ M6, Fan IF, Radius 2 90.00, Plug no. 1 PL146, Rotation CW, B+ Position 3, Belt Adjustment Bracket Hole Position 57, Total Length 176.00

Product information

Electrical information

  • Voltage14
  • Amp150

Physical information

  • PulleySP/FW
  • Pulley Diameter52.50
  • Bracket Hole Size RearM8
  • D+ Position58
  • Pulley Distance38.30
  • Mounting Bracket Distance33.00
  • Radius84.00
  • Belt Adjustment Bracket Hole 111.00
  • Grooves/pulley7

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 2706031050TOYOTA
    • 2706031051TOYOTA
    • 2706031060TOYOTA
    • 2706031062TOYOTA
    • 2706031052TOYOTA
    • 2706031201TOYOTA
    • 2706031212TOYOTA

    Competitor References

    • DRA0883AC DELCO
    • 553862RIAD KÜHNER
    • 553706RIAD KÜHNER
    • A6522SAUTOSTARTER POLAND
    • A6323AUTOSTARTER POLAND
    • 0986UR6016BOSCH
    • 1986A01689BOSCH
    • CAL40376CASCO SRL
    • 195957150CV PSH
