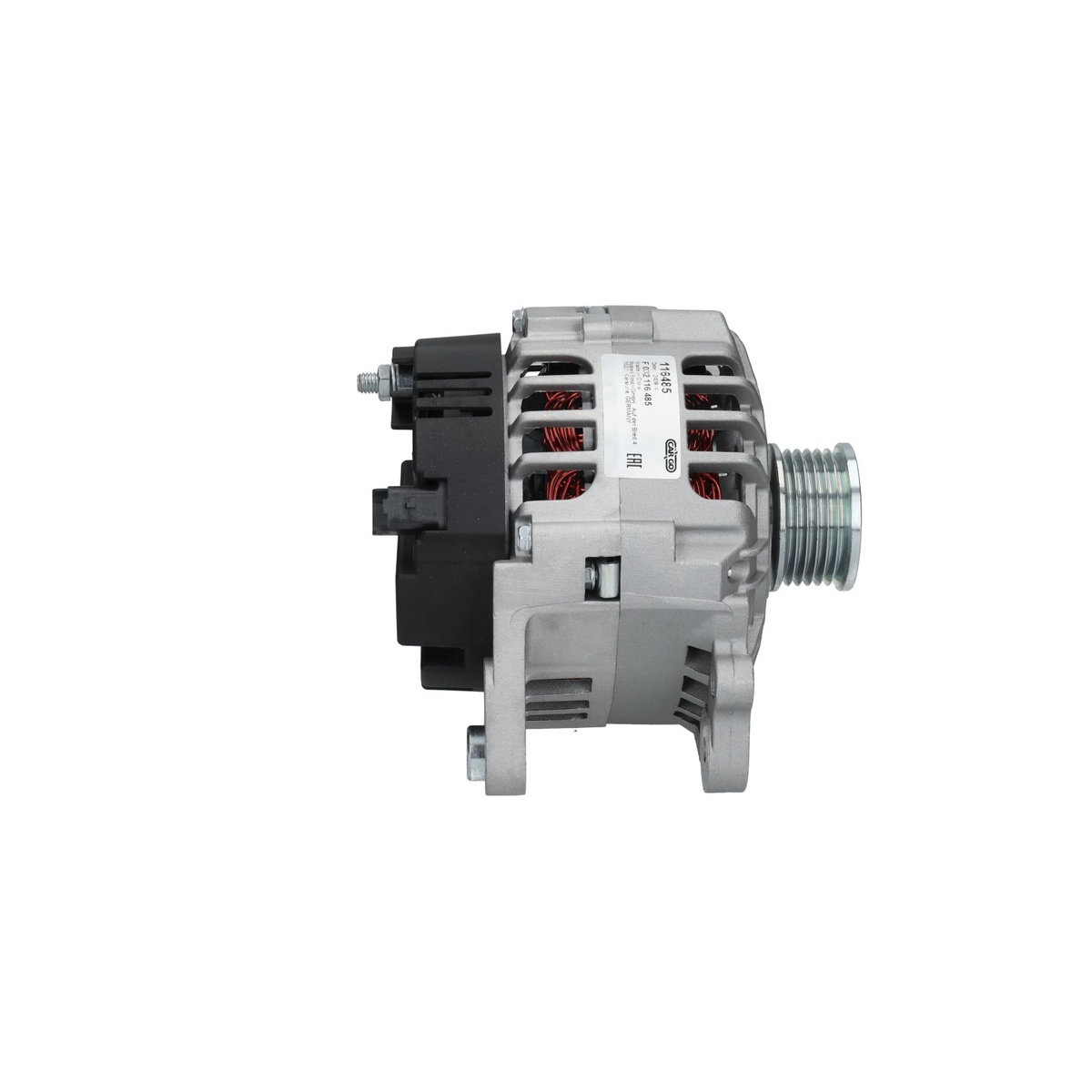

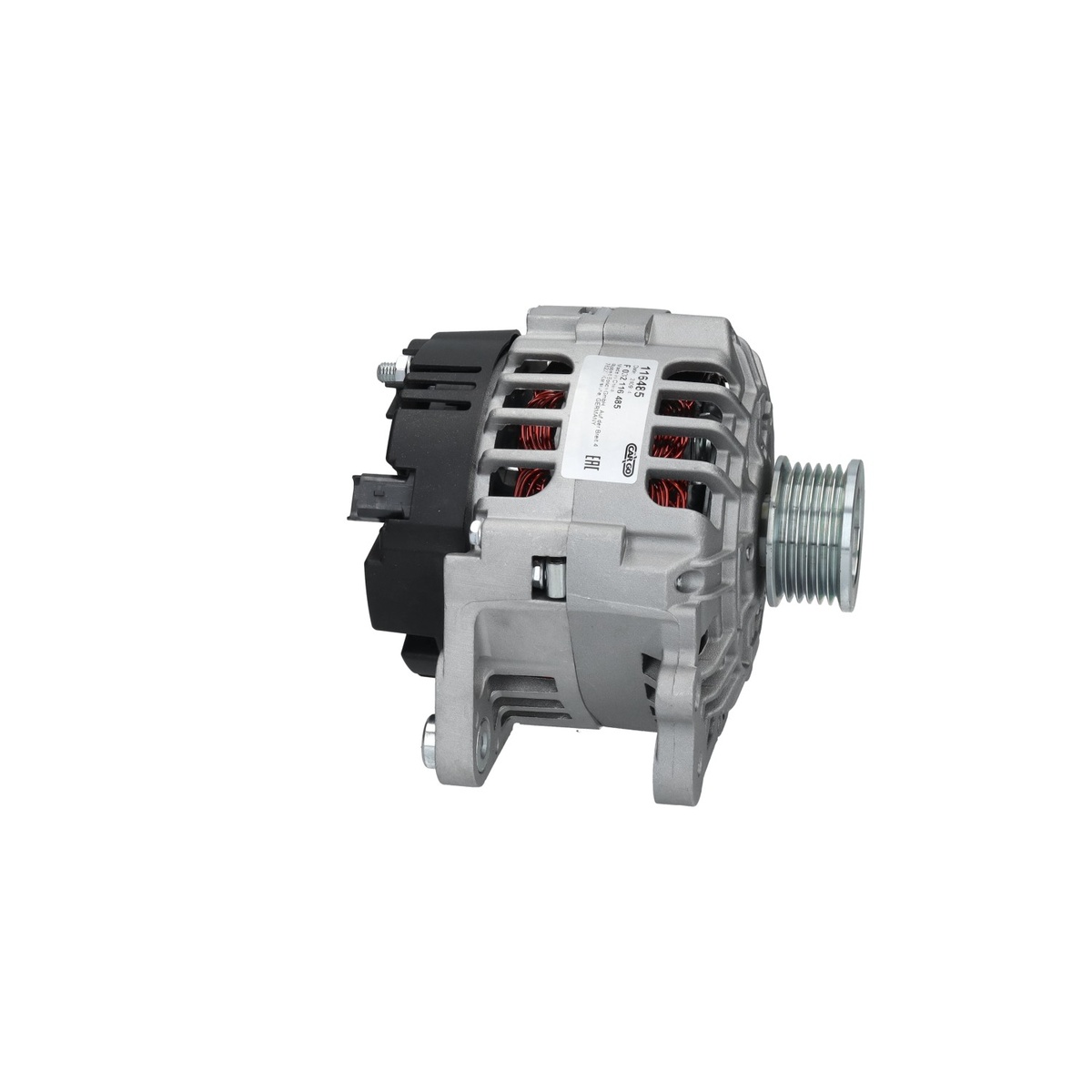

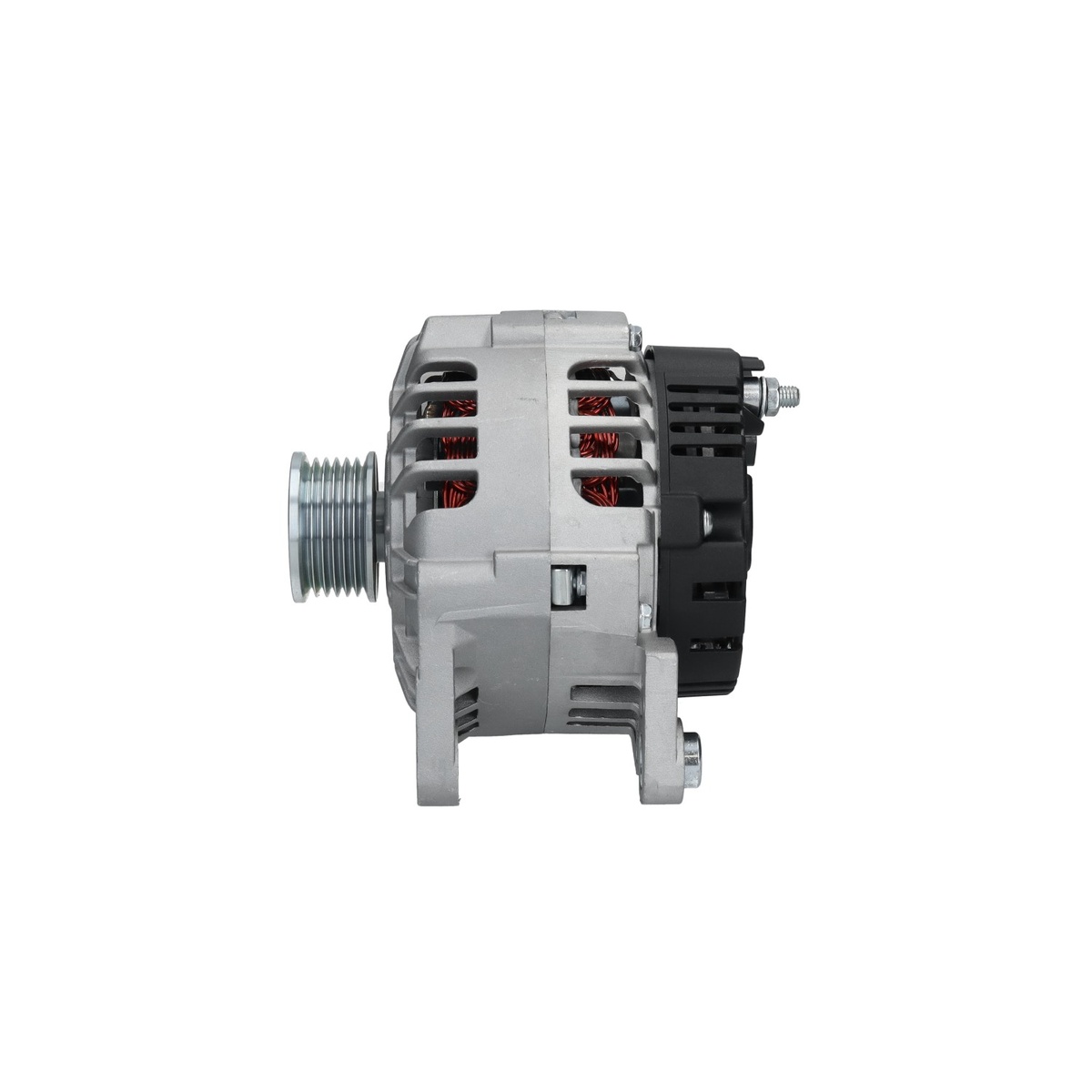

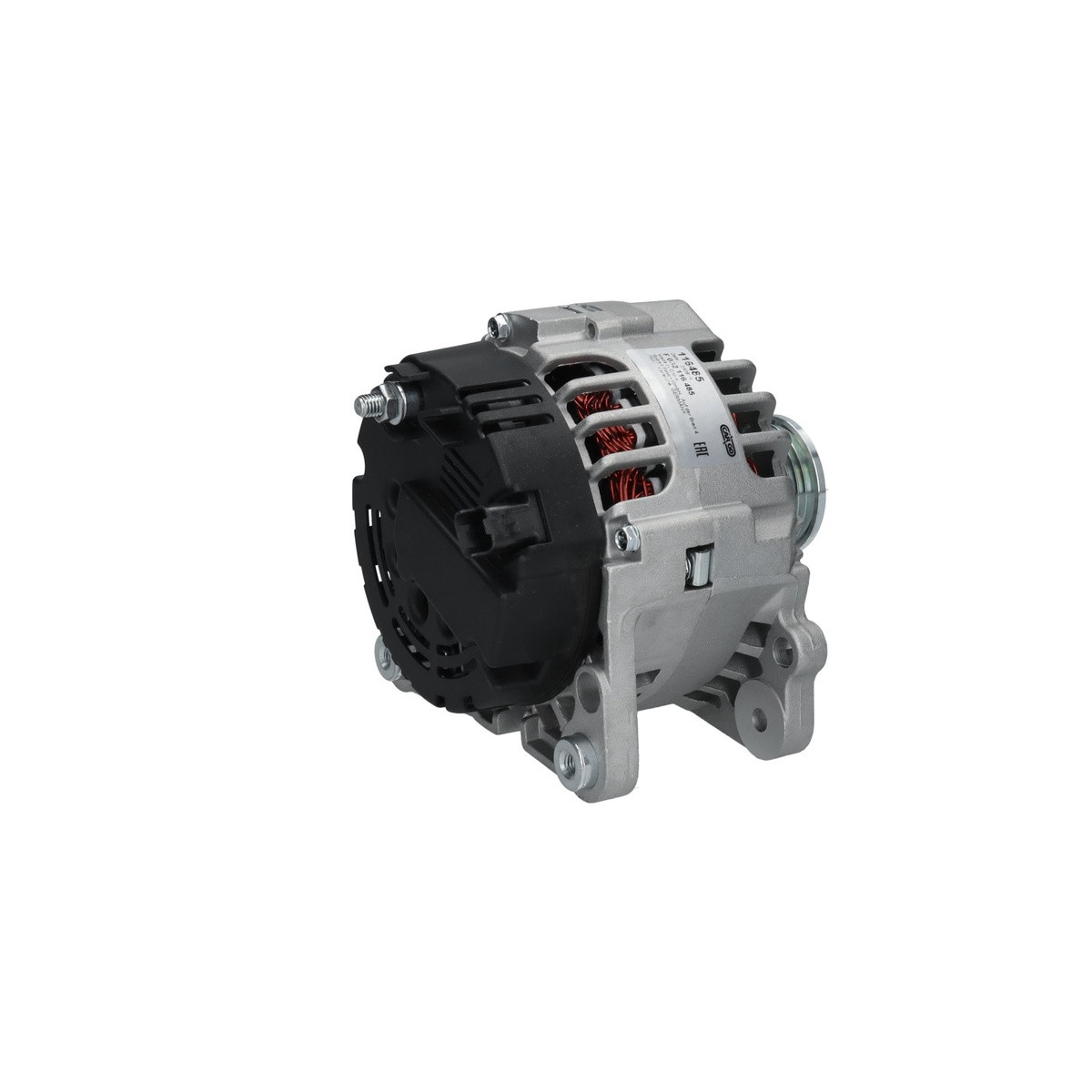

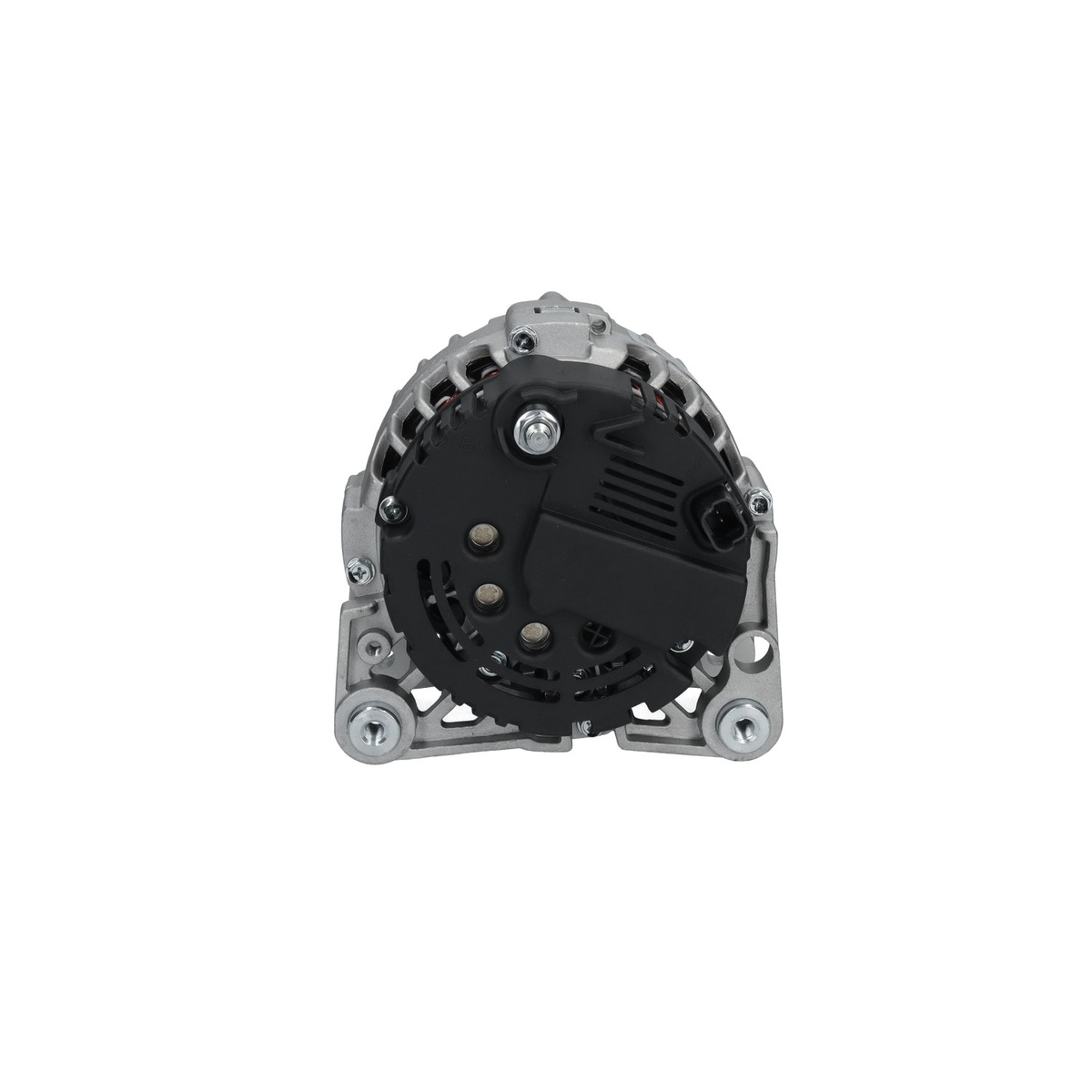

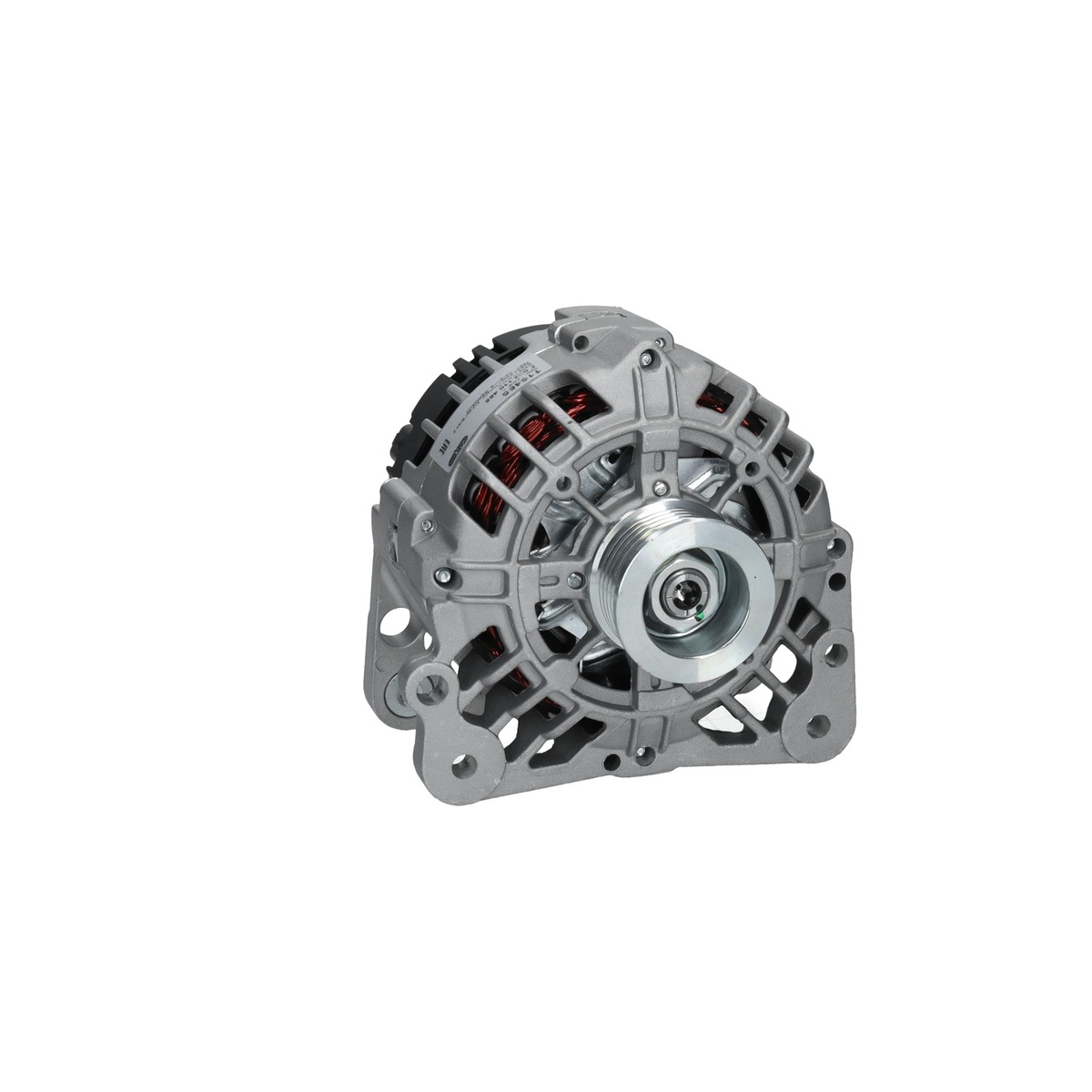

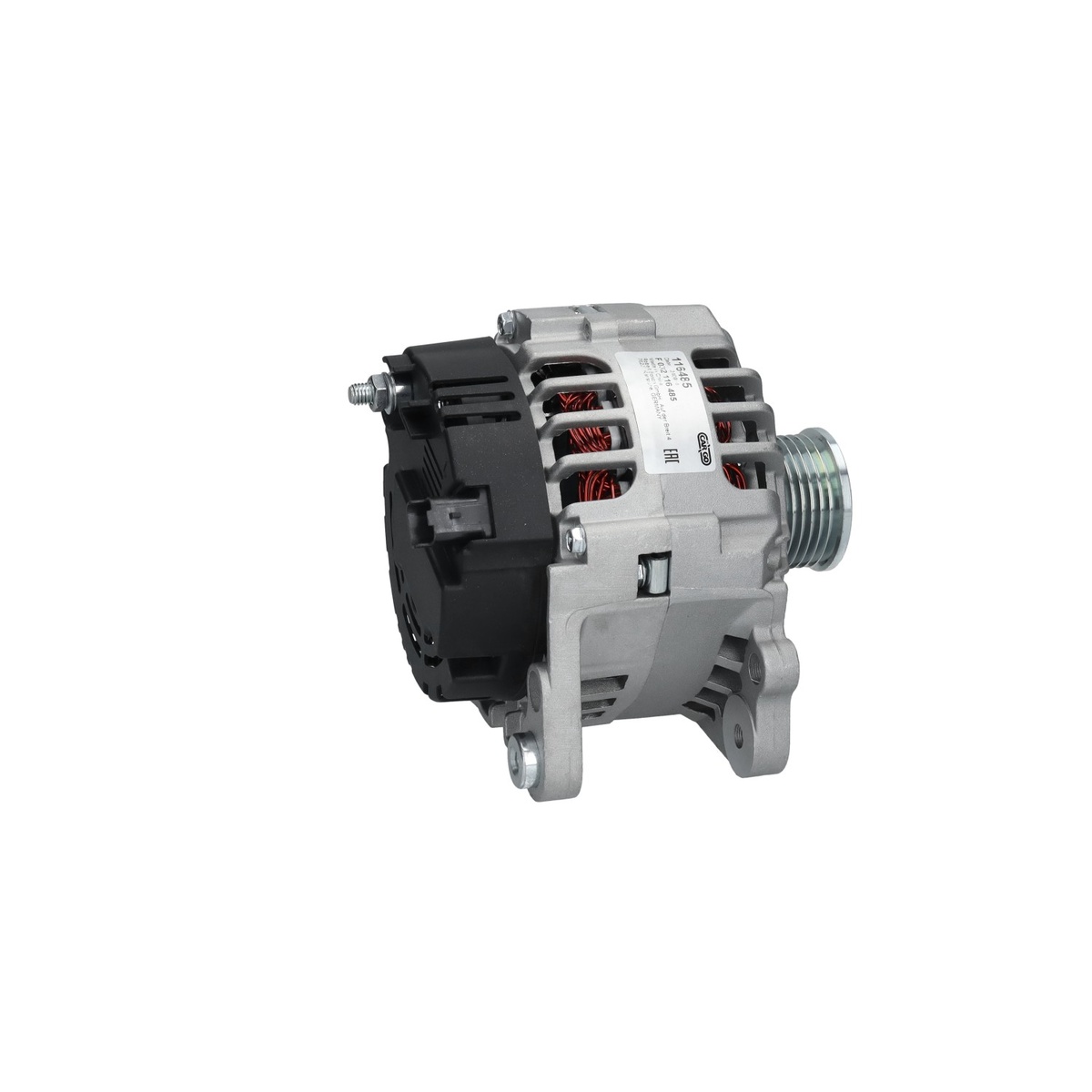

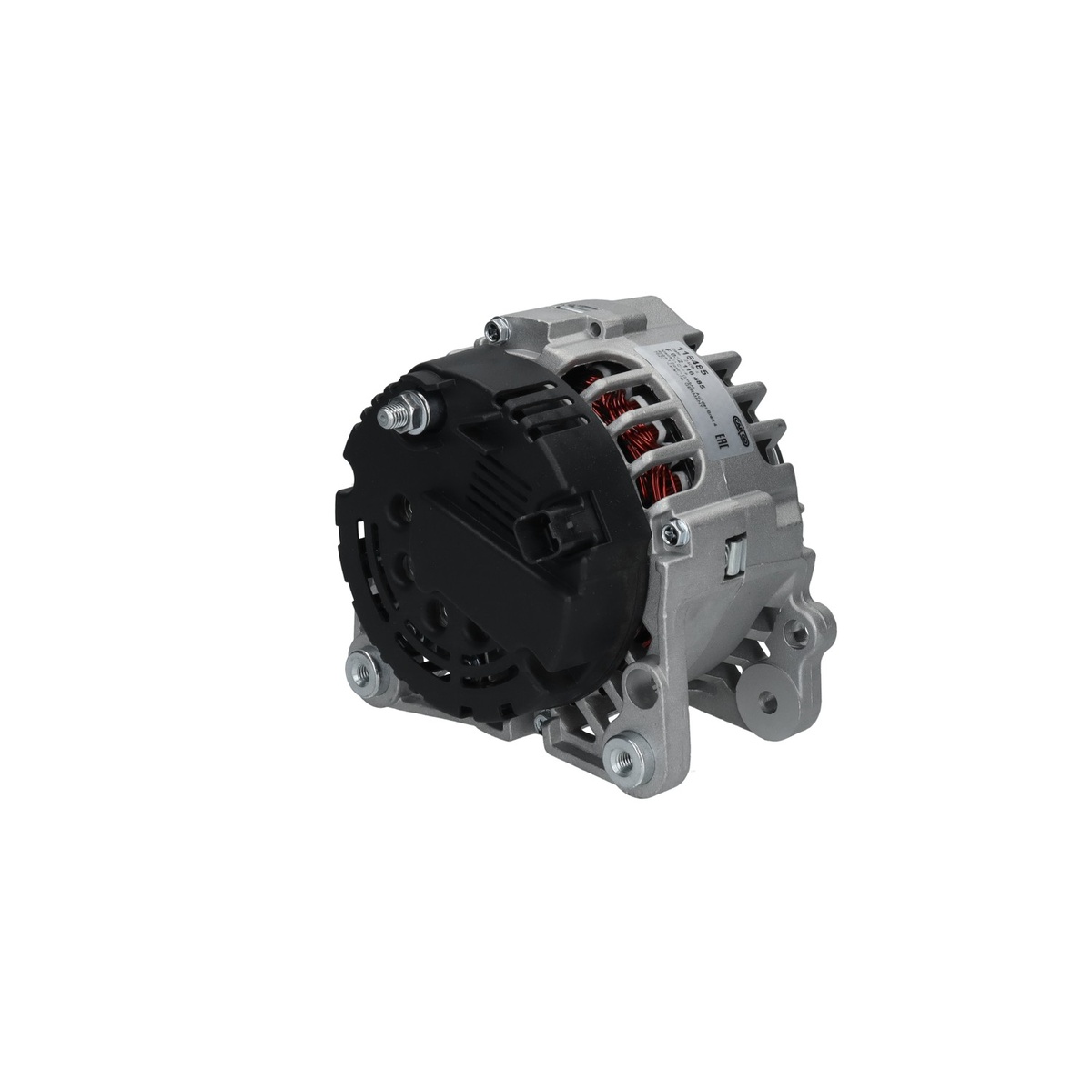

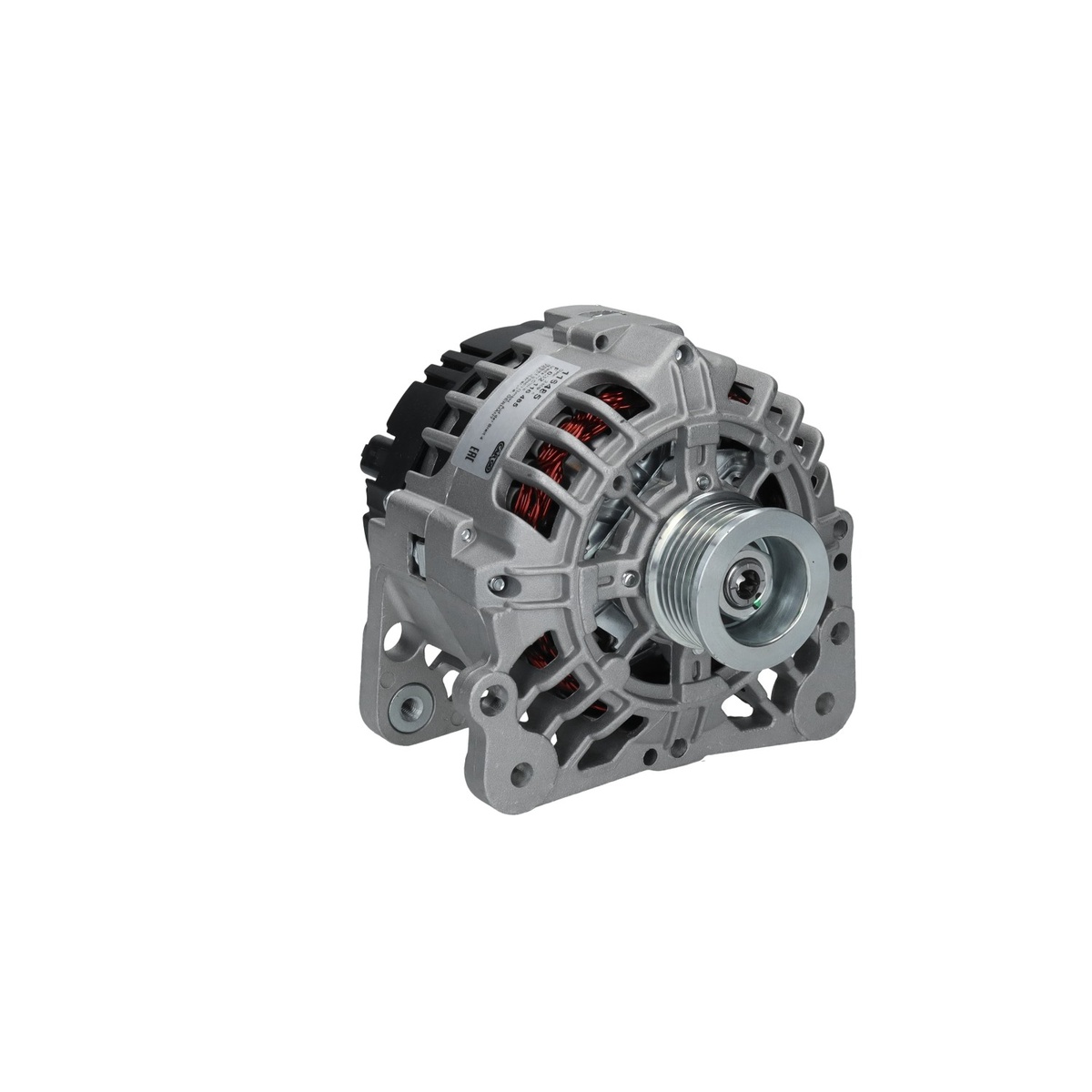

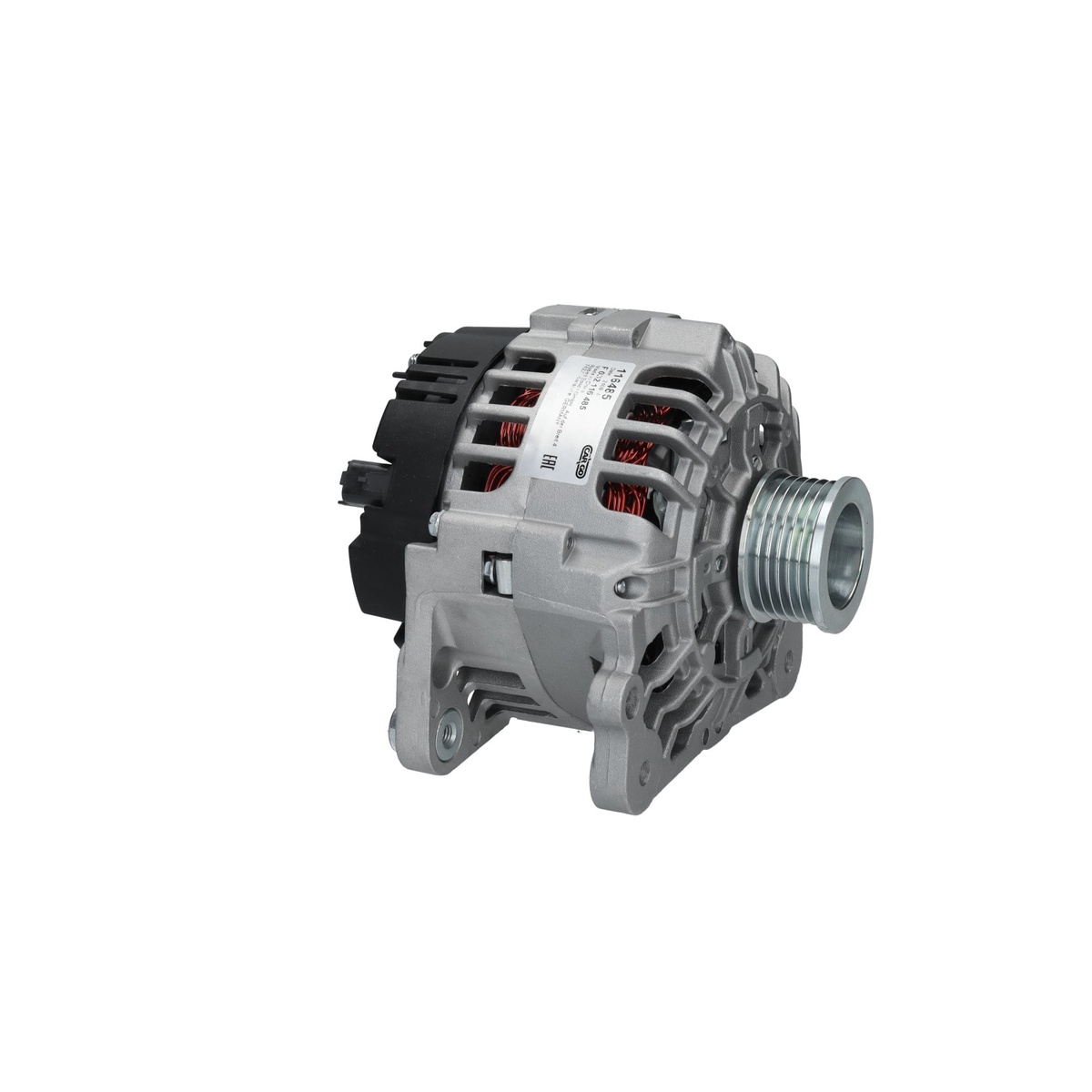

F032116485 - Alternator

Trade number 116485
Trade number 116485

Details & description

Voltage 14, Amp 100, Pulley SP, Pulley Diameter 49.00, Bracket Hole Size Rear M8, D+ Position 4, Pulley Distance 33.00, Mounting Bracket Distance 60.50, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type L-DFM, D+ Size Plug, Holder Arm Width 13.50, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL72, Rotation CW, B+ Position 51, Belt Adjustment Bracket Hole Position 45, Total Length 174.00

Product information

Electrical information

  • Voltage14
  • Amp100

Physical information

  • PulleySP
  • Pulley Diameter49.00
  • Bracket Hole Size RearM8
  • D+ Position4
  • Pulley Distance33.00
  • Mounting Bracket Distance60.50
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 2310000Q0CNISSAN
    • 2310000Q1KNISSAN
    • 2310000QARNISSAN
    • 4412556OPEL
    • 4431557OPEL
    • 93160649OPEL
    • 93161047OPEL
    • 93161788OPEL
    • 93177152OPEL
  • Competitor References

    • 301829RIAD KÜHNER
    • A3625PRAUTOSTARTER POLAND
    • 0986045110BOSCH
    • 0986045113BOSCH
    • CAL15355CASCO SRL
    • 575562095CV PSH
    • DRA0048DELCO REMY
    • 230313952DRI
    • 285544ELSTOCK
