F032116488 - Alternator

Trade number 116488

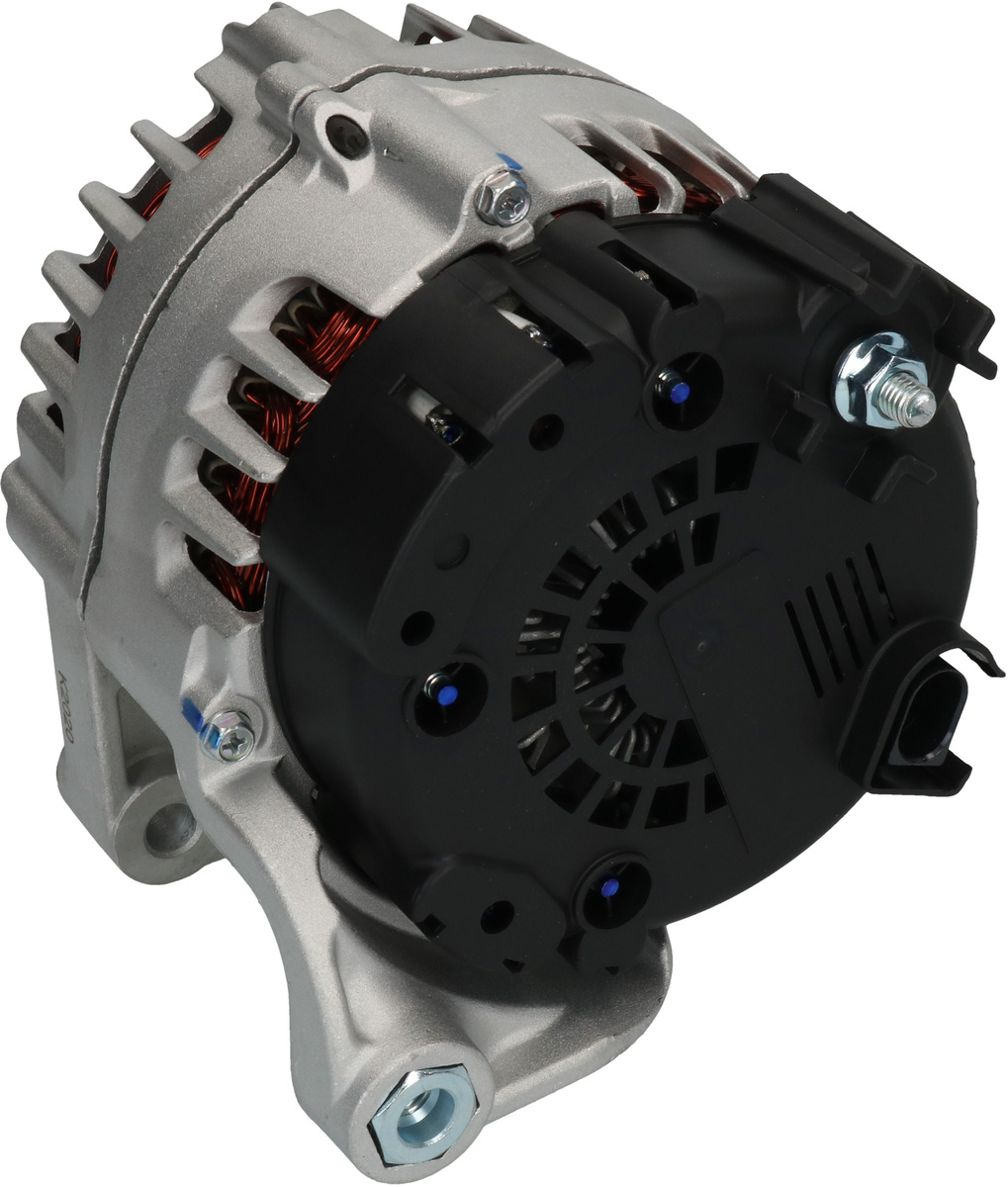

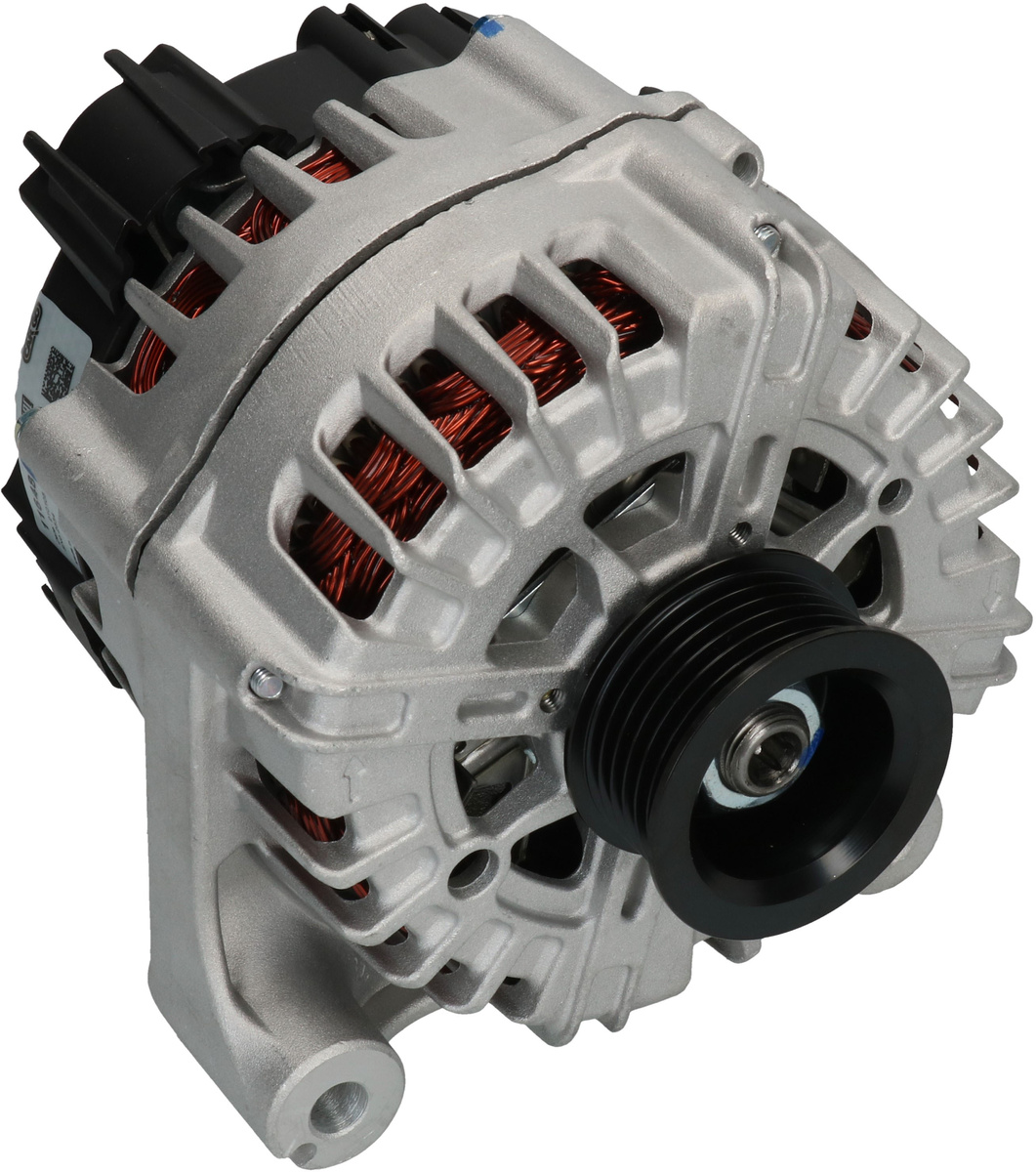

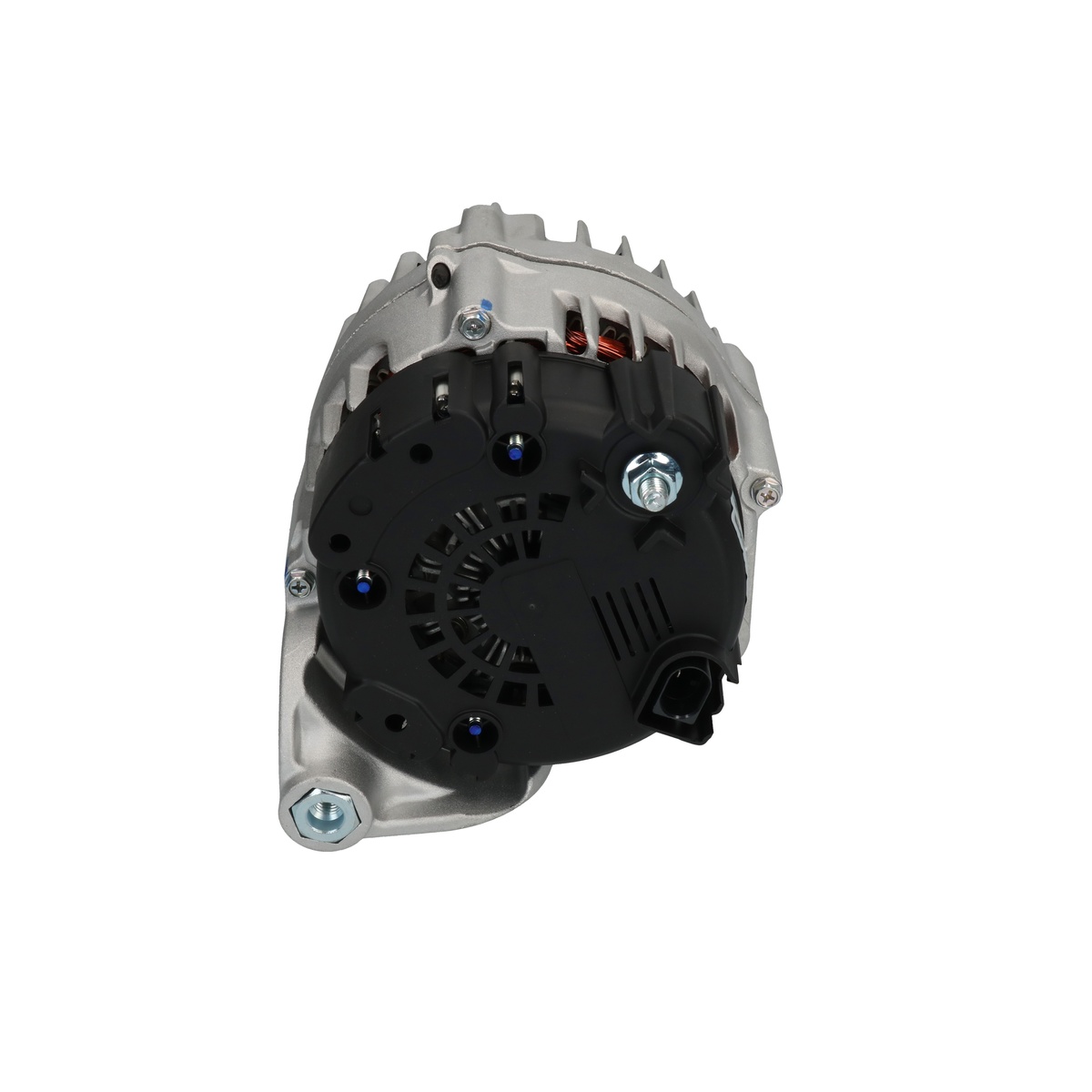

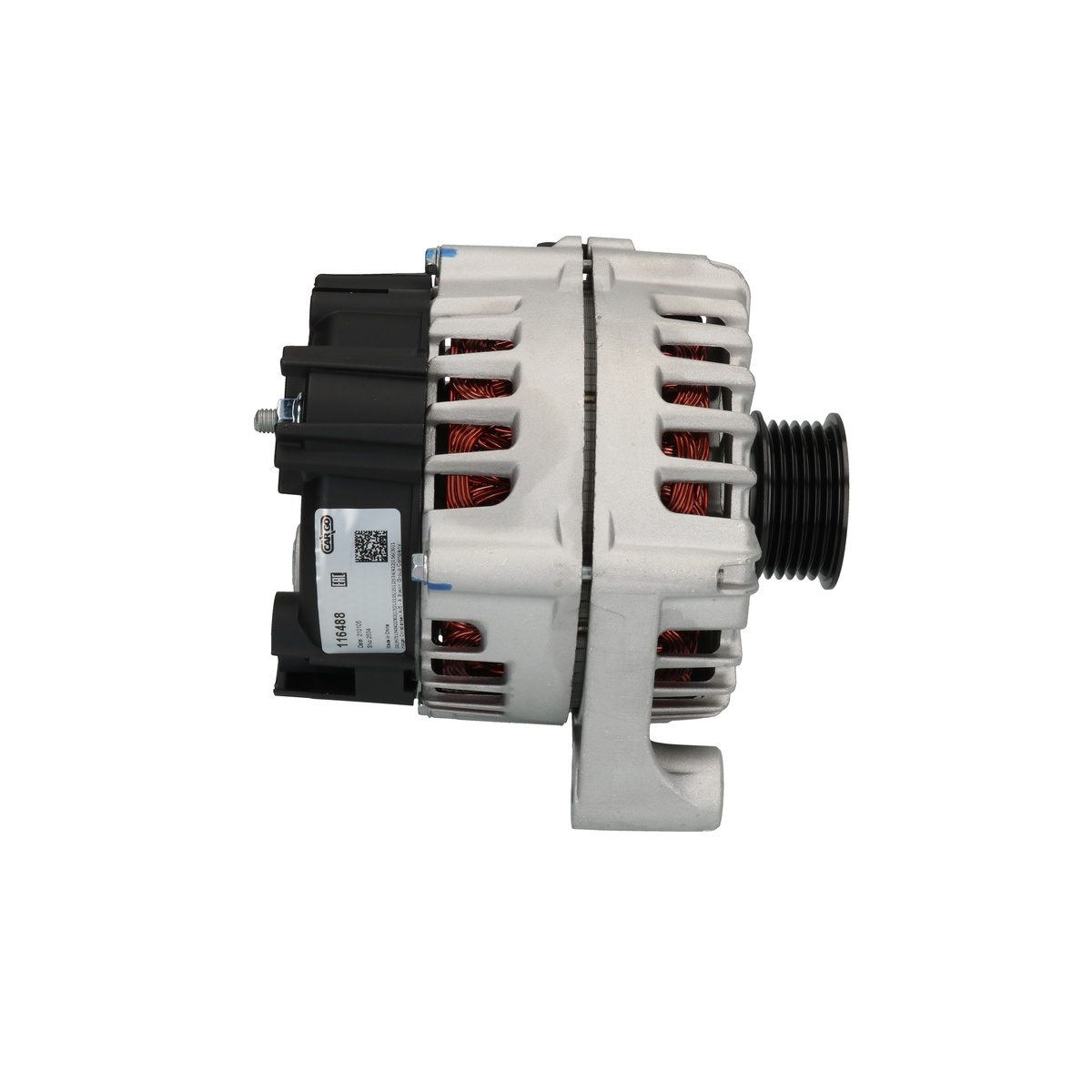

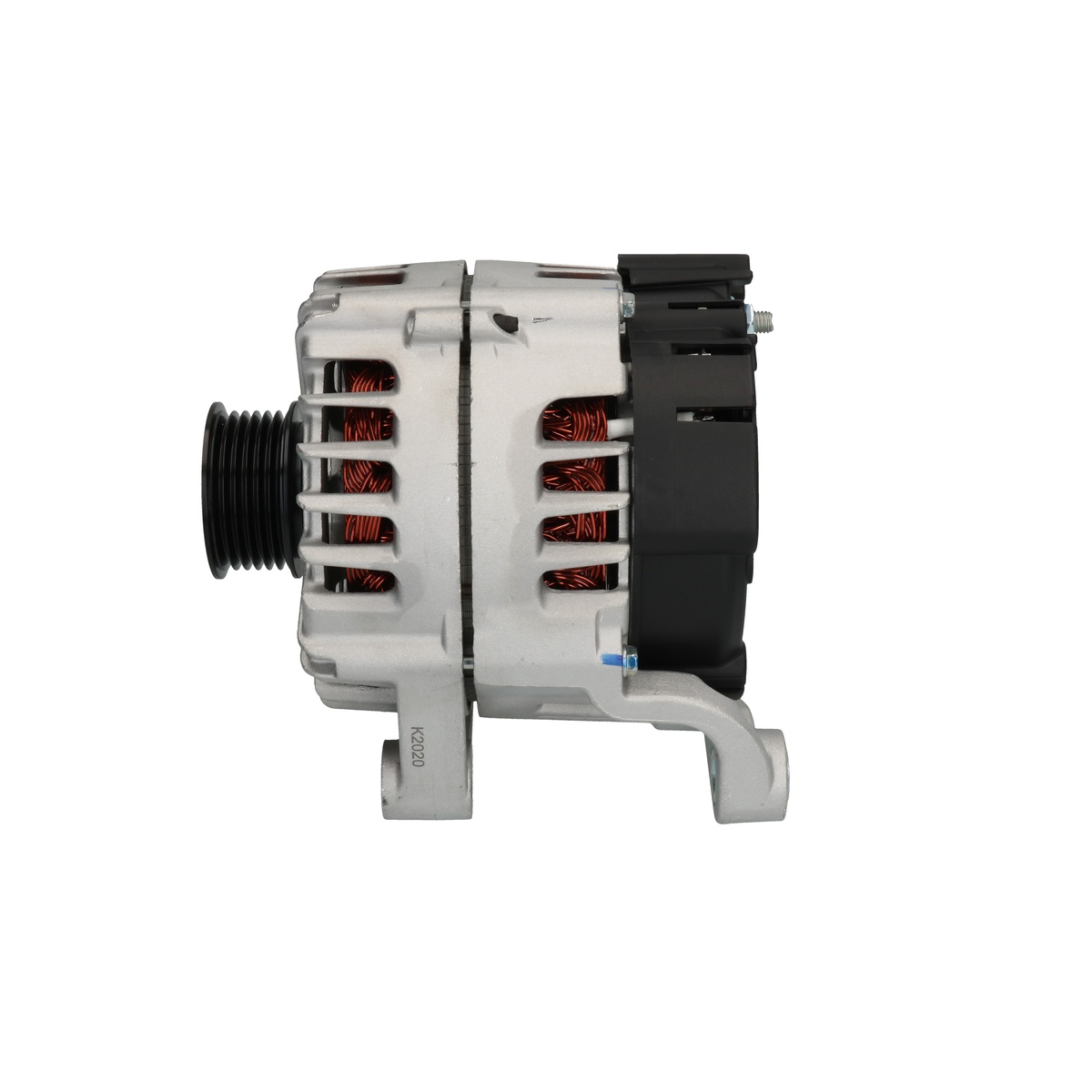

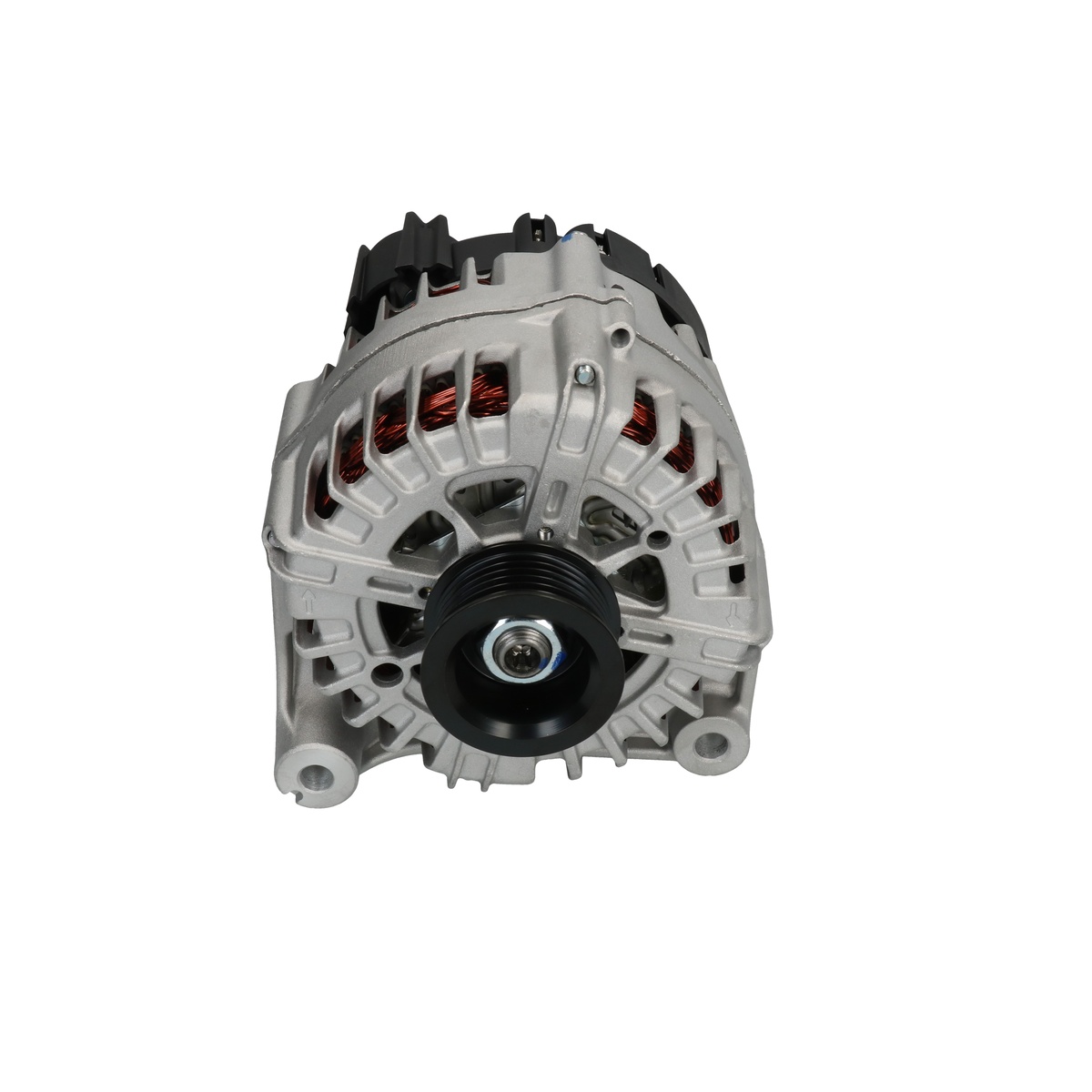

Product image - main
Trade number 116488

Details & description

Voltage 14, Amp 180, Communication BSS, Pulley SP, Pulley Diameter 52.00, Bracket Hole Size Rear 10.50, Pulley Distance 60.00, ID Code 53, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 75.40, Radius 93.00, Belt Adjustment Bracket Hole 1 M10, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 11.00, Terminal type COM, Holder Arm Width 28.00, B+ M8, Fan IF, Radius 2 93.00, Plug no. 1 PL125, Rotation CW, B+ Position 59, Belt Adjustment Bracket Hole Position 44, Total Length 180.50

Product information

Electrical information

  • Voltage14
  • Amp180

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP
  • Pulley Diameter52.00
  • Bracket Hole Size Rear10.50
  • Pulley Distance60.00
  • ID Code53
  • Mounting Bracket Distance75.40
  • Radius93.00
  • Belt Adjustment Bracket Hole 1M10
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 12317837981BMW
    • 12317838656BMW

    Competitor References

    • DRA0758AC DELCO
    • 554216RIAD KÜHNER
    • A3438SAUTOSTARTER POLAND
    • CAL15484CASCO SRL
    • 215541180CV PSH
    • DRA0758DELCO REMY
    • 2151901802DRI
    • 285912ELSTOCK
    • 209171ERA SPA
