F032116494 - Alternator

Trade number 116494

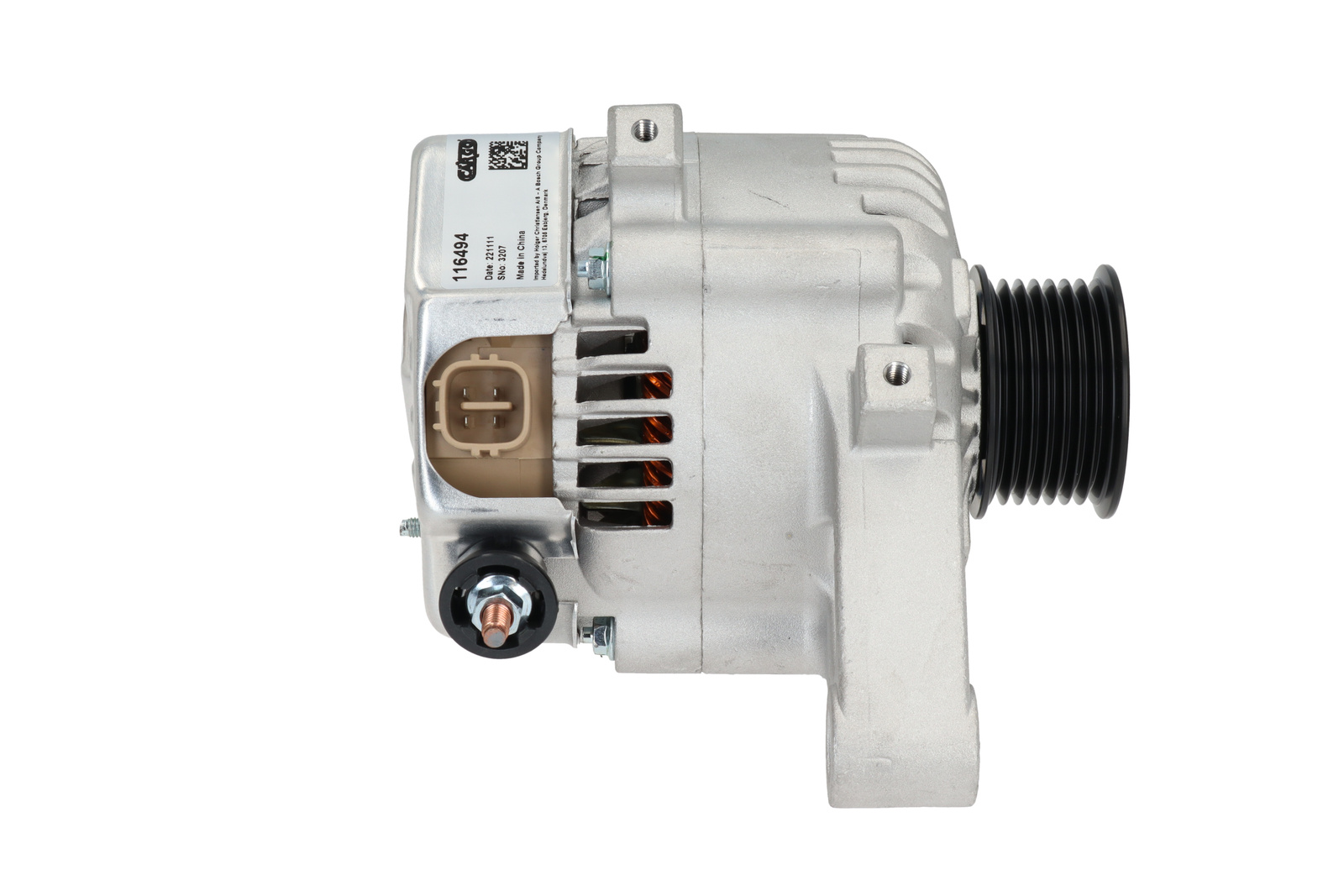

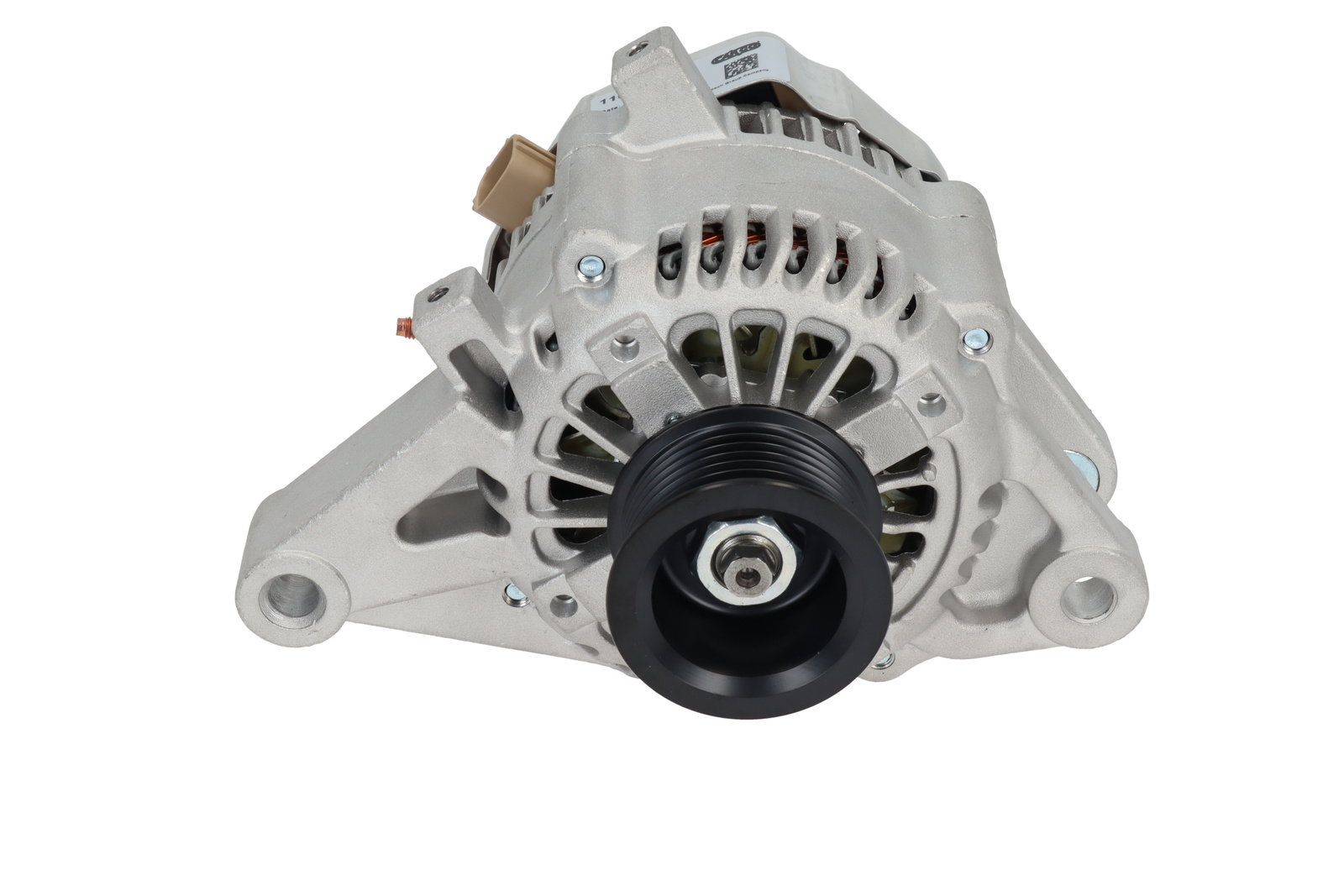

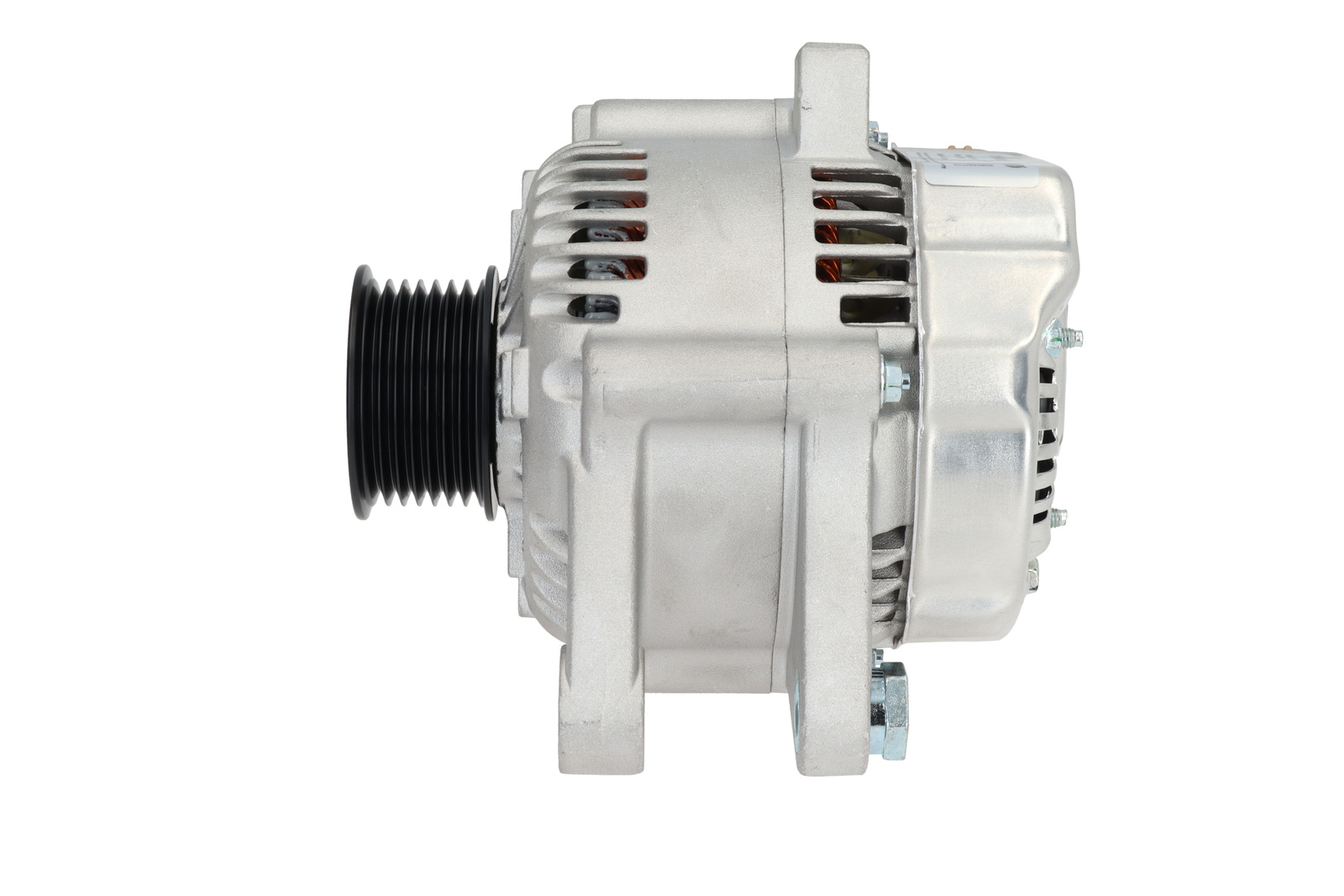

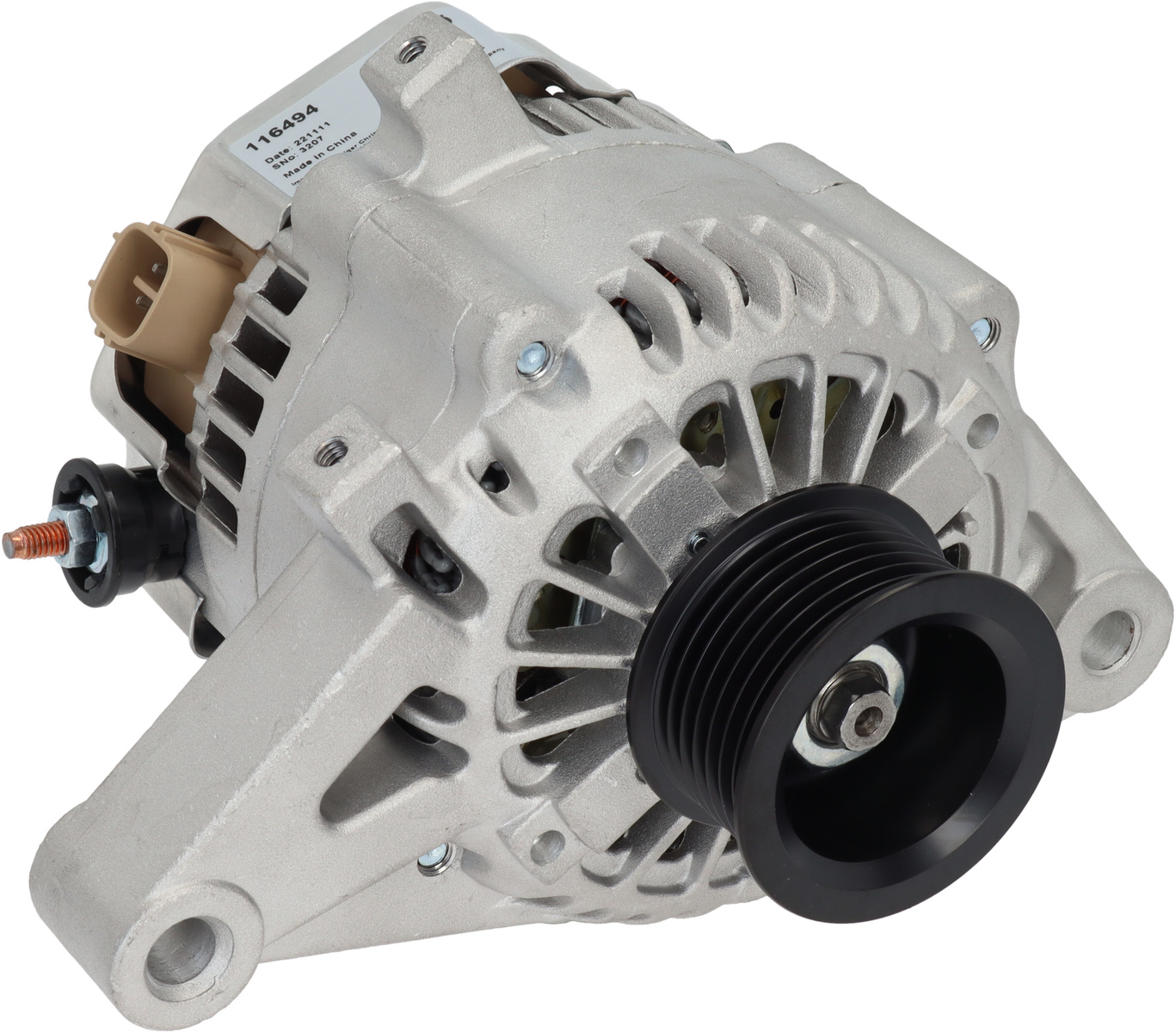

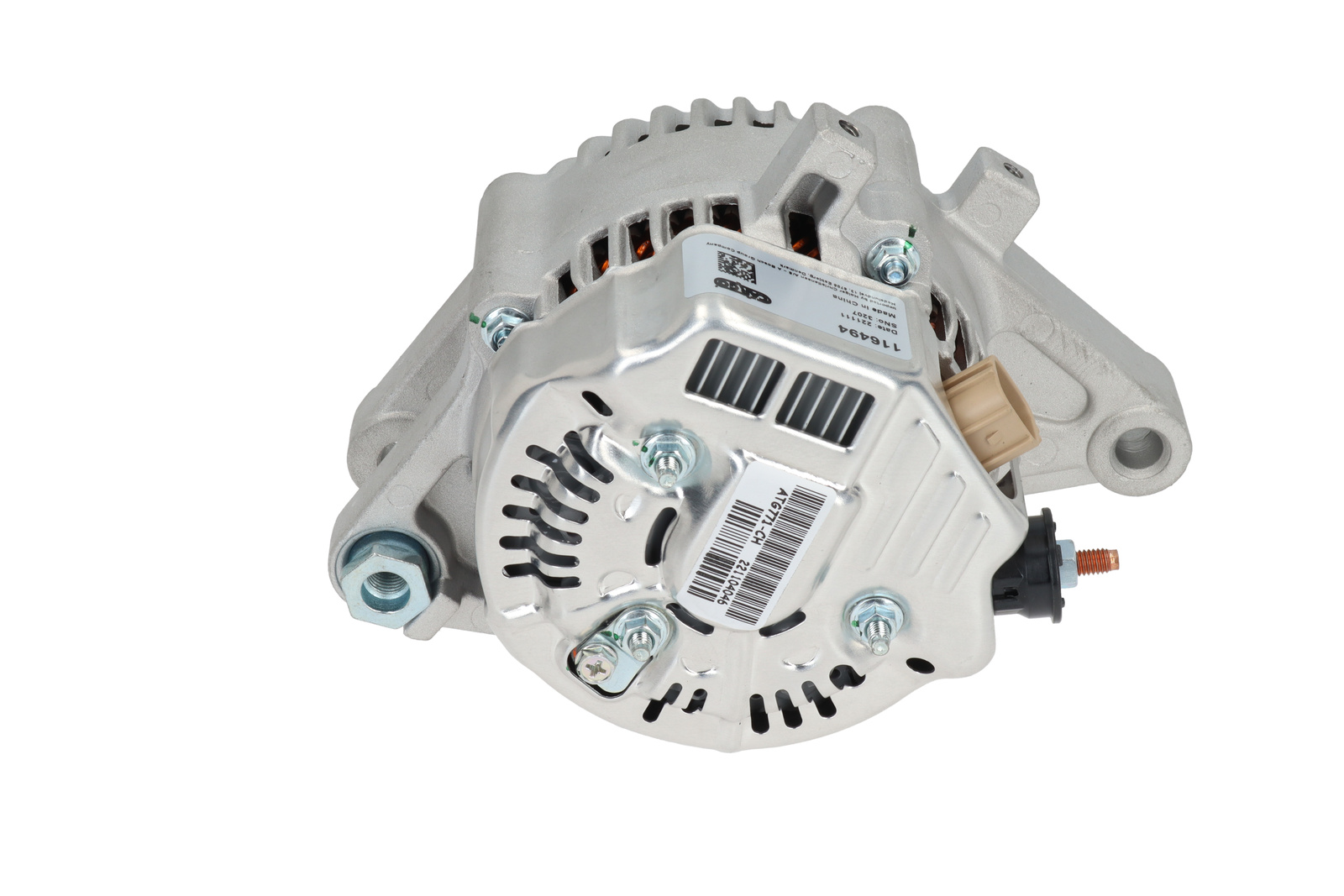

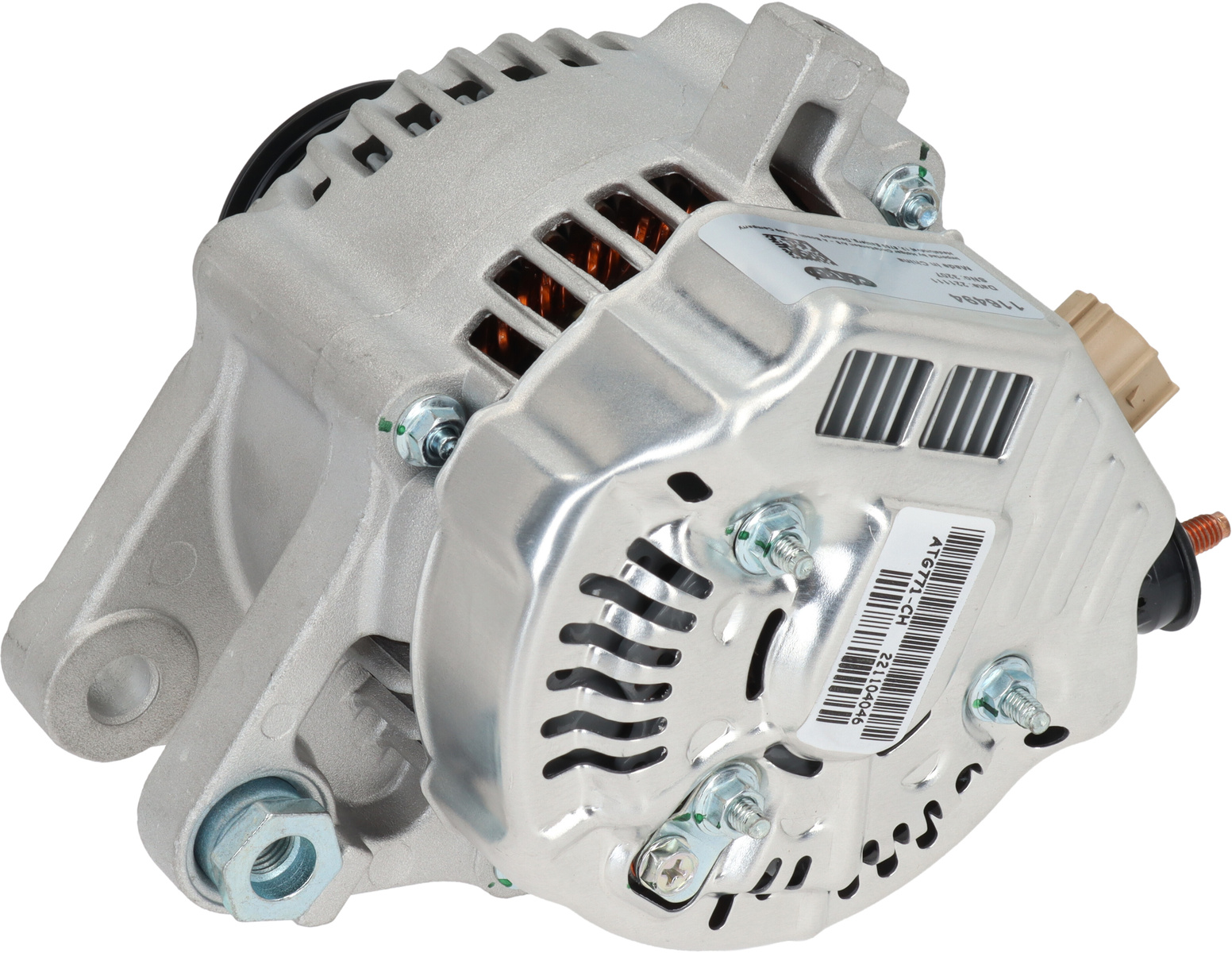

Product image - main
Trade number 116494

Details & description

Voltage 14, Amp 80, Pulley SP, Bracket Hole Size 1 11.00, Pulley Diameter 52.00, Bracket Hole Size Rear M10-1.25, D+ Size Plug, D+ Position 58, Holder Arm Width 18.00, Pulley Distance 40.00, B+ M6, Fan IF, Radius 2 102.50, Plug no. 1 PL78, Mounting Bracket Distance 32.00, Radius 84.50, Rotation CW, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 7, Regulator type IR, B+ Position 50, Belt Adjustment Bracket Hole Position 54, Total Length 162.00

Product information

Electrical information

  • Voltage14
  • Amp80

Physical information

  • PulleySP
  • Bracket Hole Size 111.00
  • Pulley Diameter52.00
  • Bracket Hole Size RearM10-1.25
  • D+ SizePlug
  • D+ Position58
  • Holder Arm Width18.00
  • Pulley Distance40.00
  • B+M6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 2706031010TOYOTA
    • 2706031011TOYOTA

    Competitor References

    • A6439SAUTOSTARTER POLAND
    • CAL40383CASCO SRL
    • CAL40391CASCO SRL
    • 195960080CV PSH
    • 1042108040DENSO
    • 1042108410DENSOBOM
    • 1042108411DENSO
    • DAN1080DENSO
    • 235352802DRI
